| Place of Origin: | China |
|---|---|
| Brand Name: | PLink |
| Model Number: | Y-C11 |
| Minimum Order Quantity: | 1PCS |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | To be discussed |
| NAME: | UAV Jetson Orin Nano 900-13767-0030-000 8GB Carrier Board Devemopment Industrial Board NVIDIA SBC 40 TOPS | Keyword: | UAV Jetson Orin Nano 900-13767-0030-000 8GB Carrier Board Devemopment Industrial Board NVIDIA SBC 40 TOPS |
|---|---|---|---|
| Module: | Jetson Orin Nano 8G | AI Perf: | 40 TOPS |
| Memory: | 8GB 128-bit LPDDR5 | CSi Camera: | Up To 4 Cameras (8 Via Virtual Channels***) 8 Lanes MIPI CSI-2 D-PHY 2.1 (up To 20Gbps) |
| Size: | 120mm*102mm*23mm | Temperature: | -20~+70°C |
| High Light: | UAV Embedded Computer Boards,Jetson Orin Nano Embedded PC Board,Embedded Computer Boards 900-13767-0030-000 |
||

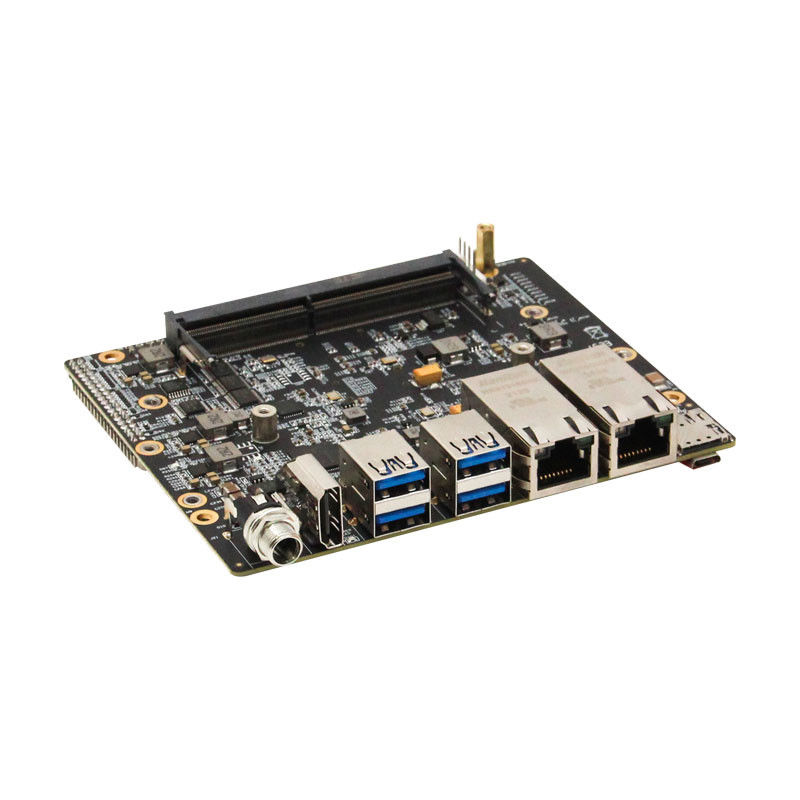

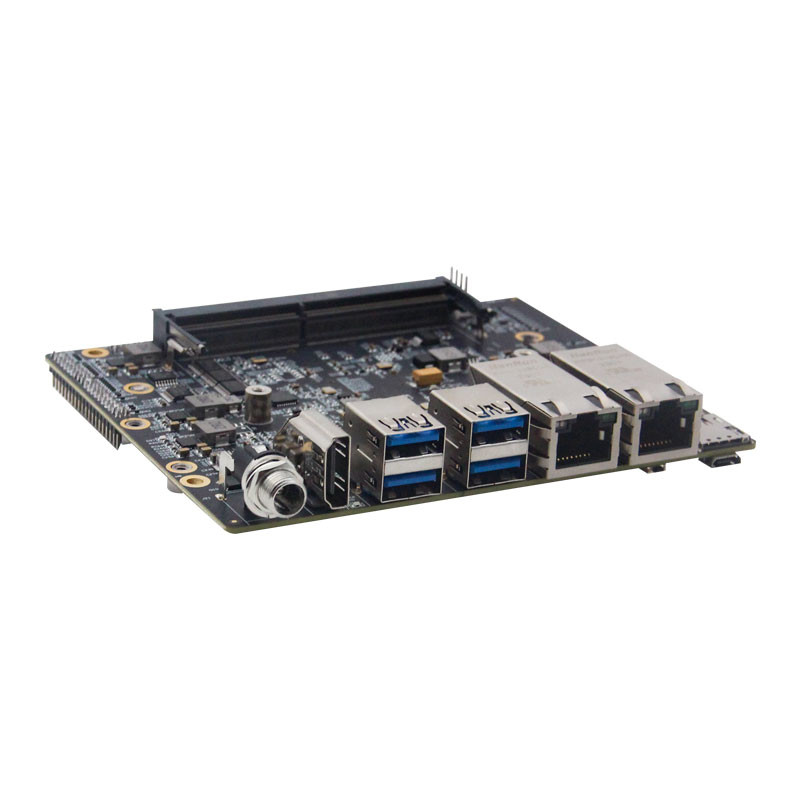

UAV Jetson Orin Nano 900-13767-0030-000 8GB Carrier Board Devemopment Industrial Board NVIDIA SBC 40 TOPS

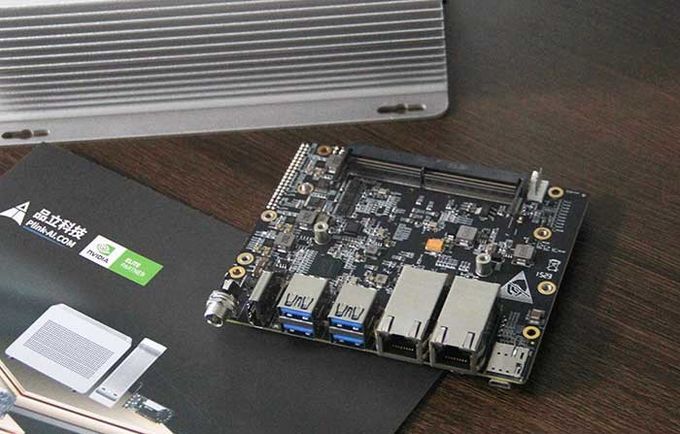

NVIDIA carrier board with Jetson Orin Nano 900-13767-0030-000module development board Y-C11
Y-C11 is an artificial intelligence development board independently developed by PLink-AI Technology, which is mainly adapted to NVIDIA Jetson Orin NX/NVIDIA Jetson Orin Nano 900-13767-0030-000 core module. In addition to the default external interface, it can also be directly equipped with 4G/5G communication module and expand POE power supply support. and it adopts wide temperature industrial model and anti-falling power terminal. Type-B Micro-USB interface, used for system burning and OTG function output, Recovery button, used to make the core module enter the recovery mode
Module:NVIDIA Jetson Orin Nano 8G 900-13767-0030-000
AI Performance:40 TOPS
Memory:8GB 128-bit LPDDR5
Technical Specification
Jetson Orin Nano 8GB 900-13767-0030-000
|
GPU |
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
|
CPU |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU1.5MB L2 + 4MB L3 |
|
Memory |
8GB 128-bit LPDDR5 |
|
Storage |
- |
|
Camera |
Up to 4 cameras (8 via virtual channels***) |
|
Video Encode |
1080p30 supported by 1-2 CPU cores |
|
Video Decode |
1x 4K60 (H.265) |
|
Size |
120mm*102mm*23mm |
|
Weight |
108g |
|
Power Input |
DC +12V to +24V |
|
Operating temperature |
-20~+65℃ |
