| Place of Origin: | China |
|---|---|
| Brand Name: | NVIDIA |
| Model Number: | Y-C11-DEV-ONX16 |
| Minimum Order Quantity: | 1PCS |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 20pcs 15-30 work days |
| NAME: | NVIDIA Jetson Orin NX 16GB Developer Kit 100 TOPS 1024-core NVIDIA Ampere GPU 128-bit LPDDR5 | Keyword: | NVIDIA Jetson Orin NX 16GB Developer Kit 100 TOPS 1024-core NVIDIA Ampere GPU 128-bit LPDDR5 |
|---|---|---|---|
| Module: | NVIDIA Jetson ORIN NX 16G | AI Perf: | 100 TOPS |
| Temp: | -20~+65°C | Memory: | 16GB 128-bit LPDDR5 |
| Storage: | Supports External NVMe | Size: | 120mm*108mm*36mm |
| Power Supply: | DC +12V～+24V | Weight: | 188g |
| High Light: | 1024 Core Embedded Development Kit,100 TOPS Embedded Development Kit,16GB Nvidia Jetson Nx Developer Kit |
||
NVIDIA Jetson Orin NX 16GB Developer Kit 100 TOPS 1024-core NVIDIA Ampere GPU 128-bit LPDDR5
NVIDIA Jeton Orin Nano 4G Module Developer Kit Y-C11-DEV

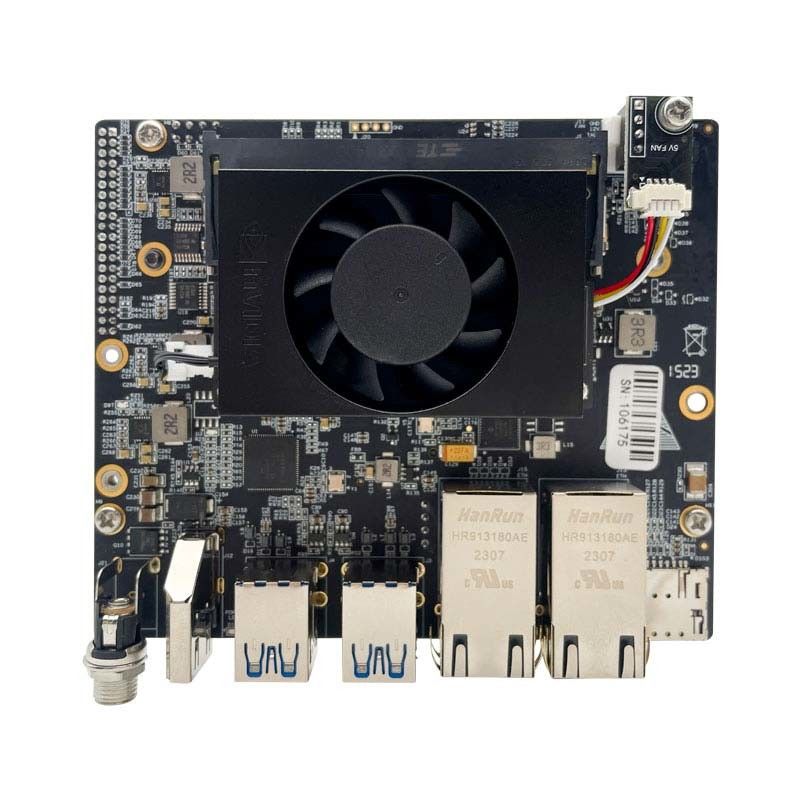

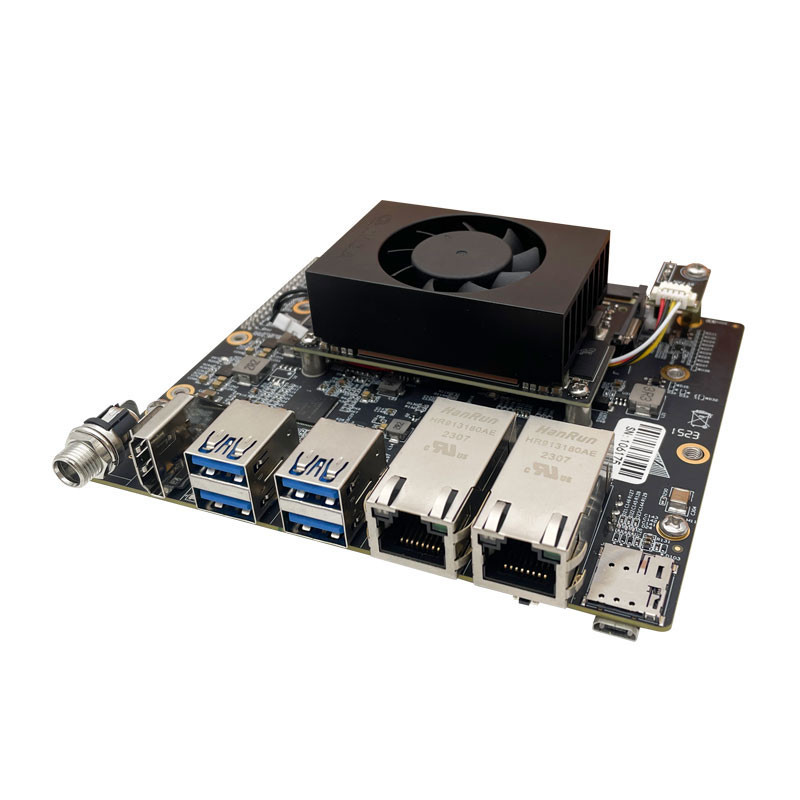

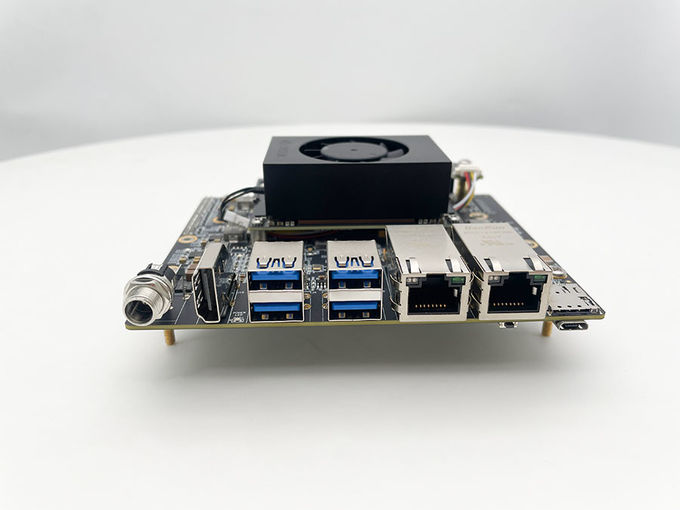

The Y-C11-DEV is based on the Plink AI development system driven by NVIDIA Jetson ORIN NX and ORIN NANO modules. All the components on the board are of wide temperature type, The input power supply has the functions of overvoltage and reverse polarity protection, and has a variety of external interfaces. In addition, one MiniPCIe connector (including USB2.0 and PCIe X1 signal) can carry hundreds of functional modules to further expand the system functions. The M.2 B key slot of the Y-C11 carrier board can be directly equipped with 4G/5G communication module, and the carrier board has a Nano SIM card slot. Two independent gigabit network ports all can extend POE power supply support.
|
|
NVIDIA Jetson Orin NX 16GB |
NVIDIA Jetson Orin NX 8GB |
NVIDIA Jetson Orin Nano 8GB |
NVIDIA Jetson Orin Nano 4GB |
|
AI Perf |
100 TOPS |
70 TOPS |
40 TOPS |
20 TOPS |
|
GPU |
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores |
||
|
CPU |
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU2MB L2 + 4MB L3 |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU1.5MB L2 + 4MB L3 |
||
|
Memory |
16GB 128-bit LPDDR5 |
8GB 128-bit LPDDR5 |
8GB 128-bit LPDDR5 |
4GB 64-bit LPDDR5 |
|
Storage |
- |
|||
|
Video Encode |
1x 4K60 (H.265) |
1080p30 supported by 1-2 CPU cores |
||
|
Video Decode |
1x 8K30 (H.265) |
1x 4K60 (H.265) |
||
|
CSI Camera |
Up to 4 cameras (8 via virtual channels***) |
Up to 4 cameras (8 via virtual channels***) |
||
