| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | Y-C8-DEV-Xavier |
| Minimum Order Quantity: | 1 |
| Price: | To be discussed |
| Packaging Details: | 195mm × 180mm × 50mm |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1+set+4weeks |
| NAME: | PCIE Industrial Embedded Jetson Xavier Agx Dev Kit Carrier Board 32G 8 Core | Keyword: | PCIE Industrial Embedded Jetson Xavier Agx Dev Kit Carrier Board 32G 8 Core |
|---|---|---|---|
| Model Number: | Y-C8-DEV-Xavier | Memory: | 32GB 256-bit LPDDR4 X 136.5GB/s |
| USB Micro-B: | *1 | USB Type-A: | *1 |
| Single Package Size: | 188mm × 170mm × 43mm | Input Power: | DC +12V |
| Temperature Range: | -25℃ To 65℃ | GPIO(3.3V) *1: | *1 |
| RS 232: | *2 | Networking: | 1 X 10/100/1000 Ethernet/RJ45 |
| High Light: | Industrial xavier agx dev kit,PCIE xavier agx dev kit,Embedded jetson agx xavier carrier board |
||

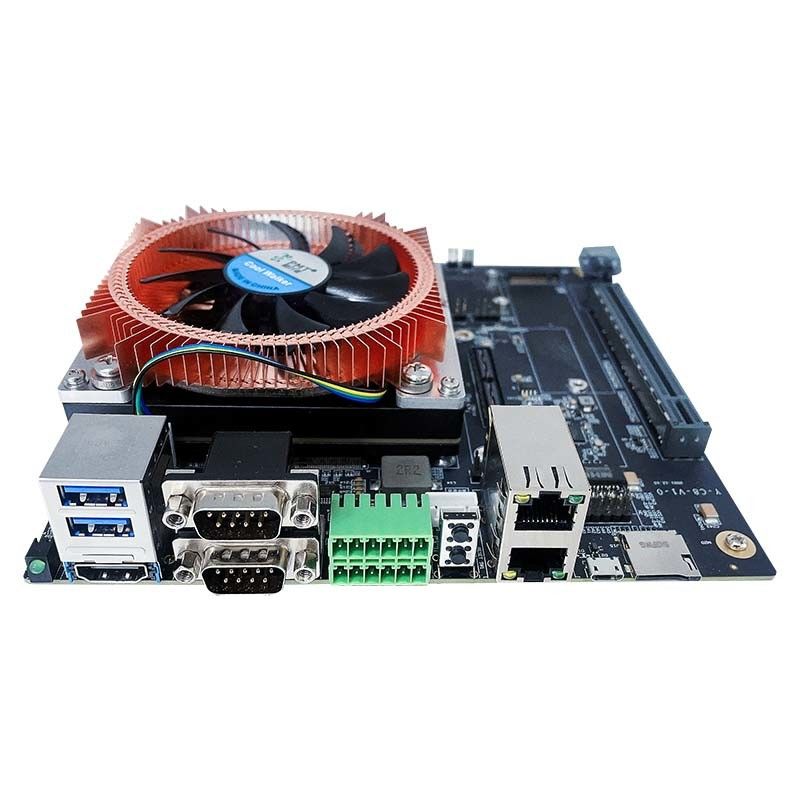

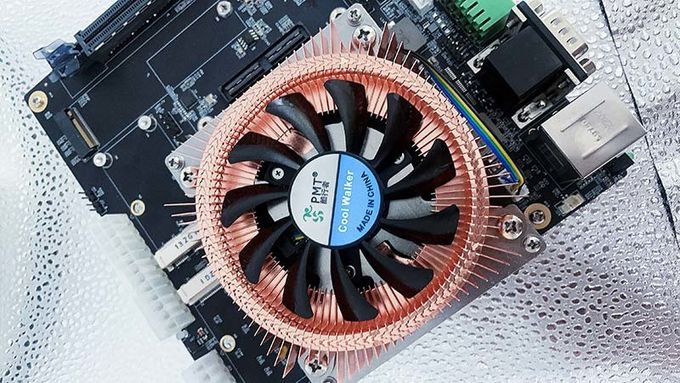

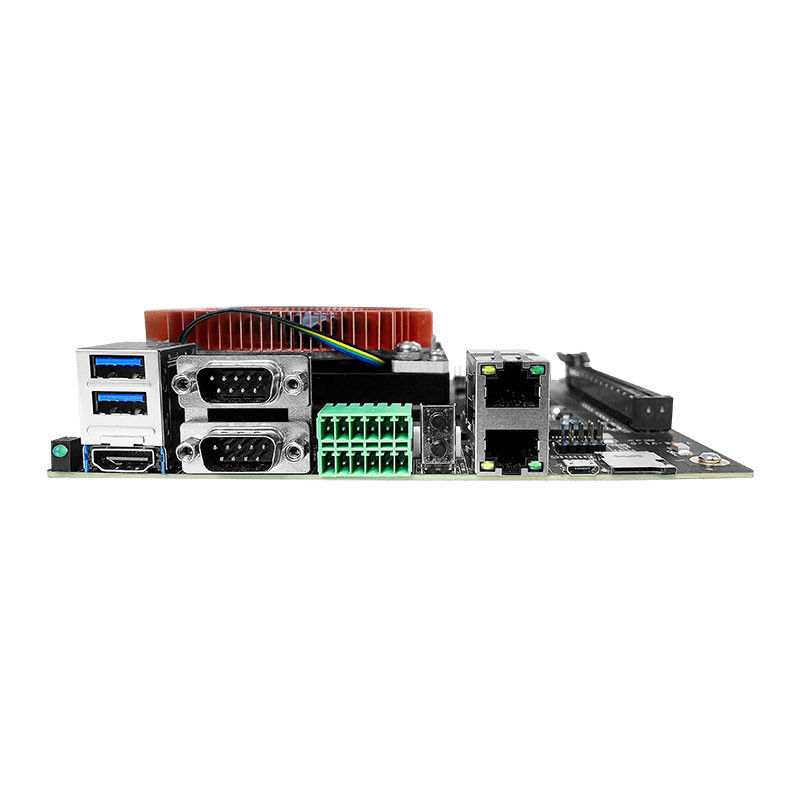

PCIE Industrial Embedded Jetson Xavier Agx Dev Kit Carrier Board 32G 8 Core
Y-C8-DEV(Jetson AGX Xavier 32G domestic developer kit)
Y-C8 Carrier Board + NVIDIA Jetson AGX Xavier Module (32G) + Cooling FAN
The Y-C8-DEV-Xavier 32G Nvidia Agx Developer Kit is seld-developer kit by PLINK-AI,and it based on NVIDIA Jetson AGX Xavier module (32G), the CPU is 8-core NVIDIA Carmel Arm® v8.2 64-bit CPU 8MB L2 + 4MB L3, and four GPIO(3.3V), one SPI(3.3V), two I2C(3.3V) , two RS 232, 1 Debug(UART), two CAN (with on-board transceiver), one 10/100/1000 Ethernet/RJ45. It is for industrial such as autonomous, VR, drones, robotics and logistics.
NVIDIA Jetson AGX Xavier Module (32G) Technical Specifications
|
AI Perf |
32 TOPS |
|
CPU |
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
|
GPU |
512-core NVIDIA Volta architecture GPU with 64 Tensor Cores |
|
Memory |
32GB 256-bitLPDDR4x 136.5GB/s |
|
Storage |
32GB eMMC 5.1 |
|
USB |
3x USB 3.2 Gen2 (10 Gbps) |
|
CSI Camera |
Up to 6 cameras |
|
Display |
3 multi-mode DP 1.4/eDP 1.4/HDMI 2.0 |
|
CPU |
8-core NVIDIA Carmel Arm® v8.2 64-bit CPU 8MB L2 + 4MB L3 |
|
GPU |
512-core NVIDIA Volta GPU with 64 Tensor Cores |
|
USB Micro-B |
1 x Type B (OTG) |
|
USB Type-A |
1 x USB 3.1 |
|
GPIO(3.3V) |
1 |
|
SPI(3.3V) |
1 |
|
I2C(3.3V) |
2 |
|
RS 232 |
2 |
|
Debug(UART) |
1 |
|
CAN (with on-board transceiver) |
2 |
|
Networking |
1 x 10/100/1000 Ethernet/RJ45 |
|
Power Supply |
DC +12V |
|
Temperature |
-25~+65°C |
|
Size |
188mm × 170mm × 43mm |
