| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | Y-C6-DEV-Nano |
| Minimum Order Quantity: | $360-$370 \set |
| Price: | USD320-USD350 \SET |
| Packaging Details: | 35X28X24cm |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/P, T/T, D/A |
| Supply Ability: | 1+set+4weeks |
| NAME: | AGV Jetson Nano Embedded Industrial Single Board Computer Developer Kit Face Recognition | Keyword: | AGV Jetson Nano Embedded Industrial Single Board Computer Developer Kit Face Recognition |
|---|---|---|---|
| Model Number: | Nano 4G | Adaptation Core: | Jetson Nano |
| USB3.1 Type-A: | *1 | Micro USB: | *1 |
| HDMI: | *1 | Micro SD: | *1 |
| SIM: | *1 | Power Adapter: | DC +12V 5A |
| Working Temperature: | -25~+80℃ | Single Package Size: | 120mm×80mm×35mm |
| High Light: | AGV industrial single board computer,Jetson industrial single board computer,Jetson embedded single board computer |
||

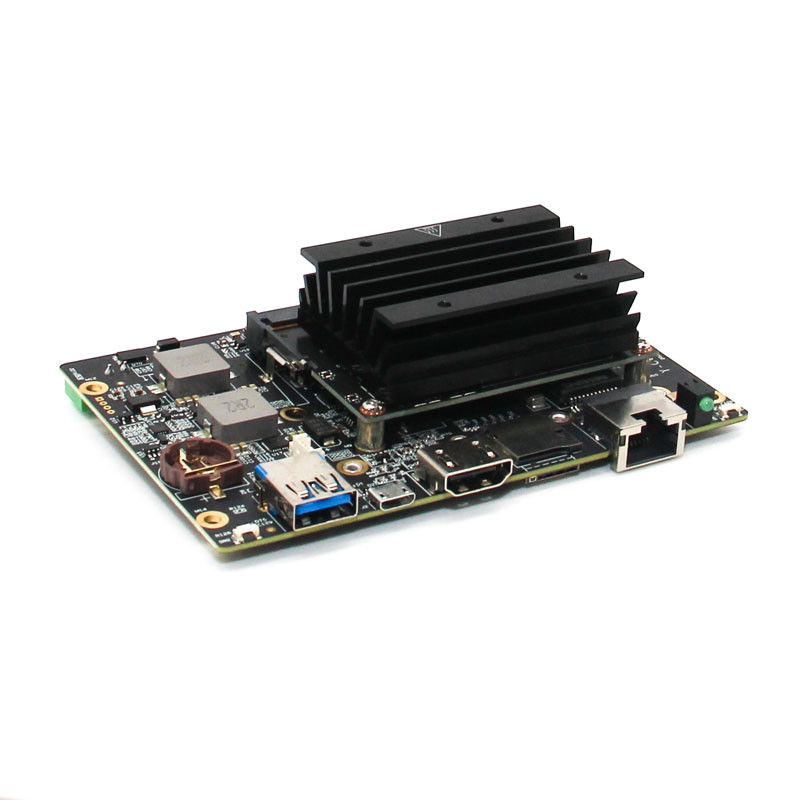

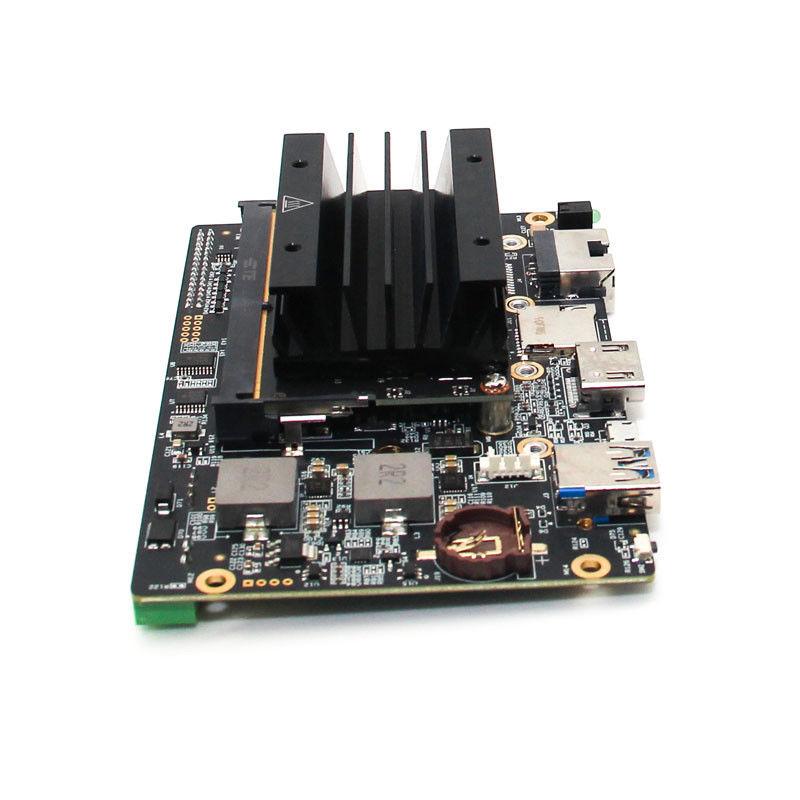

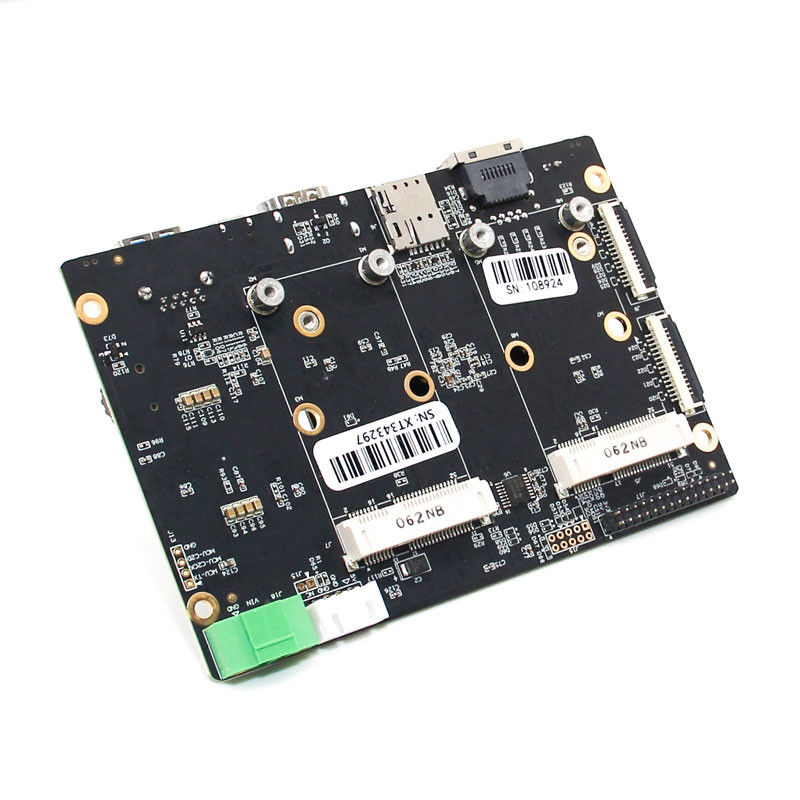

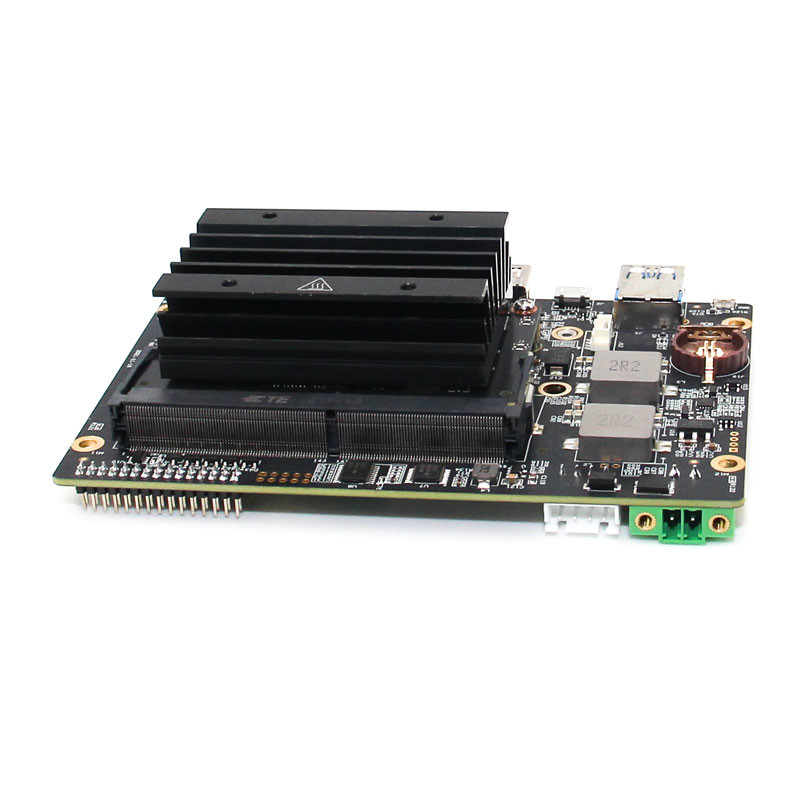

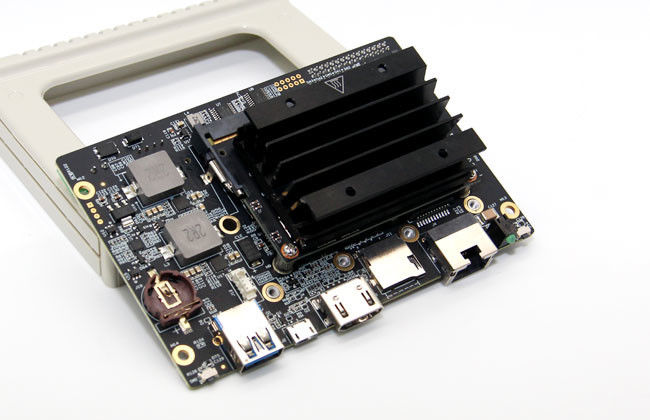

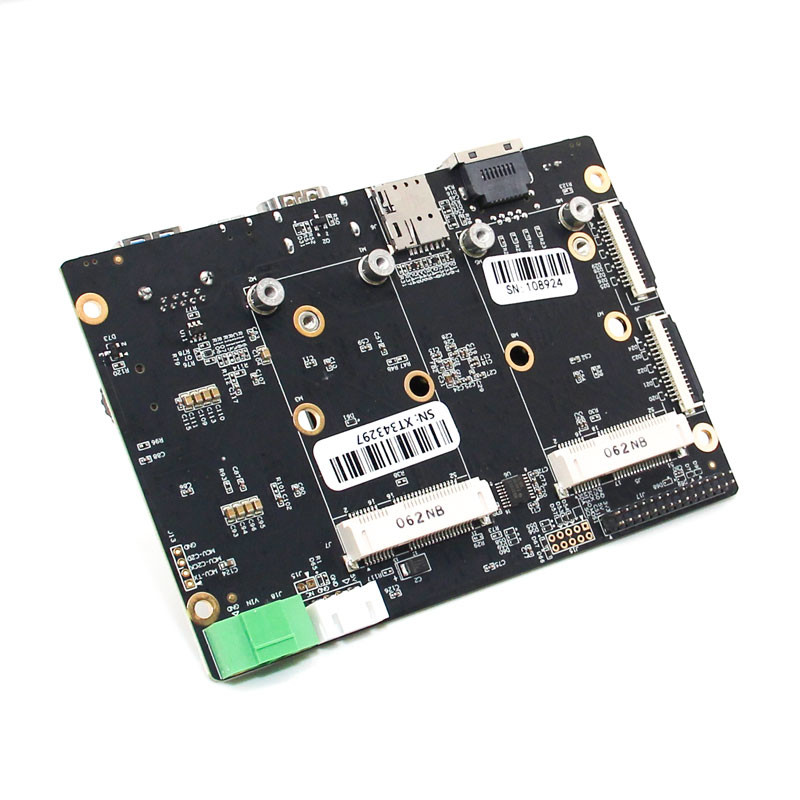

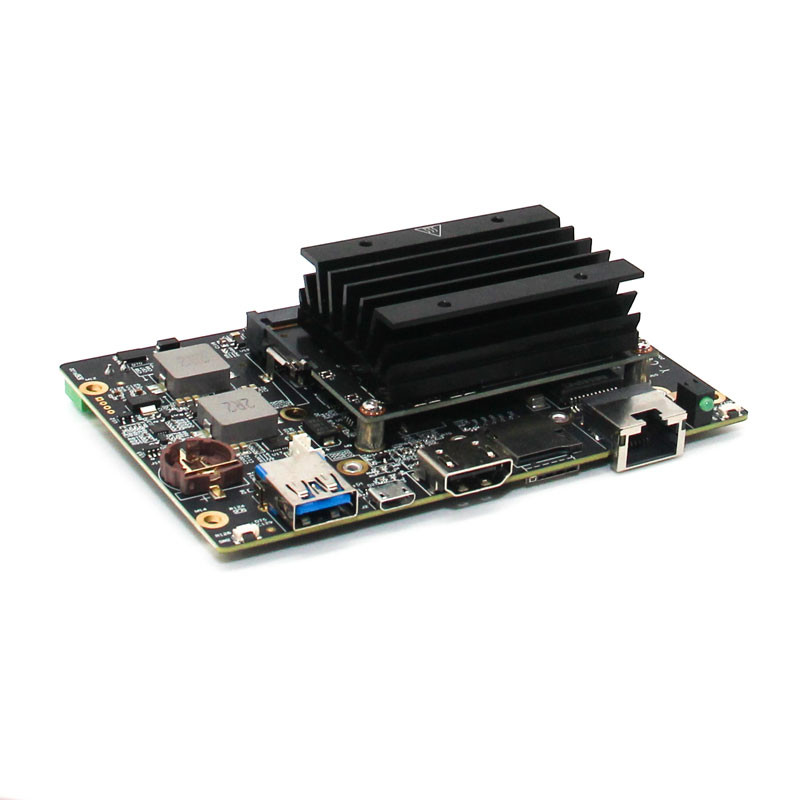

AGV Jetson Nano Embedded Industrial Single Board Computer Developer Kit Face Recognition
Y-C6-DEV is a Plink AI embedded development system powered by the NVIDIA Jetson Nano module. The NVIDIA Jetson Nano module has up to 472 GFLOPS and 128-core NVIDIA Maxwell architecture GPU, the industrial single board computer is for face recognition and retail, agriculture, deep learning etc,.The Jetson Nano Display Controller Complex integrates a MIPI-DSI interface and Serial Output Resource (SOR) to collect pixels from the output of the display pipeline, format/encode them to desired format, and then streams to various output devices. The SOR consists of several individual resources which can be used to interface with different display devices such as HDMI, DP, or eDP.
Adaptation core: NVIDIA Jetson NANO module
Support native system
Board size: 120mm×80mm×35mm
Power adapter: DC +12V 5A
Working temperature: -20~+65℃
NVIDIA Jetson Nano Module Technical Specifications
| AI Perf | 472 GFLOPS |
| CPU | Quad-coreARM®Cortex®-A57MPCore processor |
| GPU | 128-core NVIDIA Maxwell™architecture GPU |
| Memory | 4GB 64-bitLPDDR4 25.6GB/s |
| Storage | 16GB eMMC 5.1 |
| CSI Camera | Up to 4 cameras 12 lanes MIPI CSI-2 D-PHY 1.1 (up to 18 Gbps) |
| USB | 1x USB 3.0 (5 Gbps) 3x USB 2.0 |
| Display | 2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0 1 x2 DSI (1.5Gbps/lane) |
| Micro USB | 1 |
| USB 3.1 Type-A | 1 |
| HDMI 2.0 | 1 |
| RJ45 (10/100/1000BASE-T) | 1 |
| MiniPCIe | 2 |
| micro SD | 1 |
| Nano SIM | 1 |
| CR1220 RTC Battery | 1 |
| 2 Lane MIPI | 2 |
| CAN | 1 |
| RS-232 | 2 |
| 3.3V Debug(UART) | 1 |
| 3.3V GPIO | 3 |
| 3.3V GPO | 1 |
| 3.3V SPI | 1 |
| 3.3V I2C | 2 |
| 30-pin2.0mm Multifunctional interface design | 1 |
