| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | NANO-DEV |
| Minimum Order Quantity: | 1 |
| Price: | USD180-USD200 \SET |
| Packaging Details: | 110x90x30mm |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1+set+4weeks |
| NAME: | Jetson Nano 4G Embedded Linux SBC Single Board Computer HDMI/DP 4 GB 64-Bit LPDDR4 25.6 GB/S | Keyword: | Jetson Nano 4G Embedded Linux SBC Single Board Computer HDMI/DP 4 GB 64-Bit LPDDR4 25.6 GB/S |
|---|---|---|---|
| Model Number: | NANO 4G | Storage: | 16GB EMMC 5.1 /microSD |
| Memory: | 4 GB 64-bit LPDDR4 25.6 GB/s | USB: | USB 3.0 × 4，USB 2.0 OTG × 1 |
| Power Supply: | DC + 9V | Single Package Size: | 110x90x30mm |
| Operating Temperature: | -0~ + 50°C | GPU: | 128-core Maxwell |
| CPU: | Quad-core ARM A57 @ 1.43 GHz | Other: | FAN Header (GPIO,I2C,I2S,SPI,UART) |
| High Light: | Jetson embedded linux sbc,4G embedded linux sbc,4G embedded linux single board computer |
||

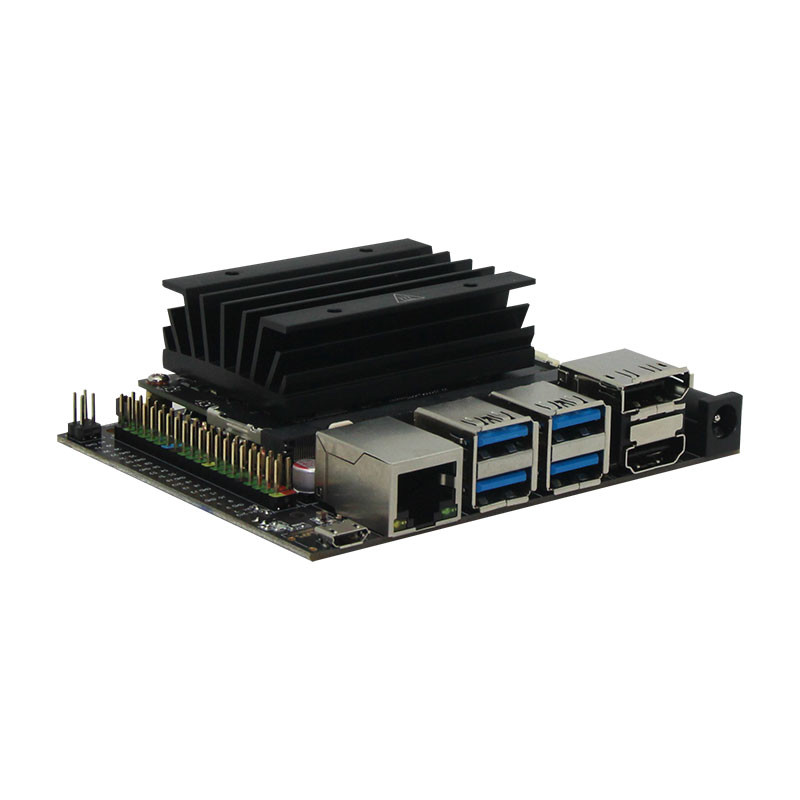

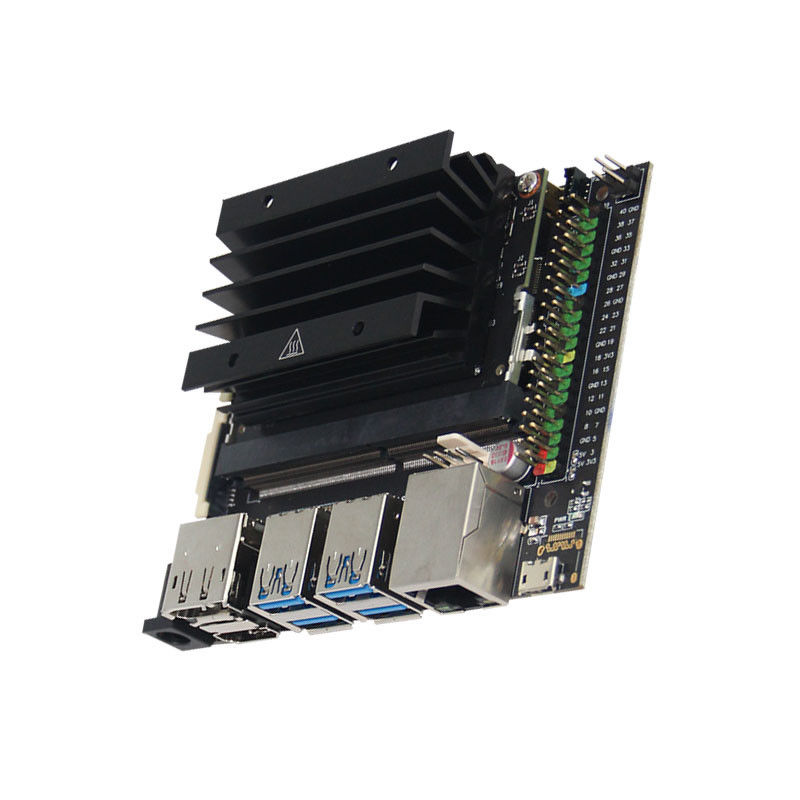

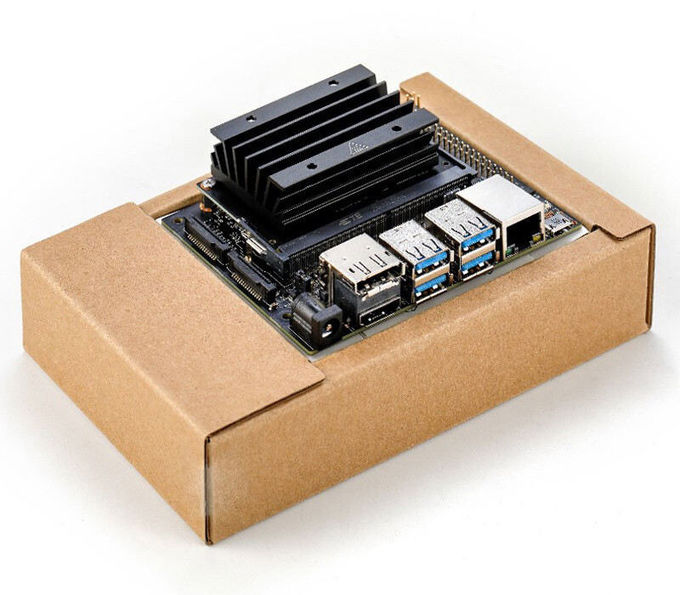

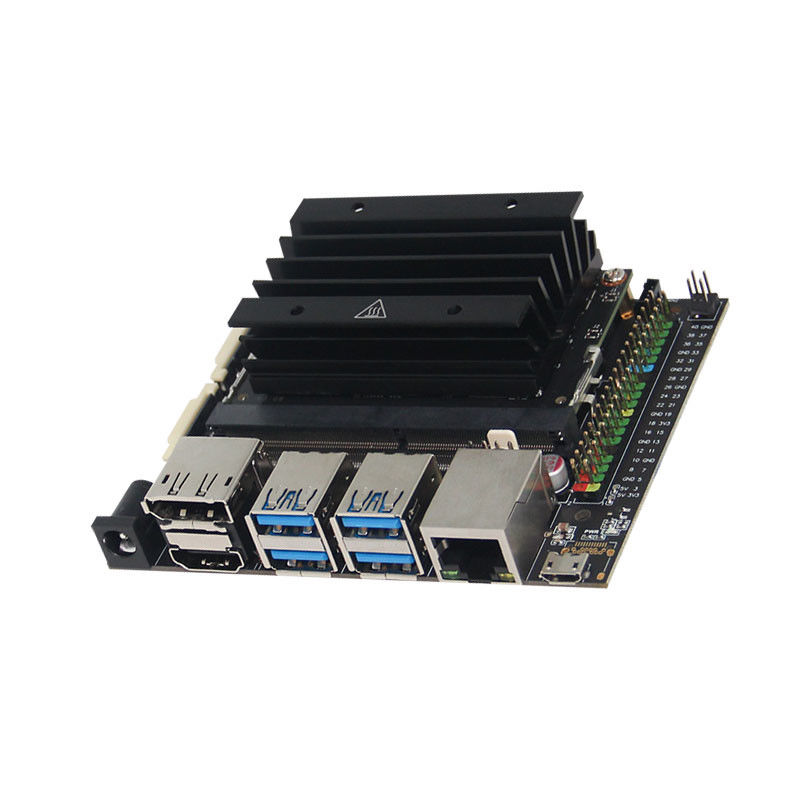

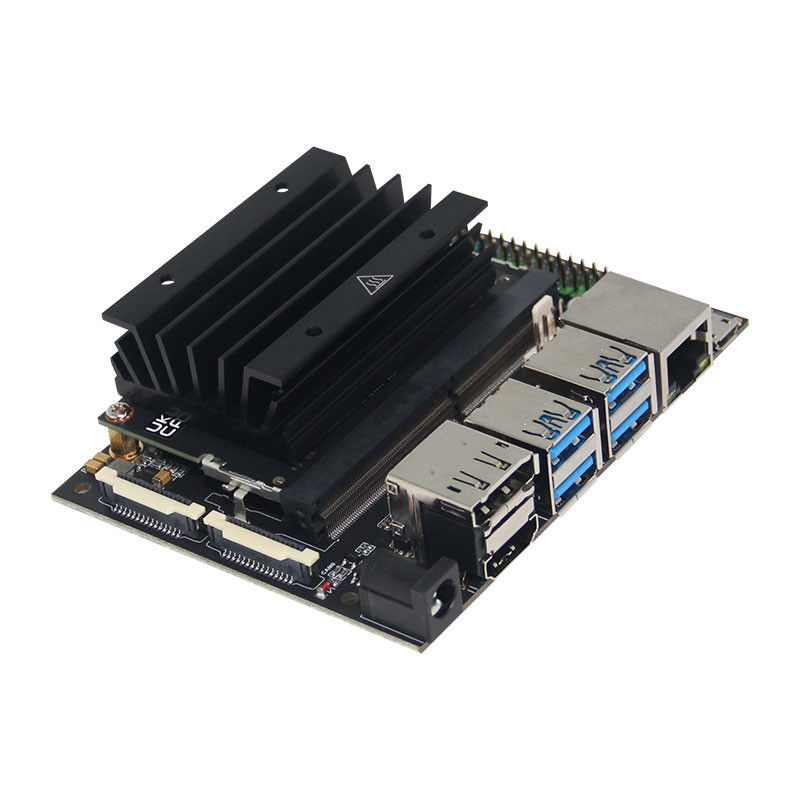

Jetson Nano 4G Embedded Linux SBC Single Board Computer HDMI/DP 4 GB 64-Bit LPDDR4 25.6 GB/S
The domestic developer kit is PLINK self-developed AI kit, based on NVIDIA Jetson Nano module, it has four USB 3.0 and one USB 2.0 OTG,4 GB 64-bit LPDDR4 25.6 GB/s,Quad-core ARM A57 @ 1.43 GHz,4 GB 64-bit LPDDR4 25.6 GB/s,FAN Header (GPIO,I2C,I2S,SPI,UART),The Micro USB port can be used for 5V power input or USB data transfer, it is for industrial autonomous edge AI, face recognition, autopilot, cooperation and retail etc,.
The Interface Display
Micro SD card slot
USB 3.0 ports
NVIDIA Jetson Nano Developer Kit (domestic) Technical Specifications
|
Memory |
4 GB 64-bit LPDDR4 25.6 GB/s |
|
CPU |
Quad-core ARM A57 @ 1.43 GHz |
|
GPU |
128-core Maxwell |
|
VStorage |
16GB eMMC 5.1 /microSD |
|
Video Encode |
4K @ 30 | 4x 1080p @ 30 | 9x 720p @ 30 (H.264/H.265) |
|
Video Decode |
4K @ 60 | 2x 4K @ 30 | 8x 1080p @ 30 | 18x 720p @ 30 (H.264/H.265) |
|
Expand the storage |
Support M.2 E key NVME hard disk |
|
Display |
HDMI/DP |
|
Camera |
2x MIPI CSI-2 DPHY lanes |
|
Power supply |
DC + 9V |
|
USB |
4*USB 3.0 |
|
1*USB 2.0 OTG |
|
|
Operating temperature |
-0~ + 50°C |
|
Other |
FAN Header (GPIO,I2C,I2S,SPI,UART) |
|
I/O |
40-PIN GPIO |
|
Size |
100 mm * 80 mm * 28 mm |
