| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | TX2-DEV |
| Minimum Order Quantity: | 1 |
| Price: | To be discussed |
| Packaging Details: | 92mm × 70mm × 60mm |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1+set+4weeks |
| NAME: | 1.33 TFLOPS RJ45 2 Lane MIPI Industrial SBC Embedded System NVIDIA Jetson TX2 8G Developer Kit | Keyword: | 1.33 TFLOPS RJ45 2 Lane MIPI Industrial SBC Embedded System NVIDIA Jetson TX2 8G Developer Kit |
|---|---|---|---|
| Model Number: | TX2-DEV | Adaptation Core: | Jetson TX2 8G |
| AI Performance: | 1.33 TFLOPS | Memory: | 8 GB 128-bit LPDDR4 59.7 GB/s |
| RS-232: | *1 | USB3.0: | *2 |
| 2 Lane MIPI: | *1 | Networking: | *1 |
| Weight: | 51g | Board Size: | 87mm×60mm×16mm |
| Working Temperature: | -40~+85°C | ||
| High Light: | TFLOPS SBC Embedded System,MIPI SBC Embedded System,TFLOPS embedded sbc |
||
1.33 TFLOPS RJ45 2 Lane MIPI Industrial SBC Embedded System NVIDIA Jetson TX2 8G Developer Kit
NVIDIA AI Development Kit Jetson TX2 8G

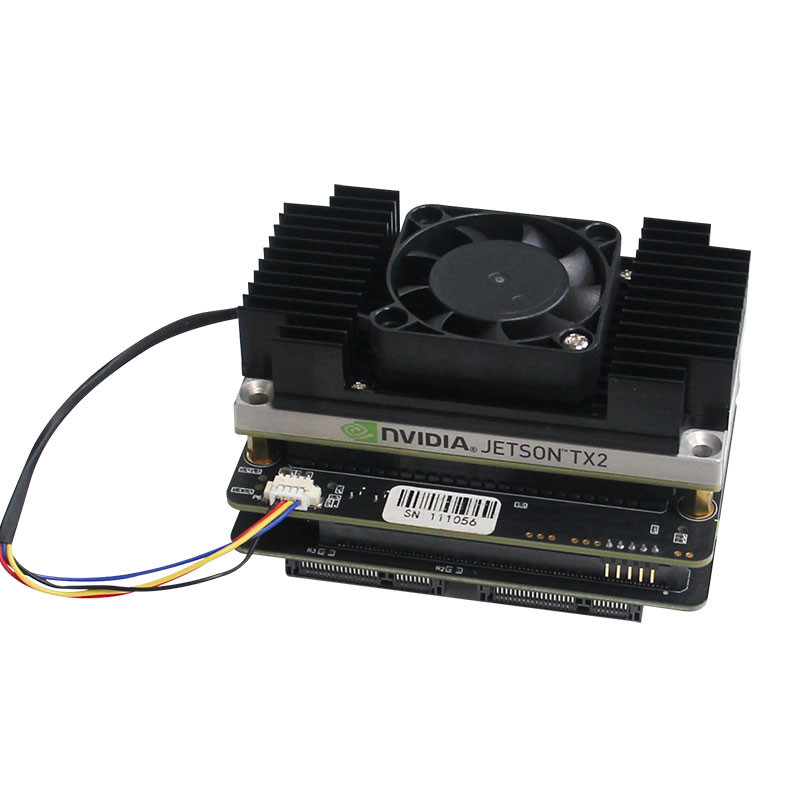

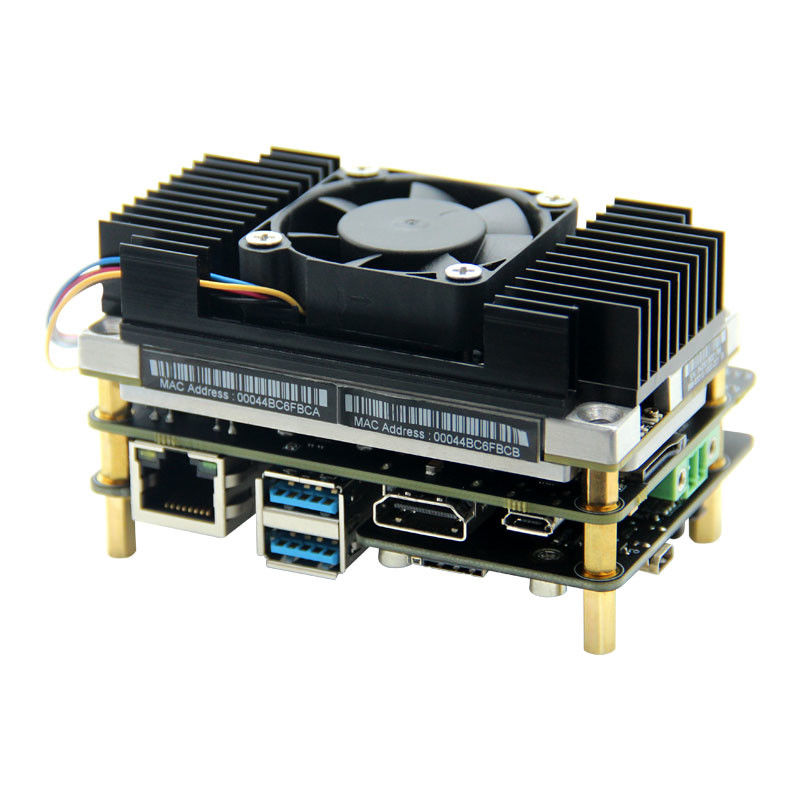

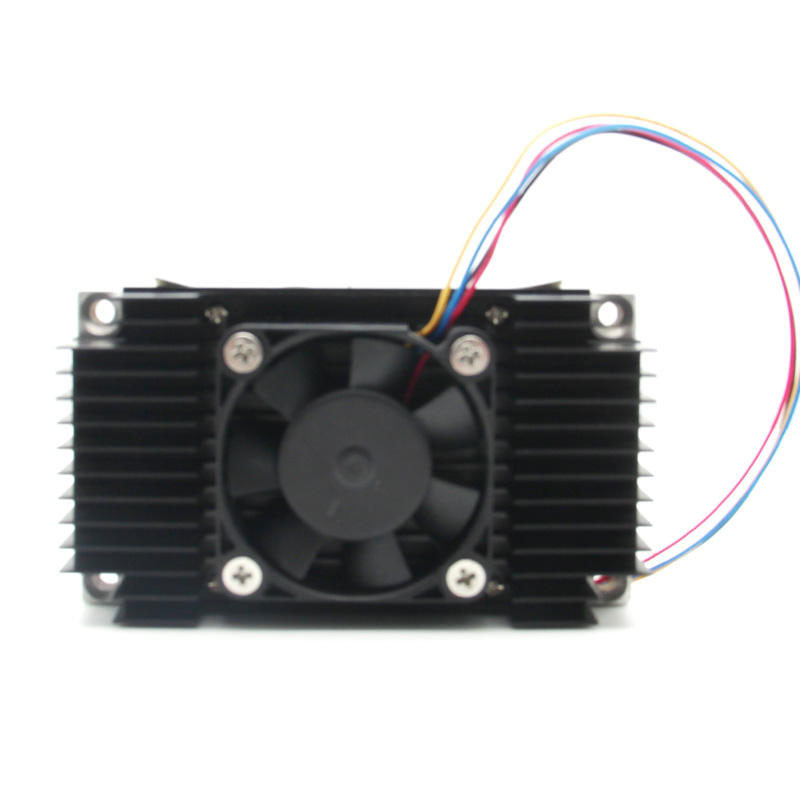

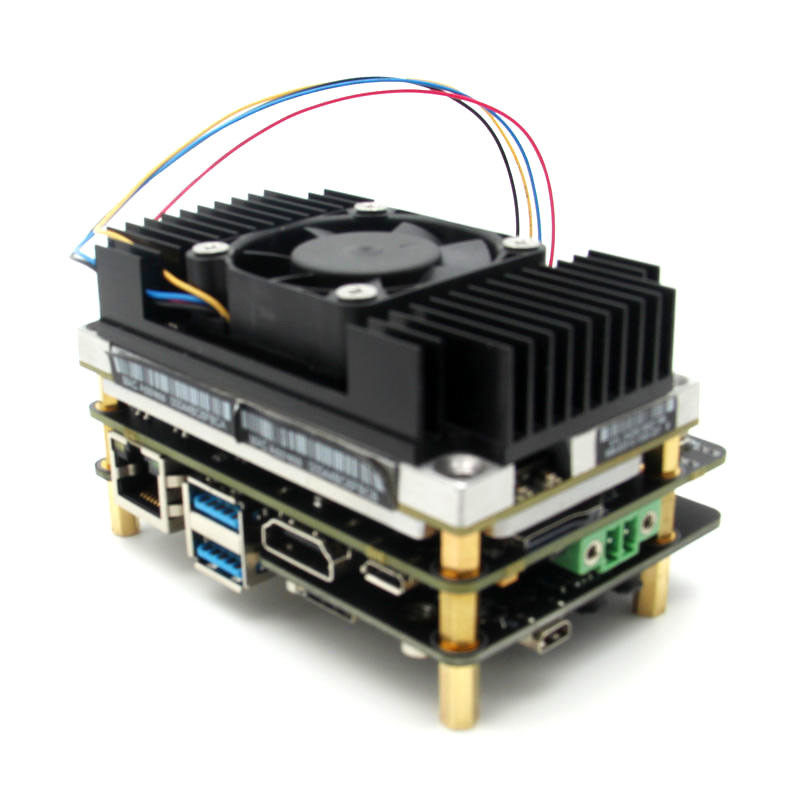

Y-C1 Industrial Carrier Board + NVIDIA Jetson TX2 Module + Cooling FAN
TX2-DEV is an industrial SBC embedded system which is based on NVIDIA Jetson TX2 module, the developer kit is for autonomous machines.The NVIDIA Jetson TX2 is ideal for many applications including (but not limited to): Drones, Robotics, Gaming Devices, Virtual Reality, Augmented Reality and Portable Medical Devices.
NVIDIA Jetson TX2 8G Module Technical Specifications
| AI Perf | 1.33 TFLOPS |
| GPU | 256-core NVIDIA Pascal™ architecture GPU |
| CPU | Dual-core NVIDIA Denver™ 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor |
| memory | 8GB 128-bitLPDDR4 59.7GB/s |
| Storage | 32GB eMMC 5.1 |
| Display | 2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0 2 x4 DSI (1.5Gbps/lane) |
| CSI Camera | Up to 6 cameras (12 via virtual channels) 12 lanes MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps) |
| USB | up to 3x USB 3.0 (5 Gbps) 3x USB 2.0 |
NVIDIA Jetson TX2 8G Developer Kit
Configurable power-on mode (default is power-on self-start)
Onboard encryptor for encryption protection of applications
User-accessible on-board tri-color LED indicators within the operating system
Board size: 87mm×60mm×16mm
Power requirements: +7V~+19V
Working temperature: -40~+85°C
Weight: 51g
|
USB3.0 |
2 |
|
CAN |
2 |
| 3.3V (UART) | 3 |
|
3.3V level Debug |
1
|
| Gigabit Ethernet (10/100/1000 BASE-T) |
1 |
| GPIOs(3.3V) |
4 |
| RTC battery pin header | 1 |
| 621 RTC battery holder |
1 |
| HDMI 2.0 | 1 |
| SD card |
1 |
| I2C(3.3V) |
1 |
|
fan control |
1 |
| Power |
+7V~+19V |
