| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | Y-C6-DEV-Nano |
| Minimum Order Quantity: | 1 |
| Price: | $360-$370 \set |
| Packaging Details: | 35X28X24cm |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1+set+4weeks |
| NAME: | Type-A 2 Lane MIPI RS232 SBC Embedded System Nano Nvidia Jetson Developer Kit USB 3.1 | Keyword: | Type-A 2 Lane MIPI RS232 SBC Embedded System Nano Nvidia Jetson Developer Kit USB 3.1 |
|---|---|---|---|
| Model Number: | Y-C6-DEV-Nano | Adaptation Core: | Jetson Nano |
| USB3.1 Type-A: | *1 | Micro USB: | *1 |
| Power Adapter: | DC +12V 5A | Working Temperature: | -20~+65℃ |
| Micro SD: | *1 | MiniPCIe: | *2 |
| HDMI: | *1 | Board Size: | 120mm×80mm×35mm |
| High Light: | 2 Lane SBC Embedded System,RS232 SBC Embedded System,SBC nvidia jetson developer |
||

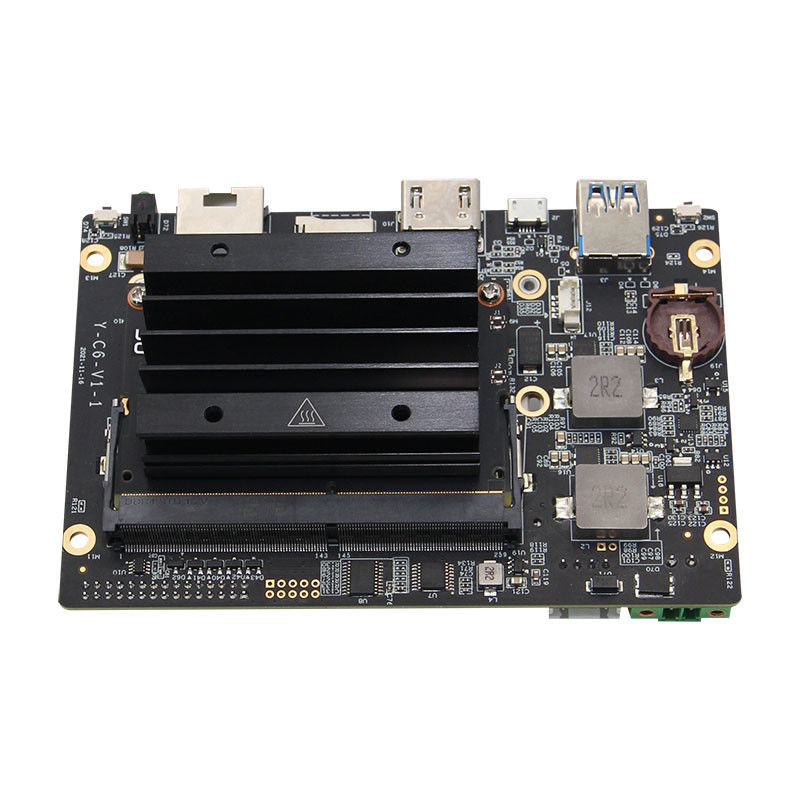

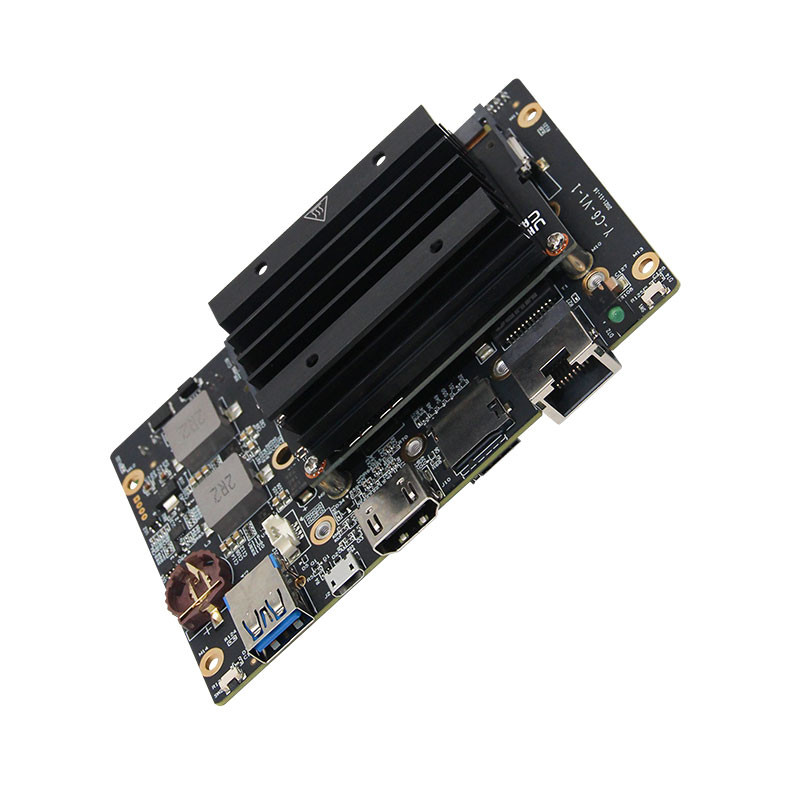

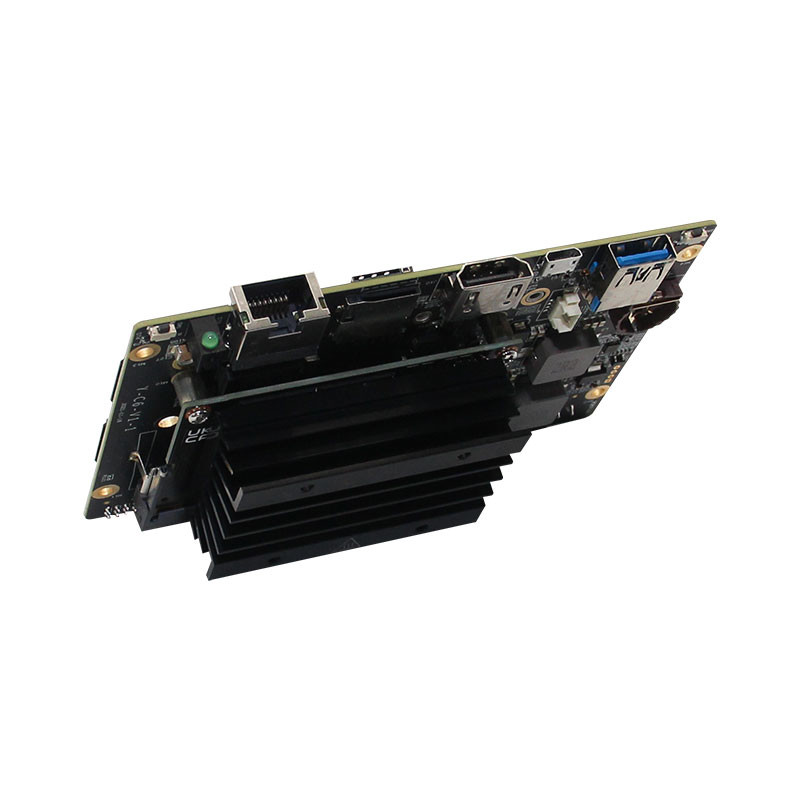

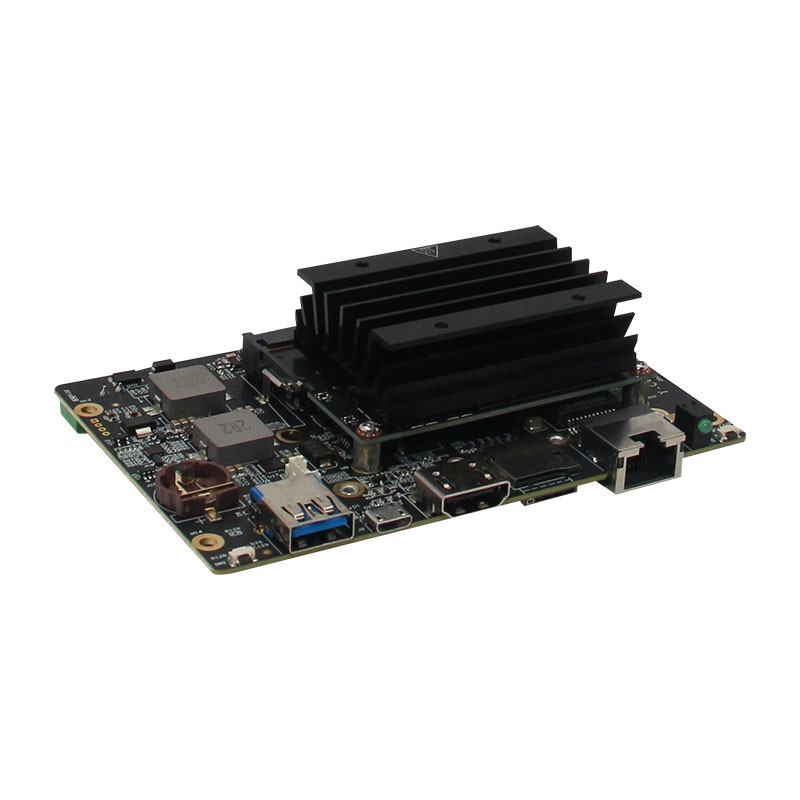

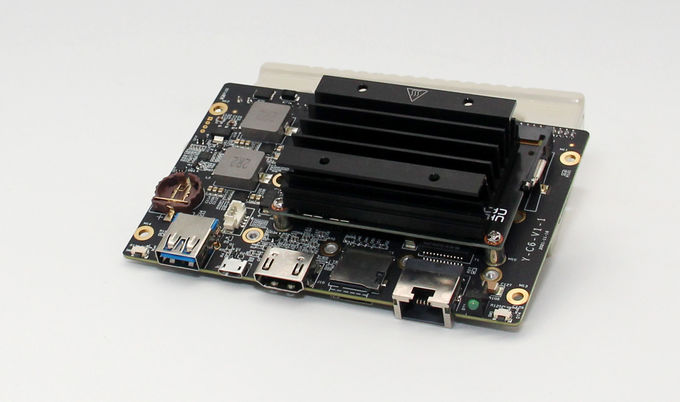

Type-A 2 Lane MIPI RS232 SBC Embedded System Nano Nvidia Jetson Developer Kit USB 3.1
NVIDIA Machine Learning Kit Jetson Nano developer kit
Embedded Linux Single Board Computer (Y-C6-DEV)
Y-C6-DEV-Nano is based on the NVIDIA Jetson Nano module. It is produced by PLINK, for industrial autonomous such as face recognition, construction, retail, logistic, V2X etc,. the temperature is -25 to +80°C, The main interface is designed for static electricity safety protection, and adopts high reliability power supply application scheme. Two MiniPCIe connectors, one Micro USB, one RJ45, one HDMI 2.0, one CR1220 RTC Battery, one micro SD, one Nano SIM, two 2 Lane MIPI, one CAN, two RS 232, one SPI(3.3V)
NVIDIA Jetson Nano module
ARM Cortex-A57 + Maxwell GPU + 4GB LPDDR4 + 16GB eMMC
NVIDIA Jetson Nano Developer Kit Product parameters
Temperature: -20~+65°C
Support native system
Adapter: AC to DC /220V to +12V 5A
Anti falling off interface design
Size: 120mm*80mm*35mm
| USB 3.1 Type-A | 1 |
| 2 Lane MIPI | 2 |
| Micro USB | 1 |
| MiniPCIe | 2 |
| HDMI 2.0 | 1 |
| 3.3V Debug(UART) | 1 |
| Nano SIM | 1 |
| RS-232 | 2 |
| CR1220 RTC Battery | 1 |
| CAN | 1 |
| I2C(3.3V) | 2 |
| Micro SD | 1 |
| GPIO(3.3V) | 3 |
| SPI(3.3V) | 1 |
| GPO(3.3V) | 1 |
| 30-pin2.0mm Multifunctional interface design | 1 |
| RJ45 | 1 |
