| Place of Origin: | China |
|---|---|
| Brand Name: | NVIDIA |
| Model Number: | Y-C11-DEV |
| Minimum Order Quantity: | 1PCS |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 20pcs 15-30 work days |
| NAME: | NVIDIA Jetson Orin Nano Dev Kit 4G NVIDIA Ampere GPU 8 Lanes MIPI CSI-2 USB | Keyword: | NVIDIA Jetson Orin Nano Dev Kit 4G NVIDIA Ampere GPU 8 Lanes MIPI CSI-2 USB |
|---|---|---|---|
| Module: | NVIDIA Jetson ORIN Nano 4G | Power Supply: | DC +12V～+24V |
| AI Perf: | 20 TOPS | Memory: | 4GB 64-bit LPDDR5 |
| Storage: | - (Supports External NVMe) | Weight: | 188g |
| Camera: | 8 Lanes MIPI CSI-2 | Size: | 120mm*108mm*36mm |
| Temp: | -20~+65°C | ||
| High Light: | 4G Jetson Orin Nano Dev Kit,USB Jetson Orin Nano Dev Kit,USB Embedded Development Kit |
||
NVIDIA Jetson Orin Nano Dev Kit 4G NVIDIA Ampere GPU 8 lanes MIPI CSI-2 USB
NVIDIA Jeton Orin Nano 4G Module Developer Kit Y-C11-DEV

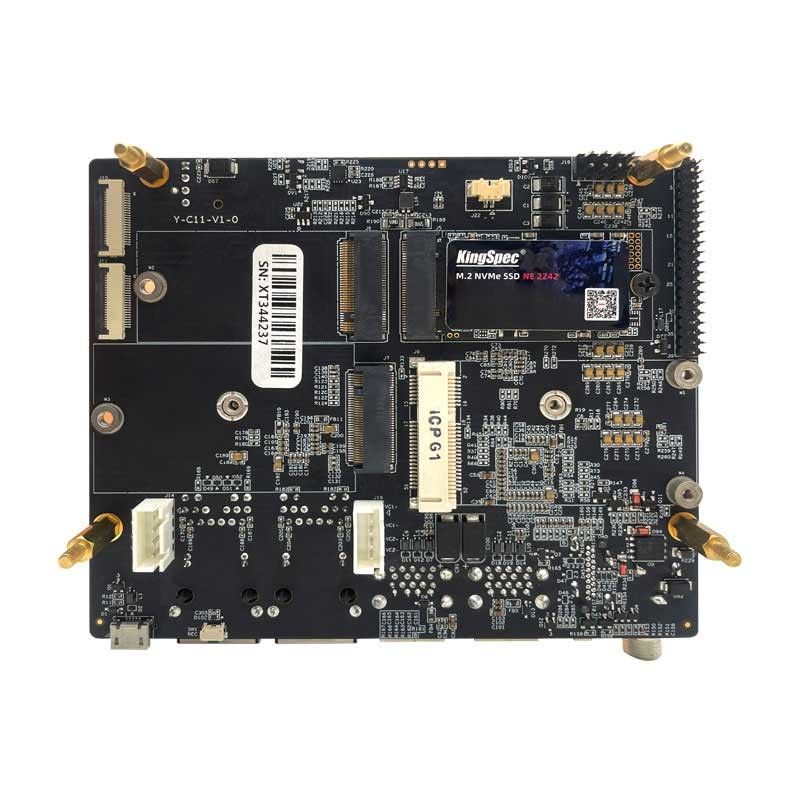

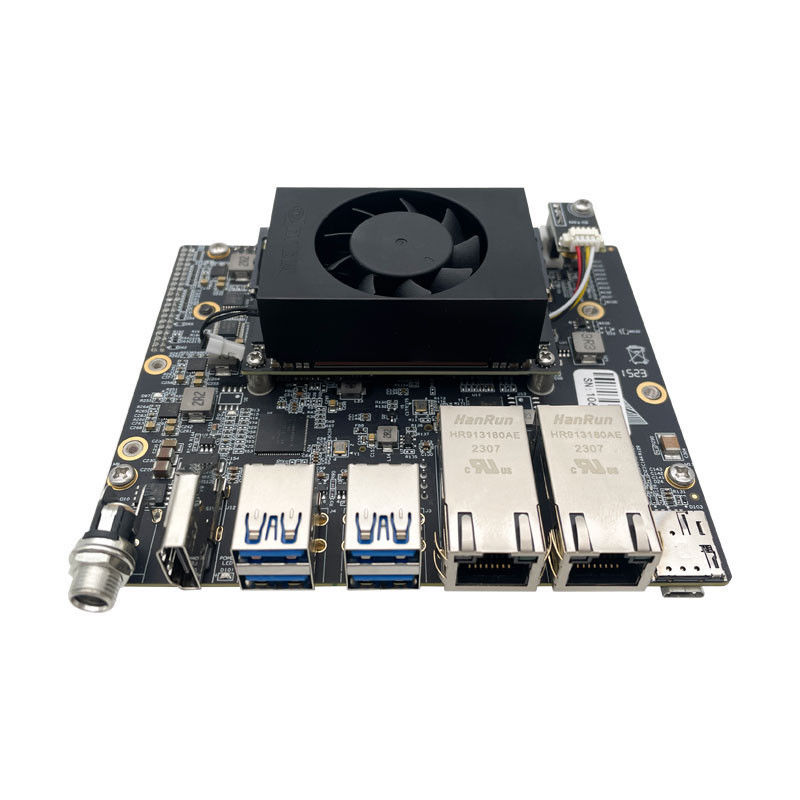

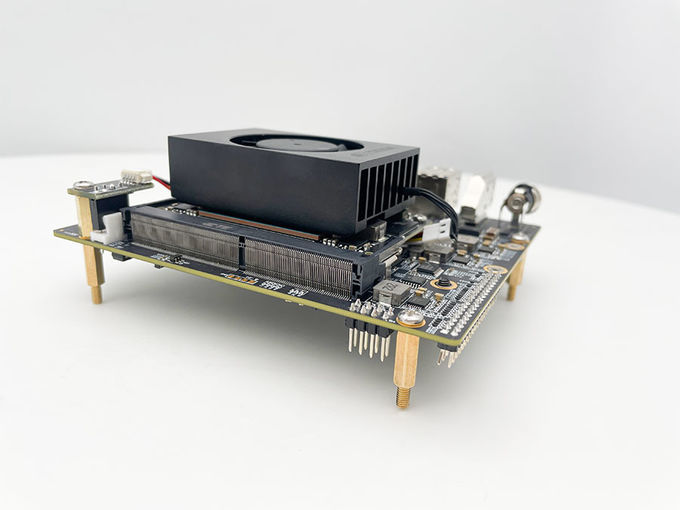

Y-C11-DEV developer Kit is based on NVIDIA Jetson Orin NX and NVIDIA Jetson Orin Nano modules. Among them, Y-C11 carrier board is an industrial model of the wide temperature, the main interface is designed for electrostatic safety protection, and the power supply application scheme of high reliability is adopted. The input power supply has the function of overvoltage and reverse polarity protection, and has a rich external interface. It can carry hundreds of functional modules through MiniPCIe connector (including USB2.0 and PCIe X1 signals) to achieve further expansion of system functions. The M.2 B key slot of the Y-C11 carrier board can directly carry 4G/5G communication modules, and the carrier board has a Nano SIM card slot. Both independent and dual gigabit network ports support expanded POE power supply.
|
|
NVIDIA Jetson Orin NX 16GB |
NVIDIA Jetson Orin NX 8GB |
NVIDIA Jetson Orin Nano 8GB |
NVIDIA Jetson Orin Nano 4GB |
|
AI Perf |
100 TOPS |
70 TOPS |
40 TOPS |
20 TOPS |
|
GPU |
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores |
||
|
CPU |
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU2MB L2 + 4MB L3 |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU1.5MB L2 + 4MB L3 |
||
|
Memory |
16GB 128-bit LPDDR5 |
8GB 128-bit LPDDR5 |
8GB 128-bit LPDDR5 |
4GB 64-bit LPDDR5 |
|
Storage |
- |
|||
|
Video Encode |
1x 4K60 (H.265) |
1080p30 supported by 1-2 CPU cores |
||
|
Video Decode |
1x 8K30 (H.265) |
1x 4K60 (H.265) |
||
|
CSI Camera |
Up to 4 cameras (8 via virtual channels***) |
Up to 4 cameras (8 via virtual channels***) |
||
|
Power Supply |
10W - 25W |
10W - 20W |
7W - 15W |
7W - 10W |
