| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | Y-C8-DEV-Orin32 |
| Minimum Order Quantity: | 1 |
| Price: | To be discussed |
| Packaging Details: | 195mm × 180mm × 50mm |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1+set+4weeks |
| NAME: | NVIDIA Jetson AGX Orin 32G Module 900-13701-0040-000 Ampere GPU 32GB Memory For AI | Keyword: | NVIDIA Jetson AGX Orin 32G Module 900-13701-0040-000 Ampere GPU 32GB Memory For AI |
|---|---|---|---|
| Model Number: | Y-C8-DEV-Orin32 | AI Perf: | 200 TOPS |
| Memory: | 32GB 256-bit LPDDR4 | Weight: | 713g |
| Single Package Size: | 188mm × 170mm × 43mm | Input Power: | DC +12V |
| Temperature Range: | -20℃～+65℃ | Storage: | 64GB EMMC 5.1 |
| High Light: | 900-13701-0040-000 Jetson Agx Orin 32gb Module,AI Jetson Agx Orin 32gb Module |
||
NVIDIA Jetson AGX Orin 32G Module 900-13701-0040-000 Ampere GPU 32GB Memory for AI

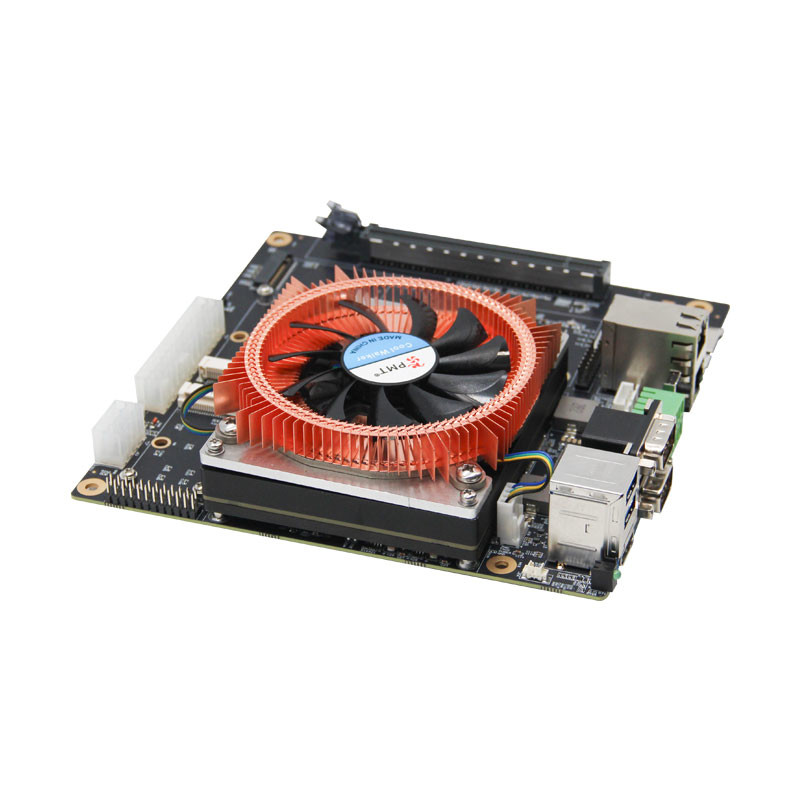

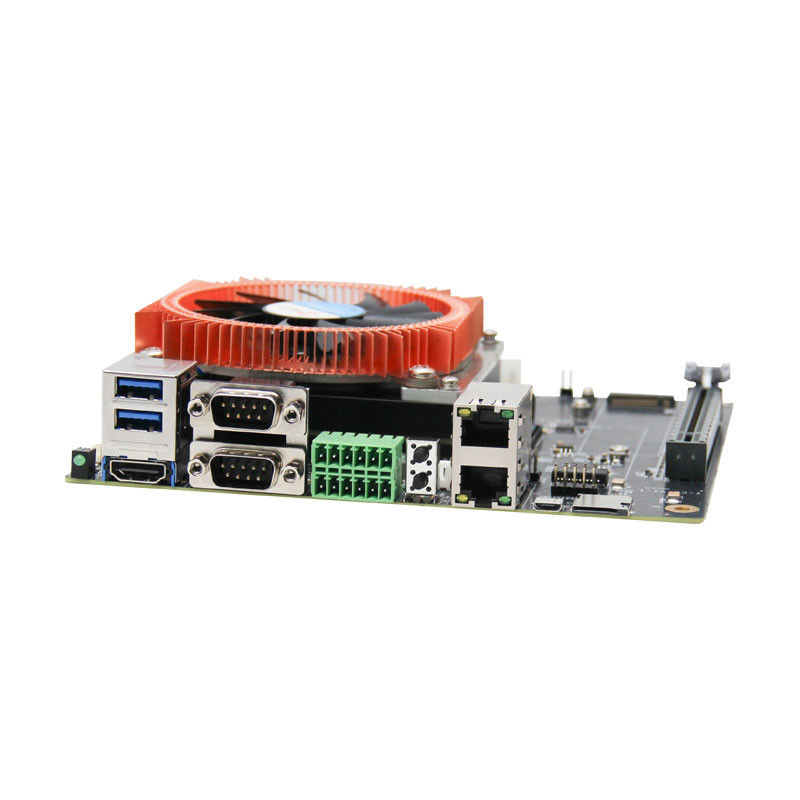

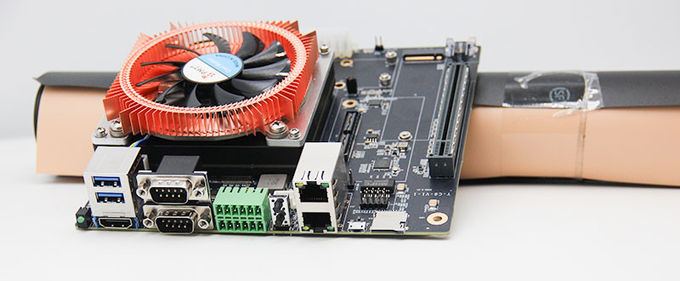

NVIDIA Jetson AGX Orin Developer Kit Y-C8 AGX Orin module 32G 900-13701-0040-000
This is a development kit for NVIDIA Jetson AGX Orin 32G module 900-13701-0040-000, but also for NVIDIA Jetson AGX Orin 32G and NVIDIA Jetson AGX Orin industrial module, up to 275 TOPS, For autonomous machines to move to a new field, widely used in smart medical, V2X, smart education, smart city, logistics and other scenarios, the entire development kit weigt
is 713g.The input power is DC +12V,1 USB Micro-B,1 RJ45.
NVIDIA Jetson AGX Orin Module 900-13701-0040-000 (32G) Technical Specifications
|
AI Perf |
200 TOPS |
|
GPU |
1,792-core NVIDIA Ampere architecture GPU with 56 Tensor Cores |
| GPU Max Frequency | 930 MHz |
|
CPU |
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU |
| CPU Max Frequency | 2.2 GHz |
| Safety Cluster Engine | - |
|
Memory |
32GB 256-bit LPDDR5 |
|
Storage |
64GB eMMC 5.1 |
|
Camera |
Up to 6 cameras (16 via virtual channels) |
| DL Accelerator | 2x NVDLA v2 |
|
USB Micro-B |
1 x Type B (OTG) |
|
USB Type-A |
1 x USB 3.1 |
|
GPIO(3.3V) |
1 |
|
SPI(3.3V) |
1 |
|
I2C(3.3V) |
2 |
|
RS 232 |
2 |
|
Debug(UART) |
1 |
|
CAN (with on-board transceiver) |
2 |
|
Networking |
1 x 10/100/1000 Ethernet/RJ45 |
|
Power Supply |
DC +12V |
|
Temperature |
-20~+65°C |
|
Size |
188mm × 170mm × 43mm |
| Weight | 713g |
