| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | Y-C8-DEV-Orin32 |
| Minimum Order Quantity: | 1 |
| Price: | To be discussed |
| Packaging Details: | 195mm × 180mm × 50mm |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1+set+4weeks |
| NAME: | NVIDIA AI Kit Industrial Embedded System Jetson AGX Orin Developer Kit 32G 900-13701-0040-000 | Keyword: | NVIDIA AI Kit Industrial Embedded System Jetson AGX Orin Developer Kit 32G 900-13701-0040-000 |
|---|---|---|---|
| Model Number: | Y-C8-DEV-Orin32 | Memory: | 32GB 256-bit LPDDR4 X 136.5GB/s |
| AI Perf: | 200 TOPS | GPU: | NVIDIA Ampere |
| Single Package Size: | 188mm × 170mm × 43mm | Input Power: | DC +12V |
| Temperature Range: | -20℃～+65℃ | GPU Max Frequency: | 930 MHz |
| High Light: | 900-13701-0040-000 Embedded System Kit,32G Embedded System Kit |
||
NVIDIA AI Kit Industrial Embedded System Jetson AGX Orin Developer Kit 32G 900-13701-0040-000
NVIDIA Jetson AGX Orin Developer Kit Y-C8 AGX Orin module 32G 900-13701-0040-000

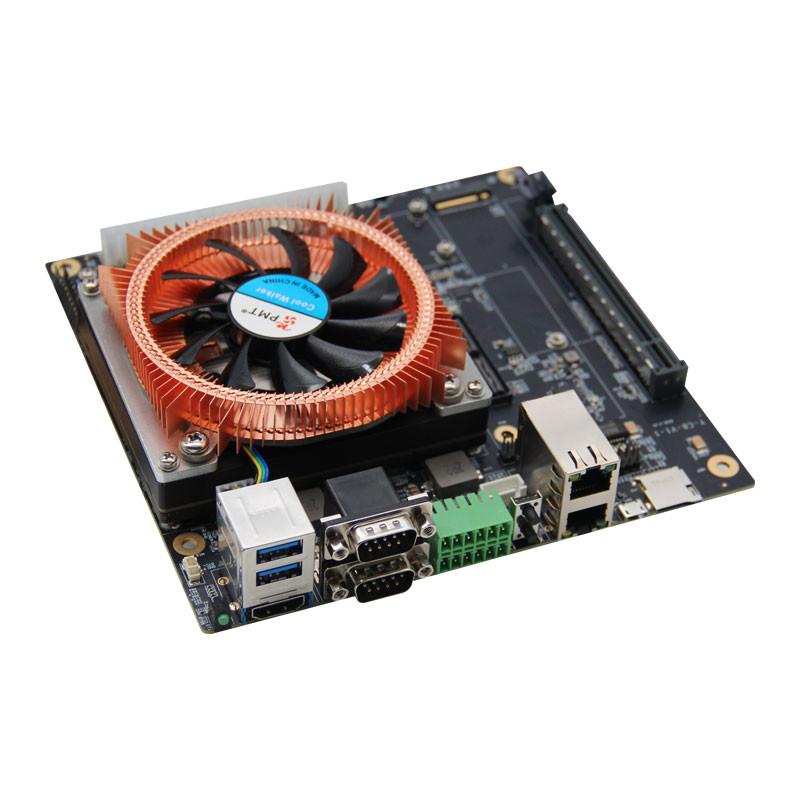

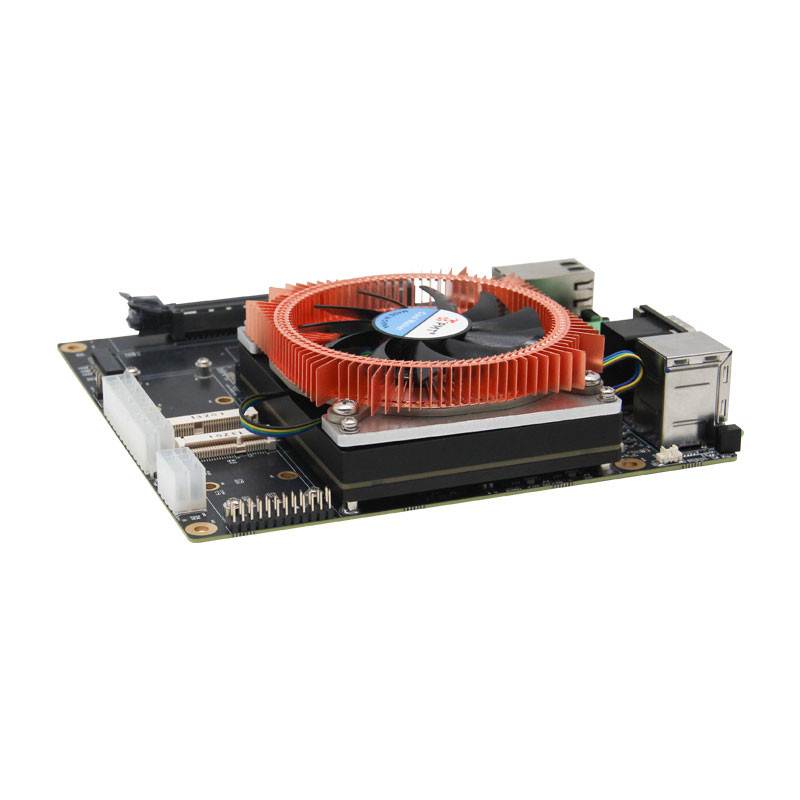

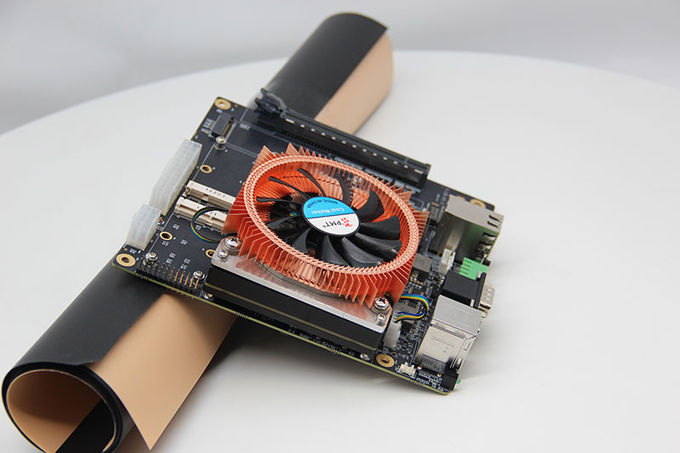

Y-C8-DEV is a development kit adapted to NVIDIA Jetson AGX Orin 32G module 900-13701-0040-000, 200 TOPS computing power can be widely used in agriculture, industry, manufacturing, autonomous machines, smart cities, aerospace, unmanned and other scenarios, using NVIDIA Ampere GPU architecture, 32G memory and 64G eMMC 5.1 storage and excellent cooling system, the entire development kit will give you a very convenient and intelligent experience in the scene application,Developed by PLink-AI Technology, the developer kit is equipped with the NVIDIA Jetson AGX Orin module 900-13701-0040-000 and Y-C8 carrier board and cooling FAN
NVIDIA Jetson AGX Orin Module 900-13701-0040-000 (32G) Technical Specifications
|
AI Perf |
200 TOPS |
|
GPU |
1,792-core NVIDIA Ampere architecture GPU with 56 Tensor Cores |
| GPU Max Frequency | 930 MHz |
|
CPU |
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU |
| CPU Max Frequency | 2.2 GHz |
|
Memory |
32GB 256-bit LPDDR5 |
|
Storage |
64GB eMMC 5.1 |
|
USB |
3x USB 3.2 Gen2 (10 Gbps) |
|
Camera |
Up to 6 cameras (16 via virtual channels) |
|
Display |
1x 8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1 |
|
USB Micro-B |
1 x Type B (OTG) |
|
USB Type-A |
1 x USB 3.1 |
|
GPIO(3.3V) |
1 |
|
SPI(3.3V) |
1 |
|
I2C(3.3V) |
2 |
|
RS 232 |
2 |
|
Debug(UART) |
1 |
|
CAN (with on-board transceiver) |
2 |
|
Networking |
1 x 10/100/1000 Ethernet/RJ45 |
|
Power Supply |
DC +12V |
|
Temperature |
-20~+65°C |
|
Size |
188mm × 170mm × 43mm |
| Weight | 713g |
