| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | Y-C8 |
| Minimum Order Quantity: | 1PCS |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | In stock |
| NAME: | Industrial Embedded Development Board NVIDIA Jetson AGX Orin 32GB 900-13701-0040-000 Carrier Board 200 TOPS | Key Word: | Industrial Embedded Development Board NVIDIA Jetson AGX Orin 32GB 900-13701-0040-000 Carrier Board 200 TOPS |
|---|---|---|---|
| Processor: | NVIDIA Jetson AGX Orin 32G | AI Perf: | 200 TOPS |
| RJ45: | 2x RJ45 One Of The RJ45 Connector Needs | Other I/O: | 2x CAN 4xGPIO 1x SPI 1x I2C |
| Power Supply: | DC +12V | Temperature: | -20~65°C |
| Dimensions: | 170mm×170mm×34 Mm | Weight: | 260g |
| High Light: | 900-13701-0040-000 Embedded Pc Board,200 TOPS Embedded Pc Board,900-13701-0040-000 Embedded Computer Boards |
||

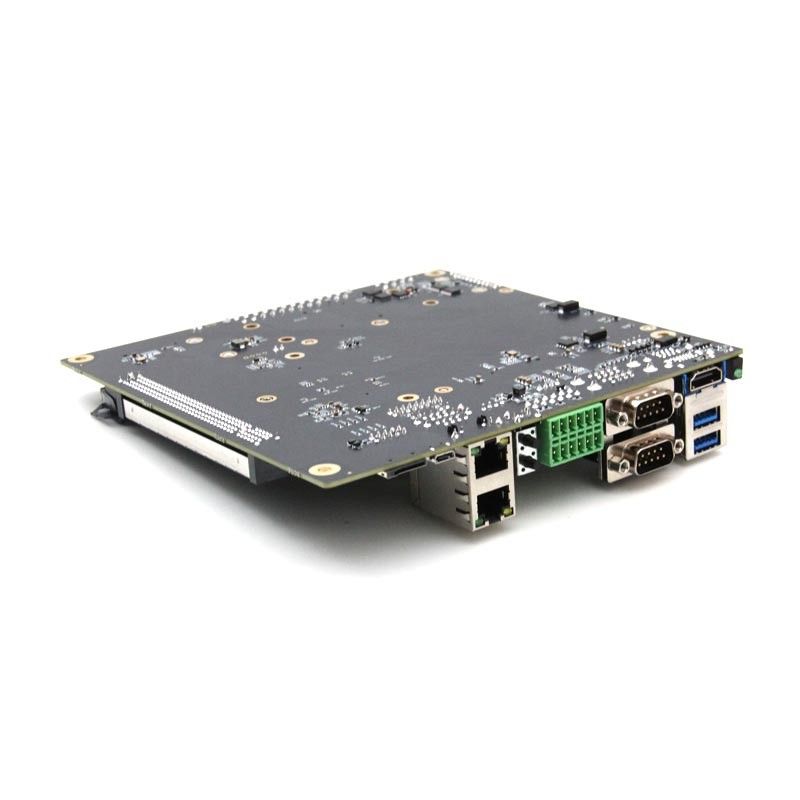

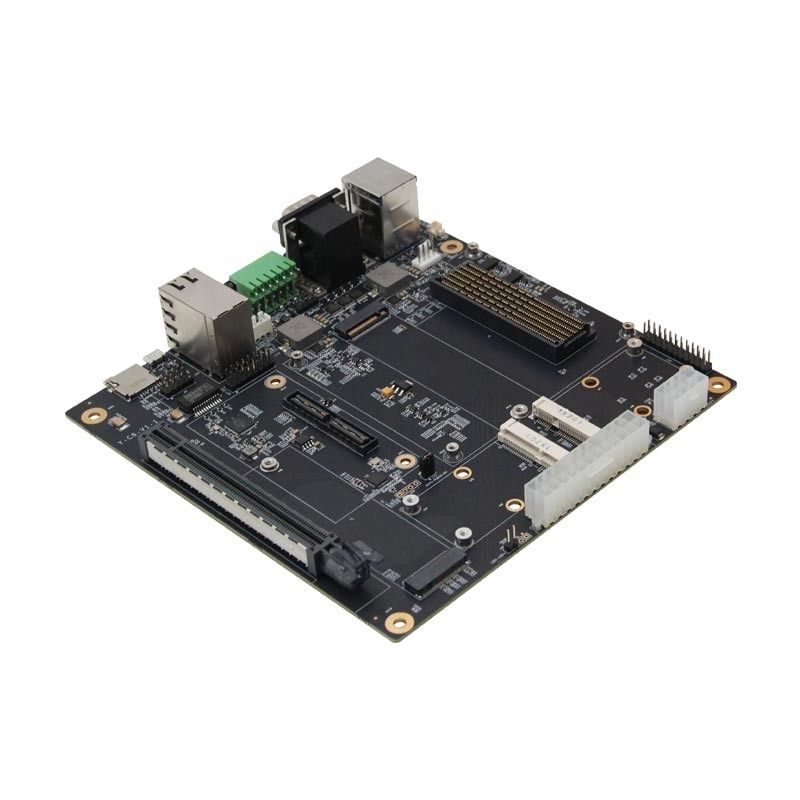

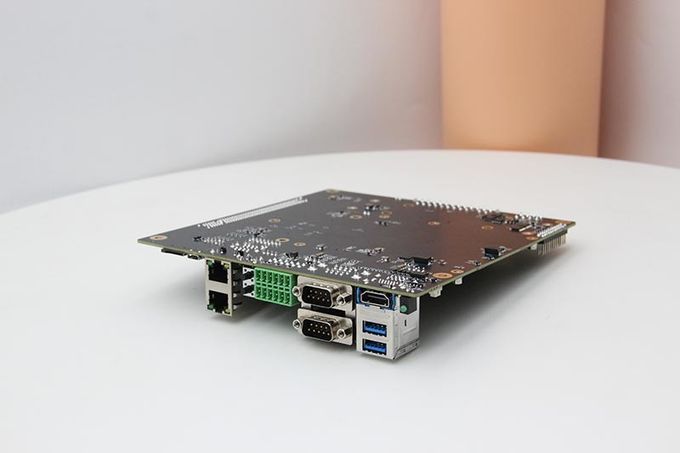

Y-C8 is a carrier board is based on NVIDIA Jetson AGX Orin module 900-13701-0040-000, and the it is with 200 TOPS of AI performance, it is for smart city, security, education, aerospace, V2X etc；and the carrier board is equipped with 2x USB 3.0 interface and 1x Micro USB 2.0 interface. 2 MiniPCIe interfaces,the Y-C8 carrier board combined with NVIDIA Jetson modules brings convenience to artificial intelligence, while also foundation for a new generation of AI applications.NVIDIA Jetson is combines high-performance, low-power compute modules with the NVIDIA AI software stack. also is the world's leading platform for AI at the edge. and it’s the ideal platform for advanced robotics and other autonomous products.All the Jetson modules are software compatible.
|
Module
|
NVIDIA Jetson AGX Orin 32G
|
| AI Perf | 200 TOPS |
|
CPU
|
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
2MB L2 + 4MB L3 |
|
Memory
|
32GB 256-bit LPDDR5
204.8GB/s |
|
GPU
|
1792-core NVIDIA Ampere c GPU with 56 Tensor Cores
|
| CSI Camera | Up to 6 cameras (16 via virtual channels) 16 lanes MIPI CSI-2 D-PHY 2.1 (up to 40Gbps) | C-PHY 2.0 (up to 164Gbps) |
|
USB Micro-B
|
1 x Type B (OTG)
|
|
USB Type-A
|
1 x USB 3.1
|
|
Display
|
1x 8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1 |
|
RJ45
|
2x RJ45 one of the RJ45 connector needs
|
|
Power Supply
|
DC +12V
|
|
Temperature
|
-20~+65°C
|
|
Dimensions
|
170mm×170mm×34 mm
|
|
Weight
|
260g
|
|
USB Type-A
|
2x USB 3.0
|
|
USB Micro-B
|
1x USB 2.0
|
|
PCIe
|
x16 PCIe slot supporting PCIe x8
|
|
MiniPCIe
|
2x MiniPCIe |
|
RJ45
|
2x RJ45
one of the RJ45 connector needs
|
|
M.2 Key M
|
2x
|
|
microSD slot
|
1x
|
|
Other I/O
|
2x CAN
4xGPIO
1x SPI
1x I2C
|
