| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | Y-C8 |
| Minimum Order Quantity: | 1PCS |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | In stock |
| NAME: | Industrial Embedded PC Board Development BoardNVIDIA Jetson AGX Orin 64GB Carrier Board 275 TOPS | Key Word: | Industrial Embedded PC Board Development BoardNVIDIA Jetson AGX Orin 64GB Carrier Board 275 TOPS |
|---|---|---|---|
| Processor: | NVIDIA Jetson AGX Orin 64G | AI Perf: | 275 TOPS |
| PCIe: | X16 PCIe Slot Supporting PCIe X8 | MiniPCIe: | 2x MiniPCIe |
| RJ45: | 2x RJ45 One Of The RJ45 Connector Needs | Other I/O: | 2x CAN 4xGPIO 1x SPI 1x I2C |
| Power Supply: | DC +12V | Temperature: | -20~65°C |
| Dimensions: | 170mm×170mm×34 Mm | Weight: | 260g |
| High Light: | 64GB Embedded Computer Board,275 TOPS Embedded Computer Board,275 TOPS Embedded Computer Boards |
||

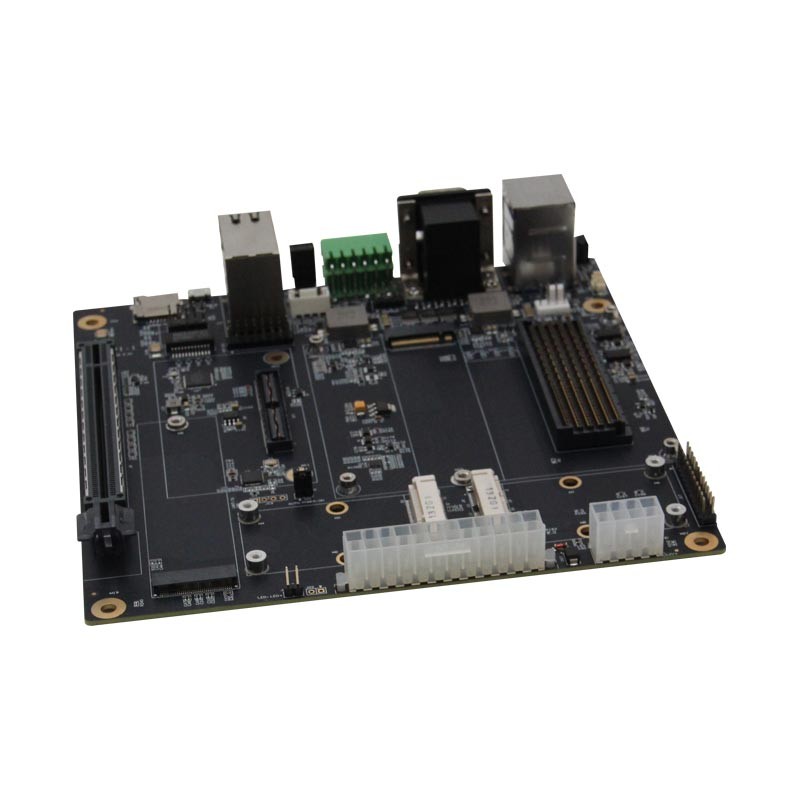

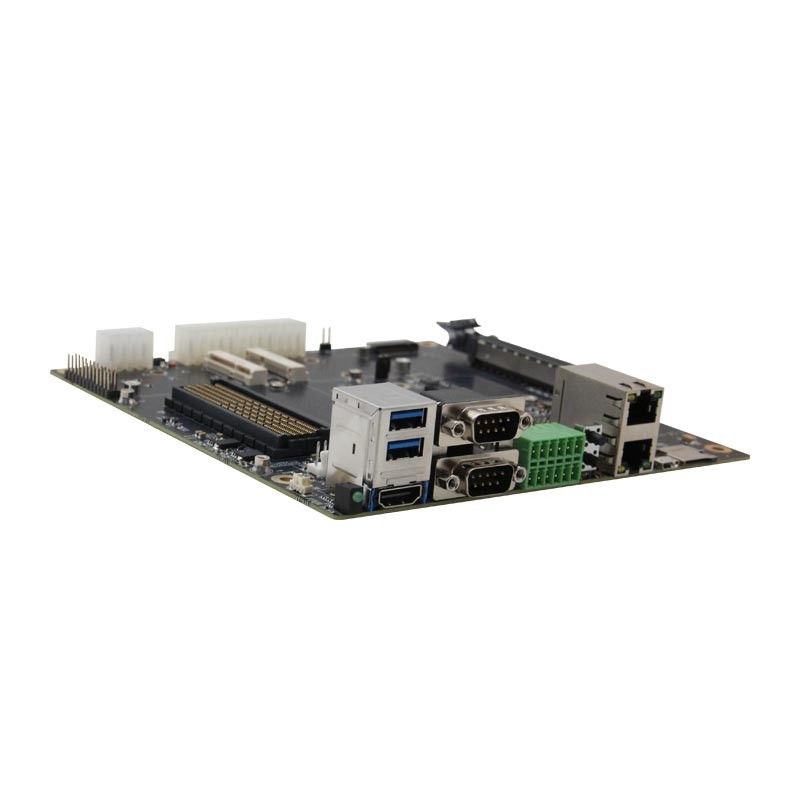

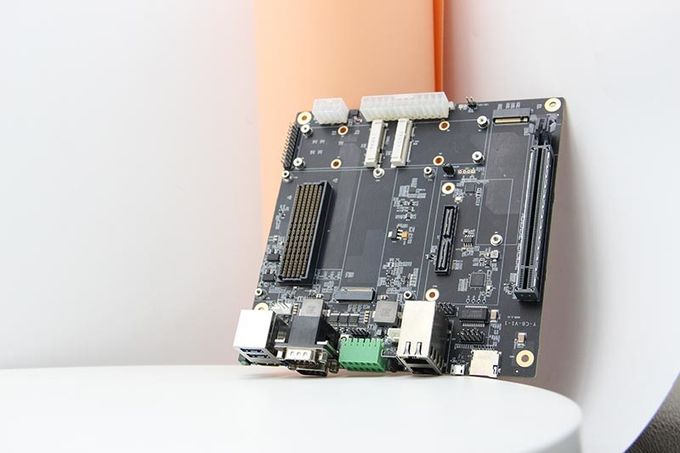

Y-C8 is a carrier board is based on NVIDIA Jetson AGX Orin module 900-13701-0050-000, and it’s up to 275 TOPS, and the carrier board is equipped with 2x USB 3.0 interface and 1x Micro USB 2.0 interface. Two MiniPCIe interfaces, it is for smart city, security, education, aerospace, V2X etc；while the Y-C8 carrier board is also adapted to NVIDIA Jetson AGX Xavier module,This Y-C8 carrier board combined with NVIDIA Jetson modules brings convenience to artificial intelligence, while also foundation for a new generation of AI applications.
|
Module
|
NVIDIA Jetson AGX Orin 64G
|
| AI Perf | 275 TOPS |
|
CPU
|
12-core Arm® Cortex®-A78AE v8.2 64-bit CPU
3MB L2 + 6MB L3 |
|
Memory
|
64GB 256-bit LPDDR5
204.8GB/s |
|
GPU
|
2048-core NVIDIA Ampere architecture GPU with 64 Tensor Cores
|
| CSI Camera | Up to 6 cameras (16 via virtual channels) 16 lanes MIPI CSI-2 D-PHY 2.1 (up to 40Gbps) | C-PHY 2.0 (up to 164Gbps) |
|
USB Micro-B
|
1 x Type B (OTG)
|
|
USB Type-A
|
1 x USB 3.1
|
|
Other I/O
|
4x UART, 3x SPI, 4x I2S, 8x I2C, 2x CAN, PWM, DMIC & DSPK, GPIOs |
|
Networking
|
1x GbE
1x 10GbE |
|
Power Supply
|
DC +12V
|
|
Temperature
|
-20~+65°C
|
|
Dimensions
|
170mm×170mm×34 mm
|
|
Weight
|
260g
|
|
USB Type-A
|
2x USB 3.0
|
|
USB Micro-B
|
1x USB 2.0
|
|
PCIe
|
x16 PCIe slot supporting PCIe x8
|
|
MiniPCIe
|
2x MiniPCIe |
|
RJ45
|
2x RJ45
one of the RJ45 connector needs
|
|
M.2 Key M
|
2x
|
|
microSD slot
|
1x
|
|
Other I/O
|
2x CAN
4xGPIO
1x SPI
1x I2C
|
