| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | Y-C8 |
| Minimum Order Quantity: | 1PCS |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | In stock |
| NAME: | Industrial Embedded PC Board NVIDIA Jetson AGX Xavier 900-82888-0040-000 Carrier Board | Key Word: | Industrial Embedded PC Board NVIDIA Jetson AGX Xavier 900-82888-0040-000 Carrier Board |
|---|---|---|---|
| USB 3.0: | 2x | USB 2.0: | 1x |
| PCIe: | X16 PCIe Slot Supporting PCIe X8 | MiniPCIe: | 2x MiniPCIe |
| RJ45: | 2x RJ45 One Of The RJ45 Connector Needs | M.2 Key M: | X2 |
| MicroSD Slot: | X1 | Other I/O: | 2x CAN 4xGPIO 1x SPI 1x I2C |
| Power Supply: | DC +12V | Temperature: | -20~65°C |
| Dimensions: | 170mm×170mm×34 Mm | Weight: | 260g |
| High Light: | 900-82888-0040-000 Embedded Pc Board,NVIDIA Jetson AGX Xavier Embedded Pc Board,900-82888-0040-000 Embedded Computer Boards |
||

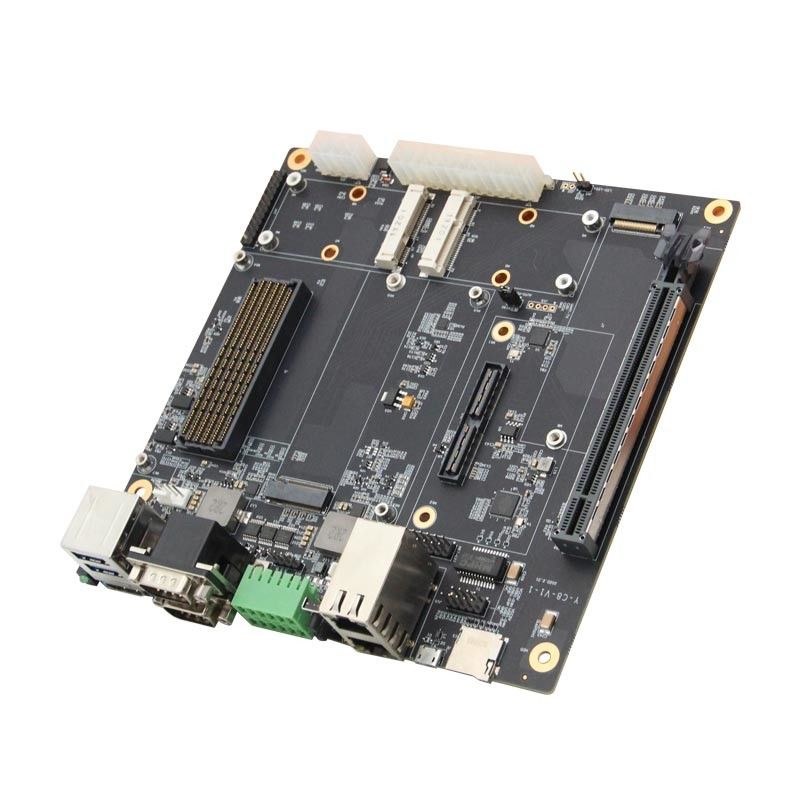

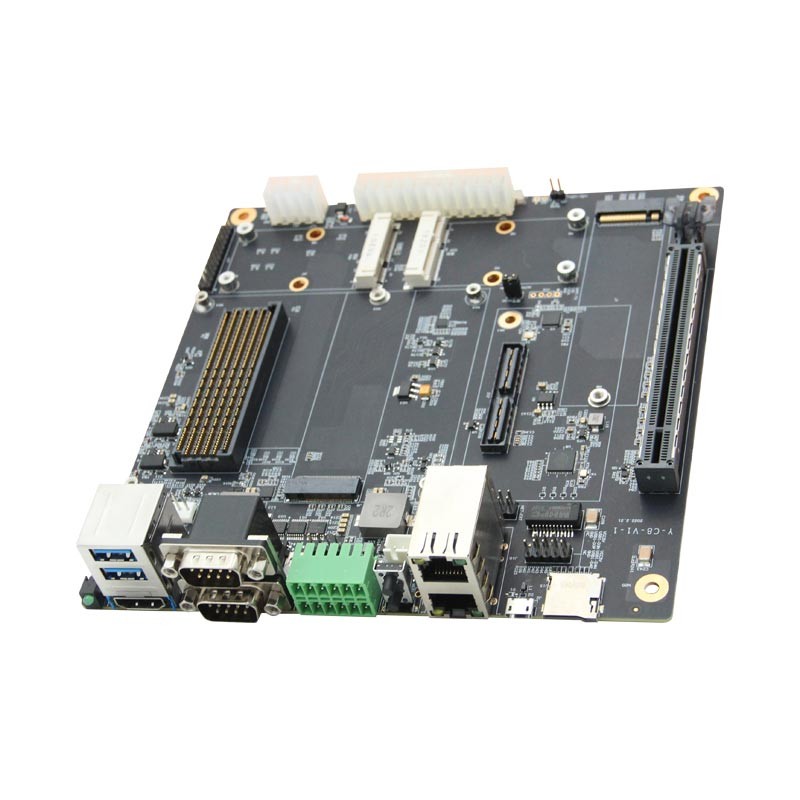

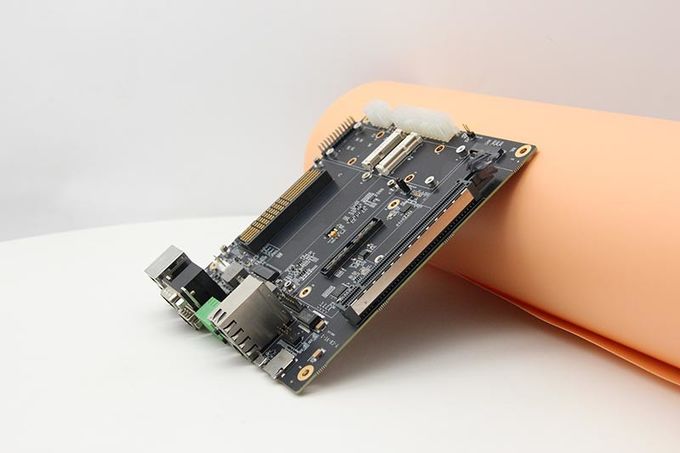

Y-C8 is a carrier board is based on NVIDIA Jetson AGX Xavier module 900-82888-0040-000, and the computing power is up to 32 TOPS, the GPU Max Frequency Volta architecture is 1377 MHz, 32GB of the memory and 32GB of storage, among which Y-C8 carrier board is equipped with 2x USB 3.0 interface and 1x Micro USB 2.0 interface. Two MiniPCIe interfaces, it is used in manufacturing, security, education, aerospace, automatic driving and other edge computing scenarios, while the Y-C8 carrier board is also adapted to NVIDIA Jetson AGX Orin module
|
Module
|
NVIDIA Jetson AGX Xavier 32G
|
|
CPU
|
8-core NVIDIA Carmel Arm® v8.2 64-bit CPU 8MB L2 + 4MB L3
|
|
CPU Memory
|
32GB 256-bit LPDDR4 x 136.5GB/s
|
|
GPU
|
512-core NVIDIA Volta GPU with 64 Tensor Cores
|
|
USB Micro-B
|
1 x Type B (OTG)
|
|
USB Type-A
|
1 x USB 3.1
|
| CSI Camera | Up to 6 cameras (36 via virtual channels) 16 lanes MIPI CSI-2 | 8 lanes SLVS-EC D-PHY 1.2 (up to 40 Gbps) C-PHY 1.1 (up to 62 Gbps) |
|
Other I/O
|
4 x GPIO(3.3V) | 1 x SPI(3.3V) | 2 x I2C(3.3V) | 2 x RS 232 | 1 x Debug(UART)
2 x CAN (with on-board transceiver) |
|
Networking
|
1 x 10/100/1000 Ethernet/RJ45
|
| DL Accelerator | 2x NVDLA |
| Vision Accelerator | 2x PVA |
|
Power Supply
|
DC +12V
|
|
Temperature
|
-20~+65°C
|
|
Dimensions
|
170mm×170mm×34 mm
|
|
Weight
|
260g
|
|
|
Y-C8
|
|
USB Type-A
|
2x USB 3.0
|
|
USB Micro-B
|
1x USB 2.0
|
|
PCIe
|
x16 PCIe slot supporting PCIe x8
|
|
MiniPCIe
|
2x MPCIe
|
|
RJ45
|
2x RJ45
one of the RJ45 connector needs
|
|
M.2 Key M
|
2x
|
|
microSD slot
|
1x
|
|
Other I/O
|
2x CAN
4xGPIO
1x SPI
1x I2C
|
