| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | TX2-DEV |
| Minimum Order Quantity: | 1 |
| Price: | To be discussed |
| Packaging Details: | 92mm × 70mm × 60mm |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1+set+4weeks |
| NAME: | Industrial SBC Embedded System NVIDIA Jetson TX2 8G Developer Kit, 1.33 TFLOPS, RJ45 2 Lane MIPI | Keyword: | Industrial SBC Embedded System NVIDIA Jetson TX2 8G Developer Kit, 1.33 TFLOPS, RJ45 2 Lane MIPI |
|---|---|---|---|
| Processor: | Jetson TX2 8G | AI Performance: | 1.33 TFLOPS |
| Memory: | 8 GB 128-bit LPDDR4 59.7 GB/s | RS-232: | *1 |
| USB 3.0: | *2 | 2 Lane MIPI: | *1 |
| Networking: | *1 | Weight: | 51g |
| Board Size: | 87mm×60mm×16mm | Working Temperature: | -20~+65°C |
| High Light: | RJ45 SBC Embedded System,Nvidia Jetson Tx2 SBC Embedded System,RJ45 Nvidia Jetson Tx2 Developer Kit |
||
Industrial SBC Embedded System NVIDIA Jetson TX2 8G Developer Kit, 1.33 TFLOPS, RJ45 2 Lane MIPI
NVIDIA AI Development Kit Jetson TX2 8G 900-83310-0001-000
Y-C1-DEV is a development kit equipped with NVIDIA Jetson TX2 8G module 900-83310-0001-000, with 1.33 TFLOPS of computing power, 8G of memory and 32G of storage, which enables this development kit to better for artificial intelligence in industries such as retail, manufacturing, logistics and warehousing. Among them, Y-C1-DEV carrier board is an industrial development kit independently developed by PLink-AI Technology, combined with Jetson TX2 module and COOLING FAN,If you need more information, please contact us.
NVIDIA Jetson TX2 8G Module Technical Specifications
| AI Perf | 1.33 TFLOPS |
| GPU | 256-core NVIDIA Pascal™ architecture GPU |
| CPU | Dual-core NVIDIA Denver™ 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor |
| Memory | 8GB 128-bit LPDDR4 59.7GB/s |
| Storage | 32GB eMMC 5.1 |
| CSI Camera | Up to 6 cameras (12 via virtual channels) 12 lanes MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps) |
| Display | 2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0 2 x4 DSI (1.5Gbps/lane) |
| USB | up to 3x USB 3.0 (5 Gbps) 3x USB 2.0 |
What changes for industrial environments does Jetson TX2i have compared to Jetson TX2?
| Feature | Jetson TX2 | Jetson TX2i |
| Shock | 140G, 2ms | |
| Vibration | 10Hz ~200Hz, 1g & 2g RMS |
Random: 5g RMS 10 to 500Hz Sinusoidal: 5g RMS 10 to 500Hz |
| Temp Range at module TTP | -25°C - 80°C | -40°C - 85°C |
| Humidity | 85°C / 85% RH, 168 hours | -10°C to 65°C / 95% RH, 240 hours |
| TDP | 15W | 20W |

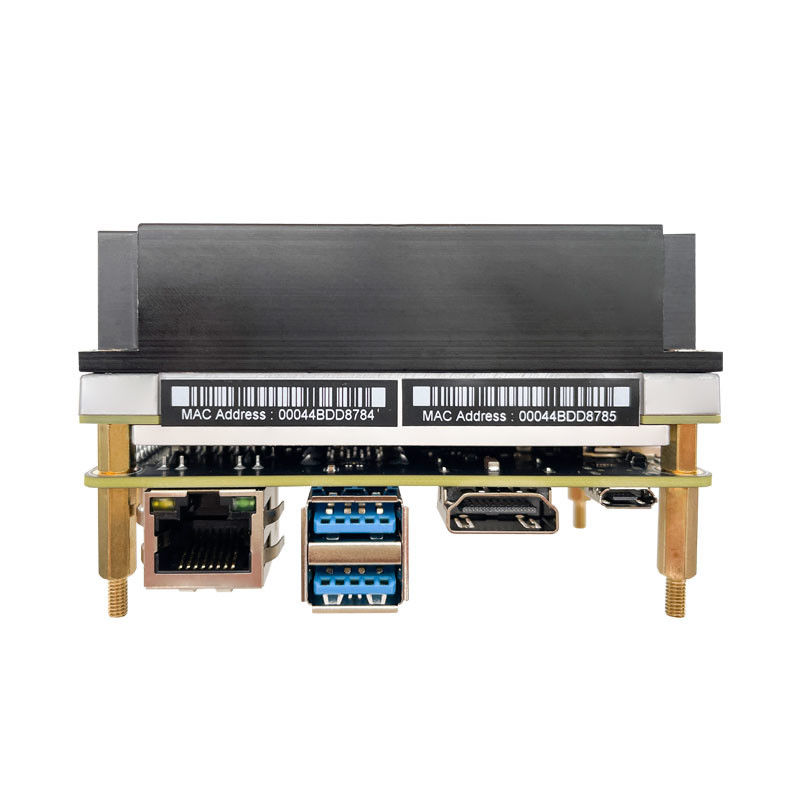

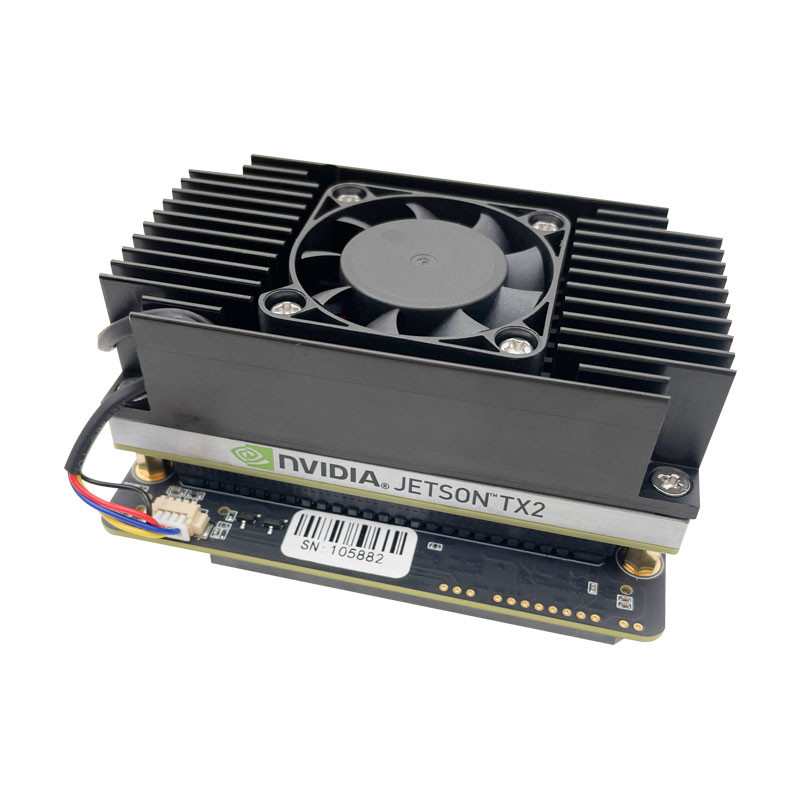

NVIDIA Jetson TX2 8G Developer Kit
|
USB3.0 |
2 |
|
CAN |
2 |
| 3.3V (UART) | 3 |
|
3.3V level Debug |
1
|
| Gigabit Ethernet (10/100/1000 BASE-T) |
1 |
| GPIOs(3.3V) |
4 |
| RTC battery pin header | 1 |
| 621 RTC battery holder |
1 |
| HDMI 2.0 | 1 |
| SD card |
1 |
| I2C(3.3V) |
1 |
|
fan control |
1 |
| Power |
+7V~+19V |
