| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | Y-C1-TX2 |
| Minimum Order Quantity: | 1PCS |
| Price: | USD189-USD199\PCS |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | In stock |

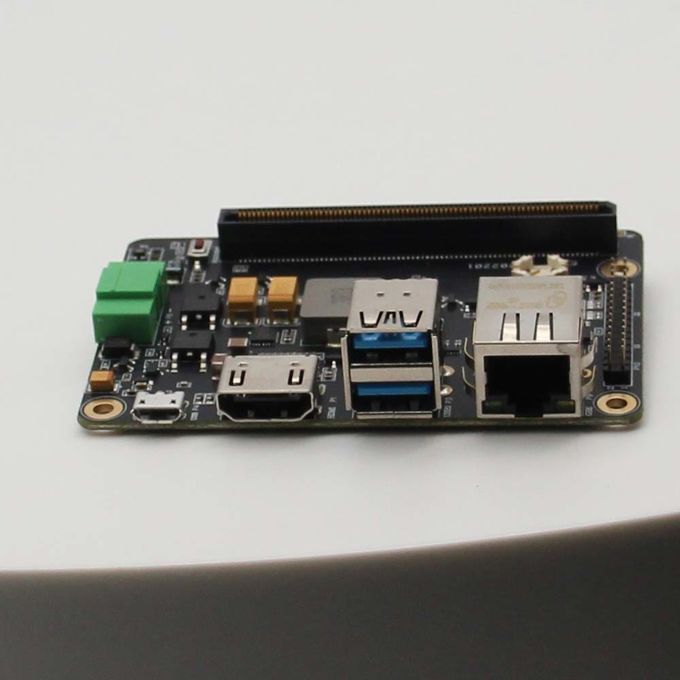

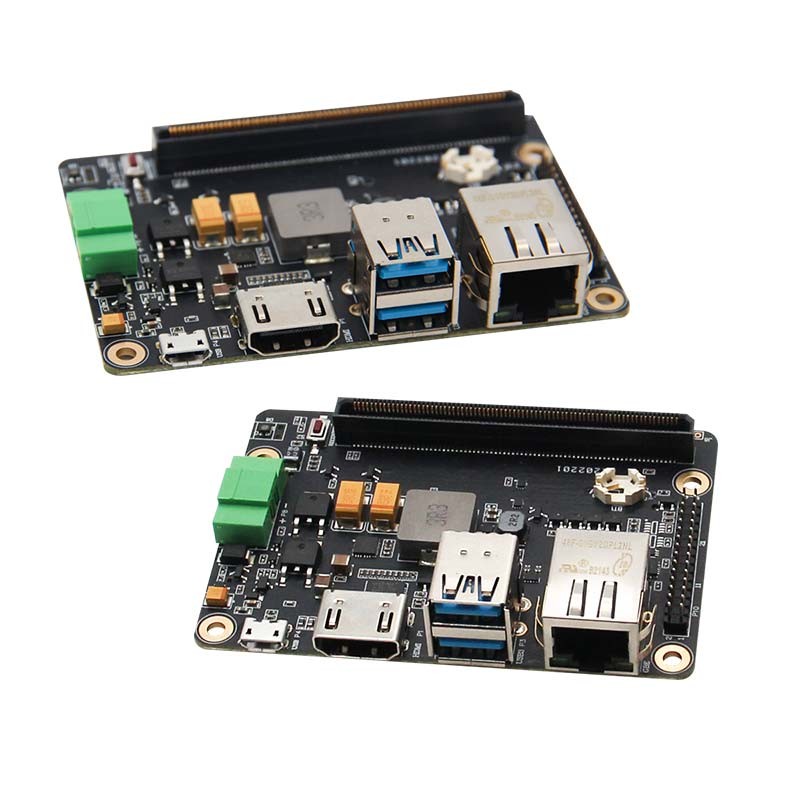

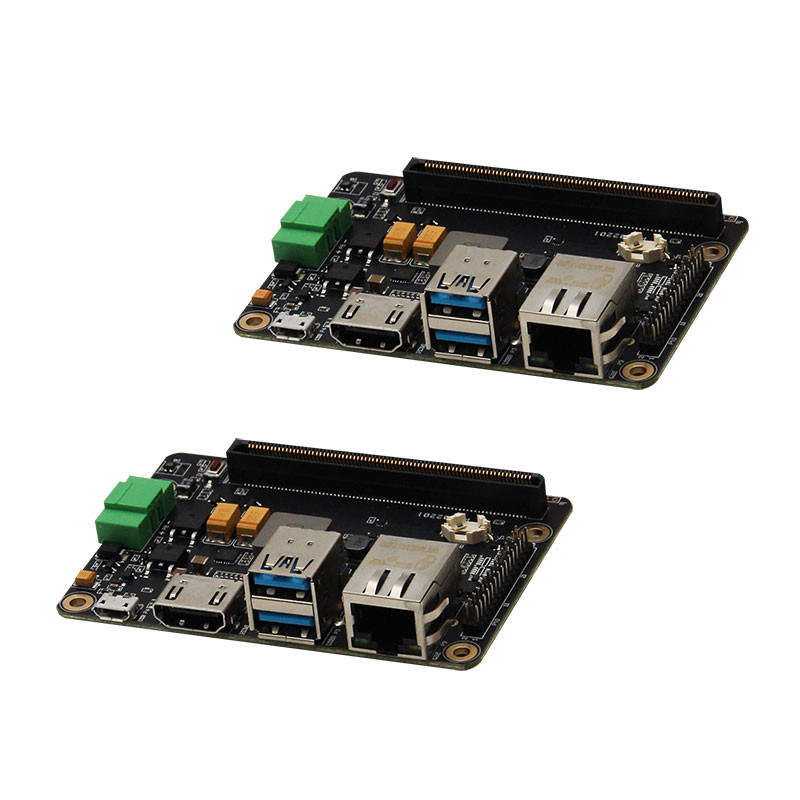

| NAME: | Industrial AI Embedded PC Board 900-13636-0010-000 Development Board Jetson TX2 Module | Key Word: | Industrial AI Embedded PC Board 900-13636-0010-000 Development Board Jetson TX2 Module |
|---|---|---|---|
| CAN (onboard CAN Transceiver): | 2* | Power: | 7.5W - 15W |
| Micro USB: | 1* | MiniPCIE: | 2* |
| Size: | 87mm×60mm×16mm | CPU Max Frequency: | Denver 2: 2 GHz Cortex-A57: 2 GHz |
| SD Card Interface: | 1* | FAN Control Interface: | 1* |
| Weight: | 51g | Power Supply: | +7V~+19V |
| High Light: | 900-13636-0010-000 Embedded Development Board,Jetson TX2 Module Embedded Development Board,Jetson TX2 Module Embedded Computer Boards |
||
| USB 3.0 | 2 |
| SD card | 1 |
| UART(3.3V) | 3 |
| HDMI 2.0 | 1 |
| Debug(3.3V) | 1 |
| GPIO(3.3V) | 4 |
| Gigabit Ethernet (10/100/1000 BASE-T) | 1 |
| CAN | 2 |
| I2C(3.3V) | 1 |
| Power | +7V~+19V |
| Size | 87mm×60mm×16mm |
| Weight | 51g |
Module | TX2 8G | |
AI Perf | 1.33 TFLOPS | |
GPU | 256-core NVIDIA Pascal™ GPU | |
GPU Max Frequency | 1.12GHz | |
CPU | Dual-core Denver 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor | |
CPU Max Frequency | Denver 2: 2 GHz Cortex-A57: 2 GHz | |
Memory | 8 GB 128-bit LPDDR4 59.7GB/s | |
Storage | 32 GB eMMC 5.1 | |
CSI Camera | Up to 6 cameras (12 via virtual channels) 12 lanes MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps) | |
Display | 2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0 2 x4 DSI (1.5Gbps/lane) | |
Other I/O | 5x UART, 3x SPI, 4x I2S, 8x I2C, 2x CAN, GPIOs | |
Networking | 10/100/1000 BASE-T Ethernet, WLAN | |
Mechanical | 87mm x 50mm 400-pin connector Integrated Thermal Transfer Plate | |
