| Place of Origin: | China |
|---|---|
| Brand Name: | PLink |
| Model Number: | ONX-ONANO Carrier Board |
| Minimum Order Quantity: | 1PCS |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 20pcs 15-30 work days |
| NAME: | NVIDIA Jetson Orin NX 16G 900-13767-0000-000 AI Board For Domestic Development | Keyword: | NVIDIA Jetson Orin NX 16G 900-13767-0000-000 AI Board For Domestic Development |
|---|---|---|---|
| AI Performance: | 100 TOPS | GPU: | 1024-core NVIDIA Ampere Architecture GPU With 32 Tensor Cores |
| Memory: | 16GB 128-bit LPDDR5 102.4GB/s | Storage: | Supports External NVMe |
| CPU: | 8-core Arm® Cortex®-A78AE V8.2 64-bit CPU2MB L2 + 4MB L3 | Mechanical: | 104mm*90mm*23mm |
| Weight: | 81g | Networking: | 1x GbE |
| High Light: | NVIDIA Jetson Orin NX 16G Ai Board,Ai Board 900-13767-0000-000,16g Nvidia Jetson nx Developer Kit |
||

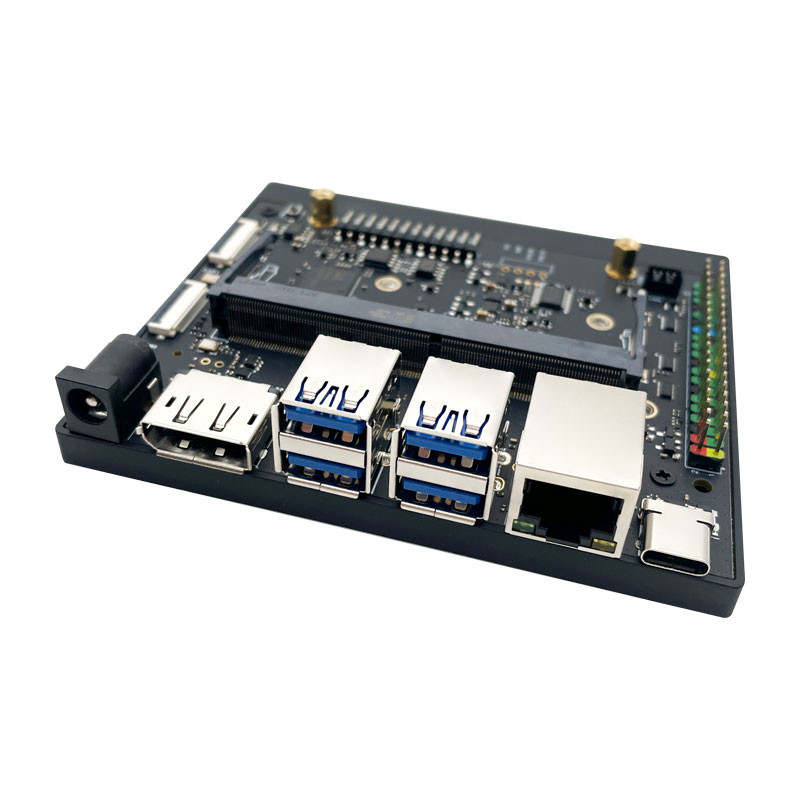

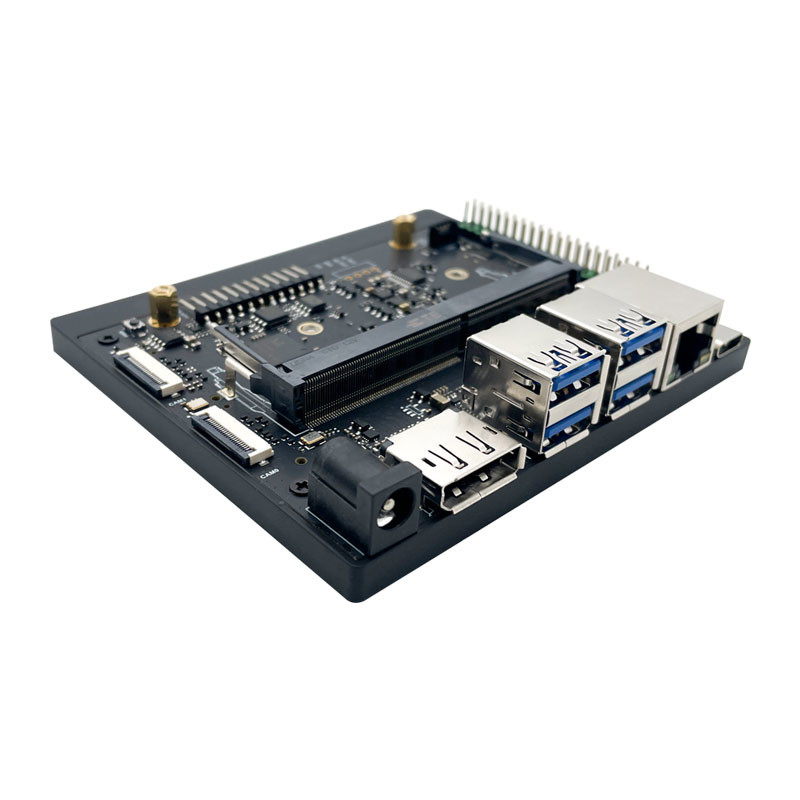

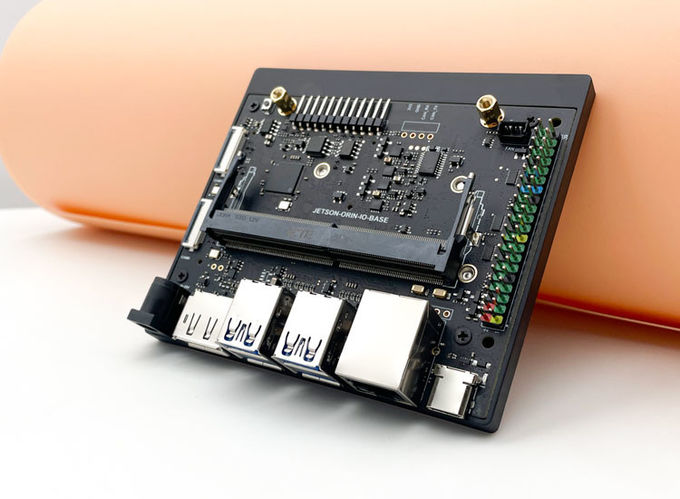

NVIDIA Jetson Orin NX 16G 900-13767-0000-000 AI Board for Domestic Development
NVIDIA Jeton Orin NX Module16G 900-13767-0000-000
Development Board / Carrier Board
| Module | NVIDIA Jetson Orin NX 16G |
| PN | 900-13767-0000-000 |
| Size | 104mm*90mm*23mm |
| Weight | 81g |
| Power Supply | DC 9V~19V |
| CSI camera |
2x MIPI CSI-2 |
| M.2 key E | 1x |
| M.2 key M | 1x |
| DP | 1x |
| USB 3.2 Type-A | 4x |
| RJ45 | 1x |
| AI Performance | 100 TOPS |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| CPU | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| Memory | 16GB 128-bit LPDDR5 102.4GB/s |
| Storage | - (Supports external NVMe) |
| CSI Camera | Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps) |
