16G NVIDIA JETSON ORIN NX 900-13767-0000-000 Domestic Developer Kit Embedded System 128G SSD

Basic Information
Place of Origin: China
Brand Name: PLink
Model Number: ONX8G-DEV(128G SSD)
Minimum Order Quantity: 1PCS
Price: To be discussed
Delivery Time: 15-30 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 20pcs 15-30 work days
Detail Information
NAME: Nvidia Jetson Orin NX 16G 900-13767-0000-000 Domestic Developer Kit Embedded System 128G SSD Keyword: Nvidia Jetson Orin NX 16G 900-13767-0000-000 Domestic Developer Kit Embedded System 128G SSD
AI Performance: 70 TOPS PN: 900-13767-0000-000
Memory: 16GB 128-bit LPDDR5 102.4GB/s Storage: Supports External NVMe
Mechanical: 104 Mm X 90 Mm X 34 Mm Weight: 159g
USB Type-A: 4* DC Power Jack: 9V~19V
High Light:

16G NVIDIA JETSON ORIN NX

,

900-13767-0000-000 NVIDIA JETSON ORIN NX


Product Description

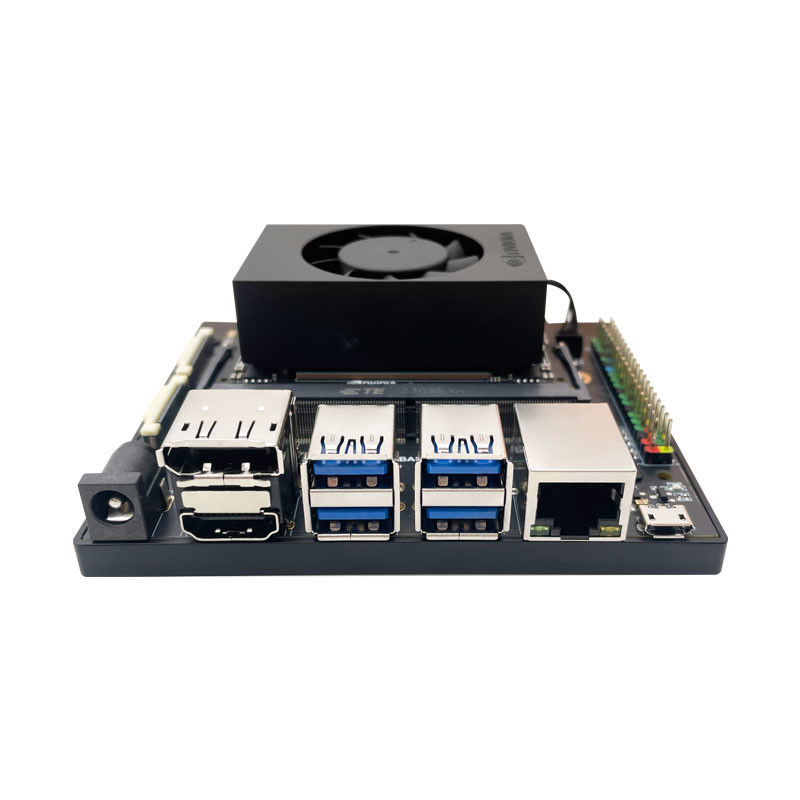

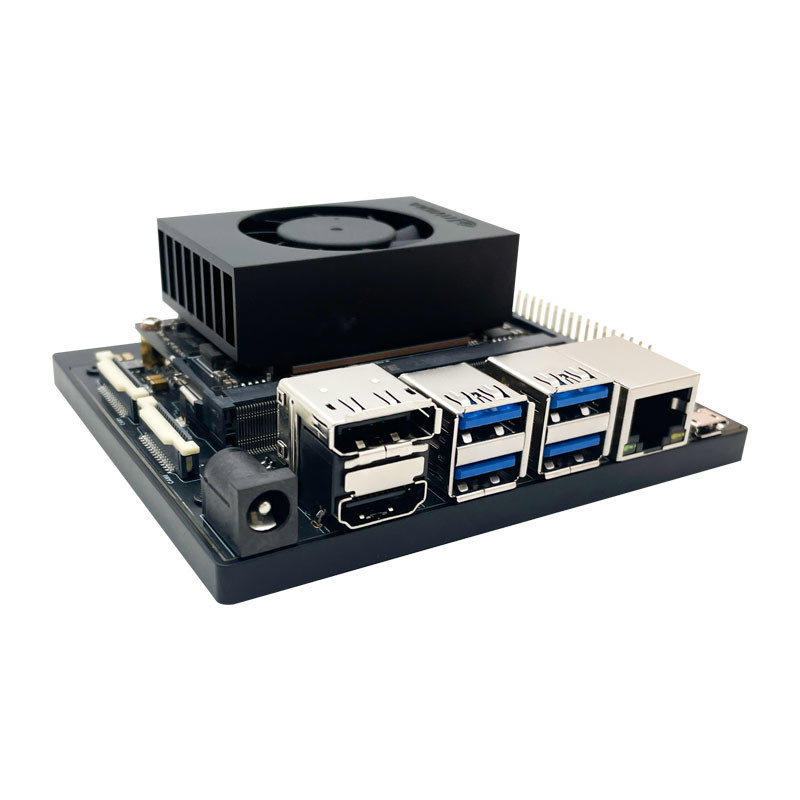

16G NVIDIA JETSON ORIN NX 900-13767-0000-000 Domestic Developer Kit Embedded System 128G SSD



NVIDIA Jeton Orin NX Module16G 900-13767-0000-000

Developer Kit(ONX16G-128-DEV)

Here are the features of the developer kit, produced in China, based on NVIDIA Jetson Orin NX 16G 900-13767-0000-000 module, the 260-PIN SO-DIMM connector of the developer kit is used to connect the Jetson Orin NX module 900-13767-0000-000. 12-Pin leads to power and reset button pins, force recovery setting pins, debugging serial port pins, automatic power-on enable pins, leading to power indicator pins, and 40-PIN pins lead to GPIO, I2C, SPI, UART, I2S, PWM and other interfaces. The M.2 Key E connector can be connected to the wireless network card. The 4-lane camera needs a compatible driver. The common 15-pin 2-LANE camera can be connected with a conversion cable separately





Name ONX16G-DEV(128G SSD)
Module NVIDIA Jetson Orin NX 16G
PN 900-13767-0000-000
Type Embedded System
Size 104mm*90mm*34mm
Weight 159g
Power Supply DC 9V~19V
* Interface sizes are compatible with 5.5 x 2.4
USB

Type-A:USB 3.2 Gen2 Type-A (10Gbps) x2

Type-C:can be used for system burning and data communication





NVIDIA Jetson Orin NX 16G Module 900-13767-0000-000 Specifications

AI Performance 100 TOPS
GPU 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
CPU 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
2MB L2 + 4MB L3
DL Accelerator 2x NVDLA v2
DLA Max Frequency 614 MHz
Vision Accelerator 1x PVA v2
Safety Cluster Engine -
Memory 16GB 128-bit LPDDR5
102.4GB/s
Storage -
(Supports external NVMe)
CSI Camera Up to 4 cameras (8 via virtual channels***)
8 lanes MIPI CSI-2
D-PHY 2.1 (up to 20Gbps)
PCIe 1 x4 + 3 x1
(PCIe Gen4, Root Port, & Endpoint)
Display 1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
Other I/O 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs
Power 10W - 25W

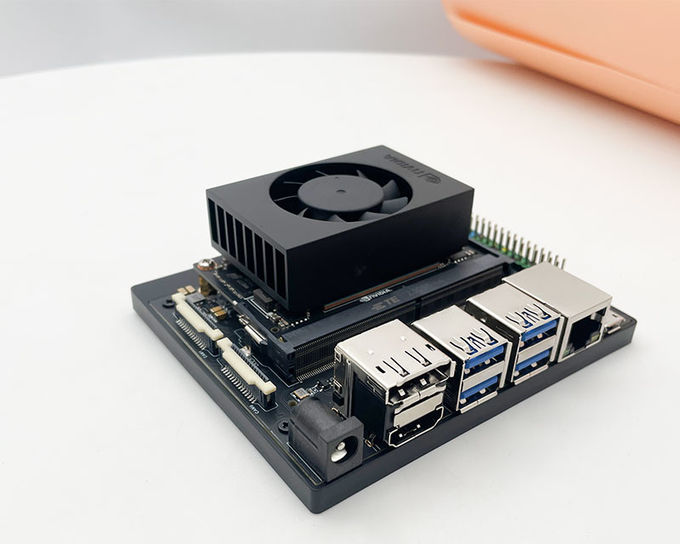

16G NVIDIA JETSON ORIN NX 900-13767-0000-000 Domestic Developer Kit Embedded System 128G SSD 0
