| Place of Origin: | China |
|---|---|
| Brand Name: | PLink |
| Model Number: | ONX8G-DEV（128G SSD） |
| Minimum Order Quantity: | 1PCS |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 20pcs 15-30 work days |
| NAME: | Nvidia Jetson Orin NX 8G Domestic Developer Kit Embedded System AI Industrial 128G SSD NVMe Smart Edge Computing | Keyword: | Nvidia Jetson Orin NX 8G Domestic Developer Kit Embedded System AI Industrial 128G SSD NVMe Smart Edge Computing |
|---|---|---|---|
| AI Performance: | 70 TOPS | Module: | NVIDIA Jetson ORIN NX 8G |
| Memory: | 8GB 128-bit LPDDR5 102.4GB/s | Storage: | Supports External NVMe |
| Mechanical: | 104 Mm X 90 Mm X 34 Mm | Weight: | 159g |
| USB Type-A: | 4x USB 3.2 Gen2 | DC Power Jack: | 9V~19V |
| High Light: | 8G SBC Embedded System,JETSON ORIN NX SBC Embedded System |
||

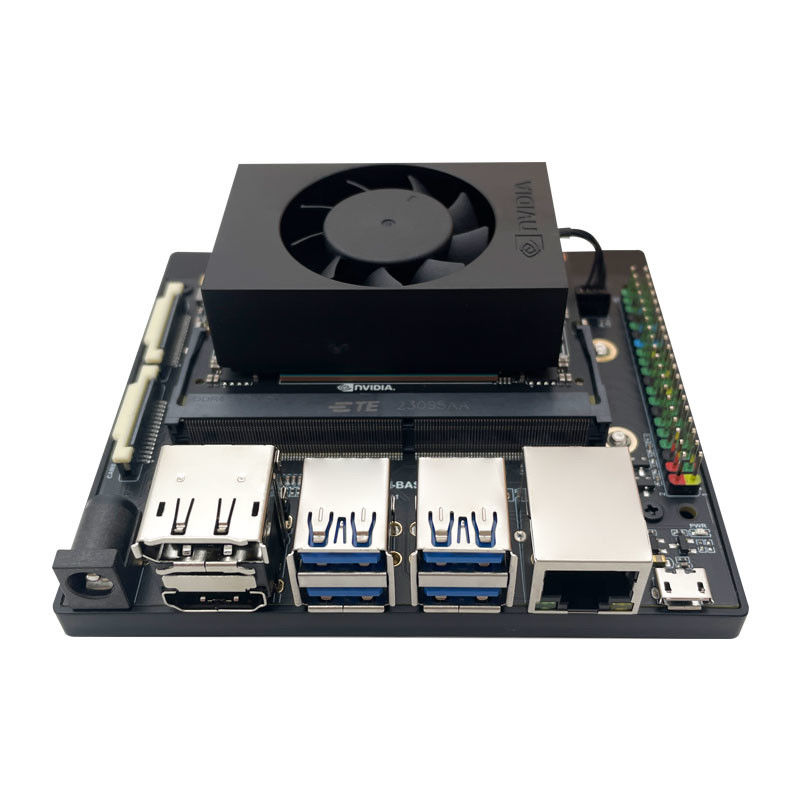

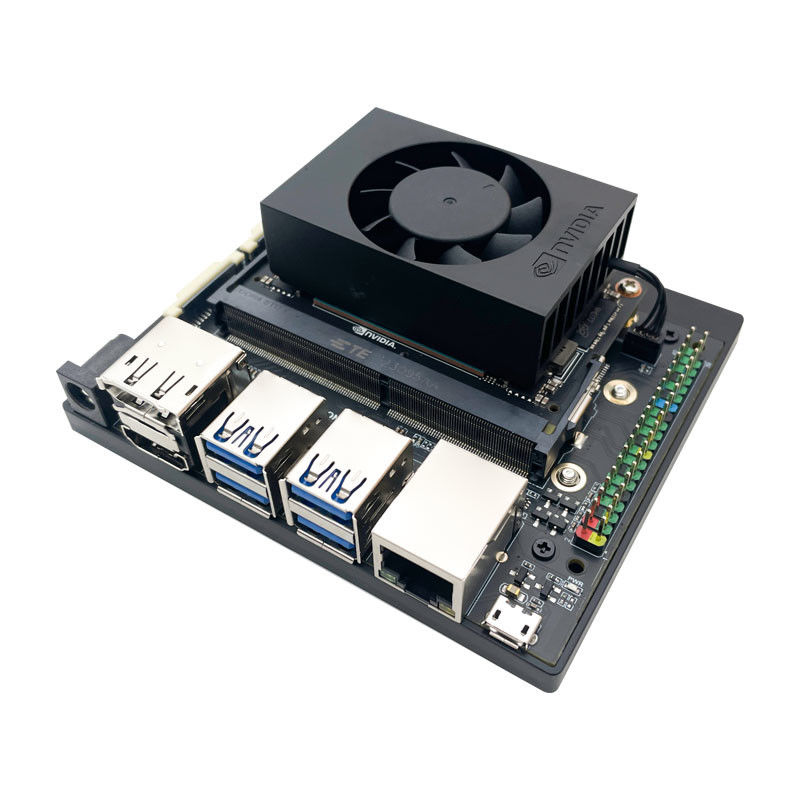

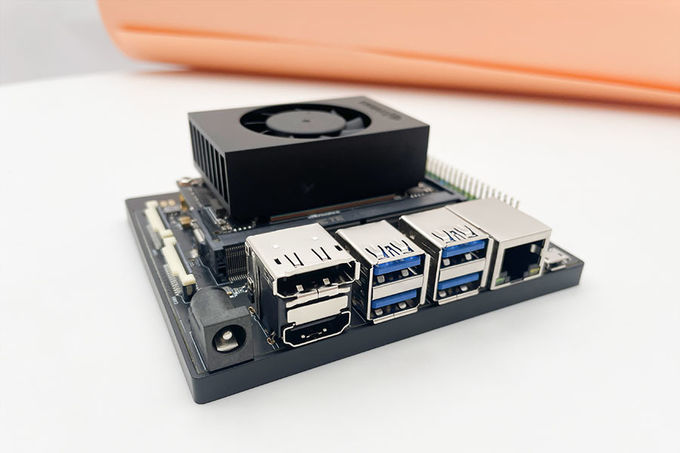

Nvidia Jetson Orin NX 8G Domestic Developer Kit Embedded System AI Industrial 128G SSD NVMe Smart Edge Computing
NVIDIA Jeton Orin NX Module 8G 900-13767-0010-000
Embedded System/Developer Kit(ONX8G-128-DEV)
| Product Name | ONX8G-DEV(128G SSD) |
| Module | NVIDIA Jetson Orin NX 8G |
| Type | Developer Kit |
| Size | 104mm*90mm*34mm |
| Weight | 159g |
| Power Supply | DC 9V~19V
* Interface sizes are compatible with 5.5 x 2.4
|
| USB |
Type-A:USB 3.2 Gen2 Type-A (10Gbps) x2 Type-C:can be used for system burning and data communication
|
| NVIDIA Jetson Orin NX 8G Module 900-13767-0010-000 | NVIDIA Jetson Orin NX 16G Module 900-13767-0000-000 | |
| AI Performance | 70 TOPs | 100 TOPS |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores | |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| Video Encode | 1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265) |
|
| Video Decode | 1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) |
|
| Memory | 8GB 128-bit LPDDR5 102.4GB/s |
16GB 128-bit LPDDR5 102.4GB/s |
| Storage | - (Supports external NVMe) |
|
| Networking | 1x GbE | |
| CSI Camera | Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps) |
|
| Mechanical | 69.6mm x 45mm 260-pin SO-DIMM connector |
|
