| Place of Origin: | China |
|---|---|
| Brand Name: | PLink |
| Model Number: | Y-C17 |
| Minimum Order Quantity: | 1PCS |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | To be discussed |

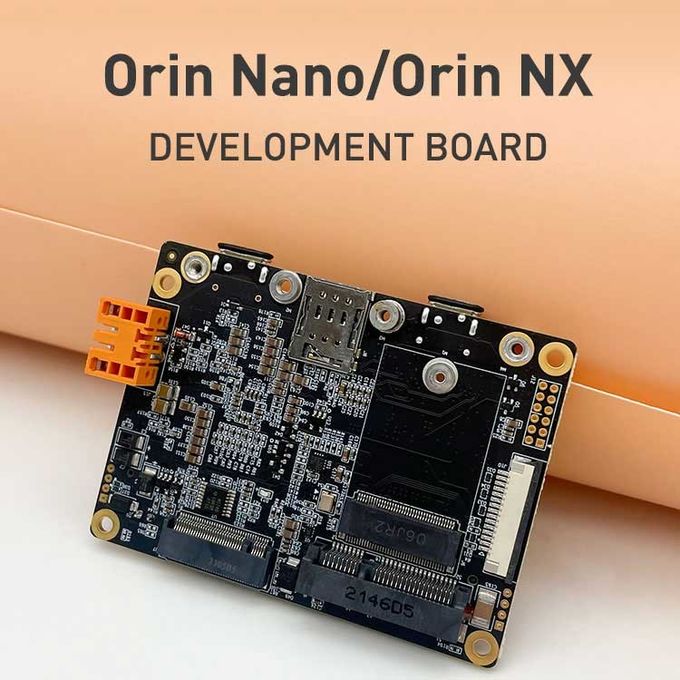

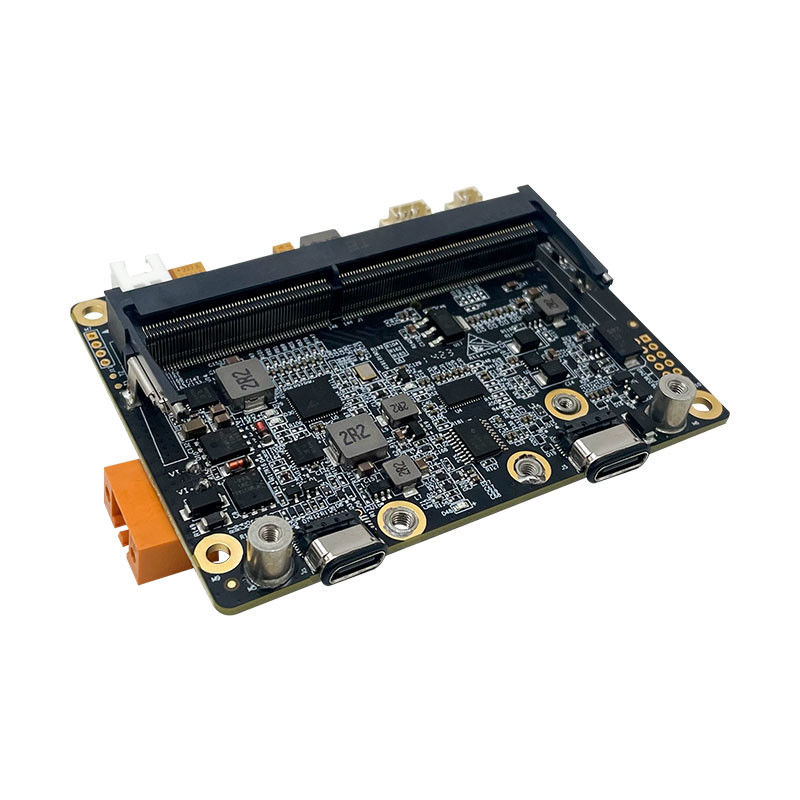

| NAME: | UAV Jetson Orin NX 8GB 900-13767-0010-000 Carrier Board 70 TOPS Industrial Embedded Board Development Board | Keyword: | UAV Jetson Orin NX 8GB 900-13767-0010-000 Carrier Board 70 TOPS Industrial Embedded Board Development Board |
|---|---|---|---|
| PN Number: | 900-13767-0010-000 | Module: | Jetson Orin NX |
| AI Perf: | 70 TOPS | Memory: | 8GB 128-bit LPDDR5 |
| DLA Max Frequency: | 614 MHz | ||
| High Light: | UAV JETSON ORIN NX 8GB,900-13767-0010-000 JETSON ORIN NX 8GB,70 TOPS Embedded Development Board |
||

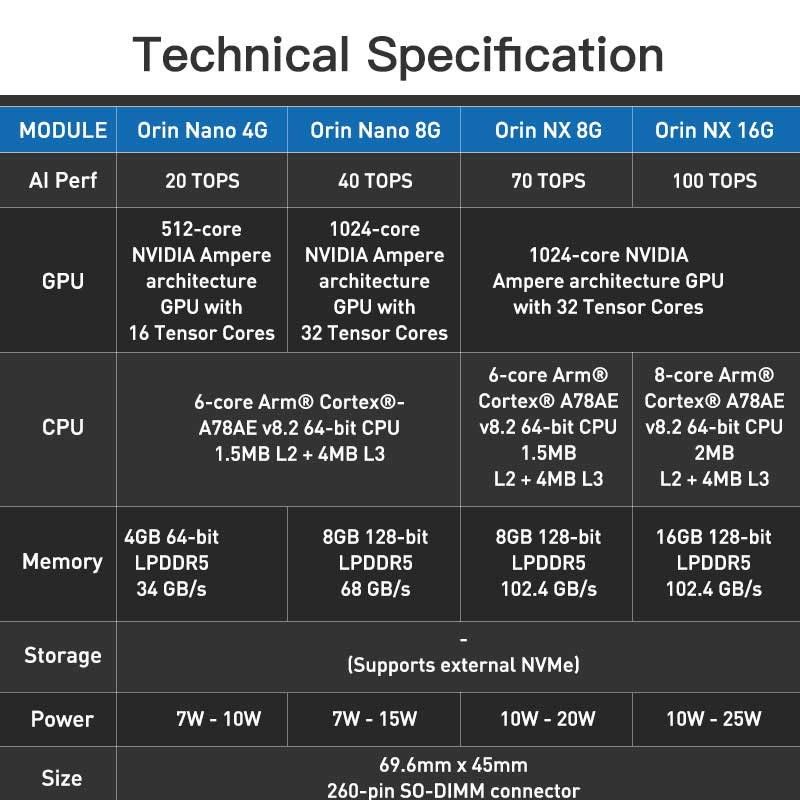

| Jetson Orin NX 16GB | Jetson Orin NX 8GB | |
| AI Performance | 100 TOPS | 70 TOPS |
|
GPU
|
1,024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
|
|
| GPU Max Frequency | 918 MHz | 765 MHz |
|
CPU
|
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
2MB L2 + 4MB L3 |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
| CPU Max Frequency | 2 GHz | |
|
Memory
|
16GB 128-bit LPDDR5
102.4GB/s |
8GB 128-bit LPDDR5 102.4GB/s |
|
Storage
|
-
(Supports external NVMe) |
|
|
Camera
|
Up to 4 cameras (8 via virtual channels***)
8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps) |
|
|
Power
|
10W - 25W
|
10W - 20W |
| Mechanical | 69.6mm x 45mm 260-pin SO-DIMM connector |
|
