| Place of Origin: | China |
|---|---|
| Brand Name: | PLink |
| Model Number: | Y-C17 |
| Minimum Order Quantity: | 1PCS |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | To be discussed |

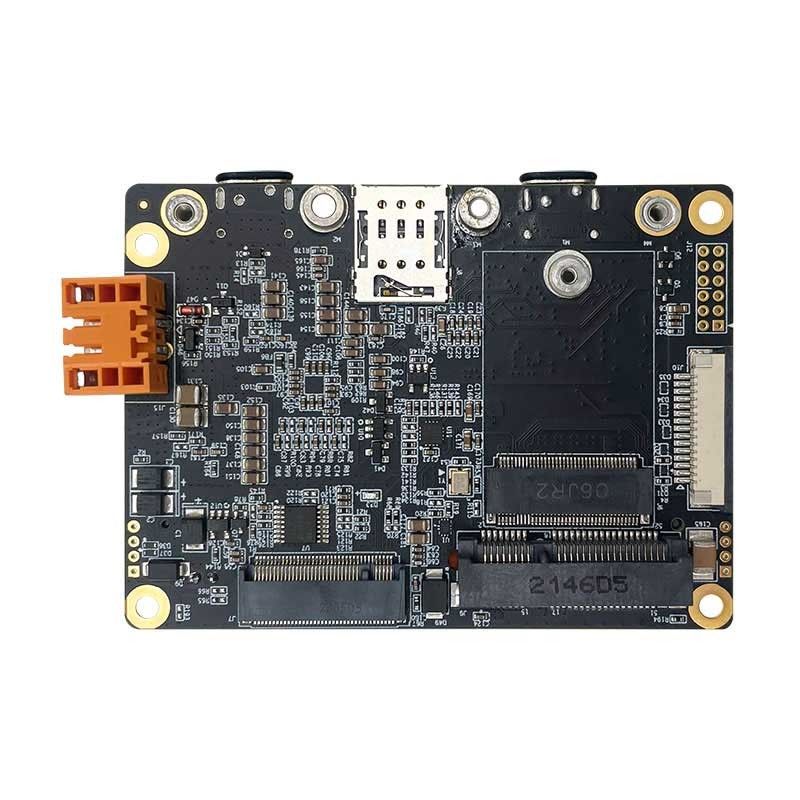

| NAME: | UAV Jetson Orin NX 16GB Carrier Board 100 TOPS Industrial Single Board Development Board | Keyword: | UAV Jetson Orin NX 16GB Carrier Board 100 TOPS Industrial Single Board Development Board |
|---|---|---|---|
| Module: | Jetson Orin NX | AI Perf: | 100 TOPS |
| Memory: | 16GB 128-bit LPDDR5 | GPU: | 1024-core NVIDIA Ampere Architecture GPU With 32 Tensor Cores |
| High Light: | ORIN NX 16GB Embedded Pc Board,900 13767 0000 000 Embedded Pc Board,900 13767 0000 000 JETSON ORIN NX 16GB |
||
| Jetson Orin NX 16GB | Jetson Orin NX 8GB | |
| AI Performance | 100 TOPS (INT8) | 70 TOPS (INT8) |
|
GPU
|
1,024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
|
|
|
CPU
|
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
2MB L2 + 4MB L3 |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
|
Memory
|
16GB 128-bit LPDDR5
102.4GB/s |
8GB 128-bit LPDDR5 102.4GB/s |
|
Storage
|
-
(Supports external NVMe) |
|
|
Camera
|
Up to 4 cameras (8 via virtual channels***)
8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps) |
|
|
PCIe
|
1 x4 + 3 x1
(PCIe Gen4, Root Port, & Endpoint) |
|
|
Display
|
1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
|
|
|
Power
|
10W - 25W
|
10W - 20W |
| Mechanical | 69.6mm x 45mm 260-pin SO-DIMM connector |
|
