| Place of Origin: | China |
|---|---|
| Brand Name: | PLink |
| Model Number: | CB-2006 |
| Minimum Order Quantity: | 1pcs |
| Price: | USD580-USD600\PCS |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1000PCS |
| NAME: | Nvidia Jetson Agx Xavier Module For Deep Learning Board Industrial Carrier Board | Keyword: | Nvidia Jetson Agx Xavier Module For Deep Learning Board Industrial Carrier Board |
|---|---|---|---|
| GPU: | 512-core NVIDIA Volta Architecture GPU With 64 Tensor Cores | M.2 M KEY: | 1* |
| CPU: | 8-core Arm® Cortex®-A78AE V8.2 64-bit CPU 2MB L2 + 4MB L3 | DL Accelerator: | 1x GbE |
| Memory: | 32GB 256-bit LPDDR4x 136.5GB/s | Power: | 10W - 30W |
| USB: | 2* | RJ45: | 2* |
| High Light: | 32GB Nvidia Jetson Agx Xavier Module,USB Nvidia Jetson Agx Xavier Module,32GB Nvidia Xavier Module |
||
Nvidia Jetson Agx Xavier Module For Deep Learning Board Industrial Carrier Board

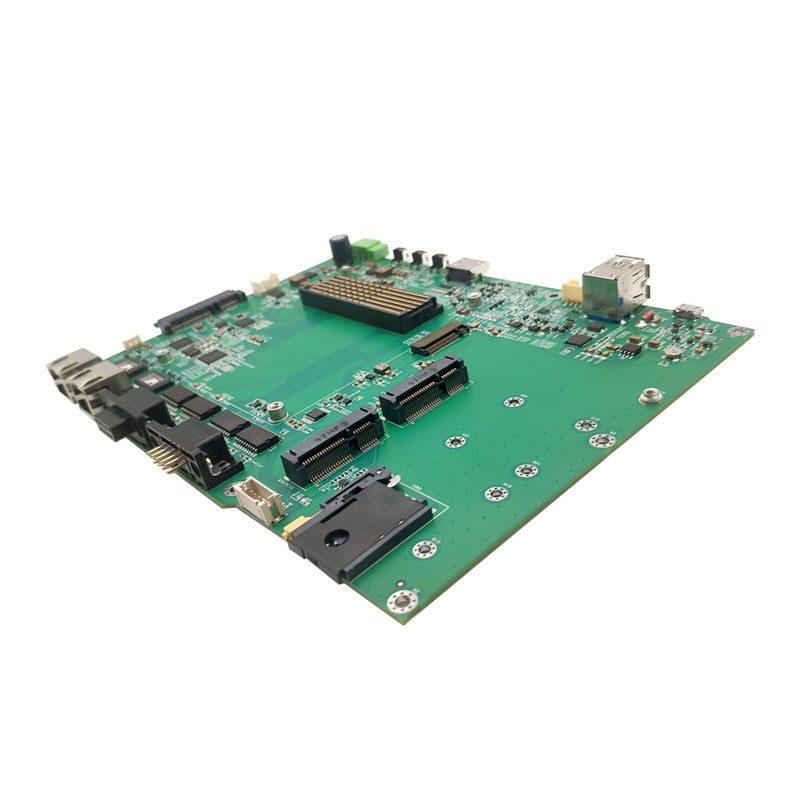

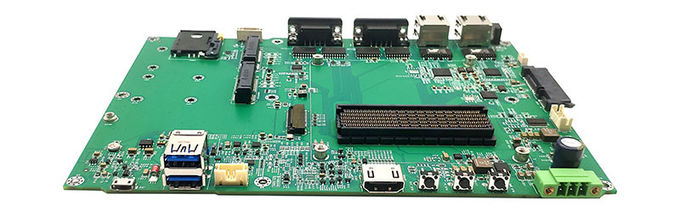

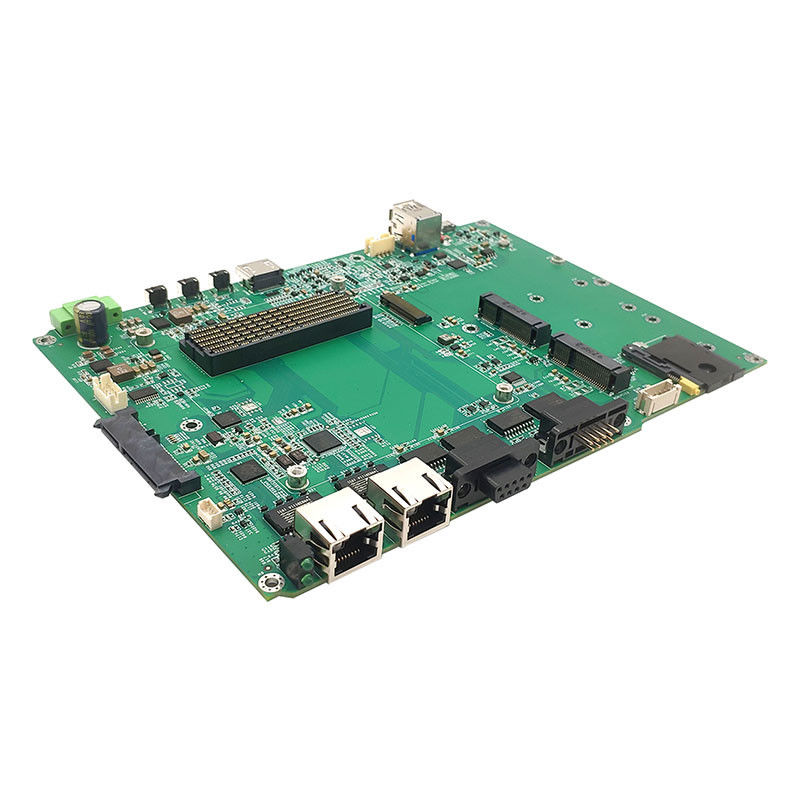

NVIDIA Jetson AGX Xavier Industrial Carrier Board CB-2006
The industrial carrier board CB-2006 based on NVIDIA Jetson AGX Xavier module, and the carrier board product by Plink-Ai,the NVIDIA Jetson AGX Xavier module makes AI-powered autonomous machines possible, delivering up to 32 TOPs. is used by professional developers to create breakthrough AI products across all industries, and by students and enthusiasts for hands-on AI learning and making amazing projects. and 750Gbps of high-speed I/O in a compact form factor,The industrial carrier board main for autonomous machines.
The carrier board CB-2006 interface
2.5KV Isolated CAN port
9~19V DC POWER IN
2.5KV Isolated Serial Port (RS232)
2 x USB3.0 w/ USB2.0
1x M.2 M-KEY
2 x GBE RJ45 Port
2 x F/S MiniPCIe w/ SIM holder
NVIDIA Jetson AGX Xavier Module Specifications
| AI Performance | 32 TOPs |
| GPU | 512-core NVIDIA Volta architecture GPU with 64 Tensor Cores |
| CPU | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| Safety Cluster Engine | - |
| Memory | 32GB 256-bitLPDDR4x 136.5GB/s |
| Storage | 32GB eMMC 5.1 |
| Vision Accelerator | 2x PVA |
| Display | 3 multi-mode DP 1.4/eDP 1.4/HDMI 2.0 |
| Other I/O | 5x UART, 3x SPI, 4x I2S, 8x I2C, 2x CAN, PWM, DMIC, GPIOs |
| Camera | Up to 6 cameras (36 via virtual channels) 16 lanes MIPI CSI-2 | 8 lanes SLVS-EC D-PHY 1.2 (up to 40 Gbps) C-PHY 1.1 (up to 62 Gbps) |
| PCIe | 1 x8 + 1 x4 + 1 x2 + 2 x1 (PCIe Gen4, Root Port & Endpoint) |
| Mechanical | 100mm x 87mm 699-pin connector Integrated Thermal Transfer Plate |
