| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | Y-C1-TX2 |
| Minimum Order Quantity: | 1PCS |
| Price: | USD189-USD199\PCS |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | In stock |

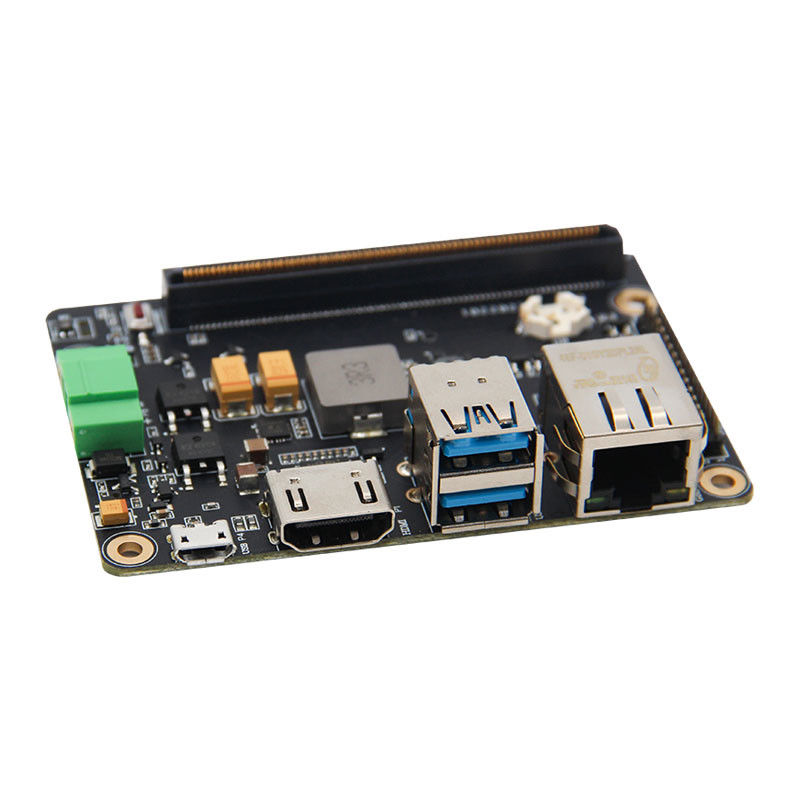

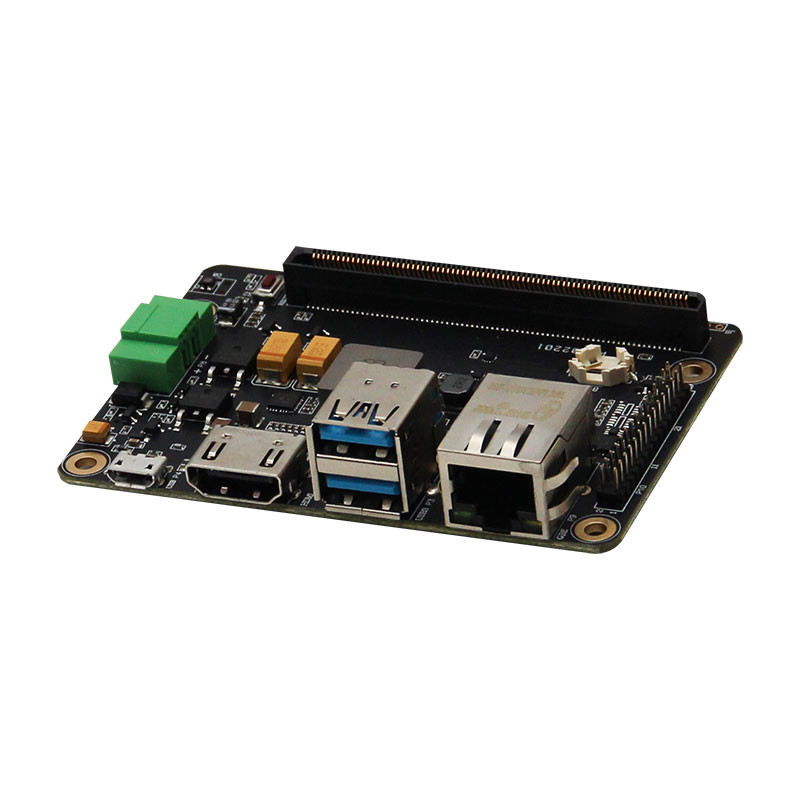

| NAME: | Industrial Single Board Computer AI Embedded PC Board Jetson TX2 Module 900-13636-0010-000 Development Board | Key Word: | Industrial Single Board Computer AI Embedded PC Board Jetson TX2 Module 900-13636-0010-000 Development Board |
|---|---|---|---|
| USB3.0 Ports (5Gbps Bandwidth Per Port, 1A Output Current): | 2* | Power: | 7.5W - 15W |
| Micro USB: | 1* | MiniPCIE: | 2* |
| Function Signal: | 4x GPIO 1x I2C | CPU Max Frequency: | Denver 2: 2 GHz Cortex-A57: 2 GHz |
| Temperature: | -40~+85℃ | SD Card Interface: | 1* |
| CAN: | 2* | Weight: | 51g |
| Power Supply: | +7V~+19V | Board Size: | 87mm×60mm×16mm |
| High Light: | 900-13636-0010-000 Embedded Pc Board,Jetson Tx2 Module Embedded Pc Board,900-13636-0010-000 Industrial Single Board Computer |
||
|
Module
|
TX2 4G
|
TX2 8G
|
|
AI Perf
|
1.33 TFLOPS
|
|
|
GPU
|
256-core NVIDIA Pascal™ GPU
|
|
|
GPU Max Frequency
|
1.12GHz
|
|
|
CPU
|
Dual-core Denver 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor
|
|
|
CPU Max Frequency
|
Denver 2: 2 GHz
Cortex-A57: 2 GHz |
|
|
Memory
|
4 GB 128-bit LPDDR4
51.2GB/s |
8 GB 128-bit LPDDR4
59.7GB/s |
|
Storage
|
16 GB eMMC 5.1
|
32 GB eMMC 5.1
|
|
CSI Camera
|
Up to 5 cameras
(12 via virtual channels) 12 lanes MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps) |
Up to 6 cameras
(12 via virtual channels) 12 lanes MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps) |
|
Display
|
2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0
2 x4 DSI (1.5Gbps/lane) |
|
|
Other I/O
|
5x UART, 3x SPI, 4x I2S, 8x I2C, 2x CAN, GPIOs
|
|
|
Networking
|
10/100/1000 BASE-T Ethernet
|
10/100/1000 BASE-T Ethernet, WLAN
|
|
Mechanical
|
87mm x 50mm
400-pin connector Integrated Thermal Transfer Plate |
|
|
Video Encode
|
1x 4K60 (H.265)
3x 4K30 (H.265) 4x 1080p60 (H.265) |
|
|
Video Decode
|
2x 4K60 (H.265)
7x 1080p60 (H.265) 14x 1080p30 (H.265) |
|
|
Interface
|
Quality
|
|
USB 3.0
|
2
|
|
SD card
|
1
|
|
UART(3.3V)
|
3
|
|
HDMI 2.0
|
1
|
|
Debug(3.3V)
|
1
|
|
GPIO(3.3V)
|
4
|
|
Gigabit Ethernet (10/100/1000 BASE-T)
|
1
|
|
CAN
|
2
|
|
I2C(3.3V)
|
1
|
|
Working Temperature
|
-40~+85°C
|
|
Power
|
+7V~+19V
|
|
Size
|
87mm×60mm×16mm
|
|
Weight
|
51g
|
