| Place of Origin: | China |
|---|---|
| Brand Name: | PLink |
| Model Number: | Y-C11 |
| Minimum Order Quantity: | 1PCS |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | To be discussed |

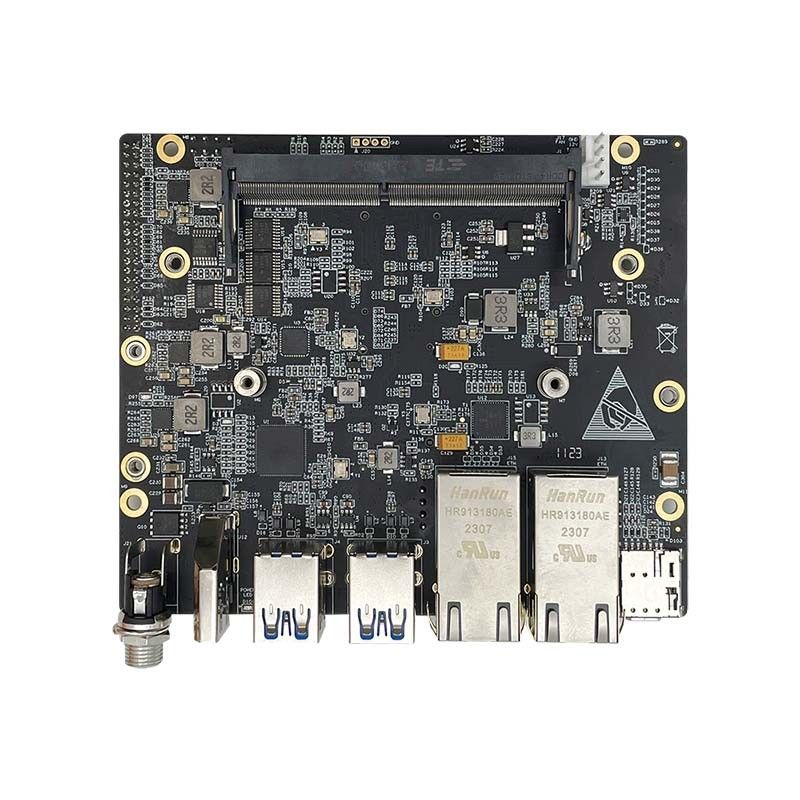

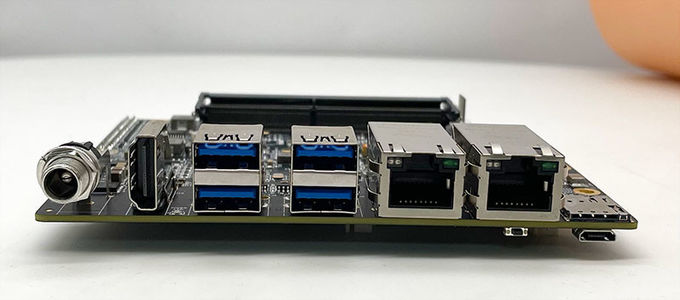

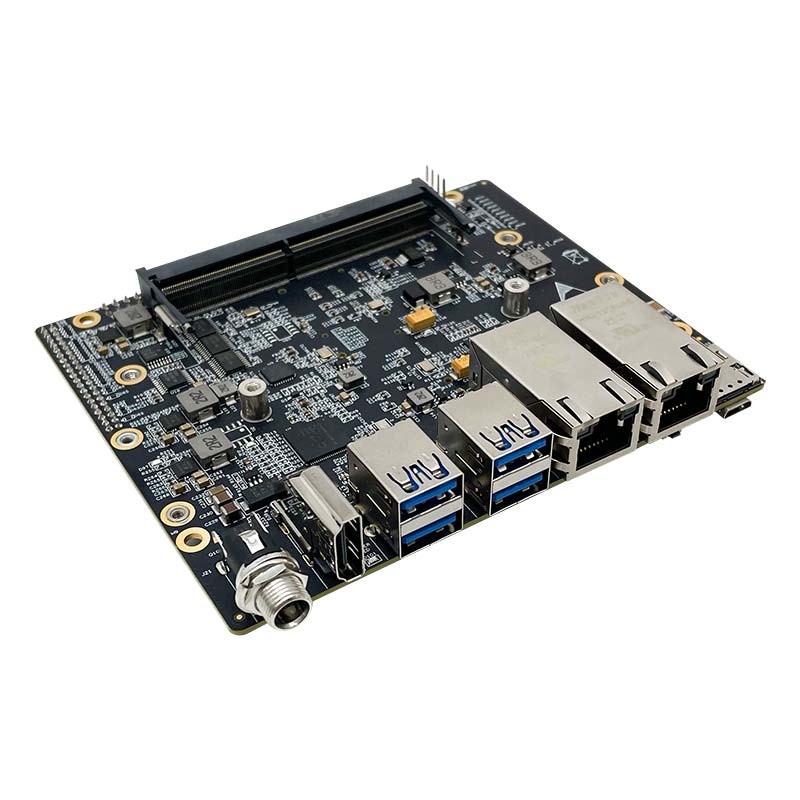

| NAME: | UAV Jetson Orin NX 16GB Carrier Board Industrial Single Board NVIDIA SBC Development Board 100 TOPS | Keyword: | UAV Jetson Orin NX 16GB Carrier Board Industrial Single Board NVIDIA SBC Development Board 100 TOPS |
|---|---|---|---|
| Module: | Jetson Orin NX | AI Perf: | 100 TOPS |
| Memory: | 16GB 128-bit LPDDR5 102.4GB/s | GPU Max Frequency: | 918 MHz |
| DL Accelerator: | 2x NVDLA V2 | GPU: | 1024-core NVIDIA Ampere Architecture GPU With 32 Tensor Cores |
| High Light: | Plink Industrial Single Board,100 TOPS Industrial Single Board,100 TOPS JETSON ORIN NX 16 GB |
||
|
GPU
|
1,024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
|
|
CPU
|
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
2MB L2 + 4MB L3 |
|
Memory
|
16GB 128-bit LPDDR5
102.4GB/s |
|
Storage
|
-
(Supports external NVMe) |
|
Camera
|
Up to 4 cameras (8 via virtual channels***)
8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps) |
|
PCIe
|
1 x4 + 3 x1
(PCIe Gen4, Root Port, & Endpoint) |
|
Display
|
1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
|
|
Power
|
10W - 25W
|
