| Place of Origin: | China |
|---|---|
| Brand Name: | PLink |
| Model Number: | Y-C8-DEV |
| Minimum Order Quantity: | 1set |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1+set+4weeks |

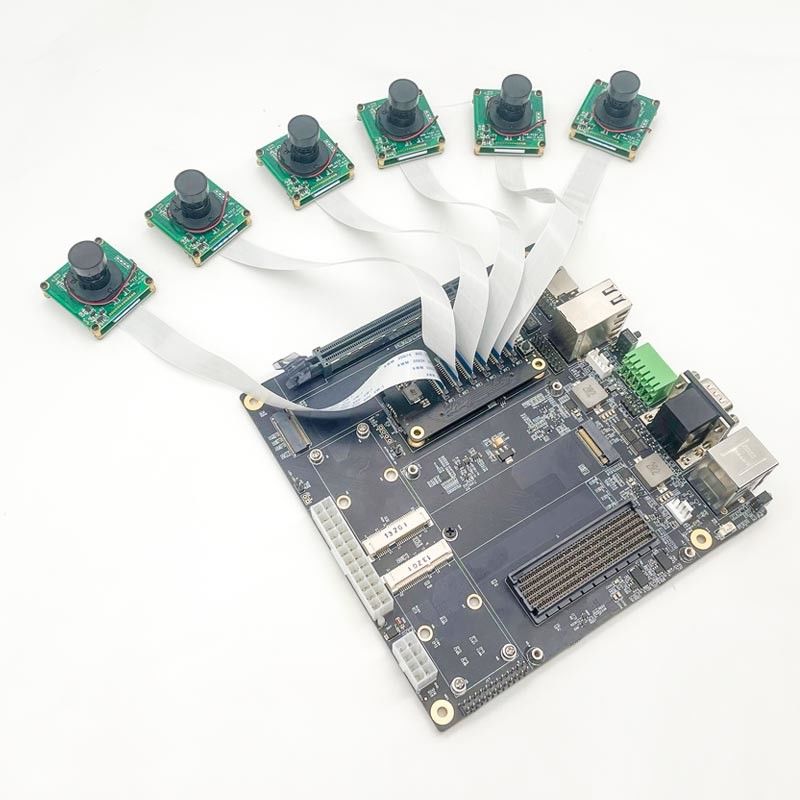

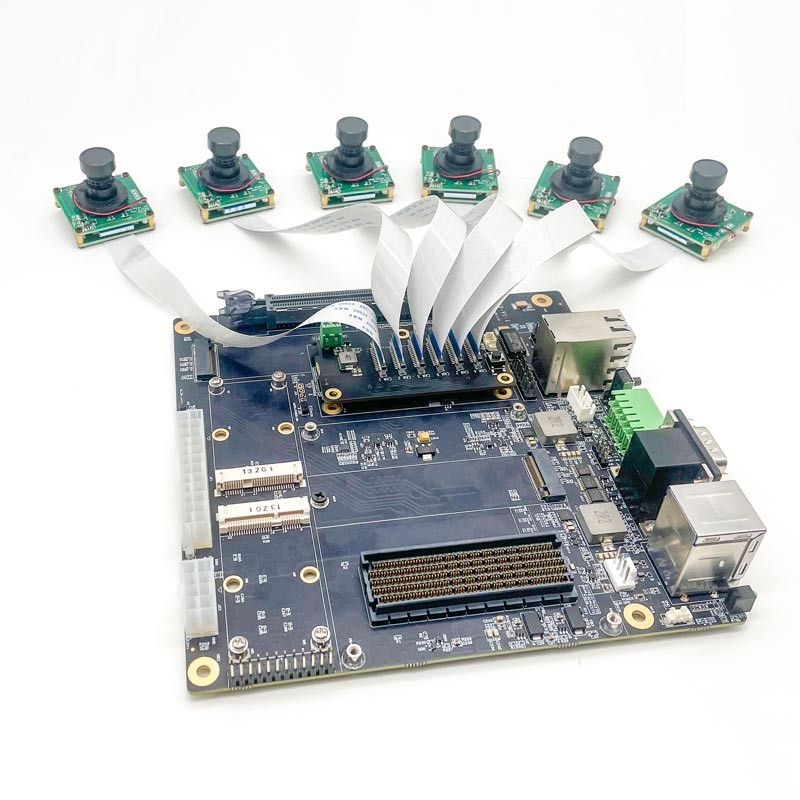

| NAME: | Education NVIDIA Jetson AGX Xavier 32G Embedded PC Board MIPI CSI Multi-camera | Keyword: | Education NVIDIA Jetson AGX Xavier 32G Embedded PC Board MIPI CSI Multi-camera |
|---|---|---|---|
| Module: | NVIDIA Jetson AGX Xavier | Power: | 10W | 15W | 30W |
| Memory: | 32 GB 256-bit LPDDR4x 136.5GB/s | AI Perf: | 32 TOPS |
| UPHY: | (8x) PCIe Gen4 / (8x) SLVS-EC (3x) USB 3.1 Single Lane UFS | Resolution: | 1920*1080 |
| Image Enhancement: | BLC, Digtal WDR(TO DO..), Defog | Image Setting: | Brightness, Contrast, Sharpness, Gamma, Saturation,Flip, Mirror |
| High Light: | Education Nvidia Jetson Agx Xavier,32G Nvidia Jetson Agx Xavier,10W Jetson Xavier 32gb |
||
|
GPU
|
NVIDIA Volta™ architecture with 512 NVIDIA CUDA cores and 64 Tensor cores
|
|
CPU
|
8-Core Carmel ARM v8.2 64-Bit CPU, 8 MB L2 + 4 MB L3
|
|
Memory
|
32 GB 256-bit LPDDR4x 136.5GB/s
|
|
DL Accelerator
|
2x NVDLA Engines
|
|
VIDEO ENCODER
|
4x 4K60 (H.265) | 8x 4K30 (H.265) | 16x 1080p60 (H.265) | 32x 1080p30 (H.265) | 30x1080p30 (H.264)
|
|
VIDEO DECODER
|
2x 8K30 (H.265) | 6x 4K60 (H.265) | 12x 4K30 (H.265) | 26x 1080p60 (H.265) | 52x 1080p30 (H.265) | 30x 1080p30 (H.264)
|
|
Connectivity
|
Wi-Fi requires external chip
|
|
PCIe
|
1 x8 + 1 x4 + 1 x2 + 2 x1 (PCIe Gen4, Root Port & Endpoint)
|
|
AI Perf
|
32 TOPS
|
|
Power
|
10W | 15W | 30W
|
|

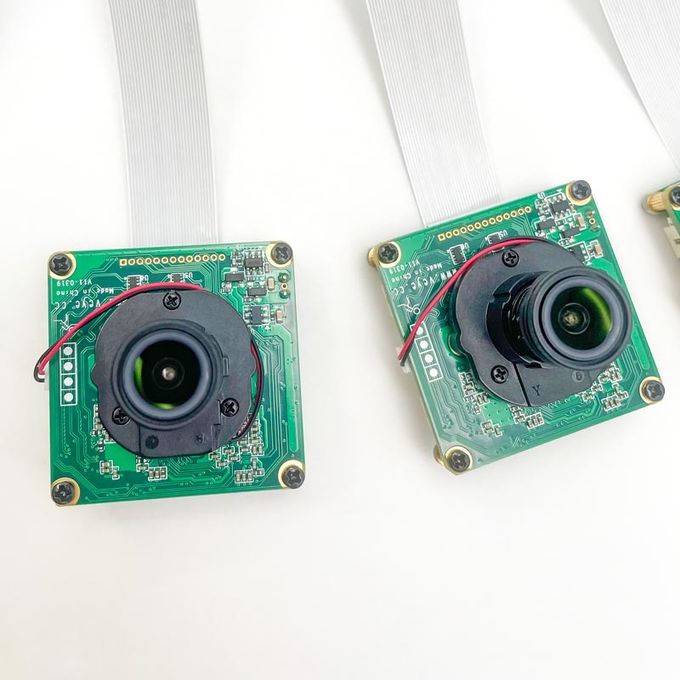

CSI Camera
|
Up to 6 cameras (36 via virtual channels) | 16 lanes MIPI CSI-2 | D-PHY 1.2 (up to 40Gbps) | C-PHY 1.1 (up to 62Gbps)
|
|
Networking
|
10/100/1000 BASE-T Ethernet
|
|
Resolution
|
1920*1080
|
|
Image Size
|
Diagonal 6.46 mm (Type 1/2.8)
|
|
Communication Interface
|
IIC, 3.3VDC
|
|
Shutter
|
1/25(1/30)s to 1/20,000s
|
|
Power Consumption
|
1.4W
|
|
Communication Interface
|
Performance guarantee temperature:-10℃~60℃, Humidity 95% or less, non-condensing
Operating guarantee temperature: -30℃~85℃, Humidity 95% or less, non-condensing
|
|
Other Functions
|
Pick Mode:Pick Picture from Video Stream
|
