| Place of Origin: | China |
|---|---|
| Brand Name: | PLink |
| Model Number: | Y-C8-DEV |
| Minimum Order Quantity: | 1set |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1+set+4weeks |
| NAME: | NVIDIA Jetson AGX Xavier 32G Embedded System CSI MIPI Multi-camera Module | Keyword: | NVIDIA Jetson AGX Xavier 32G Embedded System CSI MIPI Multi-camera Module |
|---|---|---|---|
| Module: | NVIDIA Jetson AGX Xavier | AI Perf: | 32 TOPS |
| Input Power: | DC +12V | Resolution: | 1920*1080 |
| Image Enhancement: | BLC, Digtal WDR(TO DO..), Defog | Image Setting: | Brightness, Contrast, Sharpness, Gamma, Saturation,Flip, Mirror |
| High Light: | 32G Nvidia Xavier Kit,12V Nvidia Xavier Kit,32G Xavier Agx Nvidia |
||

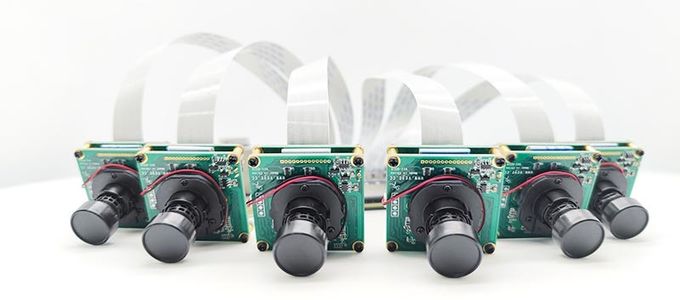

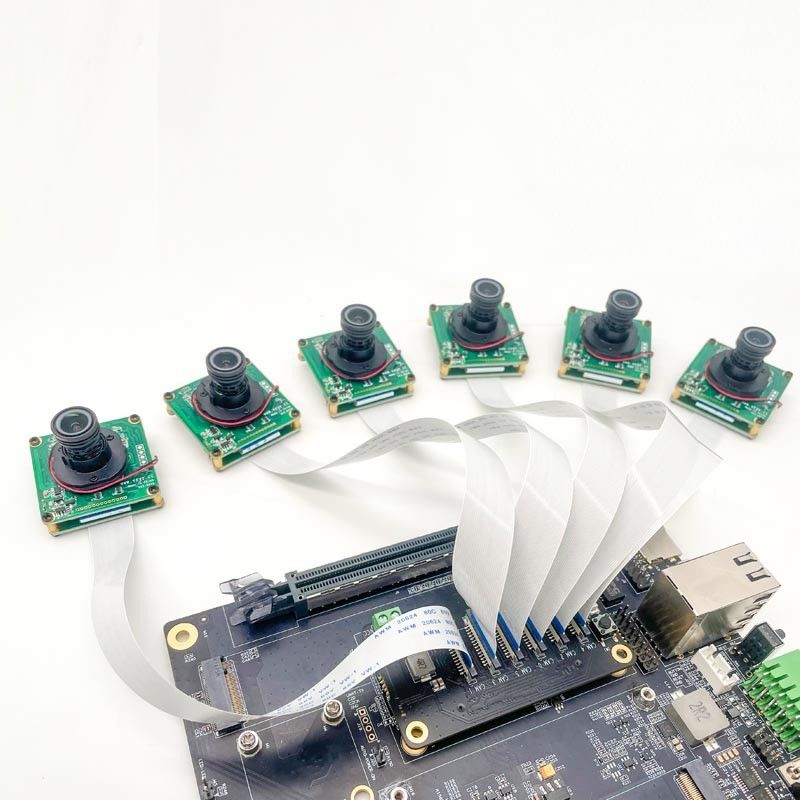

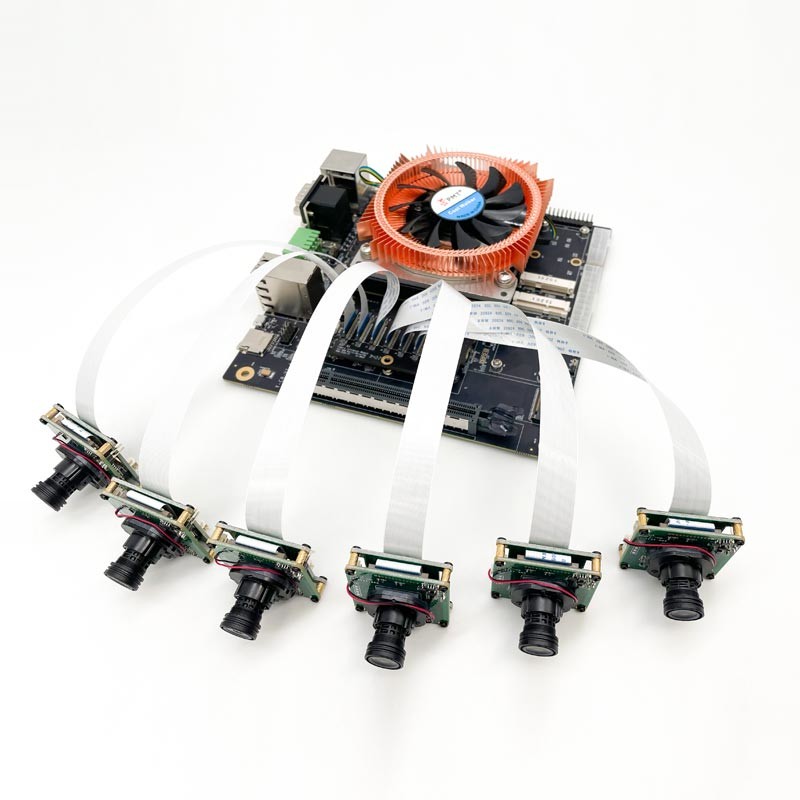

NVIDIA Jetson AGX Xavier 32G Embedded System CSI MIPI Multi-camera Module
The NVIDIA developer kit is based on Jetson AGX Xavier module. it has 6 CSI camera can be supported at the same time, and also can support Raspberry PI Platform,RK3399, NVIDIA JETSON Platform etc;
Built-in ISP processing
BLC, Digtal WDR, 2D/3D noise reduction, Anti-fog
Brightness, Contrast, Sharpness, Saturation adjustable
Framerate Continuously Adjustable
Support Multi-camera Module Video Stream Synchronization
Support firmware upgrade via USB disk
| GPU | NVIDIA Volta™ architecture with 512 NVIDIA CUDA cores and 64 Tensor cores |
| CPU | 8-Core Carmel ARM v8.2 64-Bit CPU, 8 MB L2 + 4 MB L3 |
| Memory | 32 GB 256-bit LPDDR4x 136.5GB/s |
| Storage | 32 GB eMMC 5.1 |
| VIDEO ENCODER | 4x 4K60 (H.265) | 8x 4K30 (H.265) | 16x 1080p60 (H.265) | 32x 1080p30 (H.265) | 30x1080p30 (H.264) |
| VIDEO DECODER | 2x 8K30 (H.265) | 6x 4K60 (H.265) | 12x 4K30 (H.265) | 26x 1080p60 (H.265) | 52x 1080p30 (H.265) | 30x 1080p30 (H.264) |
| Connectivity | Wi-Fi requires external chip |
| Display | 3 multi-mode DP 1.4/eDP 1.4/HDMI 2.0 | No DSI support |
| AI Perf | 32 TOPS |
| Power | 10W | 15W | 30W |
| CSI Camera | Up to 6 cameras (36 via virtual channels) | 16 lanes MIPI CSI-2 | D-PHY 1.2 (up to 40Gbps) | C-PHY 1.1 (up to 62Gbps) |
| VISION ACCELERATOR | 2x 7-Way VLIW Vision Processor |
Camera Module Technical Specifications
| Resolution | 1920*1080 |
| Exposure | Auto or Manual |
| White Balance | Auto or Manual |
| Shutter | 1/25(1/30)s to 1/20,000s |
| Shutter Type | Rolling Shutter |
| Video Stream Synchronization | Support Multi-camera Module Video Stream Synchronization |
| Other Functions | Pick Mode:Pick Picture from Video Stream |
