| Brand Name: | PLink |
|---|---|
| Model Number: | Y-C8-DEV |
| Minimum Order Quantity: | 1set |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1+set+4weeks |
| NAME: | NVIDIA Jetson AGX Orin 64G Developer Kit Embedded System CSI MIPI Multi-camera Module | Keyword: | NVIDIA Jetson AGX Orin 64G Developer Kit Embedded System CSI MIPI Multi-camera Module |
|---|---|---|---|
| Module: | NVIDIA Jetson AGX Orin | AI Perf: | 275 TOPS |
| Resolution: | 1920*1080 | Technical Details SENSOR Sensor SONY IMX307LQD-C STARVIS Pixels 2.07M Pixels Resolution 1920*1080 Im: | Support |
| Image Setting: | Brightness, Contrast, Sharpness, Gamma, Saturation,Flip, Mirror | Image Enhancement: | BLC, Digtal WDR(TO DO..), Defog |
| Input Power: | DC12V | Temp: | -25~+65°C |
| High Light: | 64G Nvidia Jetson Agx Orin,DC12V Nvidia Jetson Agx Orin |
||
NVIDIA Jetson AGX Orin 64G Developer Kit Embedded System CSI MIPI Multi-camera Module

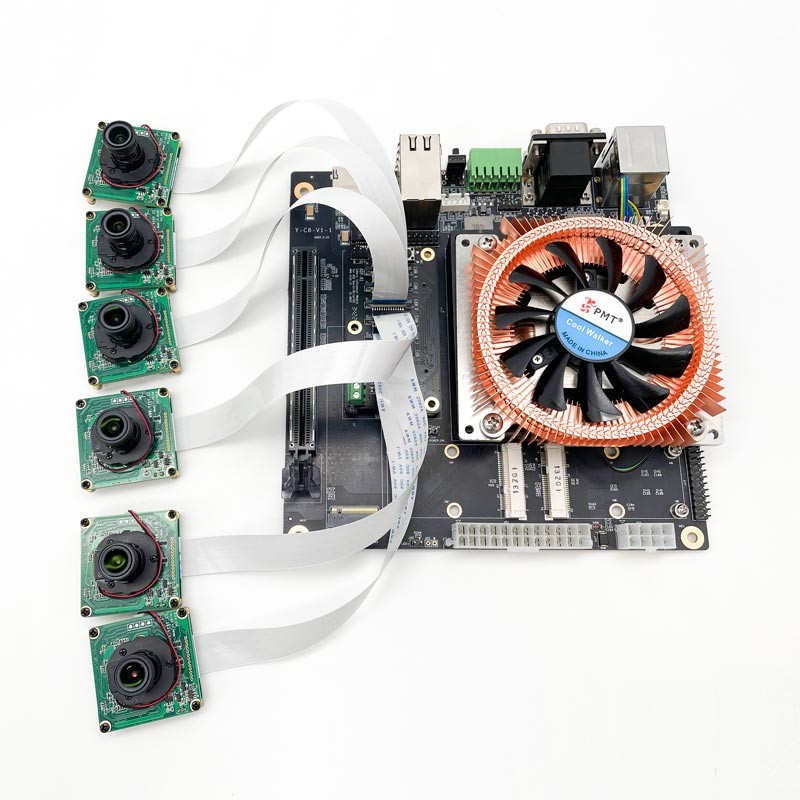

The NVIDIA developer kit is based on Jetson AGX Orin 64GB module. and it support 6 CSI camera at the same time, the camera is a highly cost-effective CSI-2 (MIPI) interface camera module, built-in excellent ISP image processing, convenient for customers to quickly integrate and release products.
Built-in ISP processing
CSI-2 Interface
Uncompressed UYVY format, YUV422-8bit
Standard lens mount
IR-CUT circuit
BLC, Digtal WDR, 2D/3D noise reduction, Anti-fog
Brightness, Contrast, Sharpness, Saturation adjustable
Framerate Continuously Adjustable
Support Multi-camera Module Video Stream Synchronization
Support firmware upgrade via USB disk
Support Raspberry PI Platform,RK3399, NVIDIA JETSON Platform
| NVIDIA Jetson AGX Orin 32GB | NVIDIA Jetson AGX Orin 64GB | |
| AI Performance | 200 TOPS (INT8) | 275 TOPS (INT8) |
| GPU | NVIDIA Ampere architecture with 1792 NVIDIA®CUDA® cores and 56 Tensor Cores | NVIDIA Ampere architecture with 2048 NVIDIA®CUDA® cores and 64 Tensor Cores |
| Max GPU Freq | 939 MHz | 1.3 GHz |
| CPU | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 | 12-core Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 |
| CPU Max Freq | 2.2 GHz | |
| DL Accelerator | 2x NVDLA v2.0 | |
| DLA Max Frequency | 1.4 GHz | 1.6 GHz |
| Vision Accelerator | PVA v2.0 | |
| Memory | 32GB 256-bit LPDDR5 204.8 GB/s | 64GB 256-bit LPDDR5 204.8 GB/s |
| Storage | 64GB eMMC 5.1 | |
| CSI Camera | Up to 6 cameras (16 via virtual channels*) 16 lanes MIPI CSI-2 D-PHY 2.1 (up to 40Gbps) | C-PHY 2.0 (up to 164Gbps) |
|
| Video Encode | 1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 (H.265) H.264, AV1 |
2x 4K60 | 4x 4K30 | 8x 1080p60 | 16x 1080p30 (H.265) H.264, AV1 |
| Video Decode | 1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60| 18x 1080p30 (H.265) H.264, VP9, AV1 |
1x 8K30 | 3x 4K60 | 7x 4K30 | 11x 1080p60| 22x 1080p30 (H.265) H.264, VP9, AV1 |
| Networking | 1x GbE 4x 10GbE |
|
| Display | 1x 8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1 | |
| Power | 15W - 40W | 15W - 60W |
| Mechanical | 100mm x 87mm 699-pin Molex Mirror Mezz Connector Integrated Thermal Transfer Plate |
|
*Virtual Channel related camera information for Jetson AGX Orin is not final and subject to change.
| Frame Rate Adjustment | Framerate Continuously Adjustable |
| Exposure | Auto or Manual |
| White Balance | Auto or Manual |
| Shutter | 1/25(1/30)s to 1/20,000s |
| Output Format | Bayer |
| Video Stream Synchronization | Support Multi-camera Module Video Stream Synchronization |
| Other Functions | Pick Mode:Pick Picture from Video Stream |
