| Place of Origin: | China |
|---|---|
| Brand Name: | PLink |
| Model Number: | Y-C6-ONX16G |
| Minimum Order Quantity: | 1PCS |
| Price: | USD199-USD219\PCS |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | To be discussed |
| NAME: | V2X Jetson Orin NX 16GB Carrier Board Module Y-C6 Development Board 100 TOPS | Keyword: | V2X Jetson Orin NX 16GB Carrier Board Module Y-C6 Development Board 100 TOPS |
|---|---|---|---|
| Camera: | 2x 2 Lane MIPI | Module: | NVIDIA Jetson Orin NX |
| Memory: | 16GB 128-bit LPDDR5 102.4 GB/s | AI Perf: | 100 TOPS |
| Size: | 120mm * 80mm * 18 Mm | Weight: | 78g |
| High Light: | V2X Jetson Orin Nx,16GB Jetson Orin Nx,100 TOPS Jetson Orin Nx |
||

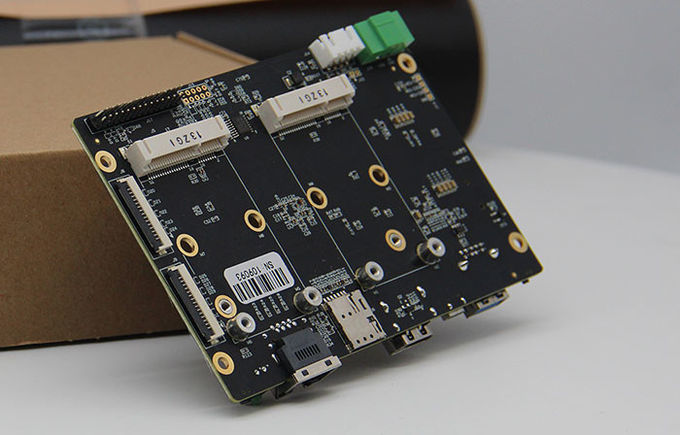

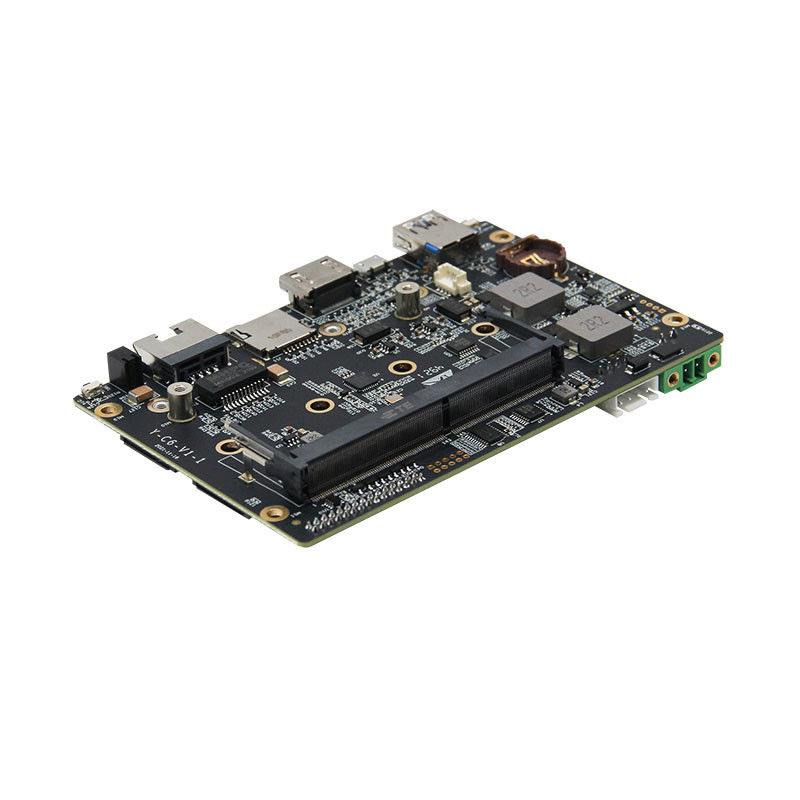

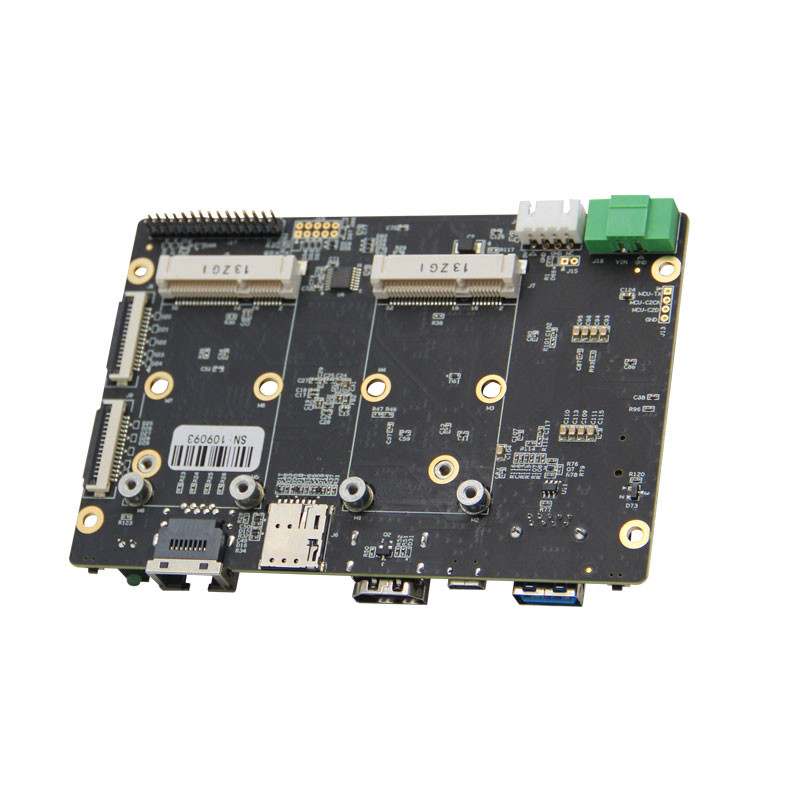

V2X Jetson Orin NX 16GB Carrier Board Module Y-C6 Development Board 100 TOPS
Module:Jetson Orin NX
Support:HDMI/USB3.0/REC button/RST button/GPIO/I2C/CAN/SPI/miniPCIe/USB2.0/UART1/UART2(DEBUG)
Use to flash system:Micro USB
Need to modify driver:UART 0
| AI Perf | 100 TOPS |
| GPU | 1,024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| CPU | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| DL Accelerator | 2x NVDLA v2 |
| Memory | 16GB 128-bit LPDDR5 102.4GB/s |
| Storage | - (Supports external NVMe) |
| Camera | Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps) |
| PCIe | 1 x4 + 3 x1 (PCIe Gen4, Root Port, & Endpoint) |
| Display | 1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1 |
| Power | 10W - 25W |
| Mechanical | 69.6mm x 45mm 260-pin SO-DIMM connector |
|
Micro USB |
1 |
| USB3.1 Type-A | 1 |
|
Micro TF card |
1 |
|
HDMI 2.0 |
1 |
| Working Indicator | 1 |
| MiniPCIe | 2 |
| (10 / 100 / 1000 BASE-T) RJ45 | 1 |
| 2 Lane MIPI Camera Interface FPC | 2 |
| RS-232 | 2 |
| CAN | 1 |
| UART(3.3V) | 1 |
| SPI(3.3V) | 1 |
| I2C(3.3V) | 2 |
| Board Size | 120mm×80mm×18mm |
| Power | DC +9V~+24V |
| Working temperature | -40~+85℃ |
| Weight | 78g |
