| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | Plink-Y-C7-DEV-NX |
| Minimum Order Quantity: | 1 |
| Price: | To be discussed |
| Packaging Details: | 28X24X15cm |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1+set+4weeks |
| NAME: | Nvidia Jetson Xavier NX Developer Kit Jetson Xavier NX Gpu | Keyword: | Nvidia Jetson Xavier NX Developer Kit Jetson Xavier NX Gpu |
|---|---|---|---|
| Module: | Jetson Xavier NX 16G | CSI Camera: | *1 |
| Working Temperature: | -40~+85℃ | Weight: | 120g |
| MiniPCIe: | *1 | Power Adapter: | DC +9V~+24V |
| USB: | *3 | Board Size: | 80mm×60mm×35 Mm |
| High Light: | nvidia jetson xavier nx module 16g,9v nvidia jetson xavier nx module,jetson xavier nx dev kit 16g |
||

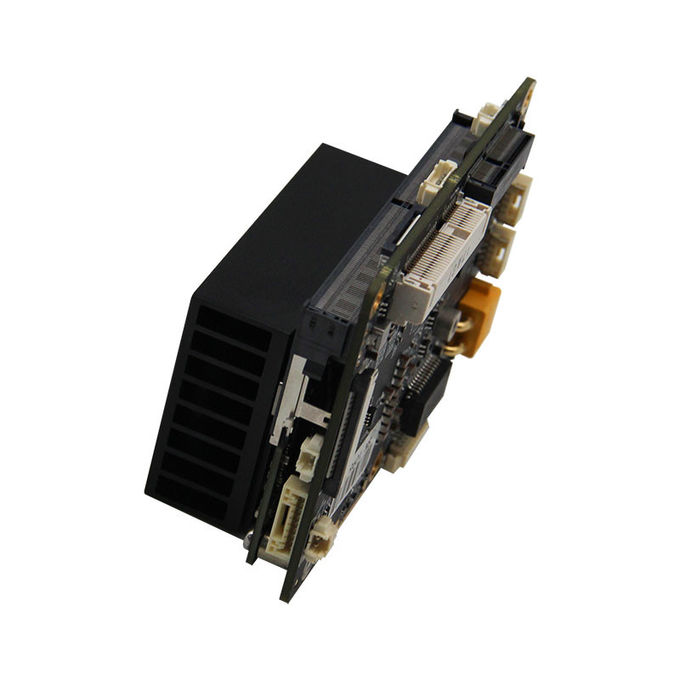

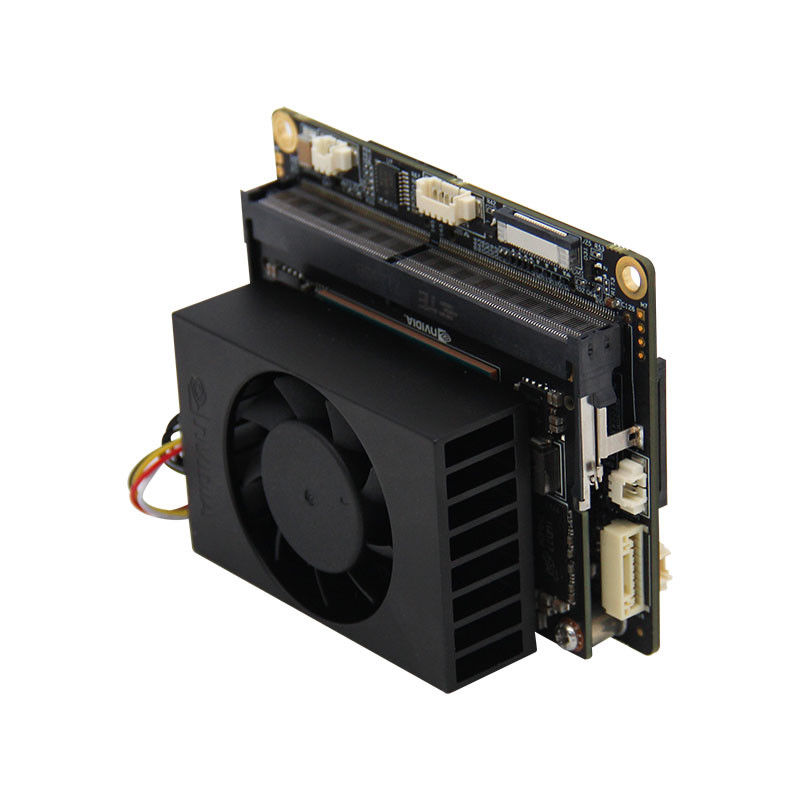

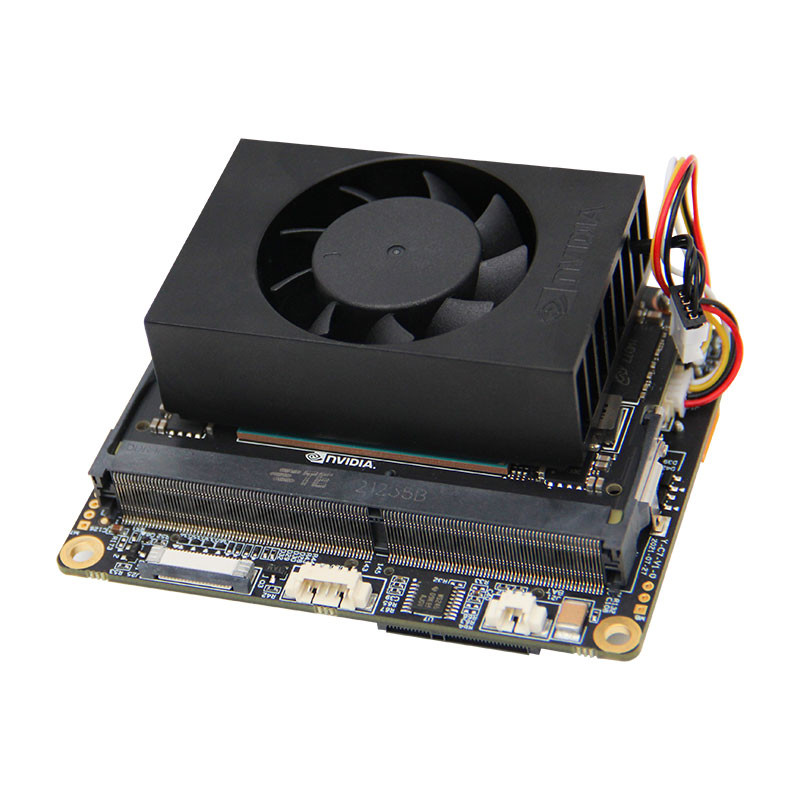

Nvidia Jetson Xavier NX Developer Kit Jetson Xavier NX gpu
NVIDIA Jetson is the world's leading platform for AI at the edge. It combines high-performance, low-power compute modules with the NVIDIA AI software stack. It’s the ideal platform for advanced robotics and other autonomous products. and Y-C7-DEV(Jetson Xavier NX developer kit) is based on NVIDIA Jetson Xavier NX module
In a world where AI chips are announced on what seems like a daily basis, I believe NVIDIA raised the bar with its Jetson Xavier NX —showing that exceptional performance at small size and low power, together with a consistent and powerful software architecture, is what matters in embedded edge computing
| MiniPCIe | 1 |
| M.2 Key M | 1 |
| HDMI | 1 |
| 3.3V GPIO | 1 |
| 3.3V GPO | 1 |
| 3.3V I2C | 3 |
| RJ45 | 1 |
| CAN | 1 |
| Board size | 80 ×60 ×16.8 mm |
| Weight | 120g |
| Power adapter | DC +9V~+24V |
| Working temperature | -25~+65℃ |
| AI Performance | 21 TOPS |
| GPU | 384-core NVIDIA Volta™ GPU with 48 Tensor Cores |
| CPU | 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6MB L2 + 4MB L3 |
| Memory | 16 GB 128-bit LPDDR4x 59.7GB/s |
| Storage | 16 GB eMMC 5.1 |
| CSI Camera | Up to 6 cameras (24 via virtual channels) 14 lanes (3x4 or 6x2) MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps) |
