| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | Plink-Y-C7-DEV-NX |
| Minimum Order Quantity: | 1 |
| Price: | To be discussed |
| Packaging Details: | 28X24X15cm |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1+set+4weeks |
| NAME: | UAV Module Nvidia Jetson Xavier NX Developer Kit Jetson Xavier NX Gpu | Keyword: | UAV Module Nvidia Jetson Xavier NX Developer Kit Jetson Xavier NX Gpu |
|---|---|---|---|
| Model Number: | Jetson Xavier NX 16G | USB: | *3 |
| CAN: | *1 | M.2 Key M: | *1 |
| CSI Camera: | *1 | HDMI: | *1 |
| MiniPCIe: | *1 | Power Adapter: | DC +9V~+24V |
| Working Temperature: | -20~+65℃ | Board Size: | 80mm×60mm×16.8 Mm |
| High Light: | 16g jetson xavier nx developer kit,uav jetson xavier nx developer kit,16g jetson xavier nx module |
||

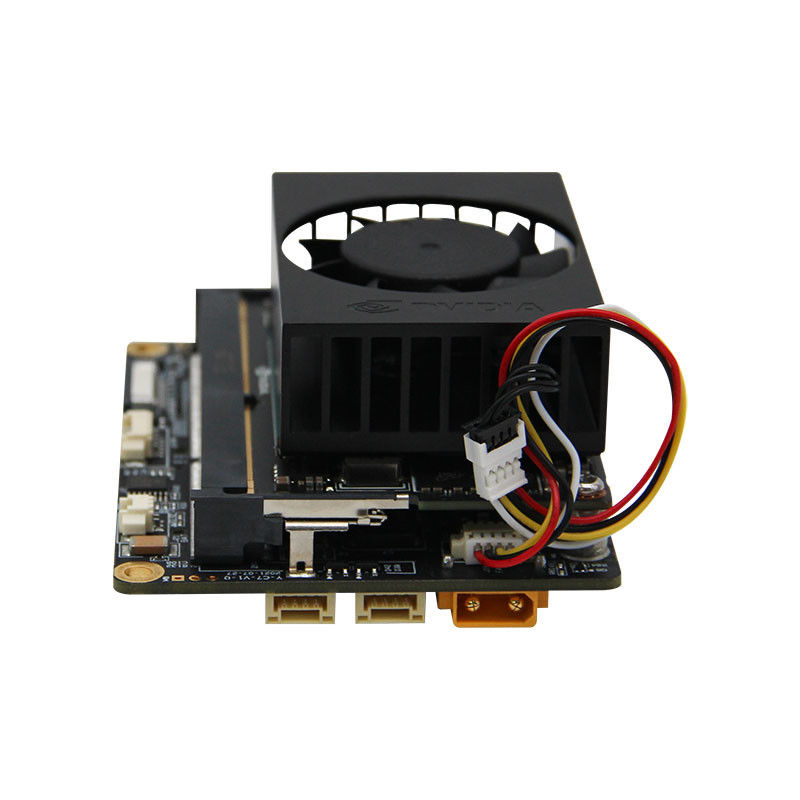

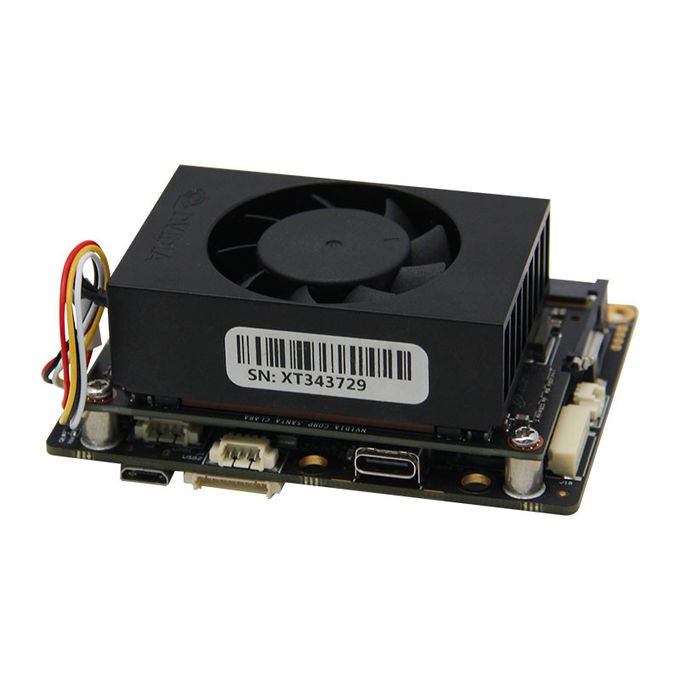

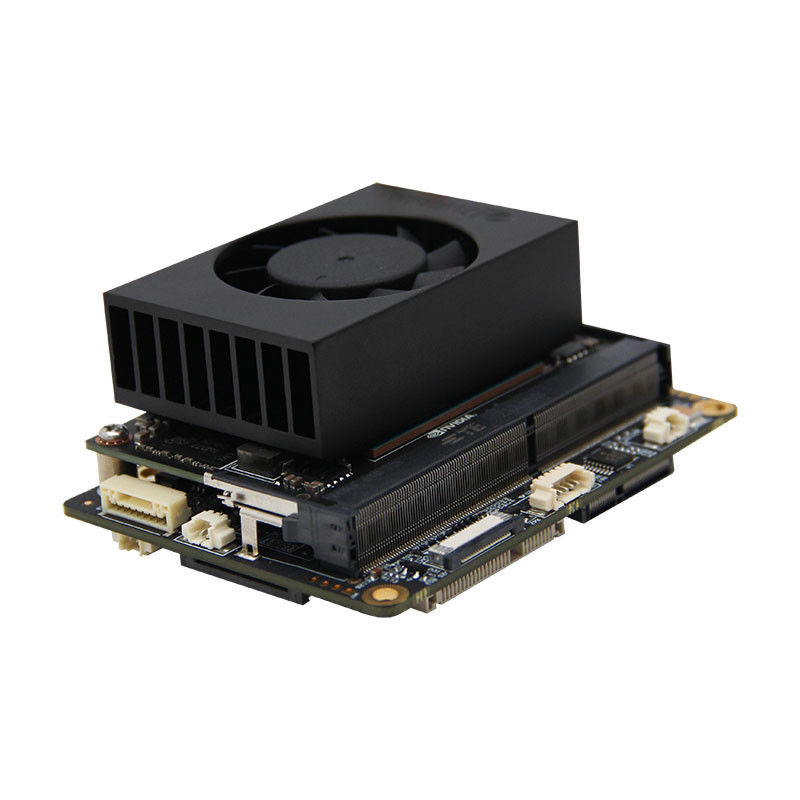

UAV Module Nvidia Jetson Xavier NX Developer Kit Jetson Xavier NX gpu
Jetson Xavier NX Developer Kit (Y-C7-NX-DEV)
Module:16 GB eMMC 5.1 + 21 TOPS + 16 GB 128-bit LPDDR4x 59.7GB/s
Carrier Board: Y-C7
FAN: NVIDIA Jetson Xavier NX exclusive Cooling Fan
The Y-C7-DEV is a NVIDIA AI kit, it is small and produced by Plink-AI. it's a self-developed developer kit. Which is for UAV industry etc; and the Jetson Xavier NX delivers up to 21 TOPS, making it ideal for high-performance compute and AI in embedded and edge systems. supports multiple power modes—including low-power modes for battery-operated systems—and delivers up to 14 TOPs for AI applications in as little as 10W. is perfect for high-performance AI systems like commercial robots, medical instruments, smart cameras, high-resolution sensors, automated optical inspection, smart factories, and other AIoT embedded systems.
| 2 Lane MIPI | 1 |
| RJ45 | 1 |
| 3.3V I2C | 1 |
| MiniPCIe | 1 |
| CAN | 1 |
| HDMI | 1 |
| 3.3V GPO | 1 |
| 3.3V GPIO | 3 |
| USB | 3 |
| RS-232 | 1 |
| M.2 Key M | 1 |
| Board size | 80 ×60 ×16.8 mm |
| Power adapter | DC +9V~+24V |
| Working temperature | -20~+65℃ |
Technical Specifications
Jetson Xavier NX 16GB
| AI Performance | 21 TOPS |
| GPU | 384-core NVIDIA Volta™ GPU with 48 Tensor Cores |
| CPU | 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6MB L2 + 4MB L3 |
| Memory | 16 GB 128-bit LPDDR4x 59.7GB/s |
| Storage | 16 GB eMMC 5.1 |
| CSI Camera | Up to 6 cameras (24 via virtual channels) 14 lanes (3x4 or 6x2) MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps) |
| Display | 2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0 |
| Vision Accelerator | 7-Way VLIW Vision Processor |
