| Place of Origin: | USA |
|---|---|
| Brand Name: | NVIDIA |
| Model Number: | Jetson TX2 NX |
| Minimum Order Quantity: | 1pcs |
| Price: | $500-$520 |
| Delivery Time: | 15-30work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 100pcs 30work days |
| NAME: | Original Brand Nvidia Jetson TX2 4GB Dev Kit JetPack For Self Driving Car | Key Word: | Original Brand Nvidia Jetson TX2 4GB Dev Kit JetPack For Self Driving Car |
|---|---|---|---|
| Model Number: | Jetson TX2 NX | Brand: | NVIDIA |
| Type: | Module | AI Performance: | 1.33 TFLOPS |
| GPU: | NVIDIA Pascal™ Architecture With 256 NVIDIA CUDA Cores 1.3 TFLOPS (FP16) | CPU: | Dual-core NVIDIA Denver 2 64-bit CPU And Quad-core Arm® Cortex®-A57 MPCore Processor Complex |
| Memory: | 4 GB 128-bit LPDDR4 51.2GB/s | Storage: | 16 GB EMMC 5.1 |
| PCIe: | 1 X1 + 1 X2 (PCIe Gen2) | Networking: | 10/100/1000 BASE-T Ethernet |
| Power: | 7.5W | 15W | Mechanical: | Video Input Interfaces NVCSI Is The Host For The Fourth-generation Camera Solution (NVCSI 1.0, VI 4.0, And ISP 4.0). It Is Based On The MIPI CSI-2 V1.3 Protocol Stack; Supports D-PHY V1.2; And Is Paired With The 4th Generation NVIDIA Video Input (VI) Unit. |
| High Light: | JetPack jetson tx2 4gb,jetson tx2 4gb Dev Kit,Nvidia tx2 dev kit |
||
Original Brand Nvidia Jetson TX2 4GB Dev Kit JetPack For Self Driving Car

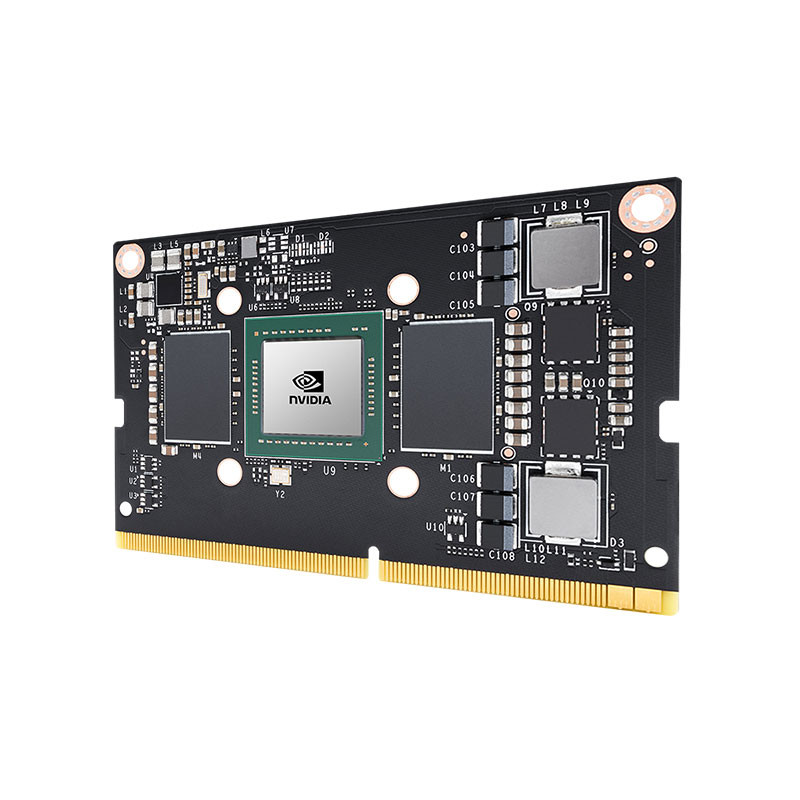

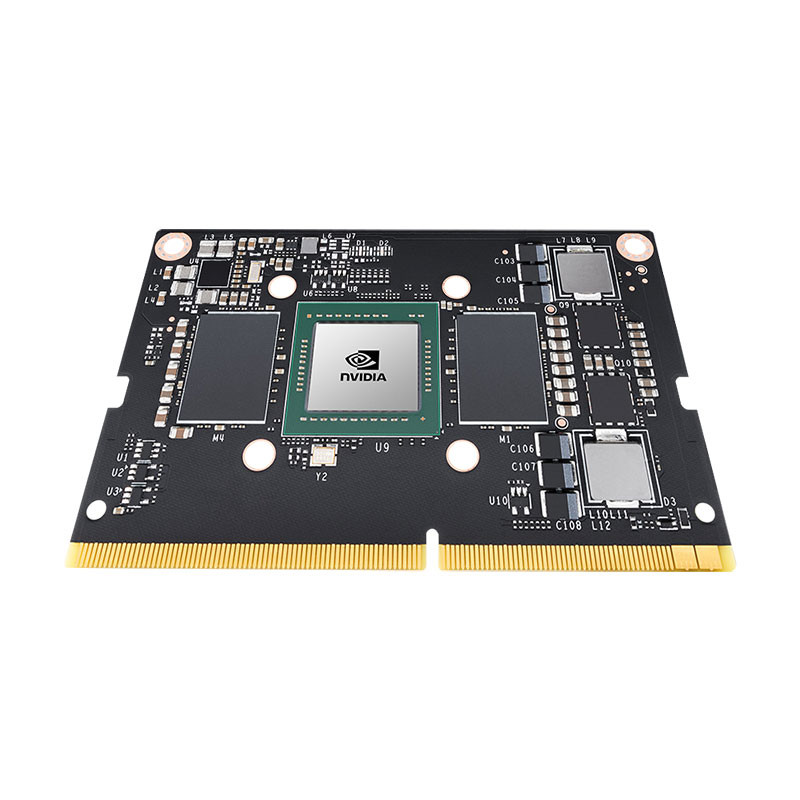

NVIDIA Jetson TX2 NX Module
NVIDIA Jetson TX2 NX module delivers the next step in AI performance for entry-level embedded and edge products. It provides up to 2.5X the performance of Jetson Nano, and shares form-factor and pin compatibility with Jetson Nano and Jetson Xavier NX.
This small module packs hardware accelerators for the entire AI pipeline, and NVIDIA JetPack, SDK provides the tools you need to use them for your application. Custom AI network development is easy with pre-trained AI models from NVIDIA NGC and the NVIDIA TAO Toolkit, and containerized deployments make updates for your product flexible and seamless.
Ease of development and speed of deployment—plus a unique combination of form-factor, performance, and power advantage—make Jetson TX2 NX the ideal mass-market AI product platform.
UART Signal Descriptions
|
Function |
Type |
Description |
|
UART[7,3:0]_TX |
Output |
UART Transmit |
|
UART[7,3:0]_RX |
Input |
UART Receive |
|
UART[3:0]_CTS# |
Input |
UART Clear-to-send |
|
UART[3:0]_RTS# |
Output |
UART Request-to-send |
Video Input Interfaces
NVCSI is the host for the fourth-generation camera solution (NVCSI 1.0, VI 4.0, and ISP 4.0). It is based on the MIPI CSI-2 v1.3 protocol stack; supports D-PHY v1.2; and is paired with the 4th generation NVIDIA video input (VI) unit. The NVCSI combination host enables three 4-lane, six 2-lane, or six 1-lane configurations. Each lane can support up to four virtual channels and supports data type interleaving.
Features:
Virtual Channel Interleaving
Data Type Interleaving
Parallel pixel processing for higher through put and lower clock speeds
| AI Performance | 1.33 TFLOPs |
| GPU | NVIDIA Pascal™ Architecture GPU with 256 CUDA cores |
| CPU | Dual-core NVIDIA Denver 2 64-bit CPU and quad-core ARM A57 Complex |
| Memory | 4GB 128-bit LPDDR4, 1600 MHz - 51.2 GBs |
| Storage | 16GB eMMC 5.1 Flash Storage |
| PCIe | 1 x1 + 1 x2 (PCIe Gen2) |
| Power | 7.5W | 15W |
| CSI Camera | Up to 5 cameras (12 via virtual channels) 12 lanes MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps) |
| Display | 2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0 1x 2 DSI (1.5Gbps/lane) |
| Networking | 10/100/1000 BASE-T Ethernet |
| Video Encode | 1x 4K60 (H.265) 3x 4K30 (H.265) 4x 1080p60 (H.265) |
| Video Decode | 2x 4K60 (H.265) 7x 1080p60 (H.265) 14x 1080p30 (H.265) |
| Mechanical | 69.6 mm x 45 mm 260-pin SO-DIMM connector |
