| Place of Origin: | USA |
|---|---|
| Brand Name: | NVIDIA |
| Model Number: | Jetson TX2 8G |
| Minimum Order Quantity: | 1pcs |
| Price: | $480-$500 |
| Delivery Time: | 15-30work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 100pcs 30work days |
| NAME: | Custom High Performance Nvidia Jetson Tx2 Module Development Board | Keyword: | Custom High Performance Nvidia Jetson Tx2 Module Development Board |
|---|---|---|---|
| Model Number: | Jetson TX2 8G(900-83310-0001-000) | AI Performance: | 1.33 TFLOPS |
| GPU: | NVIDIA Pascal™ Architecture With 256 NVIDIA CUDA Cores 1.3 TFLOPS (FP16) | CPU: | Dual-core NVIDIA Denver 2 64-bit CPU And Quad-core Arm® Cortex®-A57 MPCore Processor Complex |
| Memory: | 8 GB 128-bit LPDDR4 59.7 GB/s | PCIe: | 1 X4 + 1 X1 OR 2 X1 + 1 X2 PCIe Gen 2, Total 50GT/s |
| Mechanical: | 87 Mm X 50 Mm 400-pin Connector Thermal Transfer Plate (TTP) | Networking: | Wi-Fi Onboard 10/100/1000 BASE-T Ethernet |
| High Light: | Custom nvidia jetson tx2 module,nvidia jetson tx2 module Board,Custom nvidia tx2 module |
||

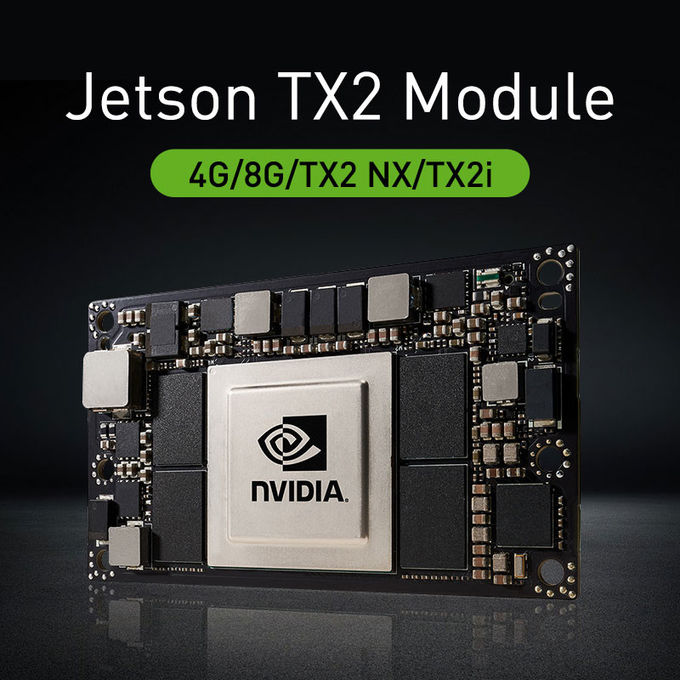

Custom High Performance Nvidia Jetson Tx2 Module Development Board

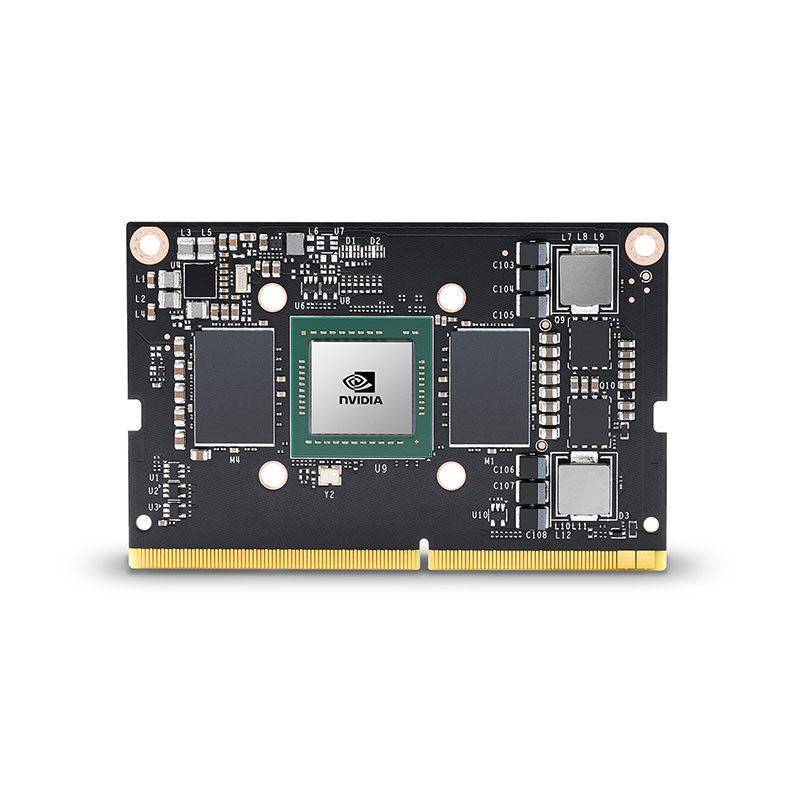

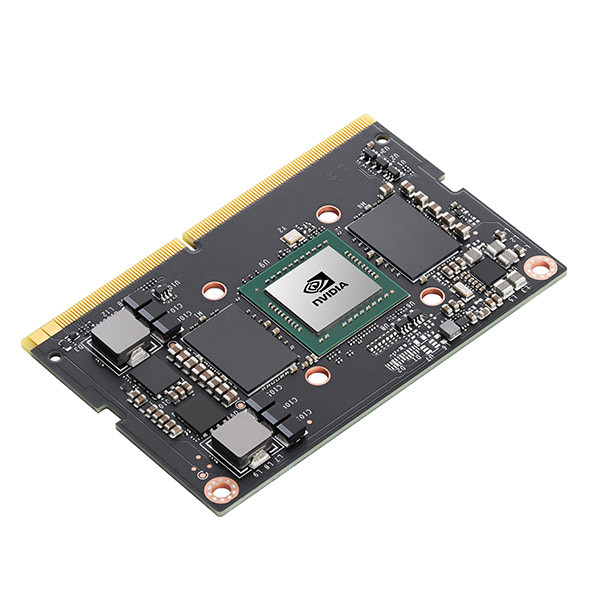

Nvidia Jetson TX2 8G module brand new Jetson TX2 development board
NVIDIA Jetson TX2 module give you exceptional speed and power-efficiency in an embedded AI computing device. Each supercomputer-on-a-module brings true AI computing to the edge with an NVIDIA Pascal™ GPU, up to 8 GB of memory and 59.7 GB/s of memory bandwidth, and a wide range of standard hardware interfaces.
Now you can get exceptionally high compute, accuracy, and power efficiency in a module smaller than a credit card. Available in either 69.6 mm x 45 mm or 50 mm x 87 mm, Jetson TX2 series modules enable deep learning applications in small form-factor products like drones and more.
NVIDIA Jetson TX2 ModuleTechnical Specifications
|
AI Performance |
1.33 TFLOPS |
|
GPU |
VIDIA Pascal™ architecture with 256 NVIDIA CUDA cores |
|
CPU |
Dual-core NVIDIA Denver 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor complex |
|
Memory |
8 GB 128-bit LPDDR4 |
|
Power |
7.5W | 15W |
|
PCIe |
1 x4 + 1 x1 OR 2 x1 + 1 x2 |
|
CSI Camera |
Up to 6 cameras (12 via virtual channels) |
|
Video Encode |
1x 4K60 | 3x 4K30 | 4x 1080p60 | 8x 1080p30 (H.265) |
|
Video Decode |
2x 4K60 | 4x 4K30 | 7x 1080p60 | 14x 1080p30 (H.265 & H.264) |
|
Display |
2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0 |
|
Networking |
Wi-Fi onboard |
|
Mechanical |
87 mm x 50 mm |
|
|
TX2 NX |
TX2 4G |
TX2 8G |
TX2i |
|
AI Performance |
1.33 TFLOPS |
1.26 TFLOPS |
||
|
GPU |
256-core NVIDIA Pascal™ GPU |
|||
|
CPU |
Dual-core Denver 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor |
|||
|
Memory |
4 GB 128-bit LPDDR4 |
8 GB 128-bit LPDDR4 |
8 GB 128-bit LPDDR4 |
|
|
Storage |
16 GB eMMC 5.1 |
32 GB eMMC 5.1 |
32 GB eMMC 5.1 |
|
|
Power |
7.5W | 15W |
10W | 20W |
||
|
PCIe |
1 x1 + 1 x2 |
1 x1 + 1 x4 OR 1 x1 + 1 x1 + 1 x2 |
||
|
CSI Camera |
Up to 5 cameras |
Up to 6 cameras |
||
|
Video Encode |
1x 4K60 (H.265) |
|||
|
Video Decode |
2x 4K60 (H.265) |
|||
|
Display |
2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0 |
2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0 |
||
|
Networking |
10/100/1000 BASE-T Ethernet |
10/100/1000 BASE-T Ethernet, WLAN |
10/100/1000 BASE-T Ethernet |
|
|
Mechanical |
69.6 mm x 45 mm |
87 mm x 50 mm |
||
