| Place of Origin: | USA |
|---|---|
| Brand Name: | NVIDIA |
| Model Number: | Jetson TX2 8G |
| Minimum Order Quantity: | 1pcs |
| Price: | USD500-USD520\pcs |
| Delivery Time: | 15-30work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 100pcs 30work days |
| NAME: | 8G Nvidia Jetson Tx2 NX Module 256 Cuda 1.33 TFLOPS For Edge AI Autonomous Machine | Keyword: | 8G Nvidia Jetson Tx2 NX Module 256 Cuda 1.33 TFLOPS For Edge AI Autonomous Machine |
|---|---|---|---|
| Model Number: | Jetson TX2 8G(900-83310-0001-000) | Brand: | NVIDIA |
| Type: | Module | AI Performance: | 1.33 TFLOPS |
| GPU: | NVIDIA Pascal™ Architecture With 256 NVIDIA CUDA Cores 1.3 TFLOPS (FP16) | CPU: | Dual-core NVIDIA Denver 2 64-bit CPU And Quad-core Arm® Cortex®-A57 MPCore Processor Complex |
| Memory: | 8 GB 128-bit LPDDR4 59.7GB/s | PCIe: | 32 GB EMMC 5.1 |
| Networking: | 10/100/1000 BASE-T Ethernet, WLAN | Mechanical: | 87 Mm X 50 Mm 400-pin Connector |
| High Light: | 8G jetson tx2 nx module,TFLOPS jetson tx2 nx module,8G jetson tx2 module |
||
8G Nvidia Jetson Tx2 NX Module 256 Cuda 1.33 TFLOPS For Edge AI Autonomous Machine

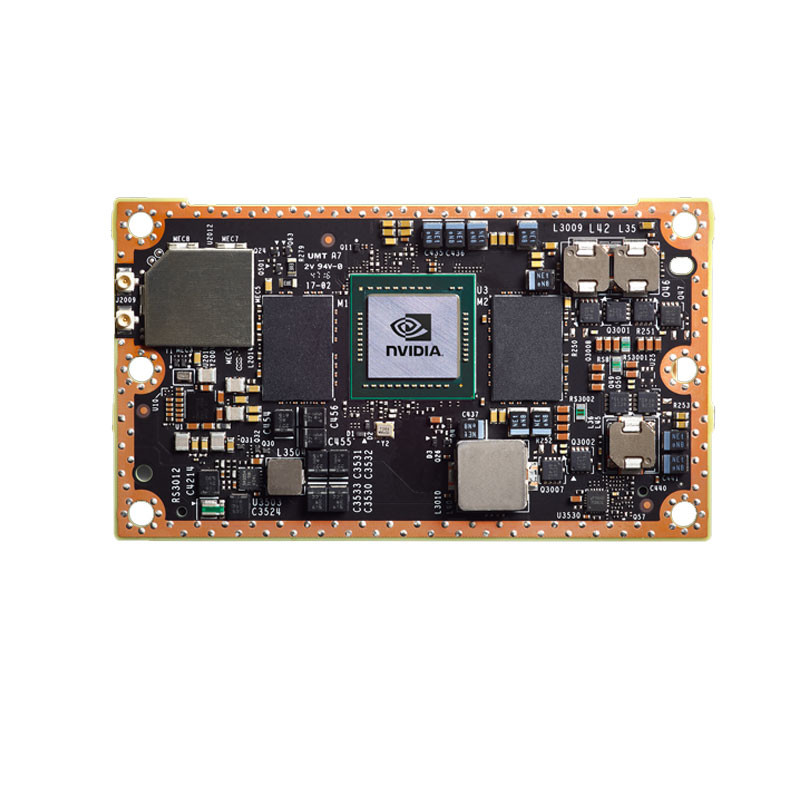

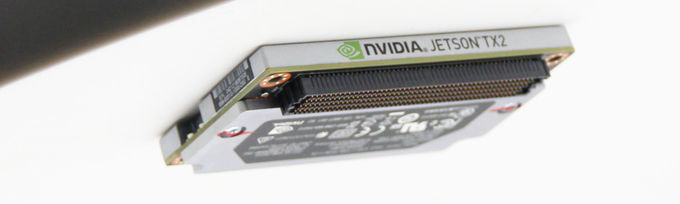

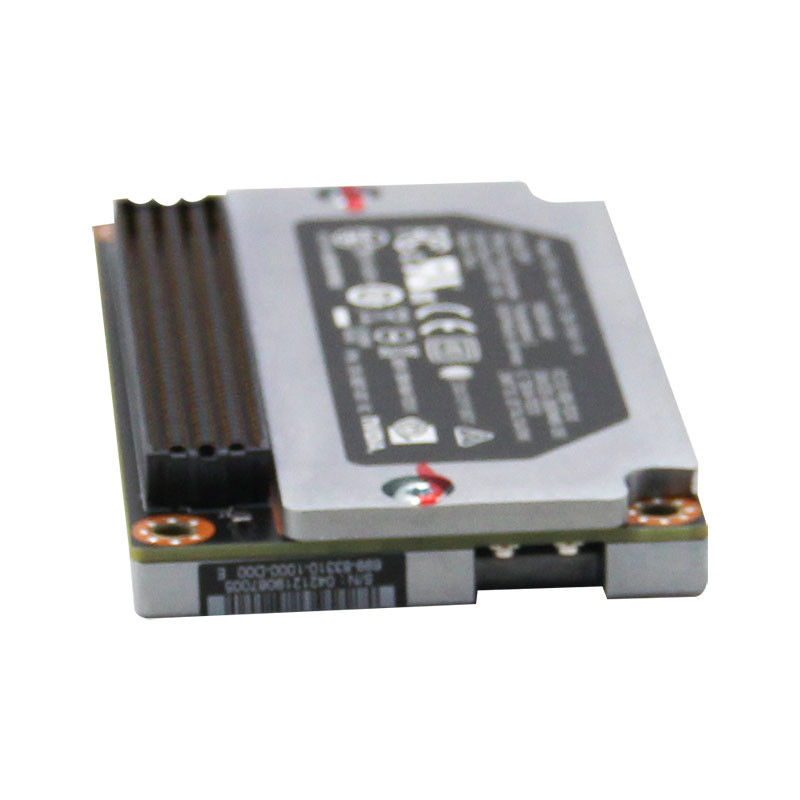

NVIDIA Jetson TX2 Module
The NVIDIA Jetson TX2 series module integrates:
256 core NVIDIA Pascal GPU. Fully supports all modern graphics APIs, unified shaders and is GPU compute capable. The GPU supports all the same features as discrete NVIDIA GPUs, including extensive compute APIs and libraries including CUDA. Highly power optimized for best performance in embedded use cases.
ARMv8 (64-bit) Multi-Processor CPU Complex. Two CPU clusters connected by a high-performance coherent interconnect fabric designed by NVIDIA; enables simultaneous operation of both CPU clusters for a true heterogeneous multi-processing (HMP) environment. The Denver 2 (Dual-Core) CPU clusters is optimized for higher single-thread performance; the ARM Cortex-A57 MPCore (Quad-Core) CPU clusters is better suited for multi-threaded applications and lighter loads.
Advanced HD Video Encoder. Recording of 4K ultra-high-definition video at 60fps. Supports H.265 and H.264 BP/MP/HP/MVC, VP9 and VP8 encoding.
Advanced HD Video Decoder. Playback of 4K ultra-high-definition video at 60fps with up to 12-bit pixels. Supports H.265, H.264, VP9, VP8 VC-1, MPEG-2, and MPEG-4 video standards.
Display Controller Subsystem. Two multi-mode (eDP/DP/HDMI) outputs and up to 8-lanes of MIPI-DSI output. Multiple line pixel storage allows more memory-efficient scaling operations and pixel fetching. Hardware display surface rotation is also provided for bandwidth reduction in mobile applications.
128-bit Memory Controller.128-bit DRAM interface providing high bandwidth LPDDR4 and ECC (TX2i only) support.
LPDDR4 and eMMC memory integrated on the module
1.4Gpix/s Advanced image signal processing: Hardware accelerated still-image and video capture path, with advanced ISP.
Audio Processing Engine. Audio subsystem enables full hardware support for multi-channel audio over multiple interfaces.
NVIDIA Jetson TX2 8G Module Technical Specifications
| AI Performance | 1.33 TFLOPS |
| GPU | NVIDIA Pascal™ architecture with 256 NVIDIA CUDA cores 1.3 TFLOPS (FP16) |
| CPU | Dual-core NVIDIA Denver 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor complex |
| Memory | 8 GB 128-bit LPDDR4 59.7 GB/s |
| Storage | 32 GB eMMC 5.1 |
| Power | 7.5W | 15W |
| PCIe | 1 x4 + 1 x1 OR 2 x1 + 1 x2 PCIe Gen 2, total 50GT/s |
| Video Encode | 1x 4K60 | 3x 4K30 | 4x 1080p60 | 8x 1080p30 (H.265) 1x 4K60 | 3x 4K30 | 7x 1080p60 | 14x 1080p30 (H.264) |
| Video Decode | 2x 4K60 | 4x 4K30 | 7x 1080p60 | 14x 1080p30 (H.265 & H.264) |
| Display | 2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0 2 x4 DSI (1.5Gbps/lane) |
| Mechanical | 87 mm x 50 mm 400-pin connector Thermal Transfer Plate (TTP) |
