| Place of Origin: | USA |
|---|---|
| Brand Name: | NVIDIA |
| Model Number: | Jetson TX2i |
| Minimum Order Quantity: | 1pcs |
| Price: | USD920-USD950\SET |
| Delivery Time: | 15-30work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 100pcs 30work days |
| NAME: | OEM 8 GB AI Nvidia Jetson TX2 TX2i Developer Kit Edge Computing | Keyword: | OEM 8 GB AI Nvidia Jetson TX2 TX2i Developer Kit Edge Computing |
|---|---|---|---|
| Model Number: | Jetson TX2i | AI Performance: | 1.26 TFLOPS |
| GPU: | NVIDIA Pascal™ Architecture With 256 NVIDIA CUDA Cores | CPU: | Dual-core NVIDIA Denver 2 64-bit CPU And Quad-core Arm® Cortex®-A57 MPCore Processor Complex |
| Memory: | 8 GB 128-bit LPDDR4 (ECC Support) 51.2 GB/s | Storage: | 32 GB EMMC 5.1 |
| Power: | 10W | 20W | Networking: | 10/100/1000 BASE-T Ethernet |
| PCIe: | 1 X1 + 1 X4 OR 1 X1 + 1 X1 + 1 X2 (PCIe Gen2) | Mechanical: | 87 Mm X 50 Mm 400-pin Connector |
| High Light: | 8 GB Nvidia Jetson TX2,OEM Nvidia Jetson TX2,OEM jetson tx2i developer kit |
||
OEM 8 GB AI Nvidia Jetson TX2 TX2i Developer Kit Edge Computing

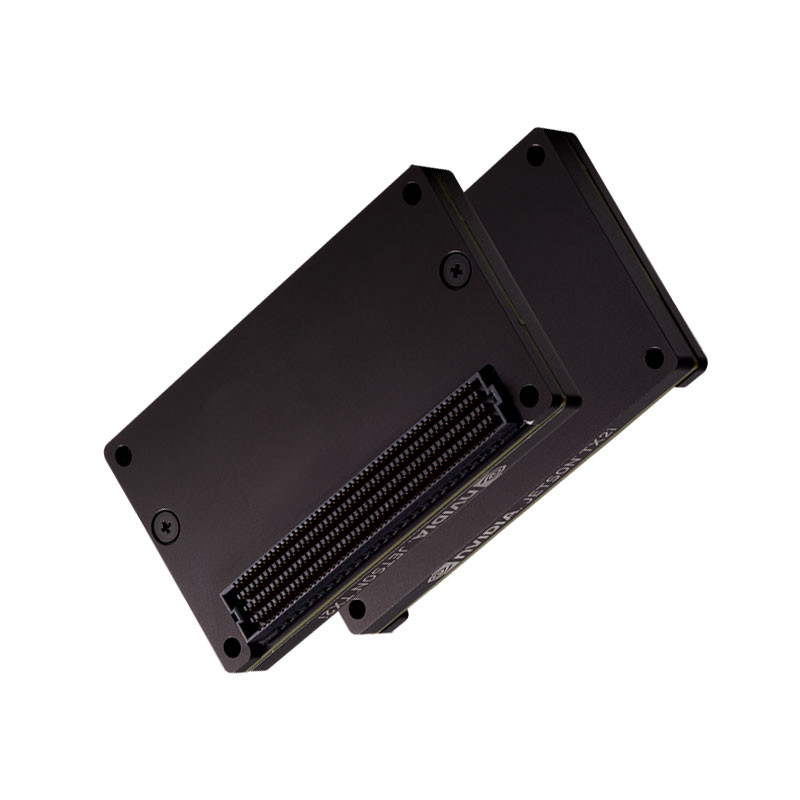

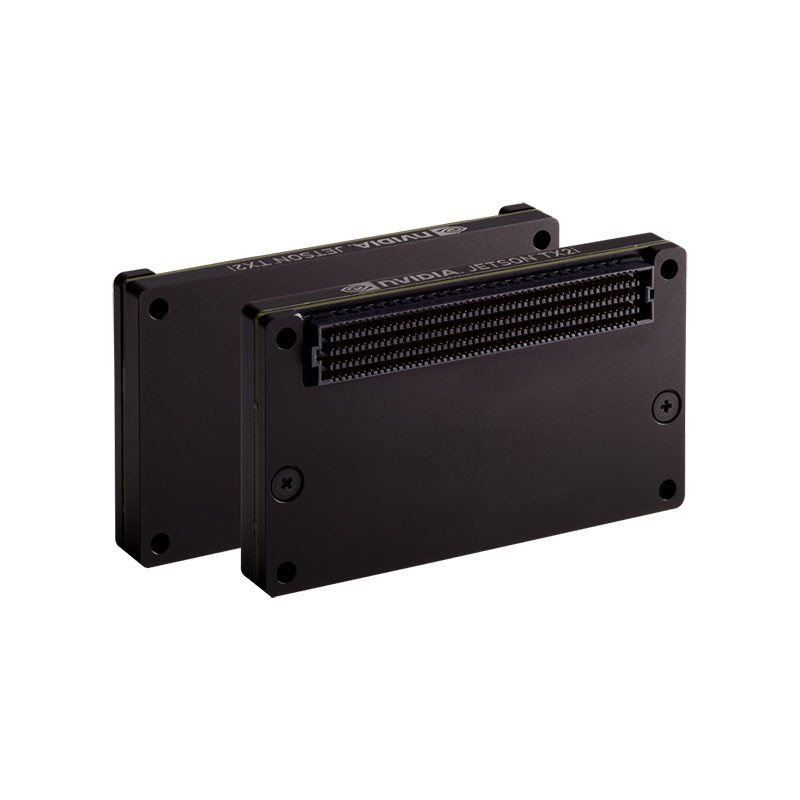

NVIDIA Jetson TX2i Module
Extend AI Computing with the Jetson TX2i
NVIDIA Jetson TX2i module’s rugged design, small form factor, and reduced power envelope make it ideal for high-performance edge computing devices such as industrial robots, machine vision cameras, and portable medical equipment.
More efficient work, more convenient life, more healthy body
From edge computing application to cloud computing application, Plink-Ai provides one-stop hardware solution, making machines more intelligent, work more standardized, and medical care simpler.
PLINK can solve all the problems of data collection and transmission, customers can focus on solving the application problems
NVIDIA Pascal™ architecture with 256 NVIDIA CUDA cores, 1.3 TFLOPS (FP16)
Dual-core Denver 2 64-bit CPU and quad-core ARM A57 Complex
8GB 128-bit LPDDR4 (ECC support), 1600MHz - 51.2 GB/s
32GB eMMC 5.1
| Operating temperature | -40C - 85C |
| Storage temperature | -40C - 85C |
| Humidity | 95%RH, -10C to 65C (non-condensing) |
| Vibration | 5 G RMS 10 to 500 Hz (random/sinusoidal) |
| Shock | 140 G, half sine 2 ms duration |
| Voltage input | 9V - 19.6V DC |
| Module power | 10W - 20W |
| AI Performance | 1.26 TFLOPS |
| GPU | NVIDIA Pascal™ Architecture GPU with 256 CUDA cores |
| CPU | Dual-core NVIDIA Denver 2 64-bit CPU and quad-core ARM A57 Complex |
| Memory | 8 GB 128-bit LPDDR4 (ECC Support) 51.2GB/s |
| Storage | 32 GB eMMC 5.1 |
| PCIe | 1 x1 + 1 x4 OR 1 x1 + 1 x1 + 1 x2 (PCIe Gen2) |
| Power | 10W | 20W |
| CSI Camera | Up to 6 cameras (12 via virtual channels) 12 lanes MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps) |
| Display | 2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0 2 x4 DSI (1.5Gbps/lane) |
| Networking | 10/100/1000 BASE-T Ethernet |
| Video Encode | 1x 4K60 (H.265) 3x 4K30 (H.265) 4x 1080p60 (H.265) |
| Video Decode | 2x 4K60 (H.265) 7x 1080p60 (H.265) 14x 1080p30 (H.265) |
| Mechanical | 87 mm x 50 mm 400-pin connector |
