| Place of Origin: | USA |
|---|---|
| Brand Name: | NVIDIA |
| Model Number: | Jetson TX2 4G |
| Minimum Order Quantity: | 1pcs |
| Price: | To be discussed |
| Delivery Time: | 15-30work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 100pcs 30work days |
| NAME: | Embedded AI Computing Jetson Board Tx2 CPU 4G Module Board High Performance | Keyword: | Embedded AI Computing Jetson Board Tx2 CPU 4G Module Board High Performance |
|---|---|---|---|
| Model Number: | Jetson TX2 4G (900-83489-0080-000) | AI Performance: | 1.33 TFLOPS |
| GPU: | NVIDIA Pascal™ Architecture With 256 NVIDIA CUDA Cores | CPU: | Dual-core NVIDIA Denver 2 64-bit CPU And Quad-core Arm® Cortex®-A57 MPCore Processor Complex |
| Memory: | 4 GB 128-bit LPDDR4 51.2 GBs | Storage: | 16 GB EMMC 5.1 |
| Power: | 7.5W | 15W | Mechanical: | 87 Mm X 50 Mm 400-pin Connector Thermal Transfer Plate (TTP) |
| High Light: | 4G jetson board tx2,AI jetson board tx2,4G tx2 cpu |
||
Embedded AI Computing Jetson Board Tx2 CPU 4G Module Board High Performance

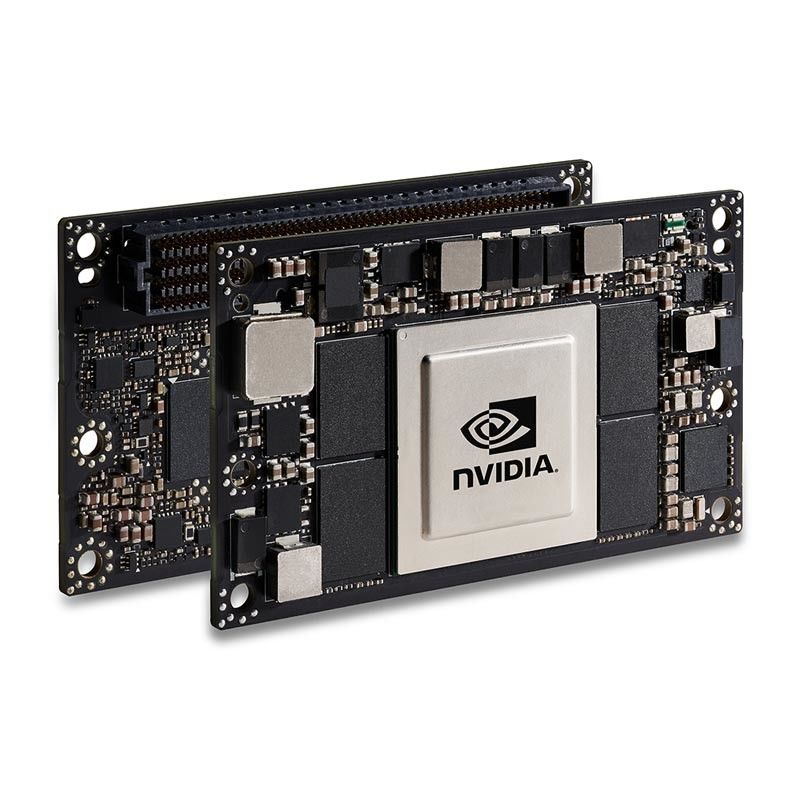

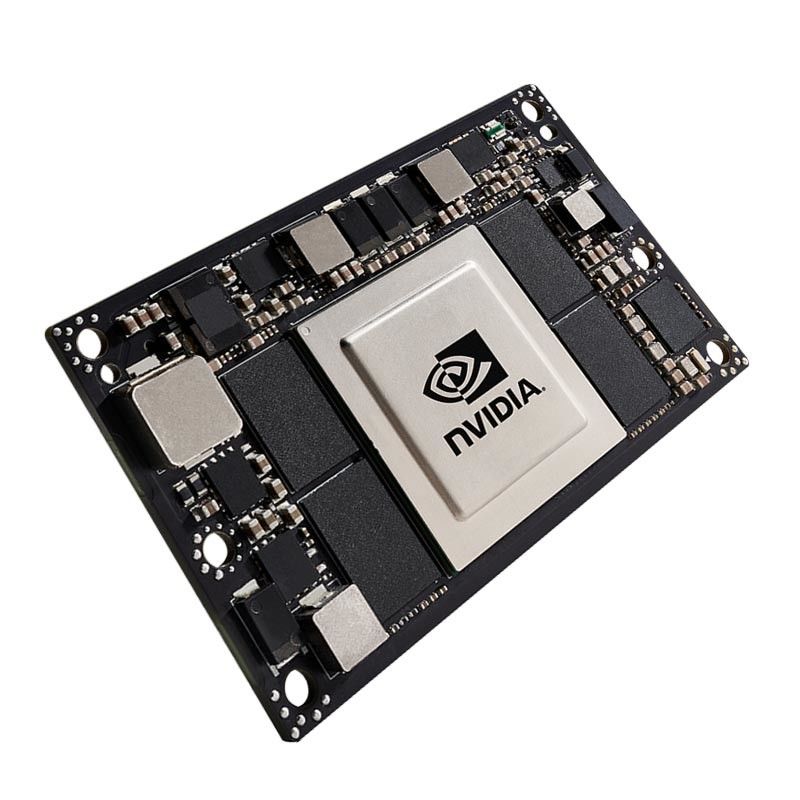

NVIDIA Jetson TX2 Module
NVIDIA Jetson TX2 Series System-on-Module
Pascal GPU + ARMv8 + 4GB LPDDR4 + 16GB eMMC
he NVIDIA Jetson TX2 module System-on-Module (SOM) redefines possibility; a combination of performance, power efficiency, integrated deep learning capabilities and rich I/O remove the barriers to a new generation of products. The Jetson TX2 is ideal for many applications including (but not limited to): Intelligent Video Analytics (IVA), Drones, Robotics, Gaming Devices, Virtual Reality (VR), Augmented Reality (AR) and Portable Medical Devices. Superior performance, robust design and reduced complexity in system integration results in more advanced products getting to market faster.

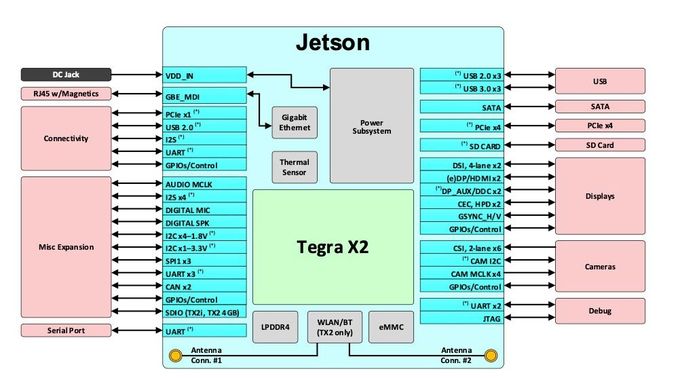

Jetson TX2 Series Module Block Diagram – General Application
NVIDIA Jetson TX2 Module Technical Specifications
|
AI Performance |
1.33 TFLOPS |
|
GPU |
VIDIA Pascal™ architecture with 256 NVIDIA CUDA cores |
|
CPU |
Dual-core NVIDIA Denver 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor complex |
|
Memory |
4 GB 128-bit LPDDR4 |
|
Storage |
16 GB eMMC 5.1 |
|
PCIe |
1 x4 + 1 x1 OR 2 x1 + 1 x2 |
|
Video Encode |
1x 4K60 | 3x 4K30 | 4x 1080p60 | 8x 1080p30 (H.265) |
|
Video Decode |
2x 4K60 | 4x 4K30 | 7x 1080p60 | 14x 1080p30 (H.265 & H.264) |
|
Display |
2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0 |
|
Networking |
10/100/1000 BASE-T Ethernet |
|
Mechanical |
87 mm x 50 mm |
