| Place of Origin: | USA |
|---|---|
| Brand Name: | NVIDIA |
| Model Number: | Jetson TX2 8G |
| Minimum Order Quantity: | 1pcs |
| Price: | $480-$500 |
| Delivery Time: | 15-30work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 100pcs 30work days |
| NAME: | 256 Cuda 1.33 TFLOPS V2X Nvidia Jetson Tx2 Processor For Education | Keyword: | 256 Cuda 1.33 TFLOPS V2X Nvidia Jetson Tx2 Processor For Education |
|---|---|---|---|
| Model Number: | Jetson TX2 8G(900-83310-0001-000) | AI Performance: | 1.33 TFLOPS |
| GPU: | NVIDIA Pascal™ Architecture With 256 NVIDIA CUDA Cores 1.3 TFLOPS (FP16) | CPU: | Dual-core NVIDIA Denver 2 64-bit CPU And Quad-core Arm® Cortex®-A57 MPCore Processor Complex |
| Memory: | 8 GB 128-bit LPDDR4 59.7GB/s | PCIe: | 32 GB EMMC 5.1 |
| Networking: | 10/100/1000 BASE-T Ethernet, WLAN | Mechanical: | 87 Mm X 50 Mm 400-pin Connector |
| High Light: | Cuda nvidia jetson tx 2,nvidia jetson tx 2 Processor,Cuda jetson tx2 processor |
||
256 Cuda 1.33 TFLOPS V2X Nvidia Jetson Tx2 Processor For Education

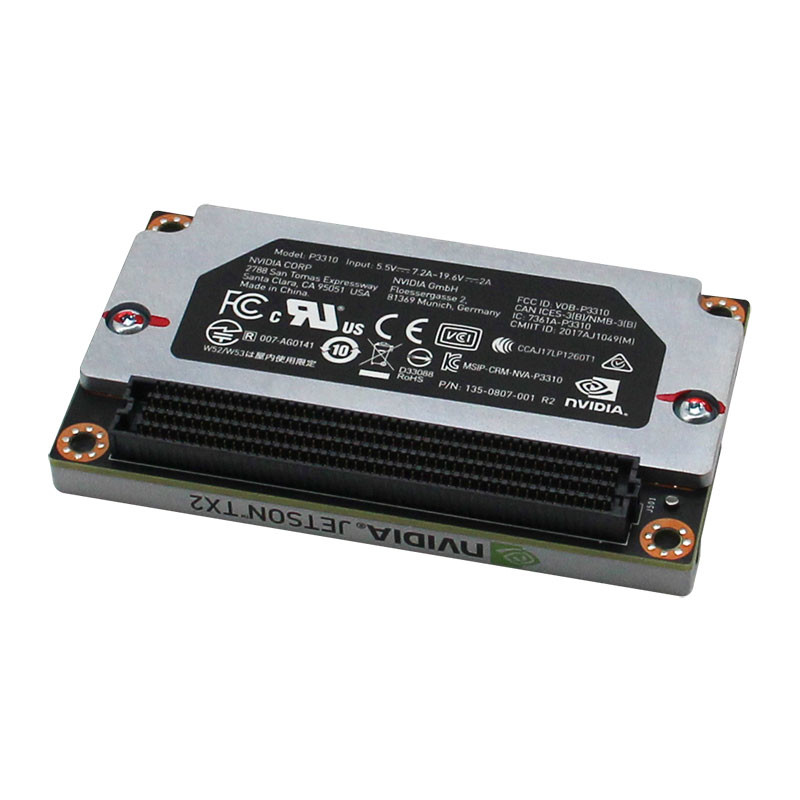

NVIDIA Jetson TX2 Module
NVIDIA Jetson TX2 module is for all the autonomous system such like education, logistics, robotic etc,. It's built around an NVIDIA Pascal™-family GPU and loaded with 8 GB of memory and 59.7 GB/s of memory bandwidth.

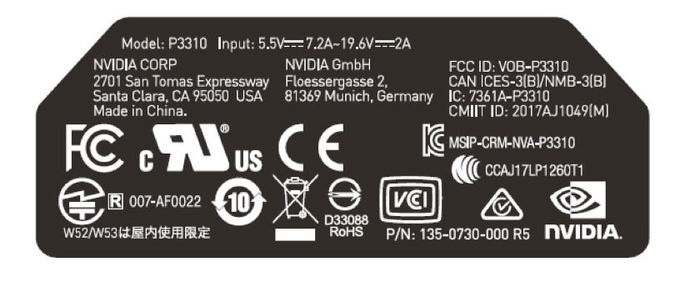

NVIDIA Jetson TX2 Module Marking (Black Label)
* Device SN and MAC Address information located on individual labels applied to sides of module.
Controller Area Network (CAN) Interface
|
Standard |
Notes |
|
ISO 11898-1:2006/11898-1:2015 Road vehicles — Controller area network (CAN) Part 1: Data link layer and physical signaling |
CAN controller tested with 1-Mbps CAN PHY |
The NVIDIA Jetson TX2 series module supports connectivity to two CAN networks.
Features:
CAN protocol version2.0A,version2.0 Band ISO11898-1:2006/11898-1:2015
- Support ISO11898-1:2006 FD format and BOSCH FD format
- Dual clock source, enabling FM-PLL designs
- 16, 32, 64 or 128 Message Objects (configurable)
- Each Message Object has its own Identifier Mask
- Programmable FIFO mode
- Programmable loop-back mode for self-test
Parity check for Message RAM (optional)
- Maskable interrupt, two interrupt lines
- MA support, automatic Message Object increment
- Power-down support
Supports TT CAN
- TTCAN Level 0, 1, and 2
- Time Mark Interrupts
- Stop Watch
- Watchdog Timer
- Synchronization to external events
CAN Signal Descriptions
|
Signal Name |
Type |
Description |
|
JTAG_RTCK |
Output |
Return Test Clock |
|
JTAG_TCK |
Input |
Test Clock |
|
JTAG_TDI |
Input |
Test Data-In |
|
JTAG_TDO |
Output | Test Data-Out |
|
JTAG_TMS |
Input |
Test Mode Select |
|
JTAG_GP0 |
Input |
Test Reset |
|
JTAG_GP1 |
Input |
General Purpose. Pulled low on module for normal operation & pulled high by test device for Boundary Scan test mode |
NVIDIA Jetson TX2 module Technical Specifications
| AI Performance | 1.33 TFLOPS |
| GPU | VIDIA Pascal™ architecture with 256 NVIDIA CUDA cores 1.3 TFLOPS (FP16) |
| CPU | Dual-core NVIDIA Denver 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor complex |
| Memory | 8 GB 128-bit LPDDR4 59.7 GB/s |
| Storage | 32 GB eMMC 5.1 |
| Power | 7.5W | 15W |
| PCIe | 1 x4 + 1 x1 OR 2 x1 + 1 x2 PCIe Gen 2, total 50GT/s |
| Video Encode | 1x 4K60 | 3x 4K30 | 4x 1080p60 | 8x 1080p30 (H.265) 1x 4K60 | 3x 4K30 | 7x 1080p60 | 14x 1080p30 (H.264) |
| Video Decode | 2x 4K60 | 4x 4K30 | 7x 1080p60 | 14x 1080p30 (H.265 & H.264) |
| Display | 2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0 2 x4 DSI (1.5Gbps/lane) |
| Mechanical | 87 mm x 50 mm 400-pin connector Thermal Transfer Plate (TTP) |
