| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | TX2 NX-SYS-2006 |
| Minimum Order Quantity: | 1SET |
| Price: | To be negotiated |
| Delivery Time: | 15-30 work days |
| Payment Terms: | T/T, D/P, D/A, L/C |
| Supply Ability: | Batch purchase price negotiation |
| NAME: | Industrial Embedded Jetson TX2NX 256 CUDA Cores 1.33 TFLOPs | Keyword: | Industrial Embedded Jetson TX2NX 256 CUDA Cores 1.33 TFLOPs |
|---|---|---|---|
| AI Performance: | 1.33 TFLOPS | GPU: | NVIDIA Pascal™ Architecture GPU With 256 CUDA Cores |
| CPU: | Dual-core NVIDIA Denver 2 64-bit CPU And Quad-core ARM A57 Complex | Memory: | 4GB 128-bit LPDDR4, 1600 MHz - 51.2 GBs |
| Storage: | 16GB EMMC 5.1 Flash Storage | Power: | 7.5W | 15W |
| Networking: | 10/100/1000 BASE-T Ethernet | Size: | 160mm × 130mm × 65mm |
| High Light: | Industrial jetson tx2nx,Embedded jetson tx2nx,Embedded jetson tx2 cuda |
||
Industrial Embedded Jetson TX2NX 256 CUDA Cores 1.33 TFLOPs
Jetson TX2 Processor

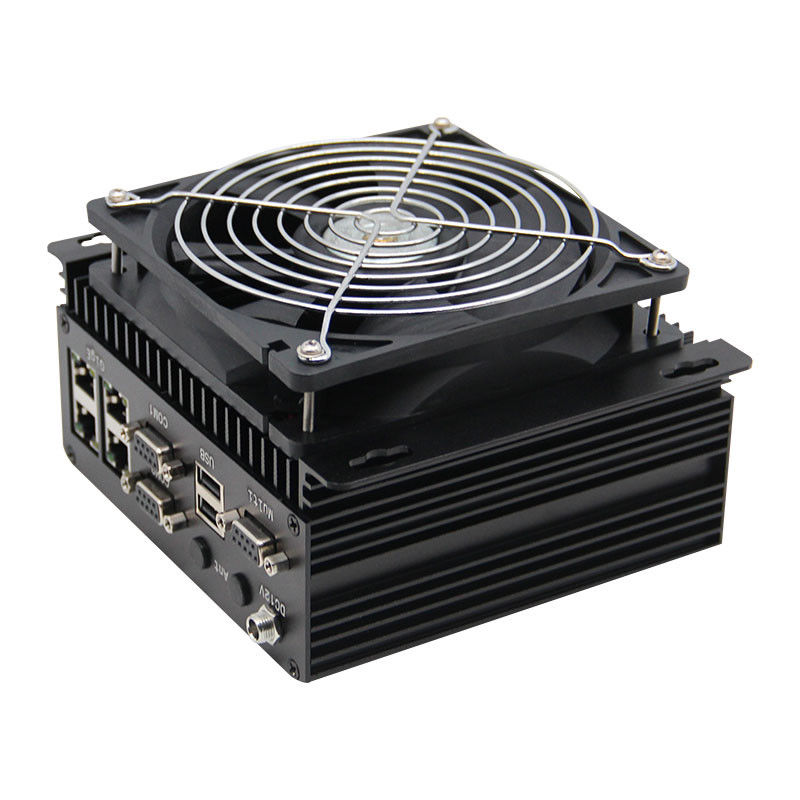

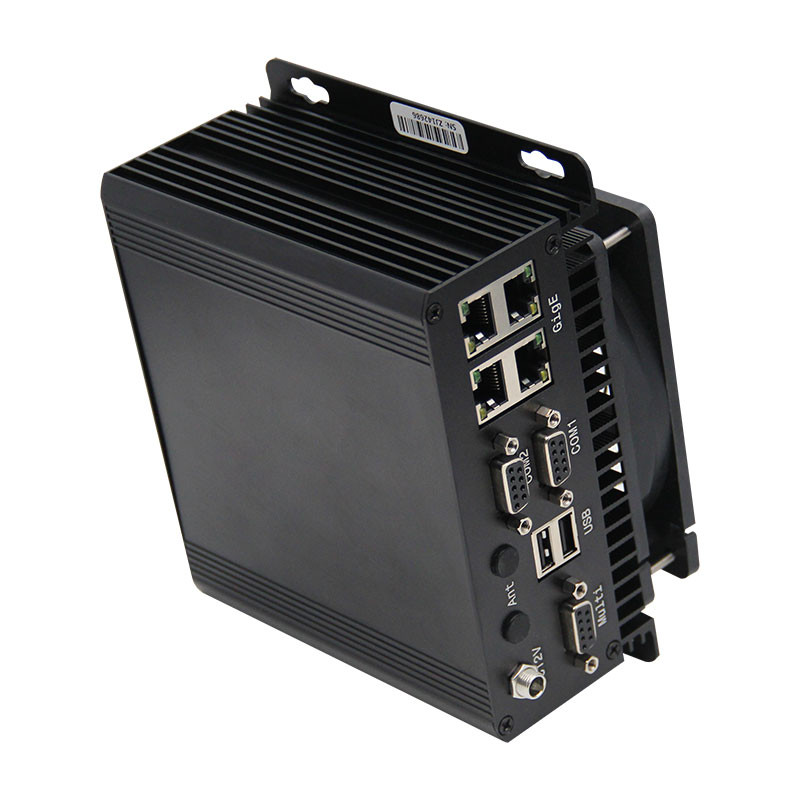

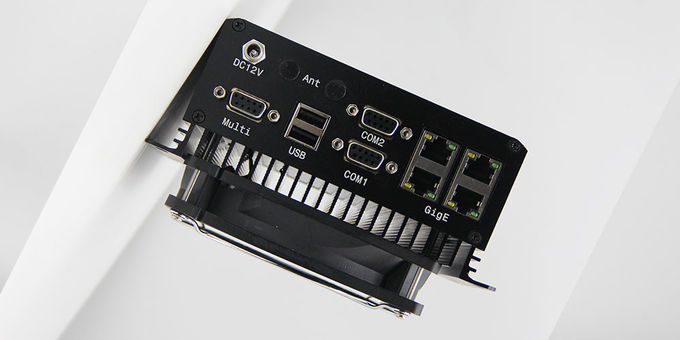

NVIDIA Jetson TX2 NX IPC Embedded Computer TX2 NX-SYS-2006
Education and Training Solutions to Solve the World’s Most Challenging Problems
The NVIDIA Deep Learning Institute offers resources for diverse learning needs—from learning materials to self-paced and live training to educator programs—giving individuals, teams, organizations, educators, and students what they need to advance their knowledge in AI, accelerated computing, accelerated data science, graphics and simulation, and more.
NVIDIA Jetson TX2 NX Embedded Computer TX2 NX-SYS-2006
| Power Requirements | DC +9V~+24V |
| Size | 160mm×130mm×65mm |
| Weight | 1078g |
| Temperature | -25~+65℃ |
| GPIO(3.3V) | 3* |
| GPO(3.3V) | 1* |
| USB | 3* |
| Micro TF card connector | 1* |
| CAN | 1* |
| Nano SIM card connector | 1* |
| HDMI | 1* |
| Micro USB | 1* |
| RS-232 | 2* |
| Working indicator light | 1* |
| Networking | 1*RJ45 (The RJ45 can be expanded) |
Automatically start when power on
Optional 32GB ~ 1TB SSD expansion storage
Onboard Reset and Recovery buttons
NVIDIA Jetson TX2 NX Module Technical Specifications
| AI Performance | 1.33 TFLOPS |
| GPU | NVIDIA Pascal™ Architecture GPU with 256 CUDA cores |
| CPU | Dual-core NVIDIA Denver 2 64-bit CPU and quad-core ARM A57 Complex |
| Memory | 4GB 128-bit LPDDR4, 1600 MHz - 51.2 GBs |
Storage | 16GB eMMC 5.1 Flash Storage |
| Video Encode | 1x 4K60 | 3x 4K30 | 4x 1080p60 | 8x 1080p30 (H.265) | 1x 4K60 | 3x 4K30 | 7x 1080p60 | 14x 1080p30 (H.264) |
| Display | 2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0 | 1x 2 DSI (1.5Gbps/lane) |
Video Decode | 2x 4K60 | 4x 4K30 | 7x 1080p60 | 14x 1080p30 (H.265 & H.264) |
| Mechanical | 69.6 mm x 45 mm | 260-pin SO-DIMM edge connector |
| CSI Camera | Up to 5 cameras (12 via virtual channels) | 12 lanes MIPI CSI-2 (3x4 or 5x2) | D-PHY 1.2 (up to 30 Gbps) |
Power | 7.5W | 15W |
