| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | NX16g-DEV-03 |
| Minimum Order Quantity: | 1 |
| Price: | $650-$690 \set |
| Packaging Details: | 100x110x40mm |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1+set+4weeks |

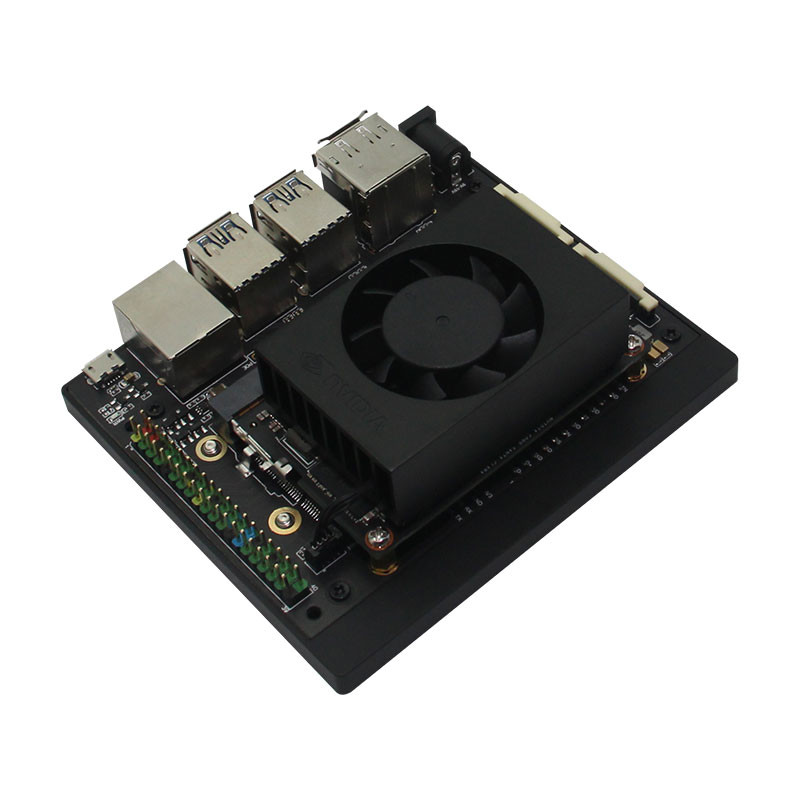

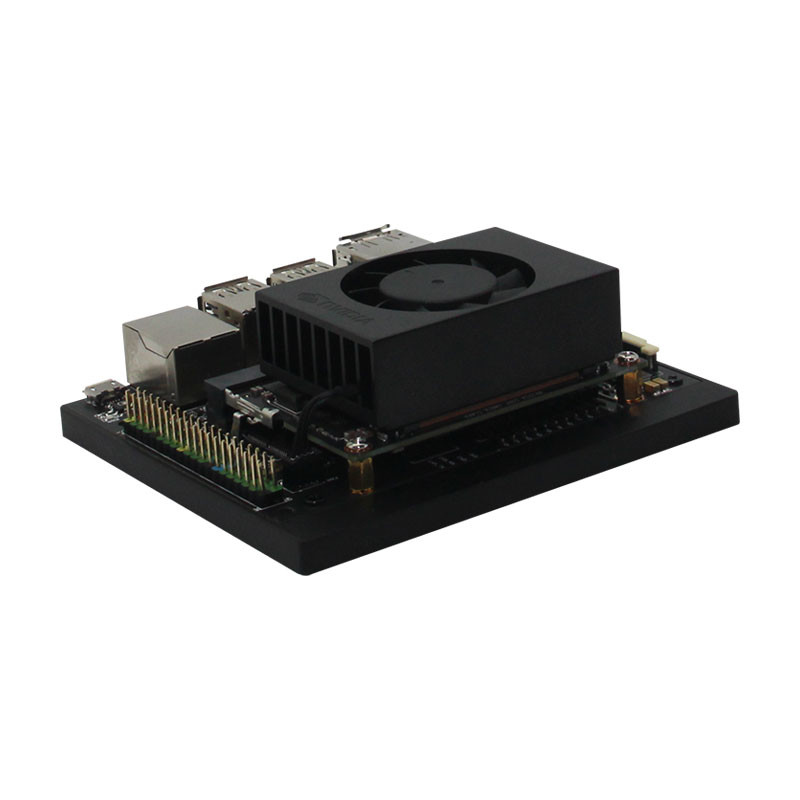

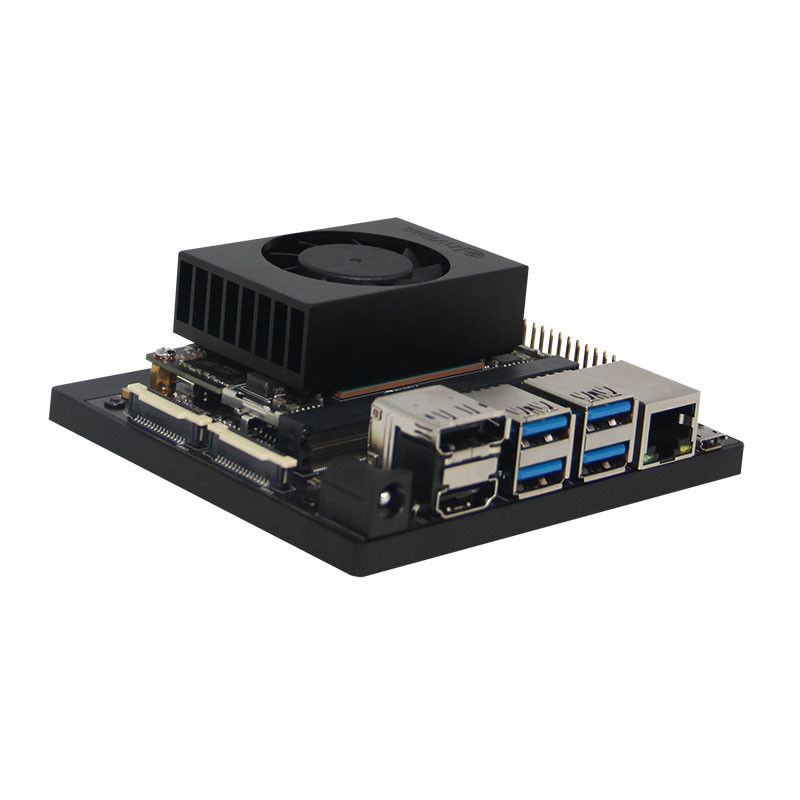

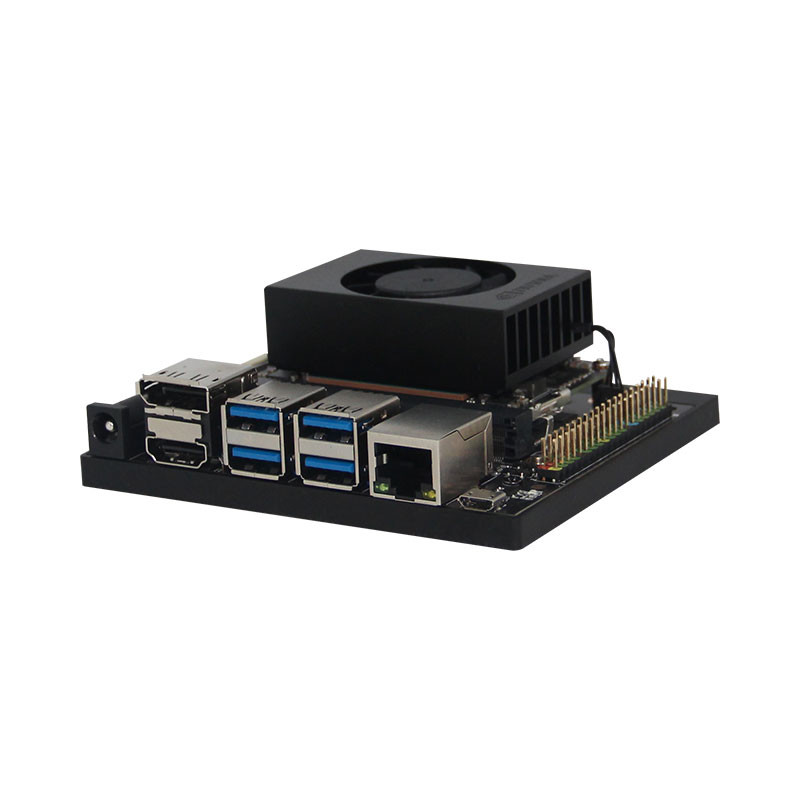

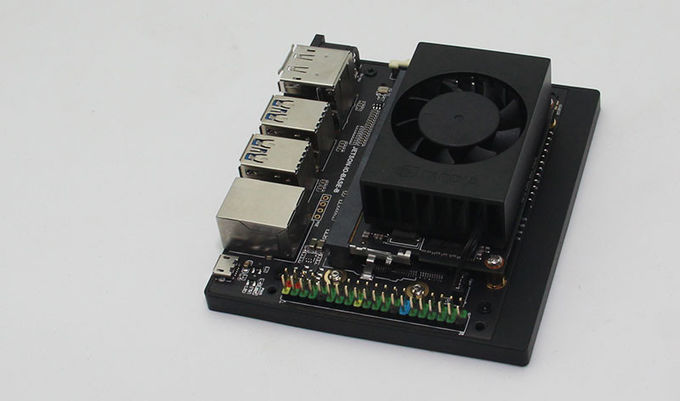

| NAME: | 384 Core HDMI SBC Embedded System Jetson NX Carrier Board NX16g-DEV-03 | Keyword: | 384 Core HDMI SBC Embedded System Jetson NX Carrier Board NX16g-DEV-03 |
|---|---|---|---|
| Model Number: | NX8g-DEV-03 | Adaptation Core: | Jetson Xavier NX |
| Storage: | 16 GB EMMC 5.1 | USB 3.0: | *4 |
| Display: | HDMI And DP | Memory: | 16GB 128-bit LPDDR4x 59.7GB/s |
| USB 2.0 OTG: | *1 | Single Package Size: | 100x110x40mm |
| High Light: | 384 Core SBC Embedded System,HDMI SBC Embedded System,SBC 'jetson nx carrier board |
||
| Jetson Xavier NX domestic DEV-Kit | NVIDIA Jetson Xavier NX official DEV-Kit | |
| CPU | 384-core NVIDIA Volta GPU with 48 Tensor Cores | |
| GPU | 6-core NVIDIA Carmel ARM v8.2 64-bit CPU 6MB L2 + 4MB L3 | |
| Memory | 16/8 GB 128-bit LPDDR4x 59.7GB/s | |
| Storage | 16GB eMMC Expandable M.2 hard disk | No storage medium Expandable M.2 hard disk |
| Camera | 2x MIPI CSI-2 DPHY lanes | |
| Display | HDMI and DP | |
| USB | 4x USB 3.0, 1x USB 2.0 OTG | |
| Size | 91 mm x 104 mm x 35 mm | |
NVIDIA Jetson Xavier NX module
HDMI/DP interface
The Micro USB port
MIPI CSI cameras Interface Function
Ethernet connector
USB 3.0 ports
FAN interface
40-PIN GPIO
DC power port(12~21V)
| GPU | 384-core NVIDIA Volta GPU with 48 Tensor Cores |
| CPU | 6-core NVIDIA Carmel ARM v8.2 64-bit CPU 6MB L2 + 4MB L3 |
| Memory | 16 GB 128-bit LPDDR4x 59.7GB/s |
| Display | HDMI and DP |
| USB | 4x USB 3.0 |
| 1x USB 2.0 OTG | |
| Storage | 16 GB eMMC 5.1 |
| Camera | 2x MIPI CSI-2 DPHY lanes |
| Video Encode | 2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264/H.265) |
| Video Decode | 2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265) 2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264) |
| I/O | 40-PIN GPIO |
| Other | FAN Header (GPIO,I2C,I2S,SPI,UART) |
| Mechanical | 91 mm x 104 mm x 35 mm |
