| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | Y-C9-DEV-Xavier32G |
| Minimum Order Quantity: | 1 |
| Price: | To be discussed |
| Packaging Details: | 110*140*50mm |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1+set+4weeks |
| NAME: | Mini PCIe SBC Embedded System Jetson Agx Xavier Carrier Board Autopilot Module | Keyword: | Mini PCIe SBC Embedded System Jetson Agx Xavier Carrier Board Autopilot Module |
|---|---|---|---|
| Model Number: | Xavier32G | Power: | DC +12V |
| Temperature: | -25~+65℃ | USB3.1 Type-A: | *3 |
| USB Type-C: | *1 | Micro USB: | *1 |
| Single Package Size: | 136mm×100mm×20 Mm | Weight: | 412g |
| M.2 Key M: | *1 | HDMI 2.0: | *1 |
| High Light: | PCIe SBC Embedded System,Mini SBC Embedded System,Mini agx xavier carrier board |
||

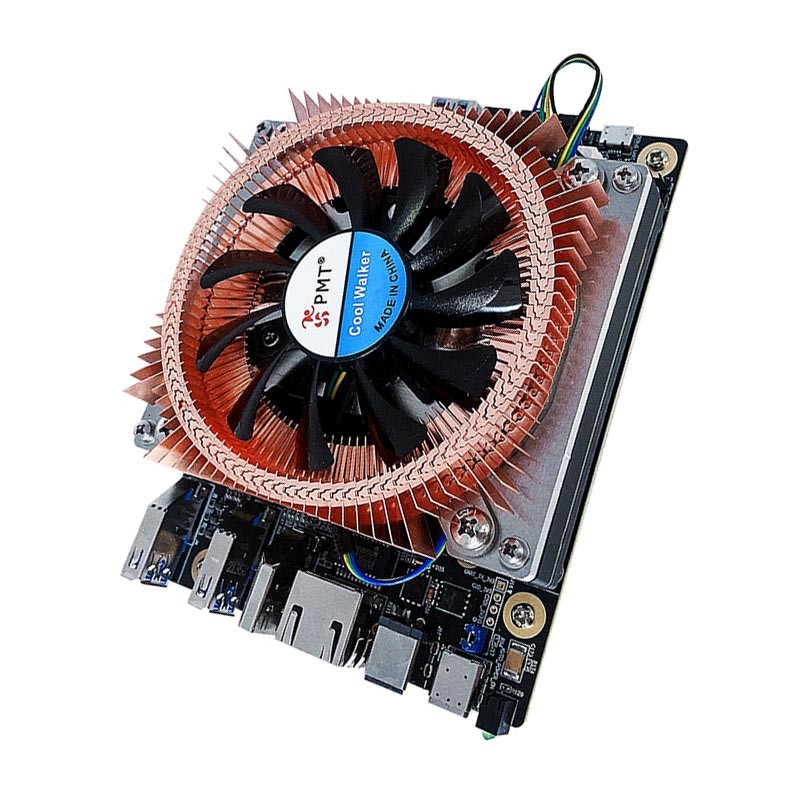

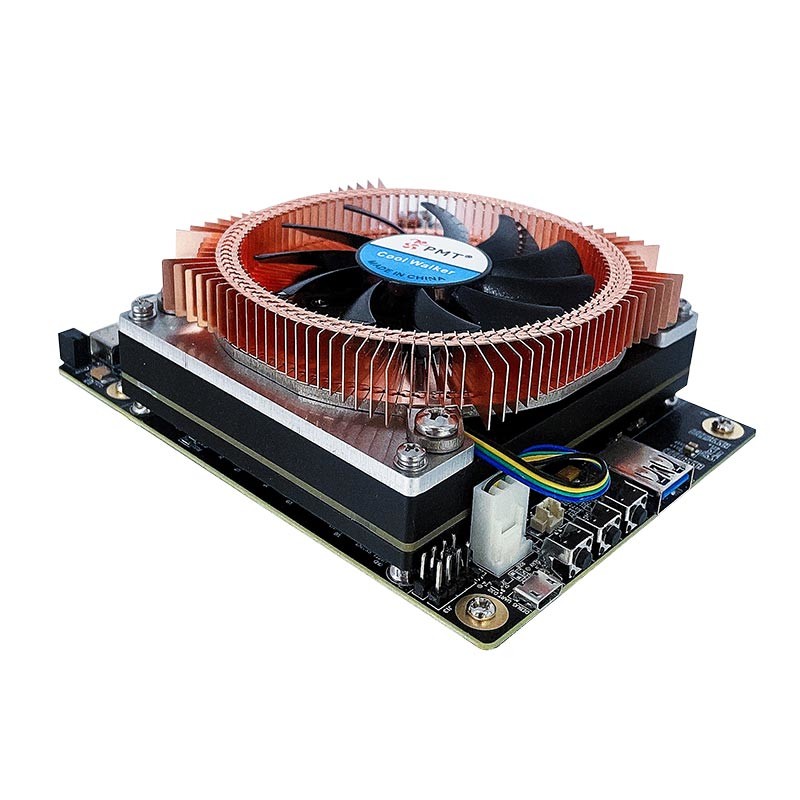

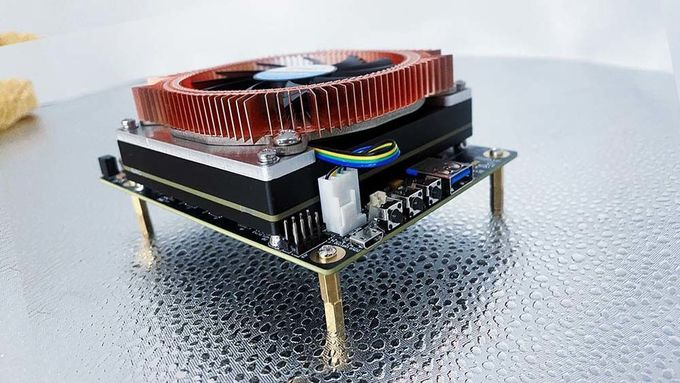

Mini PCIe SBC Embedded System Jetson Agx Xavier Carrier Board Autopilot Module
Y-C9-DEV-Xavier 32G is a PLINK self-developed industrial embedded system which is matches with NVIDIA Jetson AGX Xavier 32G module, and the module had up to 32 TOPS, usually for autopilot and robotics etc,. there are 3 USB 3.1 Type-A connectors, 1 USB Type-C connector, 1 Micro USB connector (Debug)1 M.2 Key M connector, 2 full-length MiniPCIe connectors,1 HDMI 2.0 port , Supports automatic power-on or key-press start after power-on,Onboard Power, Reset, Recovery buttons
NVIDIA Jetson AGX Xavier Module Technical Specifications
|
|
NVIDIA Jetson AGX Xavier 64GB / 32GB |
NVIDIA Jetson AGX Xavier Industrial |
|
AI Perf |
32 TOPS |
30 TOPS |
|
GPU |
512-core NVIDIA Volta architecture GPU with 64 Tensor Cores |
|
|
CPU |
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
|
|
memory |
64GB / 32GB 256-bit LPDDR4x 136.5GB/s |
32GB 256-bitLPDDR4x (ECC support) 136.5GB/s |
|
Storage |
32GB eMMC 5.1 |
64GB eMMC 5.1 |
|
CSI Camera |
Up to 6 cameras |
|
|
USB |
3x USB 3.2 Gen2 (10 Gbps) |
|
|
Display |
3 multi-mode DP 1.4/eDP 1.4/HDMI 2.0 |
|
|
USB3.1 Type-A |
3 |
|
Micro USB (Debug) |
1 |
|
USB Type-C |
1 |
|
Gigabit Ethernet (10/100/1000 BASE-T) RJ45 |
1 |
|
M.2 Key M |
1 |
|
HDMI 2.0 |
1 |
|
Working indicator light |
1 |
|
Fan control interface |
1 |
|
MiniPCIe |
2 |
|
3.3V TTL |
2 |
|
Size |
136mm×100mm×20 mm |
|
Weight |
412g |
|
Power Requirements |
DC +12V |
|
Working temperature |
-25~+65℃ |
