| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | Plink-Y-C7-DEV-NX |
| Minimum Order Quantity: | 1 |
| Price: | To be discussed |
| Packaging Details: | 28X24X15cm |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1+set+4weeks |
| NAME: | UAV Module Serial Port Jetson Xavier NX Developer Kit System 16G | Keyword: | UAV Module Serial Port Jetson Xavier NX Developer Kit System 16G |
|---|---|---|---|
| Model Number: | NX 16G | USB3.1 Type-C: | *1 |
| Micro USB: | *1 | RJ45: | *1 |
| HDMI: | *1 | USB 2.0: | *1 |
| MiniPCIe: | *1 | CAN: | *1 |
| Board Size: | 80mm×60mm×16.8 Mm | Working Temperature: | -40~+85℃ |
| Power Adapter: | DC +9V~+24V | Application Industry: | UVA |
| High Light: | UAV jetson xavier nx developer,16G jetson xavier nx developer,UAV nx developer kit |
||
UAV Module Serial Port Jetson Xavier NX Developer Kit System 16G
Y-C7-DEV
16 GB eMMC 5.1 + 21 TOPS + 16 GB 128-bit LPDDR4x 59.7GB/s + 14 lanes (3x4 or 6x2) MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps)

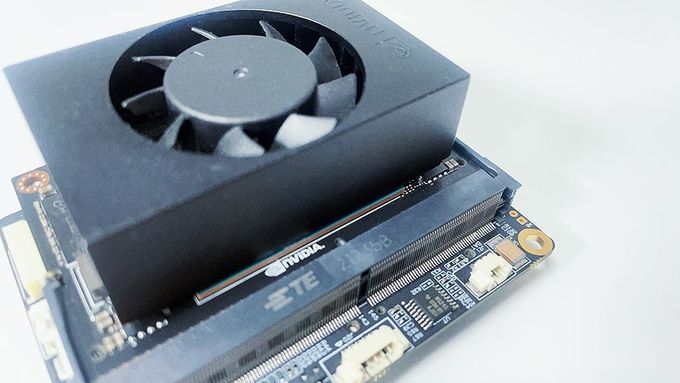

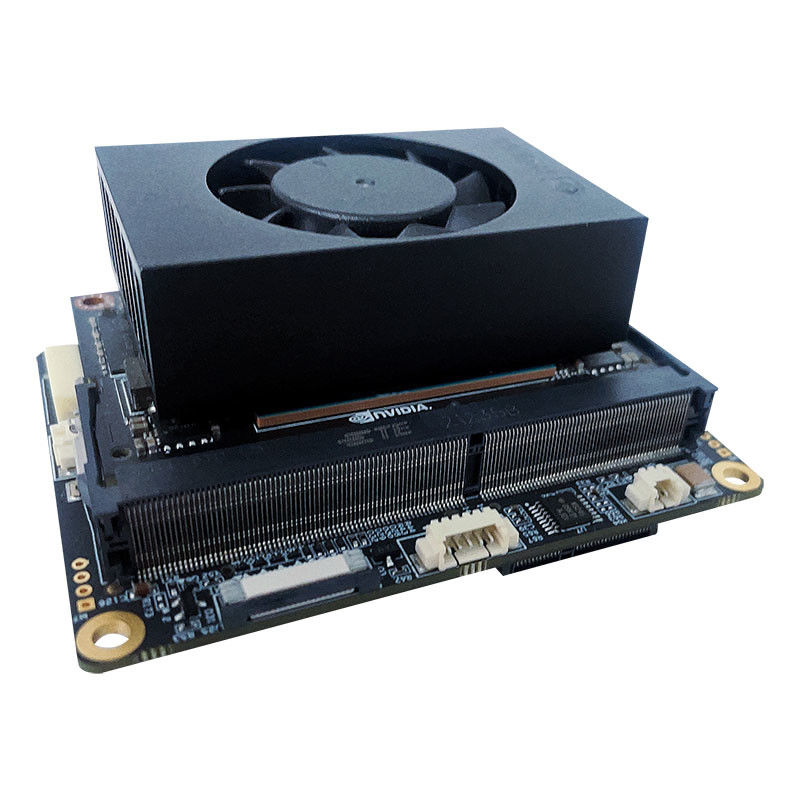

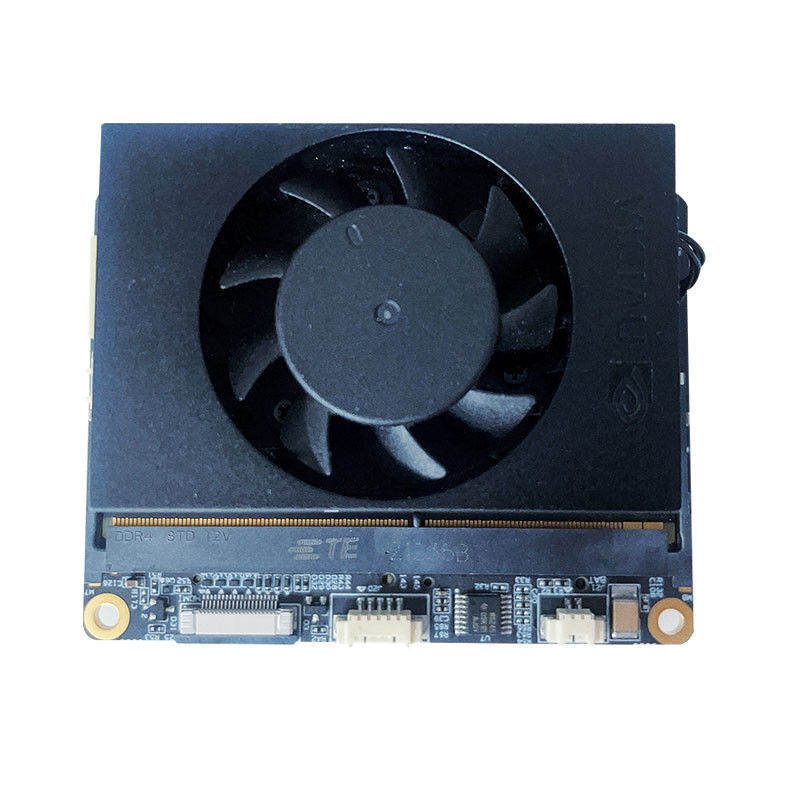

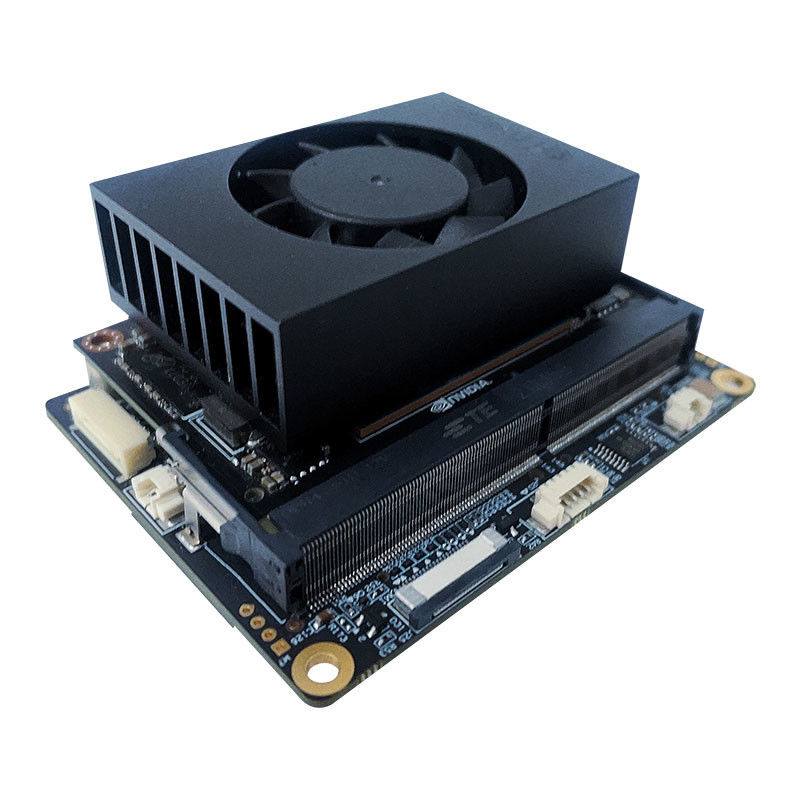

The Y-C7-DEV is a NVIDIA AI kit that matches NVIDIA Jetson Xavier NX module, the embedded development board (Y-C7) is a low-cost and small volume, and the NX developer kit is produced by Plink-AI. it's a self-developed developer kit.
Board size: 80mm×60mm×16.8 mm
Power adapter: DC +9V~+24V
Working temperature: -25~+65℃
| Interface | Quality |
| USB3.1 Type-C | 1 |
| Micro USB(otg) | 1 |
| RJ45 | 1 |
| HDMI | 1 |
| USB 2.0(host) | 1 |
| MiniPCIe | 1 |
| CAN | 1 |
| 3.3V I2C | 1 |
| 3.3V GPO | 1 |
| 3.3V GPIO | 3 |
| 2 Lane MIPI | 1 |
| RS-232 | 1 |
| M.2 Key M | 1 |

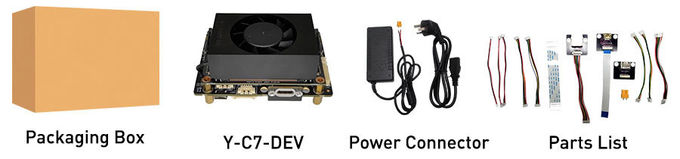

PACKING LIST
