| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | Y-C6-DEV-TX2NX |
| Minimum Order Quantity: | 1 |
| Price: | USD380-USD360 \SET |
| Packaging Details: | 35X28X24cm |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1+set+4weeks |
| NAME: | RJ45 MiniPCIe Linux AI Nvidia Jetson Tx2 Carrier Board Development Kit | Keyword: | RJ45 MiniPCIe Linux AI Nvidia Jetson Tx2 Carrier Board Development Kit |
|---|---|---|---|
| Model Number: | TX2NX | USB3.1 Type-A: | *1 |
| RJ45: | *1 | HDMI: | *1 |
| Micro SD: | *1 | SIM: | *1 |
| MiniPCIe: | *2 | Power Adapter: | DC +12V 5A |
| Working Temperature: | -20~+65℃ | Board Size: | 120mm×80mm×35mm |
| High Light: | Linux nvidia jetson tx2 carrier board,MiniPCIe nvidia jetson tx2 carrier board,RJ45 nvidia tx2 carrier board |
||

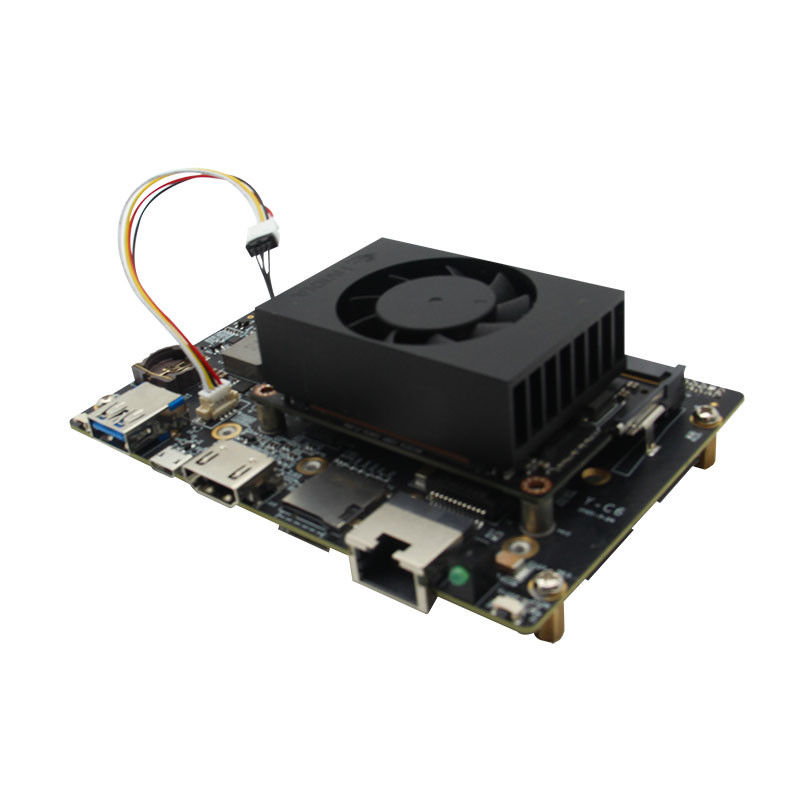

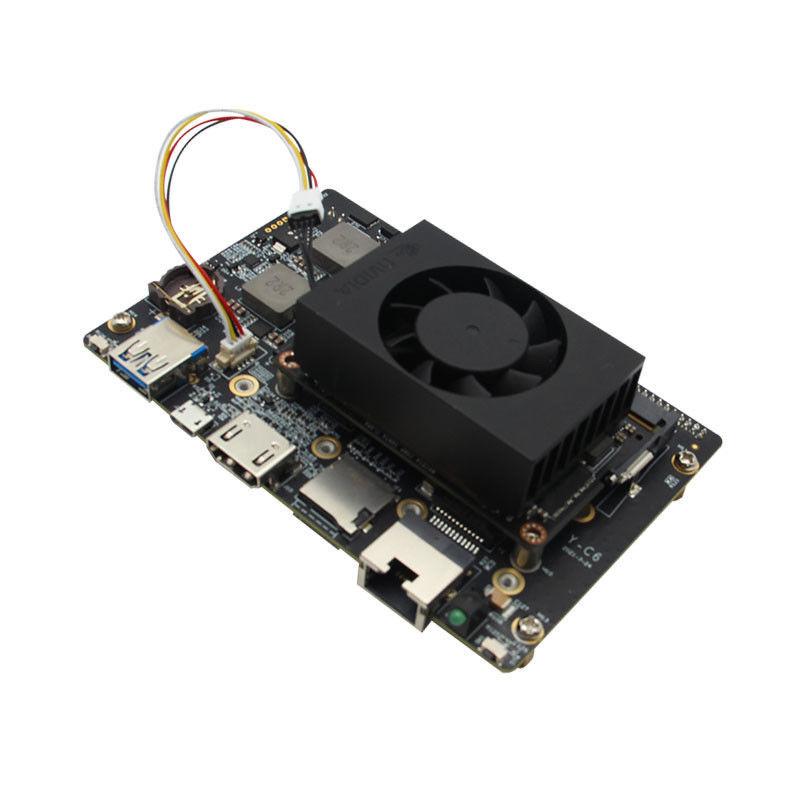

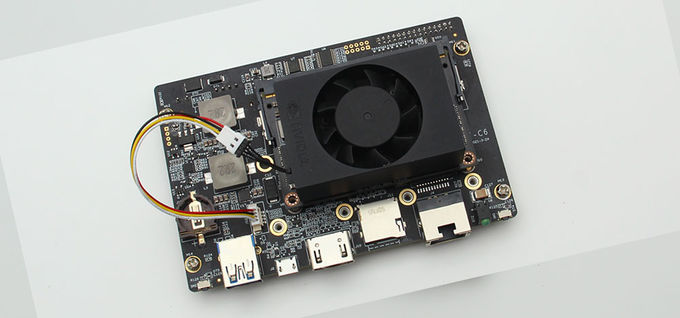

RJ45 MiniPCIe Linux AI Nvidia Jetson Tx2 Carrier Board Development Kit
Y-C6-DEV-TX2NX is a Plink-AI development system powered by the NVIDIA Jetson TX2 NX module. The input power supply has functions of overvoltage and reverse polarity protection, and has abundant external interfaces. It can also be equipped with hundreds of functional modules through two MiniPCIe connectors (including USB 2.0 and PCIe X1 signals) to achieve further expansion of system functions.The Jetson TX2 series module was designed with ease of system integration in mind. Power is provided by a single DC input, it is supplied to the devices on board through a power management IC (PMIC) and dedicated voltage regulators; all internal module voltages and IO voltages are generated from this input. An optional back up battery can be attached to maintain the on system Real-Time Clock (RTC) when the main power is not present.
NVIDIA Jetson TX2 NX Module
4GB 128-bit LPDDR4 + 16GB eMMC 5.1 + 1.33 TFLOPS +7.5W | 15W +12 lanes MIPI CSI-2D-PHY 1.2 (up to 30 Gbps)
| AI Perf | 1.33 TFLOPS |
| GPU | 256-core NVIDIA Pascal™ GPU |
| CPU | Dual-core Denver 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor |
| Memory | 4 GB 128-bit LPDDR4 51.2GB/s |
| Storage | 16 GB eMMC 5.1 |
| CSI Camera | Up to 5 cameras (12 via virtual channels) 12 lanes MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps) |
| Display | 2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0 1x 2 DSI (1.5Gbps/lane) |
| Mechanical | 69.6 mm x 45 mm 260-pin SO-DIMM connector |
Power onself start
Temperature: -20~+65°C
Size: 120mm*80mm*35mm
Adapter: AC to DC /220V to +12V 5A
Support native system
Support the officia lsystem without changing the kernel
Anti falling off interface design
| 3.3V Debug(UART) | 1 |
| GPIO(3.3V) | 3 |
| GPO(3.3V) | 1 |
| HDMI 2.0 | 1 |
| I2C | 2 |
| micro SD | 1 |
| Nano SIM | 1 |
| MiniPCIe | 2 |
| RS-232 | 2 |
| CAN | 1 |
| 2 Lane MIPI | 2 |
| USB 3.1 Type-A | 1 |
| Micro USB | 1 |
| RJ45 | 1 |
| SPI(3.3V) | 1 |
| CR1220 RTC Battery | 1 |
| 30-pin2.0mm Multifunctional interface design (GPIO,I2C,SPI,USB,RS-232) | 1 |
