| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | Y-C7-NX |
| Minimum Order Quantity: | 1PCS |
| Price: | USD199-USD219\PCS |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | In stock |
| NAME: | Mini UAV Jetson AGX Xavier Board NVIDIA SBC NX Development Board | Key Word: | Mini UAV Jetson AGX Xavier Board NVIDIA SBC NX Development Board |
|---|---|---|---|
| SD: | Micro SDcard | USB Type-C: | 1x Micro USB 1x USB Type-C 1x USB 2.0 |
| Board Storage: | 64GB EMMC | Expand Interface: | 1x MiniPCIE 1x M.2 Key M |
| RS-232 Level Serial Port: | X1 | 2 Lane MOPI Camera Interface FPC Connector: | X1 |
| Gigabit Ethernet（10/100/1000 BASE-T）Connector: | X1 | HDMI 2.0 Interface: | X1 |
| 3.3V TTL Level UART Port: | X1 | CAN Bus Interface: | X1 |
| Weight: | 40g | Board Size: | 80mm×60mm×8 Mm |
| Power Supply: | DC +9V~+24V | Temperature: | -40~+85℃ |
| High Light: | Mini xavier board nvidia,AGX xavier board nvidia,nvidia jetson sbc Development Board |
||

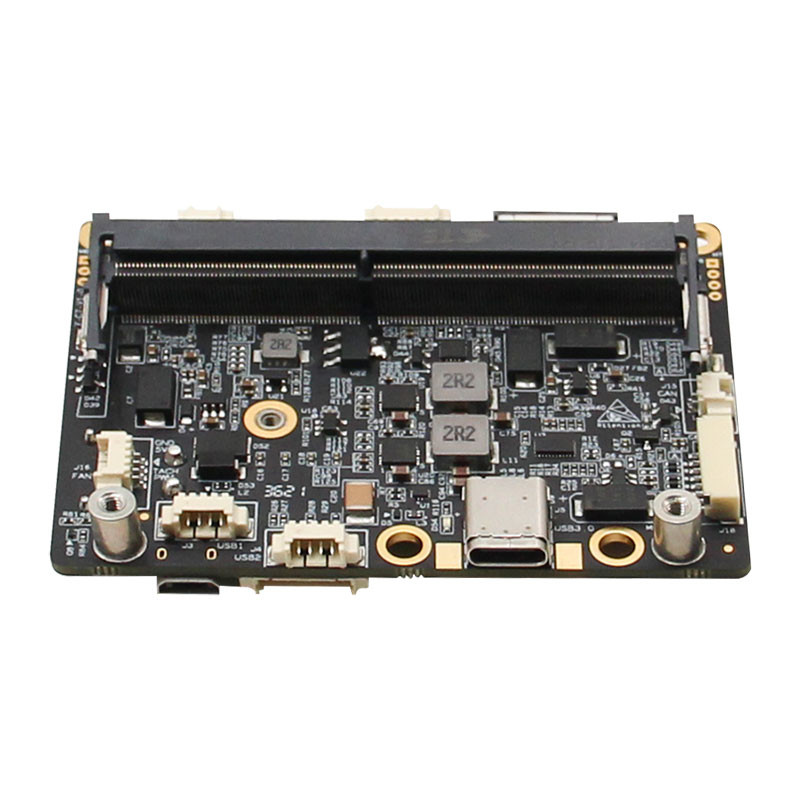

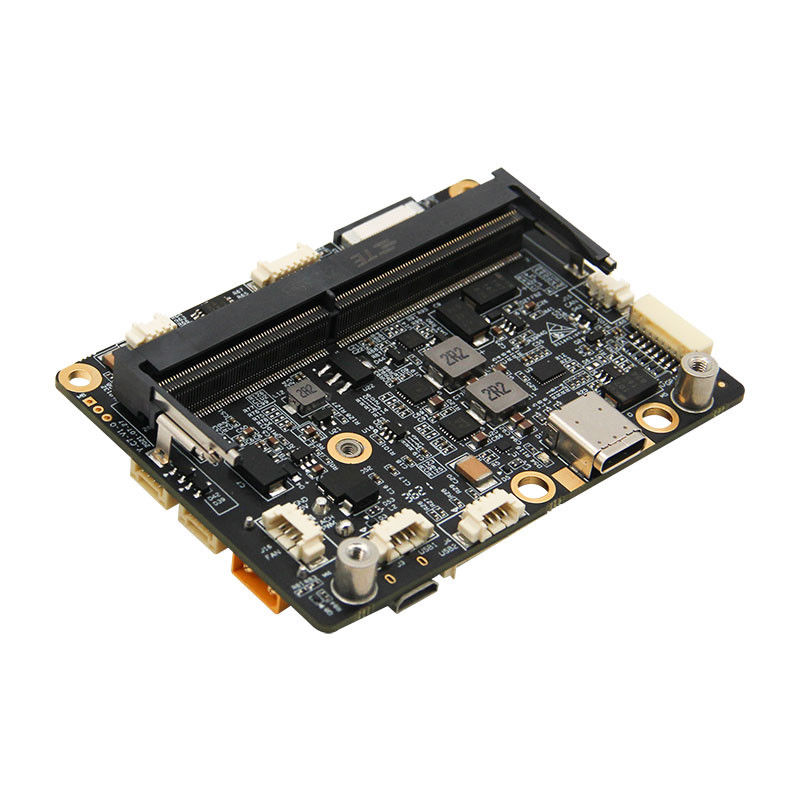

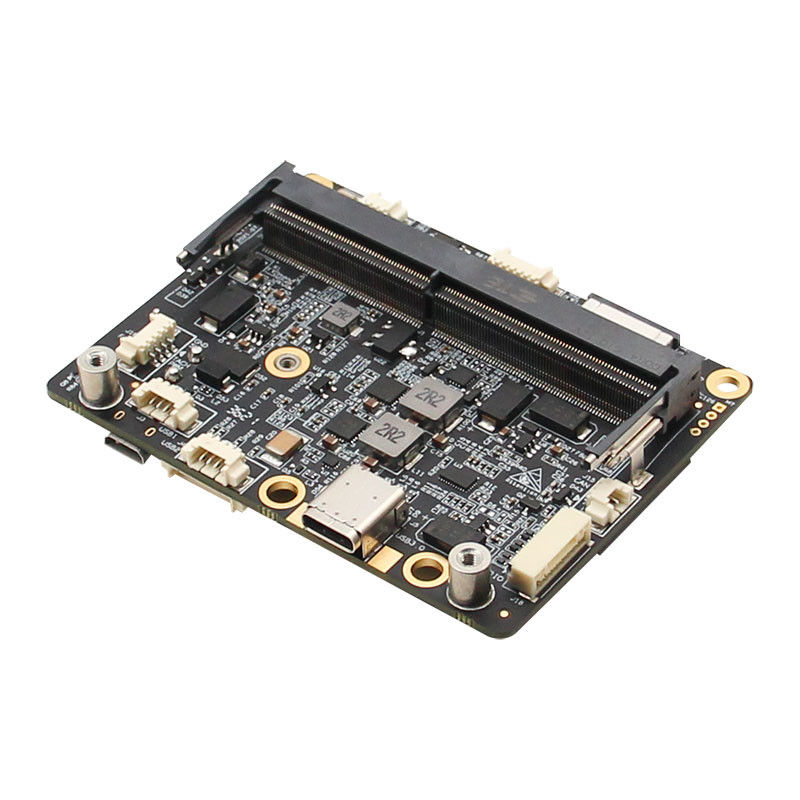

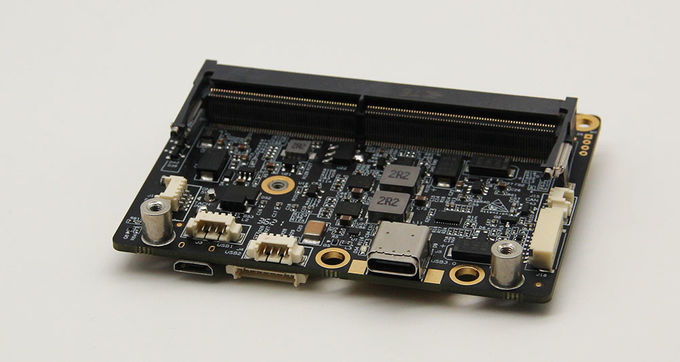

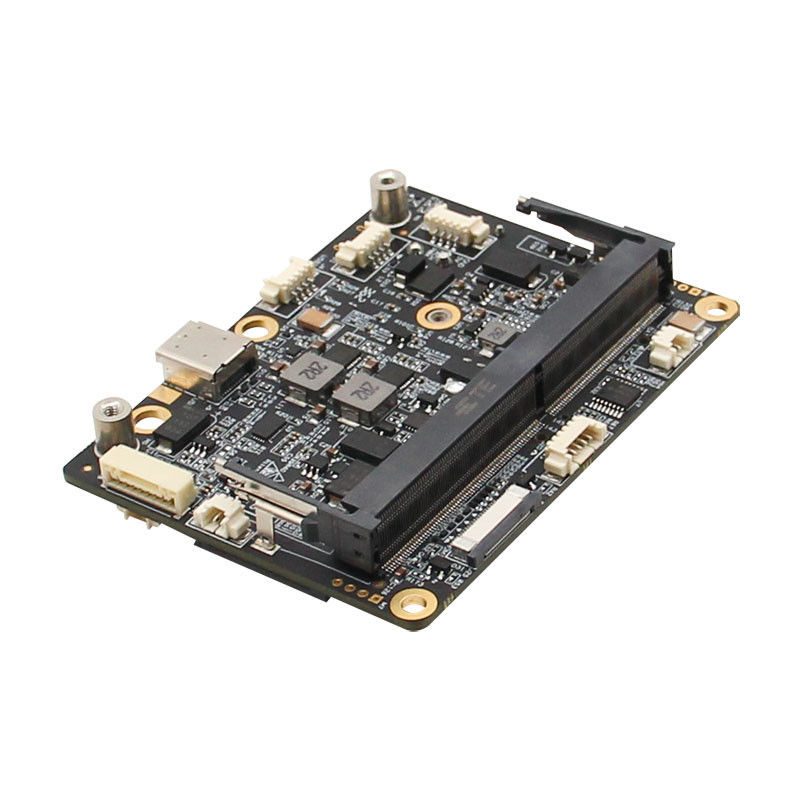

Mini UAV Jetson AGX Xavier Board NVIDIA SBC NX Development Board
NVIDIA Jetson Xavier NX Module:
Up to 21 TOPS (INT8)
Volta GPU
Carmel CPU
8 GB 128-bit LPDDR4x DRAM
16 GB eMMC 5.1 Flash Storage
The NVIDIA Jetson SBC (Y-C7) is a NVIDIA single board that matches NVIDIA Jetson Xavier NX module. For the industrial single board computer and UVA, autopilot. the development board (Y-C7) is a small carrier board. Through the 2 lane mipi CSI interface on development board (Y-C7), you can access a variety of camera modules, as well as CVBS (PAL / NTSC), SDI, HDMI and other video signals.
| M.2 Key M | 1 |
| RJ45(10 / 100 / 1000 BASE-T) | 1 |
| Micro USB | 1 |
| HDMI 2.0 | 1 |
| USB3.1 Type-C | 1 |
| USB 2.0 | 1 |
| Fan Control Interface | 1 |
| MiniPCIe | 1 |
| RS-232 | 1 |
| CAN | 1 |
| I2C(3.3V) | 1 |
| UART | 1 |
| GPIO(3.3V) | 3 |
| GPO(3.3V) | 1 |
| Temperature | -40~ + 85°C |
| Power supply requirements | DC + 9V~ + 24V |
| Board size | 80mm * 60mm * 16.8mm |
| Weight | 40g |
