USB Embedded Nvidia Jetson Xavier NX Carrier Board Science 12V-21V

USB Embedded Nvidia Jetson Xavier NX Carrier Board Science 12V~21V

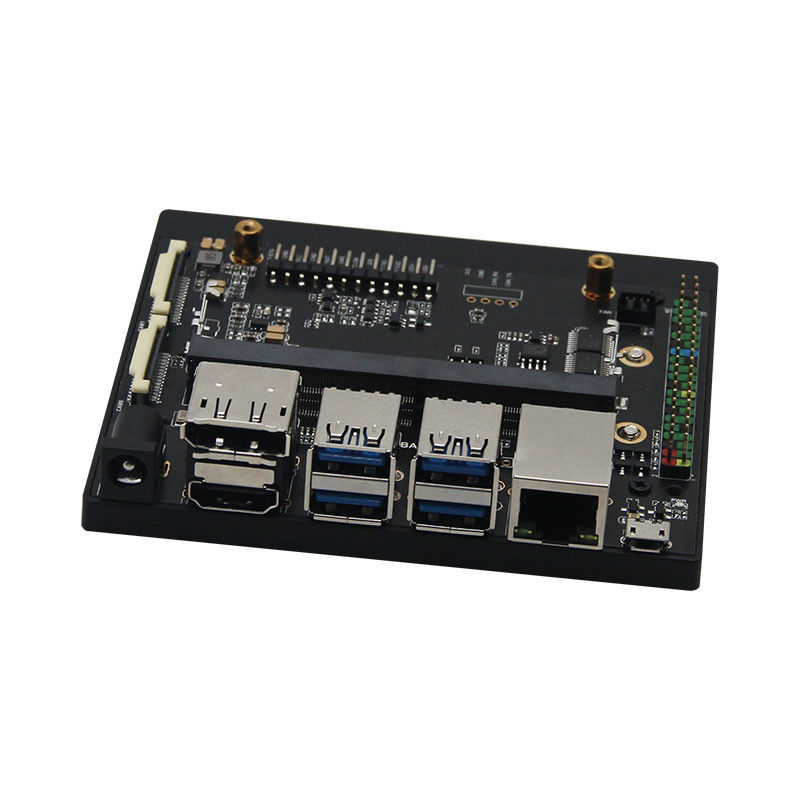

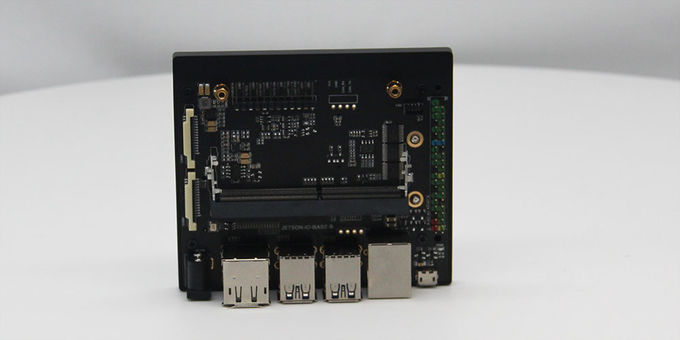

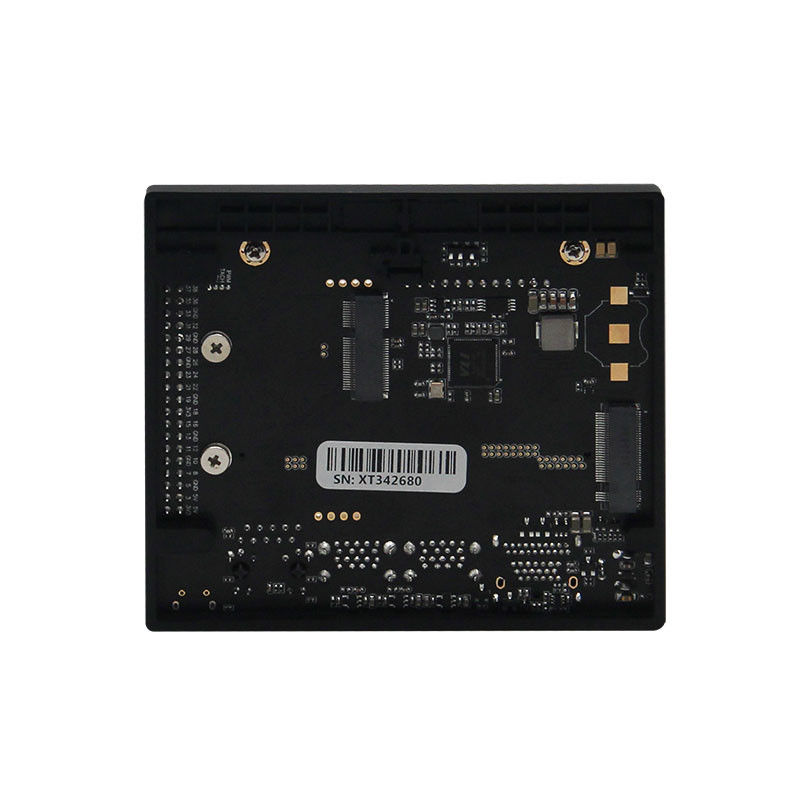

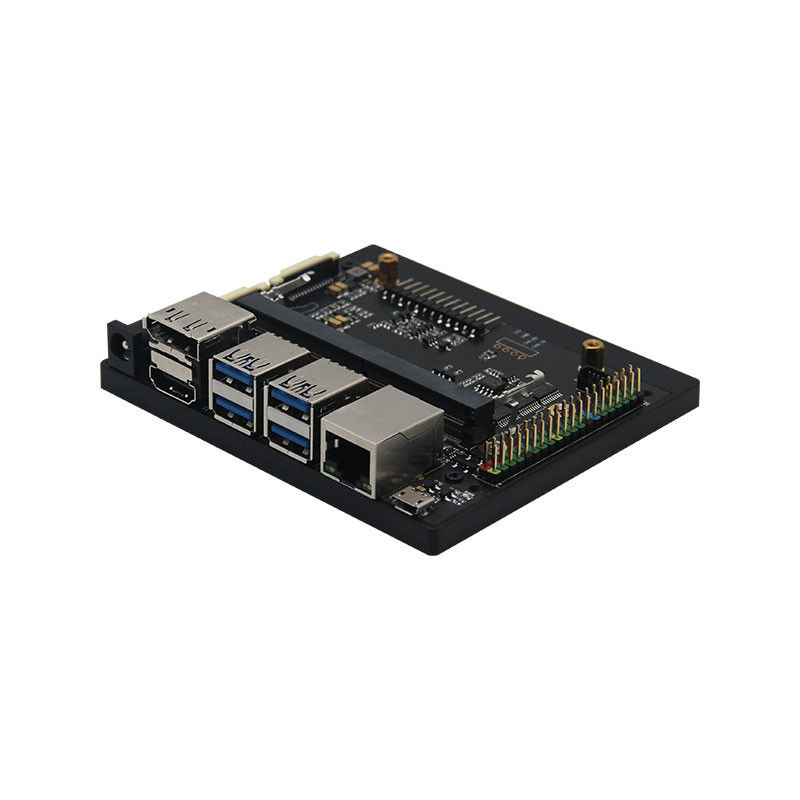

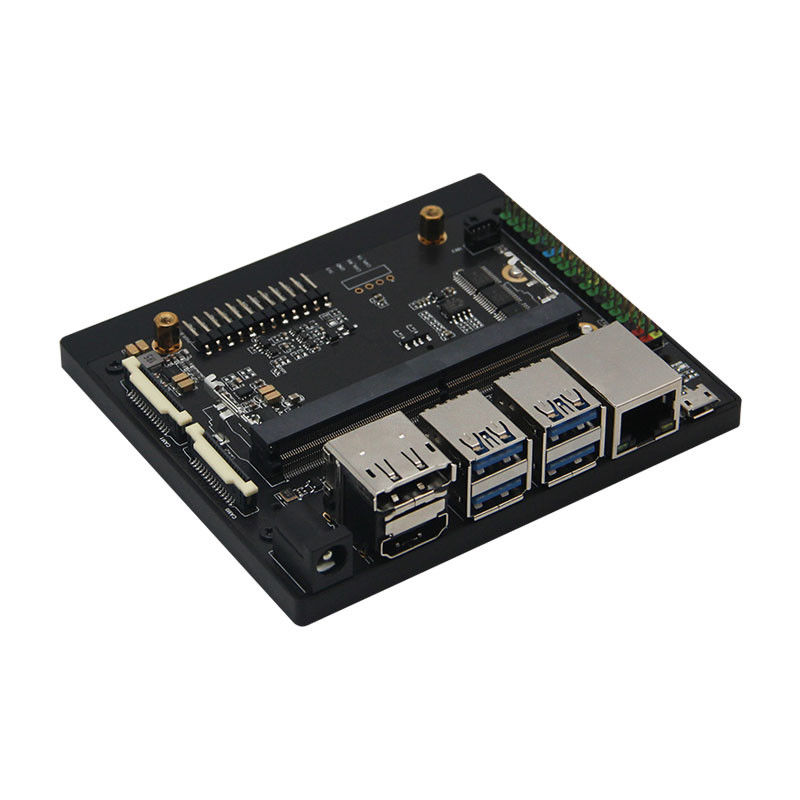

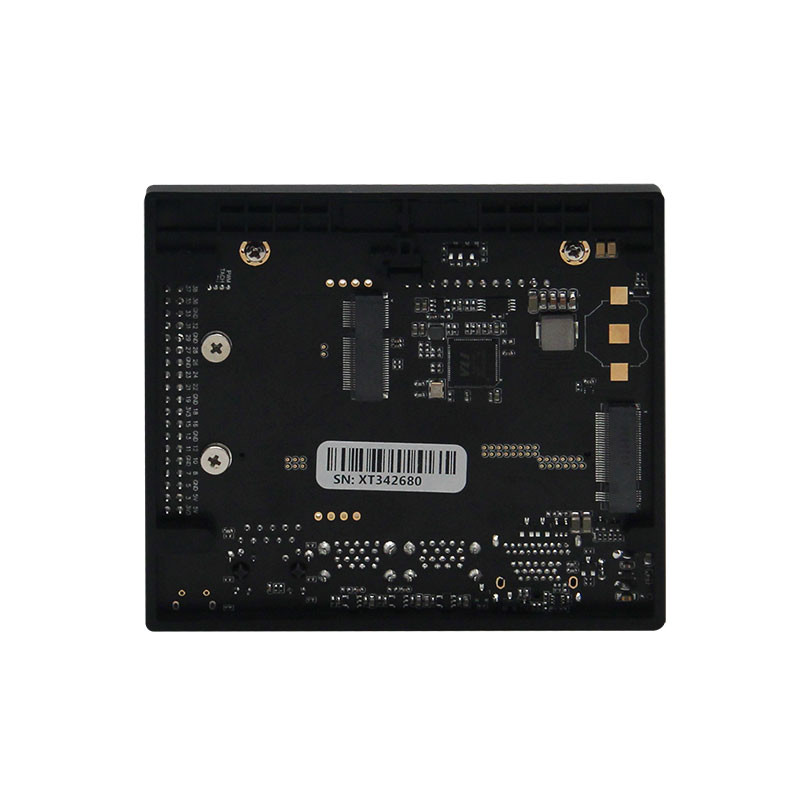

NVIDIA Jetson Xavier NX Carrier Board

Embedded Computer Module: NVIDIA Jetson Xavier NX, It integrates a Unified Display Controller (based on the NVIDIA NVDisplay architecture) and two independent display outputs. The Display Controller includes a Pixel Processing Engine that fetches pixel data to be processed from DRAM and generates up to six windows of rasterized display-ready pixel data. The instructions for processing the pixel data are captured by the display controller's Front End (FE) logic, which then generates the individual controls for the various stages of pixel processing. The pixel data to be processed are fetched in the Isochronous Memory Hub (IsoHub) then go through the specified pixel processing, including merging the cursor, in four pipe stages: Pre-Composition (Pre-comp); Composition (Comp); Post-Composition (Post-comp); and Raster Generation (RG). The rasterized display-ready pixel data are available for the separate panels/devices (referred to as display heads) and are fed through a multi-channel crossbar structure to the Serial Output Resources (SOR) in the Display Interface for the standard display output format, i.e., DP (Display Port) and High-Definition Multimedia Interface (HDMI).

The Jetson development board (Xavier NX domestic carrier board) is for industrial embedded system development board.

The interface display of NVIDIA development board
