| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | Y-C6 |
| Minimum Order Quantity: | 1PCS |
| Price: | USD199-USD219\PCS |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | In stock |
| NAME: | ODM IOT HDMI Computer Embedded PC Board Jetson Xavier Carrier Board | Key Word: | ODM IOT HDMI Computer Embedded PC Board Jetson Xavier Carrier Board |
|---|---|---|---|
| Full-speed USB3.1 Type A Connector: | *1 | Micro USB Connector: | X1 |
| Gigabit Ethernet (10 / 100 / 1000 BASE-T) RJ45 Connector: | X1 | HDMI 2.0 Interface (up To 6Gbps, 24bpp, 4096x2160@60Hz): | X1 |
| Type CR1220 Type RTC Battery Holder (without Battery): | X1 | Work Indicator Light: | X1 |
| Fan Control Interface: | X1 | Micro TF Card Connector: | X1 |
| Nano Type SIM Card Connector: | X1 | Full-length MiniPCIe Connectors: | X2 |
| 2 Lane MIPI Camera Interface FPC Connectors: | X2 | CAN Bus Interface With On-board Transceiver: | X1 |
| Weight: | 40g | Board Size: | 120mm * 80mm * 18 Mm |
| Power Supply: | DC + 9V~ + 24V | Temperature: | -40~+85℃ |
| High Light: | ODM Embedded PC Board,IOT HDMI Embedded PC Board,IOT jetson xavier carrier board |
||

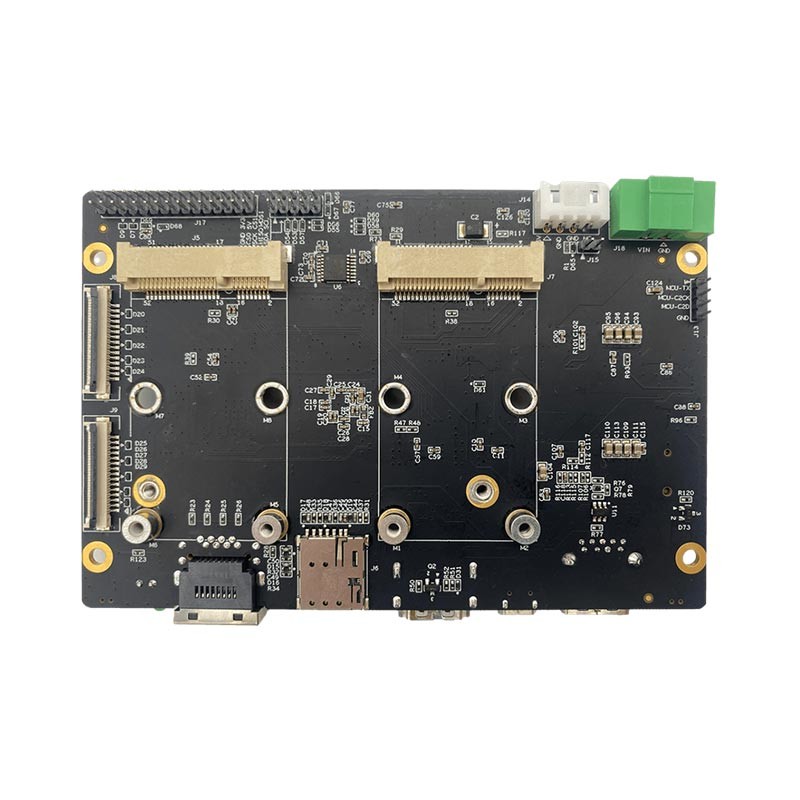

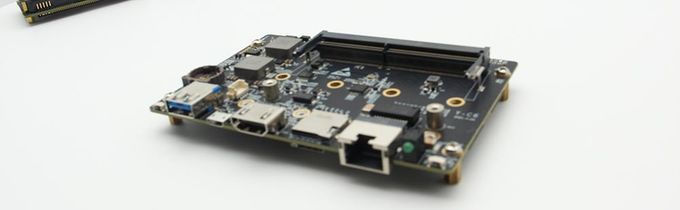

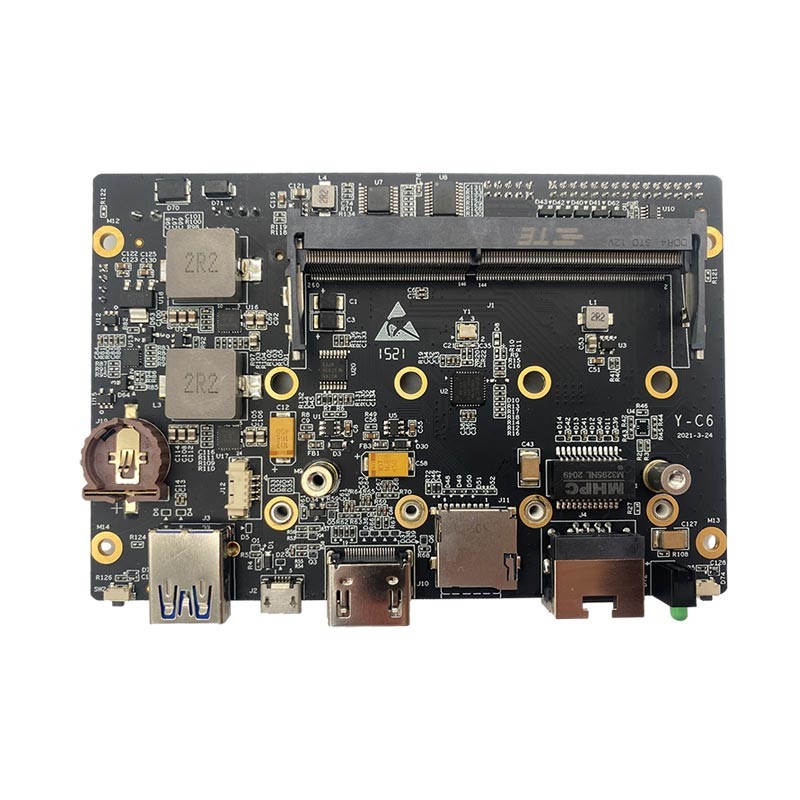

ODM IOT HDMI Computer Embedded PC Board Jetson Xavier Carrier Board

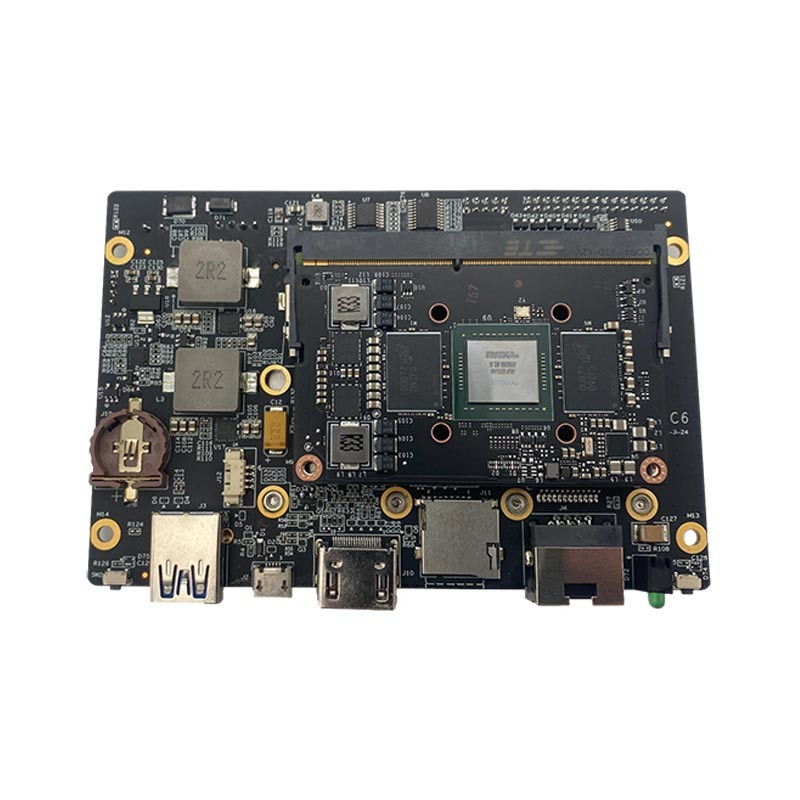

The Y-C6-NX is an NVIDIA Jetson SBC, and it is also a low-cost, small-volume carrier board equipped with the NVIDIA Jetson Xavier NX, NVIDIA Jetson TX2 NX, and NVIDIA Jetson Nano series of core modules, suitable for edge AI. For industrial, UAV, autopilot and the applications.
|
Interface |
Quality |
|
USB3.1 Type-A |
1 |
| Micro USB | 1 |
|
(10 / 100 / 1000 BASE-T) RJ45 |
1 |
|
HDMI 2.0 |
1 |
|
Fan Control Interface |
1 |
| Working Indicator | 1 |
| CR1220 type RTC battery holder (battery not included) | 1 |
| Micro TF card | 1 |
| Nano type SIM card | 1 |
| MiniPCIe | 2 |
| 2 Lane MIPI Camera Interface FPC | 2 |
| CAN | 1 |
| RS-232 | 2 |
| UART(3.3V) | 1 |
| SPI(3.3V) | 1 |
| I2C(3.3V) | 2 |
| 30pin 2.0mm pitch multi-function expansion pin connector (including GPIO, I2C, SPI, USB, RS-232 and other low-speed signals) | 1 |
| Board Size | 120mm×80mm×18mm |
| Power | DC +9V~+24V |
| Working temperature | -40~+85℃ |
| Weight | 78g |
