| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | Y-C9 |
| Minimum Order Quantity: | 1PCS |
| Price: | USD289-USD299\PCS |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | In stock |
| NAME: | 32GB Jetson AGX Xavier Carrier Embedded PC Board Nvidia Arm Board Custom | Key Word: | 32GB Jetson AGX Xavier Carrier Embedded PC Board Nvidia Arm Board Custom |
|---|---|---|---|
| Module: | AGX Xavier | USB Type-A: | 3x USB 3.0 |
| USB Type-C: | 1x USB Type-C | MiniPCIe: | 2x MPCIe |
| RJ45: | 1x RJ45 | Button: | 1x Power 1x Recovery 1x Reset |
| DisplayPort: | HDMI | M.2 Key M: | X1 |
| Tempreture: | -40~+85℃ | Board Size: | 136 Mm×100 Mm×20 Mm |
| Power Supply: | DC +12V | Weight: | 112g |
| High Light: | Nvidia Xavier Embedded PC Board,Nvidia AGX Embedded PC Board,32GB nvidia arm board |
||

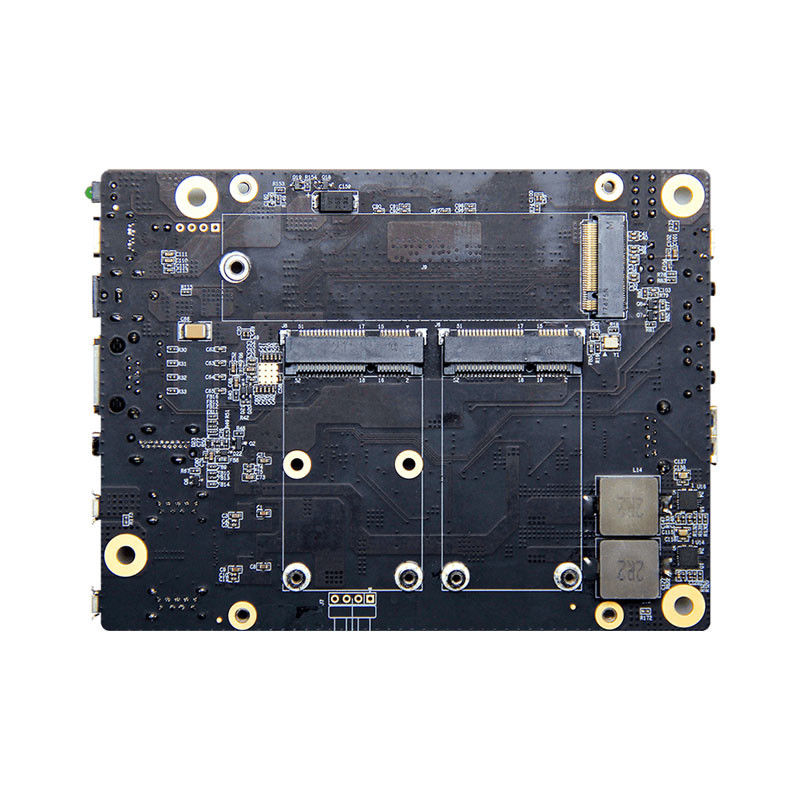

32GB Jetson AGX Xavier Carrier Embedded PC Board Nvidia Arm Board Custom
NVIDIA Jetson AGX Xavier 32G Module
Volta GPU + Carmel CPU + 32GB LPDDR4x + 32GB eMMC

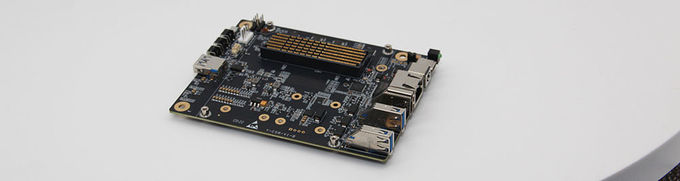

Y-C9 is embedded development board with NVIDIA Jetson AGX Xavier 32G module, For industrial deployment applications, NVIDIA Jetson AGX Xavier module is ideal for (but not limited to): Intelligent Video Analytics (IVA), Robotics, Mechanical Arm, Virtual Reality (VR), Augmented Reality (AR) and Portable Medical Devices.
|
Product Name |
Y-C9 |
| Module | NVIDIA Jetson AGX Xavier |
| AI Performance | 32 TOPS |
| DL Accelerator | 2x NVDLA |
| GPU | NVIDIA Volta architecture with 512 NVIDIA CUDA cores and 64 Tensor cores |
| Vision Accelerator | 2x PVA |
| Safety Cluster Engine | - |
| CPU | 8-core NVIDIA Carmel Armv8.2 64-bit CPU 8MB L2 + 4MB L3 |
| Memory | 32GB 256-bit LPDDR4x 136.5GB/s |
| Storage | 32GB eMMC 5.1 |
| Networking | 10/100/1000 BASE-T Ethernet |
| Input Power | DC +12V |
| Temperature Range | -40°C ~ 85°C |
| Size | 136mm × 100mm ×20mm |
| Weight | 112g |
| Serial port | 2x 3.3V TTL |
| Port | 2x miniPCIE 1x M.2 Key M |
| Botton | 1x Power 1x Recovery 1x Reset |

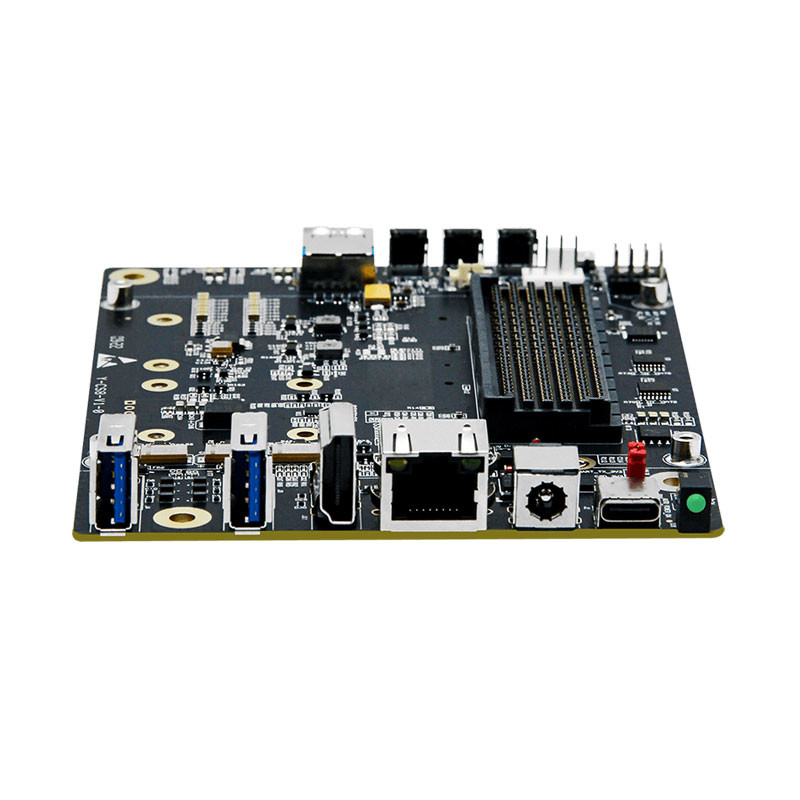

| USB Connector | 3x USB 3.0 1x USB Type-C |
| Display | 1x HDMI |
Method of use
(1) Ensure that all external systems are powered off.

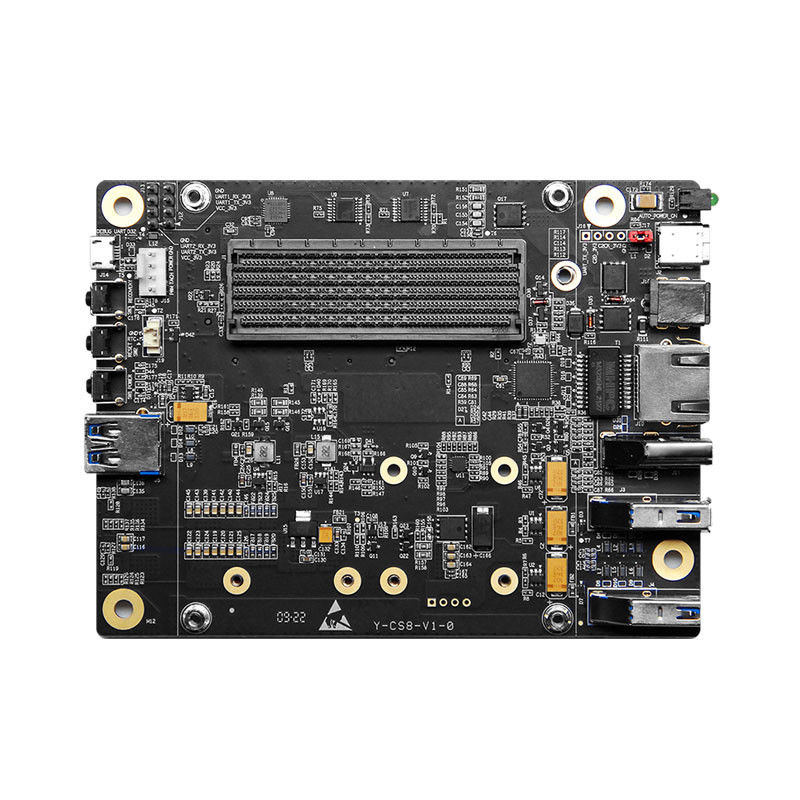

(2) Install the Jetson core module onto the J1 high-speed connector, using even force with good alignment between the connectors. Install the core module fixing screws after the module is installed in place.
(3) Install necessary external cables. (For example: display cable connected to HDMI display, power input cable for system power, USB cable connecting keyboard and mouse, camera, miniPCIe function expansion module...)
(4) Connect the power cable to the power supply.
(5) Y-C9 You can set this parameter to automatic power-on by default or switch on to enable the system to work.
(6) For the system without a protective cover, do not move the hardware system after the system is powered on. Do not touch the circuit board or any electronic components directly with your body.
