| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | Y-C6-DEV-NX8G |
| Minimum Order Quantity: | 1 |
| Price: | USD 625-USD650\SET |
| Packaging Details: | 35X28X24cm |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| NAME: | 3.3V GPIO RS232 SBC Embedded System Nvidia Xavier NX Carrier Board | Keyword: | 3.3V GPIO RS232 SBC Embedded System Nvidia Xavier NX Carrier Board |
|---|---|---|---|
| USB3.1 Type-A: | *1 | Micro USB: | *1 |
| RJ45: | *1 | Micro SD: | *1 |
| SIM: | *1 | MiniPCIe: | *2 |
| Power Adapter: | DC +12V 5A | Single Package Size: | 120mm×80mm×35mm |
| Working Temperature: | -25~+80℃ | RS-232: | X 2 |
| High Light: | 3.3V SBC Embedded System,GPIO SBC Embedded System,SBC nvidia xavier nx carrier board |
||

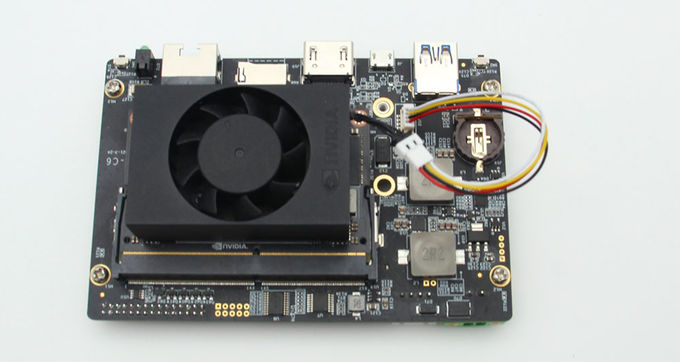

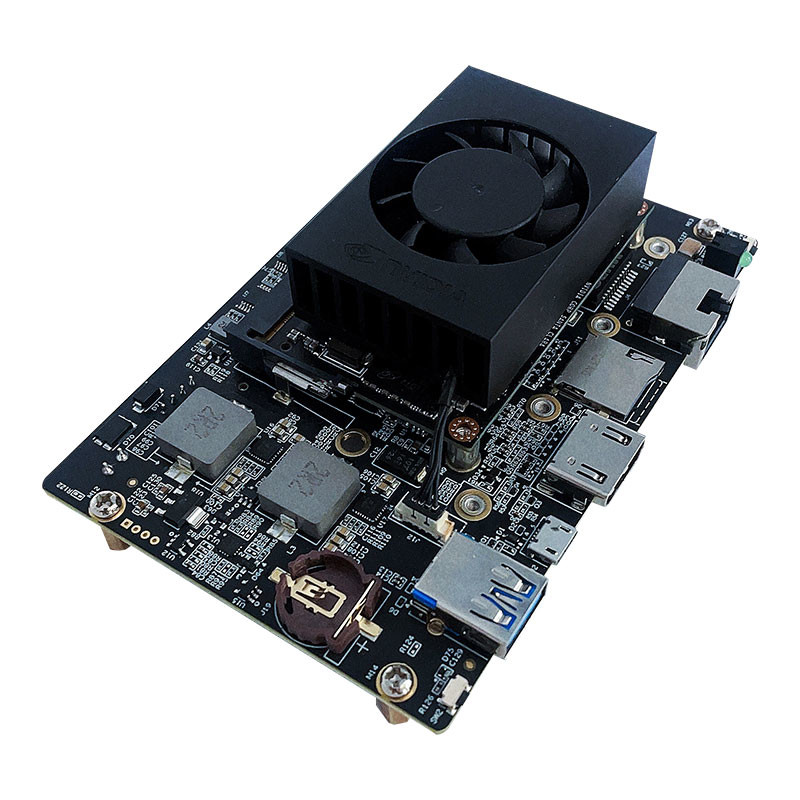

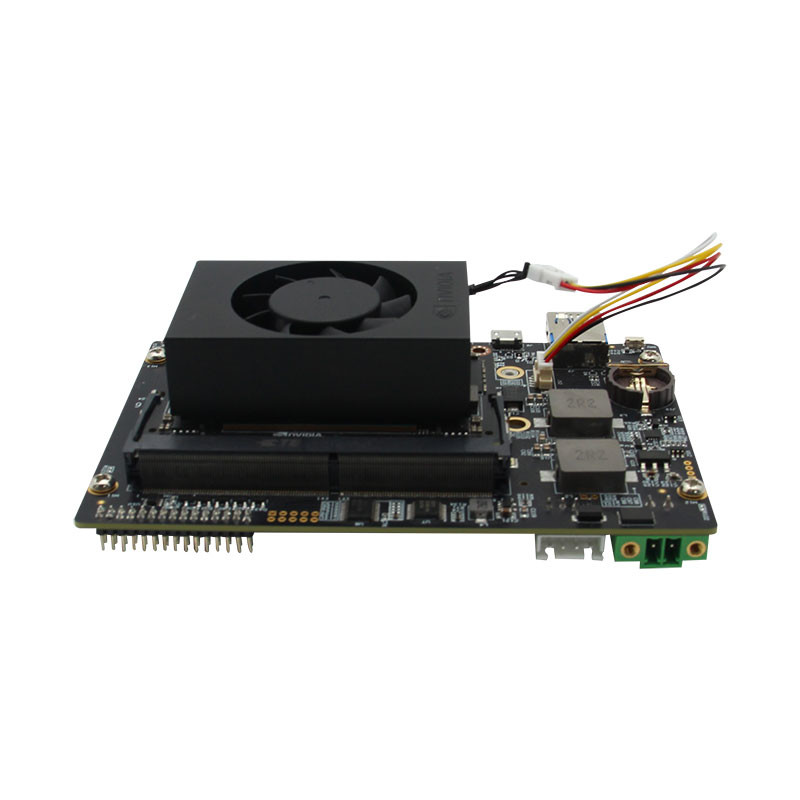

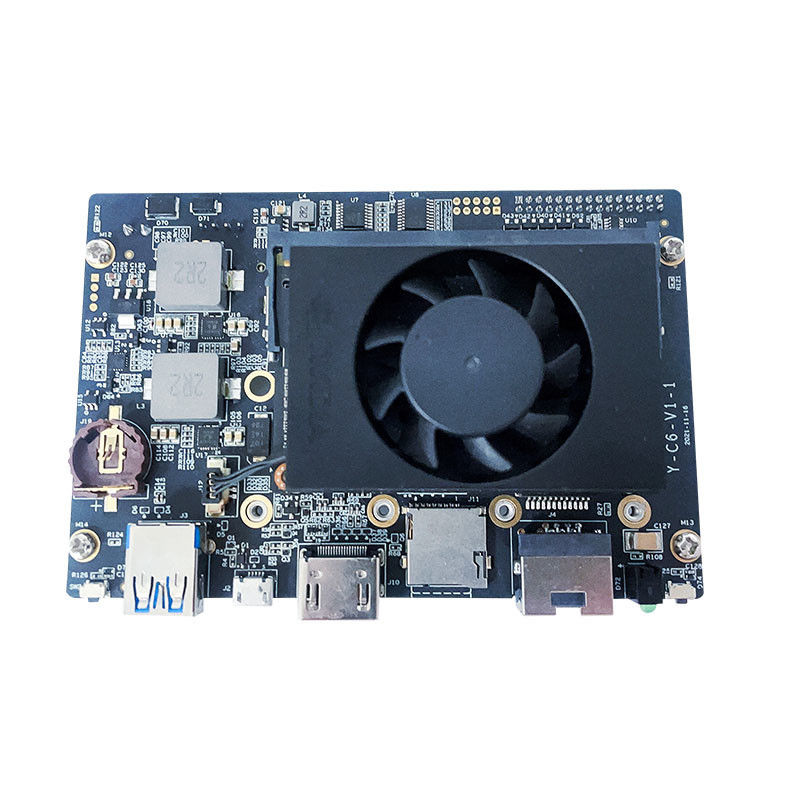

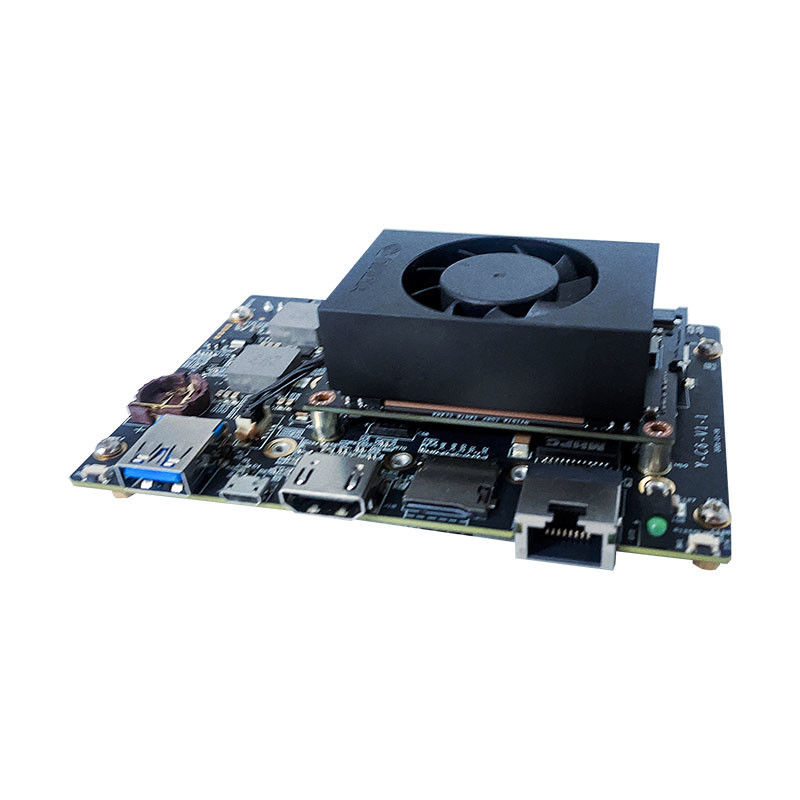

3.3V GPIO RS232 SBC Embedded System Nvidia Xavier NX Carrier Board
NVIDIA Jetson Developer Kit PLink Self-Developed AI Kit
NVIDIA Jetson Xavier NX Industrial Embedded Development System
Y-C6-DEV-NX
Y-C6-DEV-NX is an industrial enbedded development system with NVIDIA Jetson Xavier NX module. the heat dissipation mode is active, the developer kit size is 120mm*80mm*35mm, it is for autonomous machines which is robotics, warehouse, retail, cooperation, V2X etc,. It can be equipped with hundreds of functional modules through 2 MiniPCIe connectors to achieve further expansion of system functions. extended to 4 full-speed USB 3.0 signals, 4 GIGABit network signals, and 2 full-speed SATA signals. It can also be equipped with 4G communication modules.
NVIDIA Jetson Xavier NX Technical Specifications
| AI Perf | 21 TOPS |
| GPU | 384-core NVIDIA Volta™architecture GPU with 48 Tensor Cores |
| CPU | 6-core NVIDIA Carmel Arm®v8.2 64-bit CPU 6MB L2 + 4MB L3 |
| Memory | 16GB / 8GB 128-bitLPDDR4x 59.7GB/s |
| Storage | 16GB eMMC 5.1 |
| CSI Camera | Up to 6 cameras (24 via virtual channels) 14 lanes MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps) |
| USB | 1x USB 3.2 Gen2 (10 Gbps) 3x USB 2.0 |
| Other I/O | 2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0 |
NVIDIA Jetson Xavier NX Developer Kit Product parameters
Support native system
Anti falling off interface design
Power onself start
Size: 120mm*80mm*35mm
Adapter: AC to DC /220V to +12V 5A
Temperature: -25~+80°C
Support the officia lsystem without changing the kernel
| USB 3.1 Type-A | 1 |
| Micro USB | 1 |
| (10/100/1000BASE-T) RJ45 | 1 |
| HDMI 2.0 | 1 |
| CR1220 RTC Battery | 1 |
| micro SD | 1 |
| Nano SIM | 1 |
| MiniPCIe | 2 |
| 2 Lane MIPI | 2 |
| CAN | 1 |
| RS-232 | 2 |
| 3.3V Debug(UART) | 1 |
| 3.3V GPIO | 3 |
| 3.3V GPO | 1 |
| 3.3V SPI | 1 |
| 3.3V I2C | 2 |
| 30-pin2.0mm Multifunctional interface design (GPIO,I2C,SPI,USB,RS-232) |
1 |
