| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | Y-C8 |
| Minimum Order Quantity: | 1PCS |
| Price: | USD289-USD299\PCS |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | In stock |

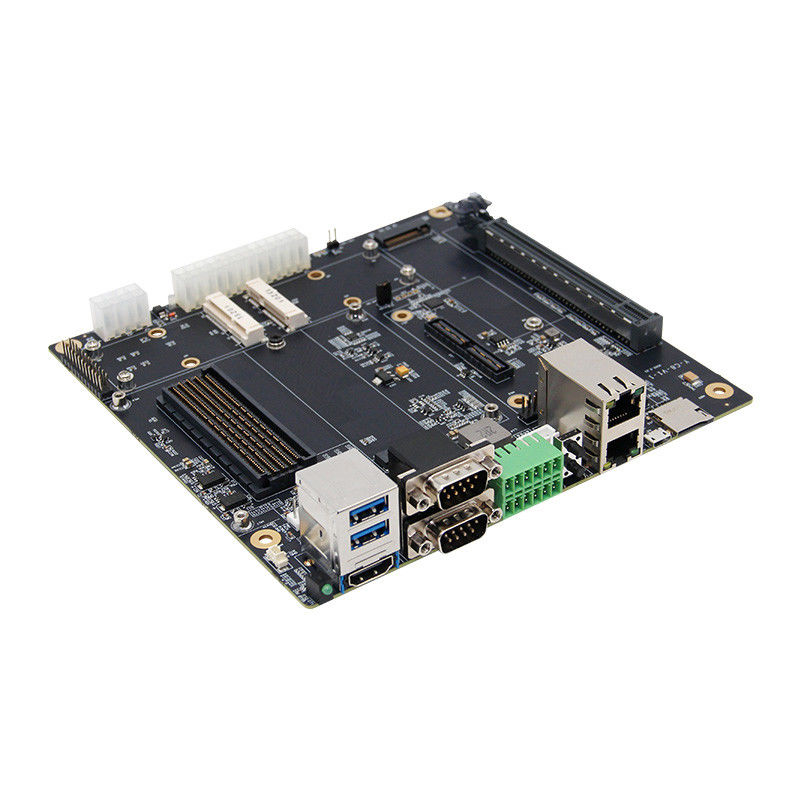

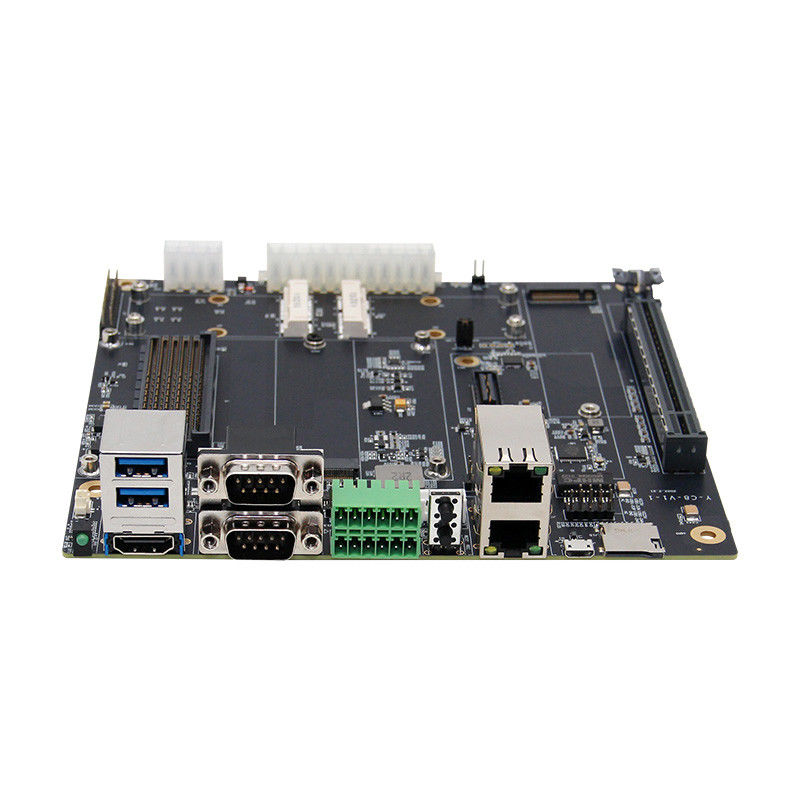

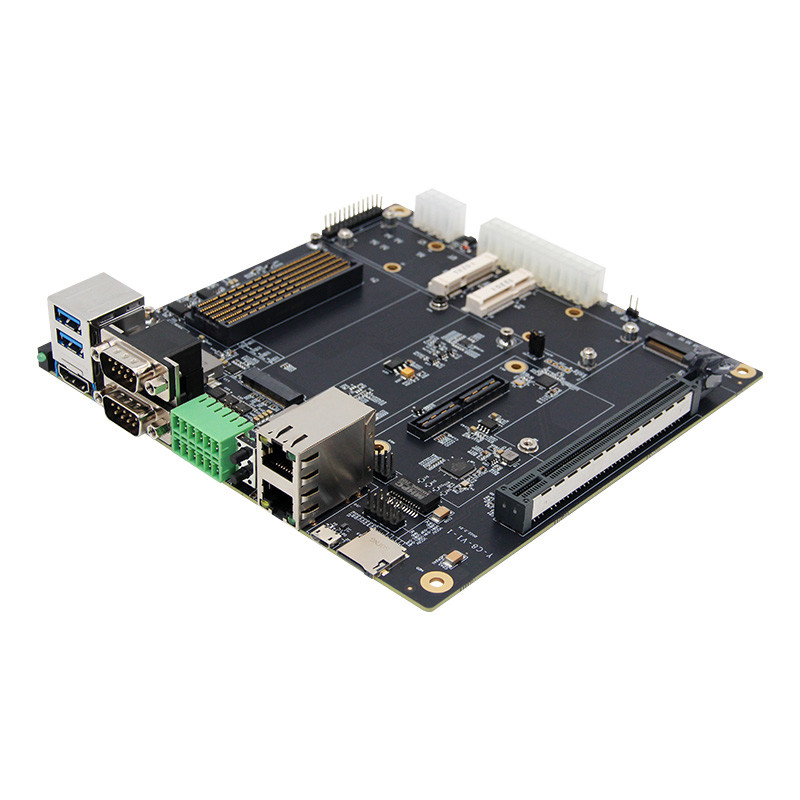

| NAME: | Industrial Embedded Nvidia Xavier Agx Carrier Board 40pin | Key Word: | Industrial Embedded Nvidia Xavier Agx Carrier Board 40pin |
|---|---|---|---|
| USB Type-A: | 2x USB 3.0 | USB Type-C: | NO |
| USB Micro-B: | 1x USB 2.0 | PCIe: | X16 PCIe Slot Supporting PCIe X8 |
| MiniPCIe: | 2x MPCIe | RJ45: | 2x RJ45 One Of The RJ45 Connector Needs |
| DisplayPort: | HDMI | M.2 Key M: | X2 |
| MicroSD Slot: | X1 | Other I/O: | 2x CAN 4xGPIO 1x SPI 1x I2C |
| Power Supply: | DC +12V | Temperature: | -40~+85°C |
| Dimensions: | 170mm×170mm×34 Mm | Weight: | 260g |
| High Light: | nvidia xavier agx carrier board,Embedded nvidia xavier agx carrier board,40pin nvidia xavier board |
||
|
|

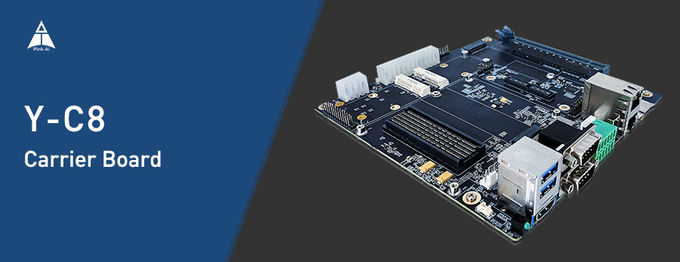

Y-C8
|
Y-C9
|
|
AGX Xavier
|
Yes
|
|
|
AGX Orin
|
Yes
|
Yes
|
|
Module
|
NVIDIA Jetson AGX Xavier 32G
|
NVIDIA Jetson AGX ORIN 32G
|
NVIDIA Jetson AGX ORIN 64G
|
|
CPU
|
8-core NVIDIA Carmel Arm® v8.2 64-bit CPU 8MB L2 + 4MB L3
|
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
|
12-core Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3
|
|
CPU Memory
|
32GB 256-bit LPDDR4 x 136.5GB/s
|
32GB 256-bit LPDDR5 204.8 GB/s
|
64GB 256-bit LPDDR5 204.8 GB/s
|
|
GPU
|
512-core NVIDIA Volta GPU with 64 Tensor Cores
|
1792-core NVIDIA Ampere GPU with 56 Tensor Cores
|
2048-core NVIDIA Ampere GPU with 64 Tensor Cores
|
|
USB Micro-B
|
1 x Type B (OTG)
|
||
|
USB Type-A
|
1 x USB 3.1
|
2 x USB 3.1
|
|
|
Other I/O
|
4 x GPIO(3.3V) | 1 x SPI(3.3V) | 2 x I2C(3.3V) | 2 x RS 232 | 1 x Debug(UART)
2 x CAN (with on-board transceiver) |
||
|
Networking
|
1 x 10/100/1000 Ethernet/RJ45
|
||
|
Power Supply
|
DC +12V
|
||
|
Temperature
|
-40~+85°C
|
||
|
Dimensions
|
170mm×170mm×34 mm
|
||
|
Weight
|
260g
|
||
|
|
Y-C8
|
Y-C9
|
NVIDIA Jetson AGX Orin Developer Kit
|
|
|
USB Type-A
|
2x USB 3.0
|
3x USB 3.0
|
2x USB 3.2 2.0
2x USB 3.2 1.0
|
|
|
USB Type-C
|
|
1x USB Type-C
|
2X USB 3.2 2.0
supporting USB-PD
|
|
|
USB Micro-B
|
1x USB 2.0
|
|
USB 2.0(DEBUG)
|
|
|
PCIe
|
x16 PCIe slot supporting PCIe x8
|
|
x16 PCIe slot supporting x8 PCIe Gen4
|
|
|
MiniPCIe
|
2x MPCIe
|
|
||
|
RJ45
|
2x RJ45
one of the RJ45 connector needs
|
1x RJ45
|
1x RJ45 connector with up to 10 GbE
|
|
|
DisplayPort
|
HDMI
|
1x DisplayPort 1.4a (+MST) connector
|
|
|
|
M.2 Key M
|
2x
|
1x
|
x4 PCIe Gen4
|
|
|
M.2 Key E
|
|
|
x1 PCIe Gen4
|
|
|
microSD slot
|
1x
|
|
UHS-1 card supporting SDR104
|
|
|
Other I/O
|
2x CAN
4xGPIO
1x SPI
1x I2C
|
|
40-pin header (UART, SPI, I2S, I2C, CAN, PWM, DMIC, GPIO)
12-pin automation header 10-pin audio panel header 10-pin JTAG header 4-pin fan header 2-pin RTC batter backup connector microSD slot DC power jack Power, Force Recovery, and Reset buttons |
|
