| Place of Origin: | USA |
|---|---|
| Brand Name: | NVIDIA |
| Model Number: | Jetson Orin Nano developer kit |
| Minimum Order Quantity: | 1PCS |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 20pcs 15-30 work days |
| NAME: | NVIDIA Jetson Orin Nano Dev Kit 945-13766-0000-000: 19V Power Supply, 64GB UHS-1 SD Card | Keyword: | NVIDIA Jetson Orin Nano Dev Kit 945-13766-0000-000: 19V Power Supply, 64GB UHS-1 SD Card |
|---|---|---|---|
| Module: | NVIDIA Jetson ORIN Nano | PN Number: | 945-13766-0000-000 |
| AI Perf: | 40 TOPS | Memory: | 8GB 128-bit LPDDR5 68 GB/s |
| Storage: | SD Card Slot & External NVMe Via M.2 Key M | Networking: | 1xGbE Connector |
| Camera: | 2x MIPI CSI-2 22-pin Camera Connectors | USB: | USB Type-A Connector: 4x USB 3.2 Gen2 USB Type-C Connector For UFP |
| High Light: | 945-13766-0000-000 Nvidia Orin Nano Development Kit,19V Nvidia Orin Nano Development Kit,64GB Nvidia Orin Nano Development Kit |
||

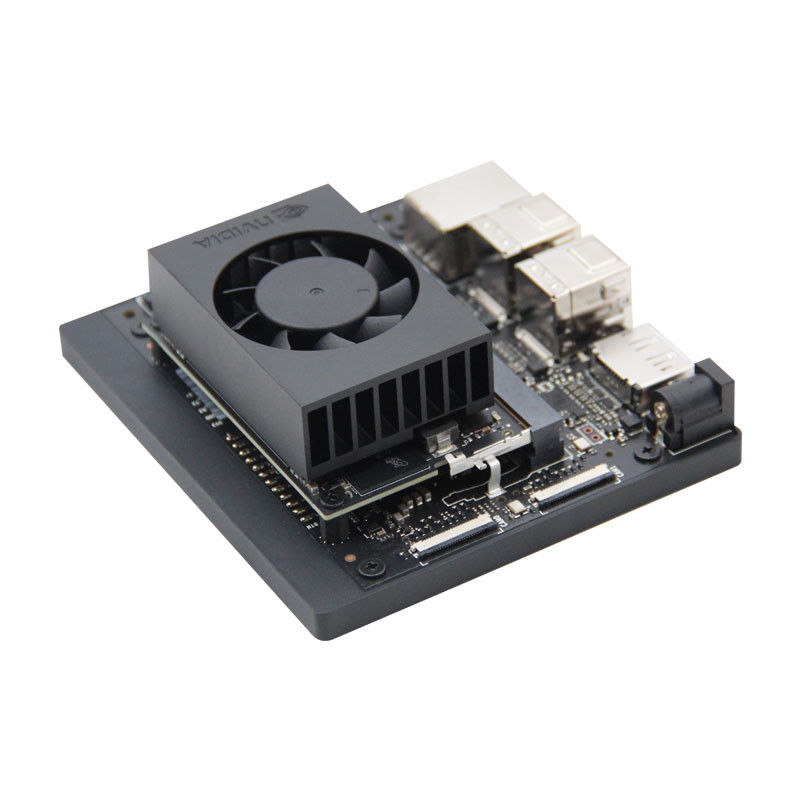

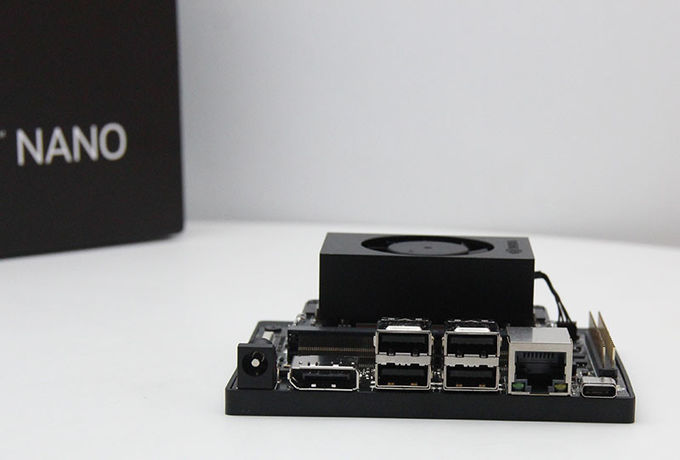

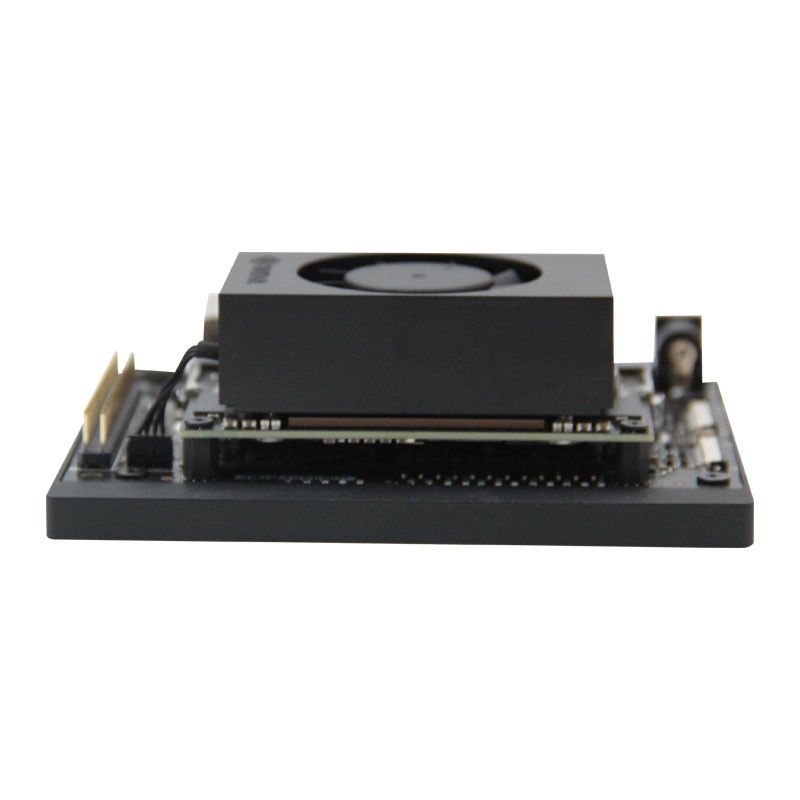

NVIDIA Jetson Orin Nano Developer Kit 945-13766-0000-000 Usb 2.0 Micro-B Connector 8GB 128-Bit LPDDR5
NVIDIA Jeton Orin Nano Developer Kit 945-13766-0000-000
The NVIDIA Jetson Orin Nano developer kit 945-13766-0000-000 is ideal for teaching, learning, and developing AI and robotics. It makes the world of AI and autonomous mechines to everyone with AI products across all industries.Compared to NVIDIA Jetson Nano development kit, Orin Nano 945-13766-0000-000 development kit computing power is much higher than nano development kit computing power,and it gives you up to 80X the performance of NVIDIA Jetson Nano and sets the new standard for entry-level edge AI.40 TOPS of AI performance with power options beteen 5W-15W,this is the new age of robotics.The NVIDIA Jetson Orin Nano Developer Kit 945-13766-0000-000 is even smaller, and includes a reference carrier board compatible with all Orin NX and Orin Nano modules.
| NVIDIA Jetson Nano Developer Kit | NVIDIA Jetson Orin Nano Developer Kit 945-13766-0000-000 | |
|
AI Performance |
472 GFLOPS | 40 TOPS |
| GPU | 128-core NVIDIA Maxwell™ architecture GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| CPU | Quad-core ARM® Cortex®-A57 MPCore processor | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
| Memory | 4GB 64-bit LPDDR4 25.6GB/s |
8GB 128-bit LPDDR5 68 GB/s |
| Storage | 16GB eMMC 5.1 | (SD Card Slot & external NVMe via M.2 Key M) |
| Video Encode | 1x 4K30 (H.265) 2x 1080p60 (H.265) |
1080p30 supported by 1-2 CPU cores |
| Video Decode | 1x 4K60 (H.265) 4x 1080p60 (H.265) |
1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
| CSI Camera | 2x 15-pin 2-lane MIPI CSI-2 camera connectors | 2x MIPI CSI-2 22-pin Camera Connectors |
| Other I/O | 40-pin header (UART, SPI, I2S, I2C, PWM, GPIO) 12-pin automation header 4-pin fan header 4-pin POE header DC power jack Power, Force Recovery, and Reset buttons |
40-pin header (UART, SPI, I2S, I2C, CAN, PWM, DMIC, GPIO) 12-pin automation header 10-pin audio panel header 10-pin JTAG header 4-pin fan header 2-pin RTC batter backup connector microSD slot DC power jack Power, Force Recovery, and Reset buttons |
| Power | 5W - 10W | 15W - 60W |
