| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | Y-C7-Nano |
| Minimum Order Quantity: | 1PCS |
| Price: | USD199-USD219\PCS |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | In stock |
| NAME: | UAV NVIDIA AI Board Jetson Nano Development Board Industrial OEM | Key Word: | UAV NVIDIA AI Board Jetson Nano Development Board Industrial OEM |
|---|---|---|---|
| SD: | Micro SDcard | USB Type-C: | 1x Micro USB 1x USB Type-C 1x USB 2.0 |
| Board Storage: | 64GB EMMC | Expand Interface: | 1x MiniPCIE 1x M.2 Key M |
| RS-232 Level Serial Port: | X1 | 2 Lane MOPI Camera Interface FPC Connector: | X1 |
| Gigabit Ethernet（10/100/1000 BASE-T）Connector: | X1 | HDMI 2.0 Interface: | X1 |
| 3.3V TTL Level UART Port: | X1 | CAN Bus Interface: | X1 |
| Weight: | 40g | Board Size: | 80mm×60mm×8 Mm |
| Power Supply: | DC +9V~+24V | Temperature: | -40~+85℃ |
| High Light: | UAV nvidia ai board jetson,OEM nvidia ai board jetson,UAV jetson board nvidia |
||
UAV NVIDIA AI Board Jetson Nano Development Board Industrial OEM

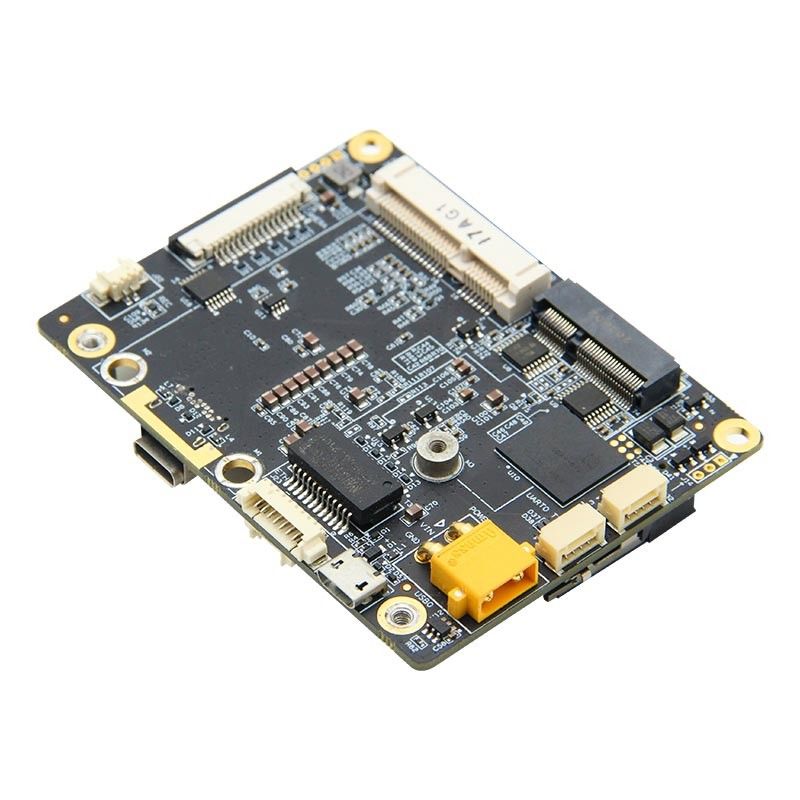

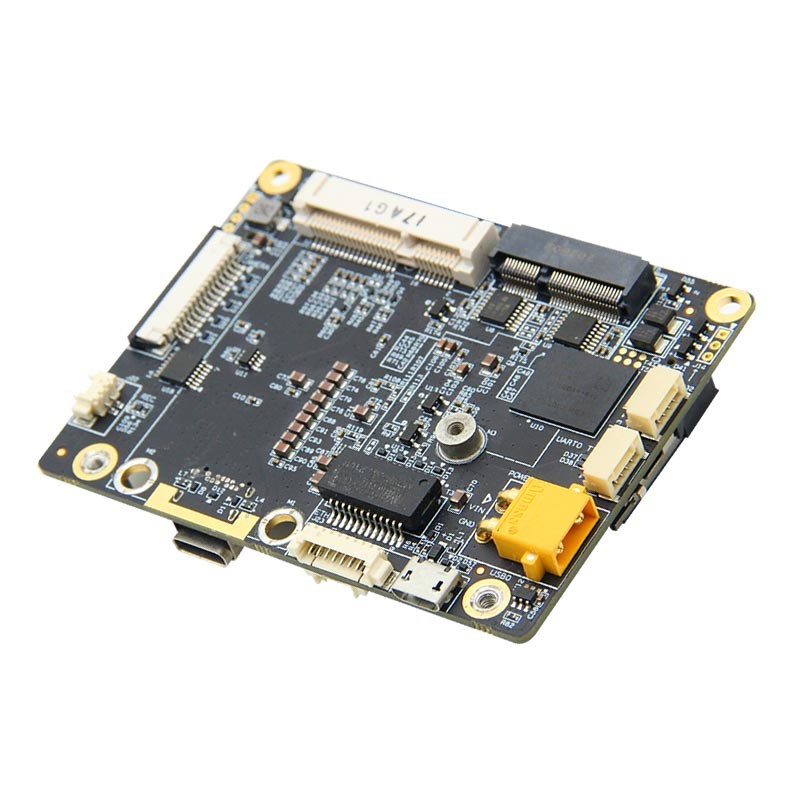

The Y-C7 carrier board is based on NVIDIA Jetson Nano module, also can matches with NVIDIA Jetson TX2 and Xavier NX series, is smaller than a credit card. For the industrial edge AI application of UAV industry, all interfaces adopt the flexible wire outgoing design, so as to improve the seismic performance of the connection with peripherals through flexible wire unloading.
NVIDIA Jetson Nano Module Technocal Specifications
| GPU | NVIDIA Maxwell™ architecture with 128 NVIDIA CUDA® cores 0.5 TFLOPs (FP16) |
| Storage | 16 GB eMMC 5.1 Flash |
| CPU | Quad-core ARM® Cortex®-A57 MPCore processor |
| Memory | 4 GB 64-bit LPDDR4 1600MHz - 25.6 GB/s |
| UPHY | 1 x1/2/4 PCIE, 1x USB 3.0, 3x USB 2.0 |
| Display | HDMI 2.0 or DP1.2 | eDP 1.4 | DSI (1 x2) 2 simultaneous |
| Size | 69.6 mm x 45 mm |
| M.2 Key M | 1 |
| RJ45(10 / 100 / 1000 BASE-T) | 1 |
| GPIO(3.3V) | 3 |
| GPO(3.3V) | 1 |
| I2C(3.3V) | 1 |
| USB 2.0 | 1 |
| Micro USB | 1 |
| RS-232 | 1 |
| MiniPCIe | 1 |
| CAN | 1 |
| USB3.1 Type-C | 1 |
| UART | 1 |
| Fan Control Interface | 1 |
| HDMI 2.0 | 1 |
| Temperature | -40~ + 85°C |
| Power supply requirements | DC + 9V~ + 24V |
| Board size | 80mm * 60mm * 16.8mm |
| Weight | 40g |
* When the Y-C7 carrier board used with NVIDIA Jetson Nano module, the CAN bus interface function is unavailable and the M.2 connector is unavailable.
