| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | Y-C6-Nano |
| Minimum Order Quantity: | 1PCS |
| Price: | USD199-USD219\PCS |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | In stock |
| NAME: | 2 Lane MIPI NVIDIA Jetson Nano Industrial Board For AI Robotics | Key Word: | 2 Lane MIPI NVIDIA Jetson Nano Industrial Board For AI Robotics |
|---|---|---|---|
| Micro USB Connector: | 1x USB 3.1 1x Micro USB | Power: | DC + 9V~ + 24V |
| Camera: | 2x 2 Lane MIPI | Serial Port: | 2x RS232 |
| Function Signal: | 1x CAN 1x SPI 3x GPIO 1x GPO 2x I2C | RJ45 Connector: | X1 |
| Full-length MiniPCIe Connectors: | X2 | Temperature: | -40~+85℃ |
| Board Size: | 120mm * 80mm * 18 Mm | Weight: | 40g |
| High Light: | 2 Lane Edge Computing Board,Nvidia Jetson Nano Edge Computing Board,Mipi Nvidia Board Jetson |
||

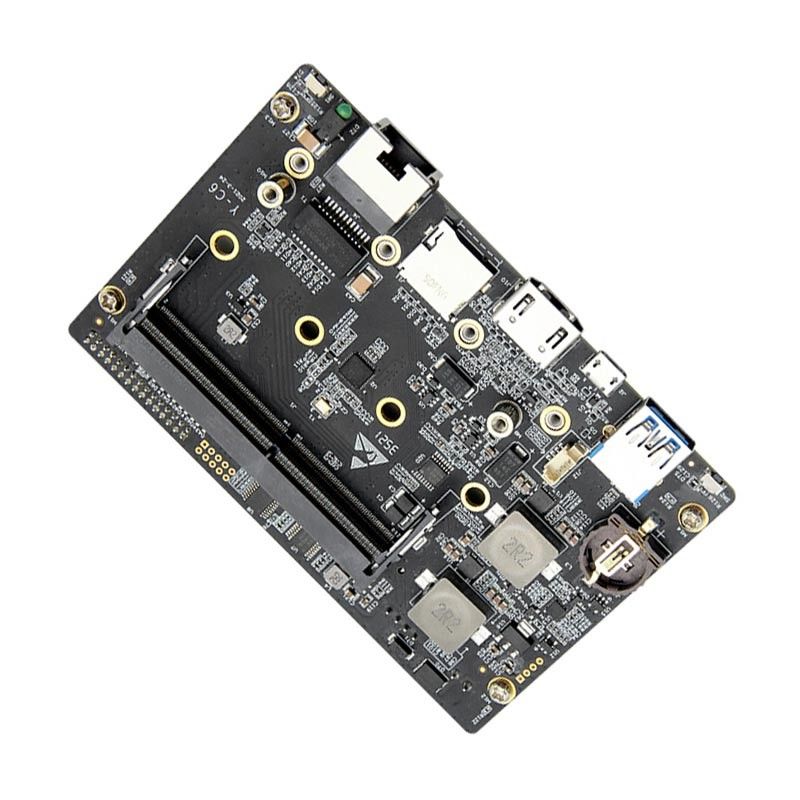

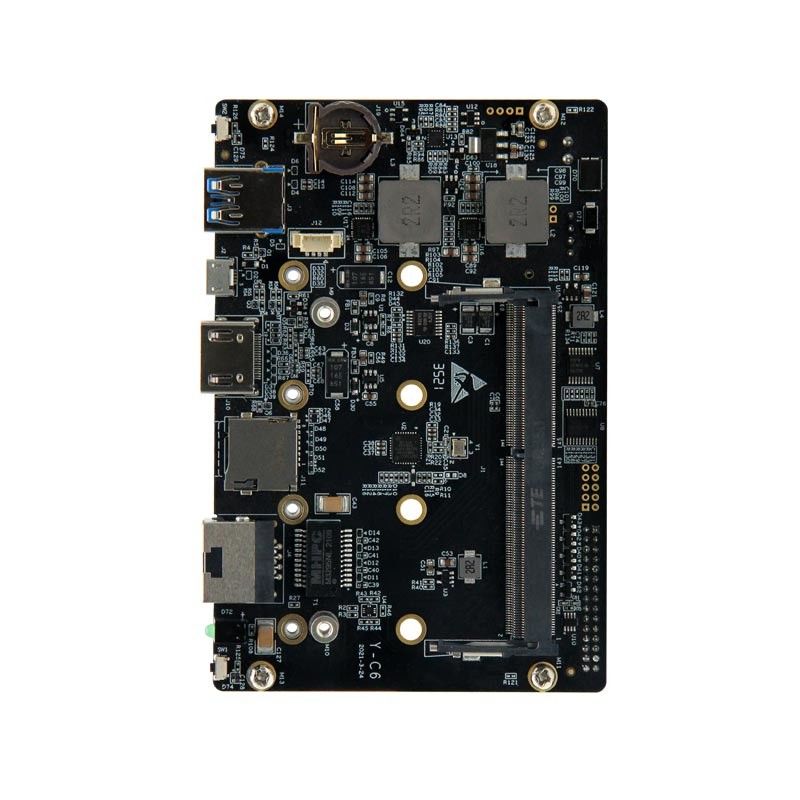

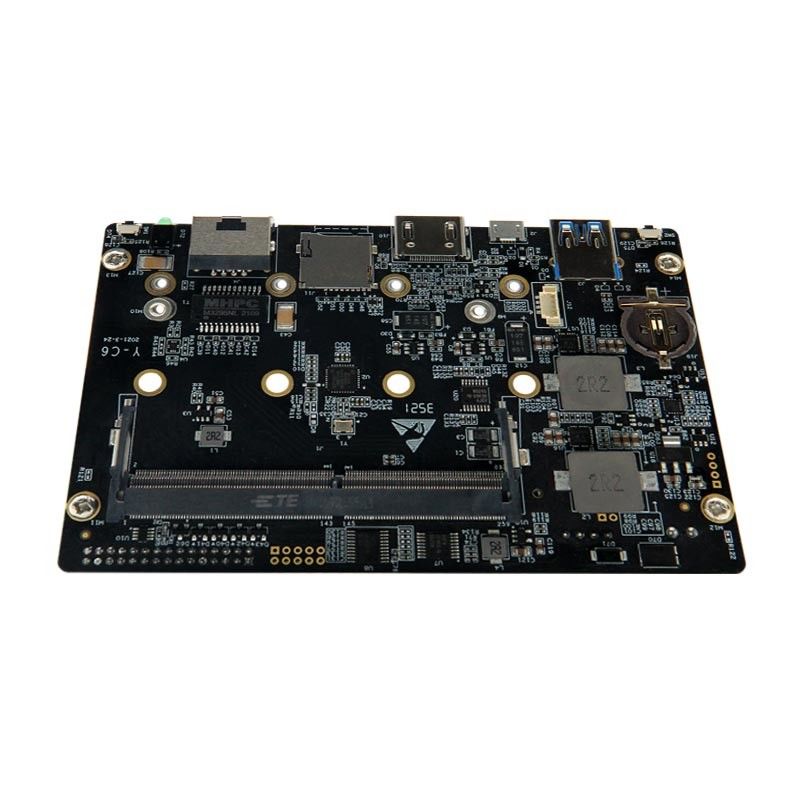

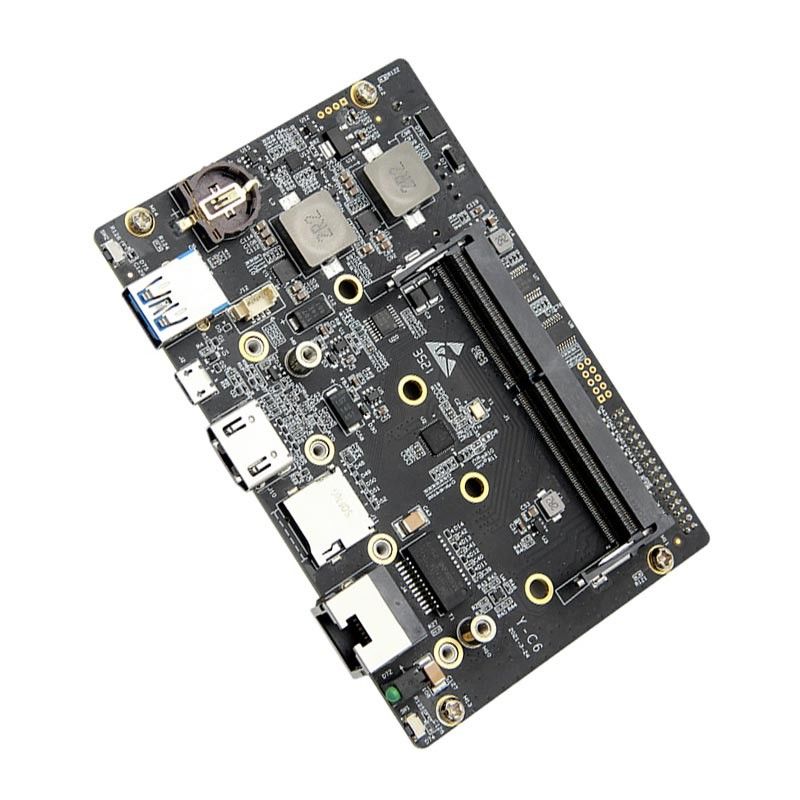

2 Lane MIPI NVIDIA Jetson Nano Industrial Board For AI Robotics
NVIDIA Jetson Nano Development Board
Y-C6-Nano is an edge computing board, based on NVIDIA Jetson Nano module, and it is the industrial board for AI robotics, autopilot, V2X ,UAV, retail etc,.
High-speed connector for connecting the NVIDIA Jetson Nano modules
Micro USB Connector, supporting Device mode only (including USB Recovery)
USB 3.0 Type-A Connector
RJ45 Ethernet, RA, Female
HDMI Type-A Connector
Provide 5V voltage output
Extend 3.3V SPI and I2C signal (10pin)
Size: 120mm * 80mm * 18 mm
Power supply requirements: DC + 9V~ + 24V
Operating temperature: -40~ + 85°C
Weight: 78g
NVIDIA Jetson Nano Module Technical Specifications
|
Memory |
4 GB 64-bit LPDDR4 |
|
Storage |
16 GB eMMC 5.1 Flash |
|
GPU |
NVIDIA Maxwell™ architecture with 128 NVIDIA CUDA® cores |
|
CPU |
Quad-core ARM® Cortex®-A57 MPCore processor |
|
Display |
HDMI 2.0 or DP1.2 | eDP 1.4 | DSI (1 x2) 2 simultaneous |
|
I/O |
1x SDIO / 2x SPI / 4x I2C / 2x I2S / GPIOs -> I2C, I2S |
* When used with the NVIDIA Jetson Nano module, the CAN bus interface function is not available, and the PCIe signal on 1 miniPCIe connector is not available.
|
Interface |
Quality |
|
Micro USB |
1 |
|
USB 3.1 Type-A |
1 |
|
Nano type SIM card |
1 |
|
UART(3.3V) |
1 |
|
SPI(3.3V) |
1 |
|
30pin 2.0mm pitch multi-function expansion pin connector |
1 |
|
CAN |
2 |
|
Working Indicator |
1 |
|
Micro TF card |
1 |
|
I2C(3.3V) |
2 |
|
2 Lane MIPI Camera Interface FPC |
2 |
|
RS-232 |
2 |
|
MiniPCIe |
1 |
|
HDMI 2.0 |
1 |
|
Fan Control Interface |
1 |
|
CR1220 type RTC battery holder (battery not included) |
1 |
|
RJ45(10 / 100 / 1000 BASE-T) |
1 |
Micro-USB2.0
|
Function |
USB 2.0 Connector |
|
Type/Model |
Type-B standard Micro USB 2.0 interface (for burning operating system) |
