| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | Nano-DEV-02 |
| Minimum Order Quantity: | 1pcs |
| Price: | To be discussed |
| Packaging Details: | 110 mm x 90 mm x 30 mm |
| Delivery Time: | 15-30 wok days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 100pcs 30work days |
| NAME: | Nvidia Jetson Nano Machine Learning Development Boards For Robotics | Keyword: | Nvidia Jetson Nano Machine Learning Development Boards For Robotics |
|---|---|---|---|
| Memory: | 4GB 64-bit LPDDR4 25.6GB/s | CPU: | Quad-core ARM A57 @ 1.43 GHz |
| Storage: | 16GB EMMC 5.1 /microSD | GPU: | 128-core NVIDIA Maxwell™ |
| Display: | HDMI/DP | Camera: | 2x MIPI CSI-2 DPHY Lanes |
| Video Decode: | 4K @ 60 | 2x 4K @ 30 | 8x 1080p @ 30 | 18x 720p @ 30 (H.264/H.265) | Size: | 100 Mm X 80 Mm X 28 Mm |
| High Light: | Nvidia machine learning development board,Jetson machine learning development board,Jetson development boards for robotics |
||

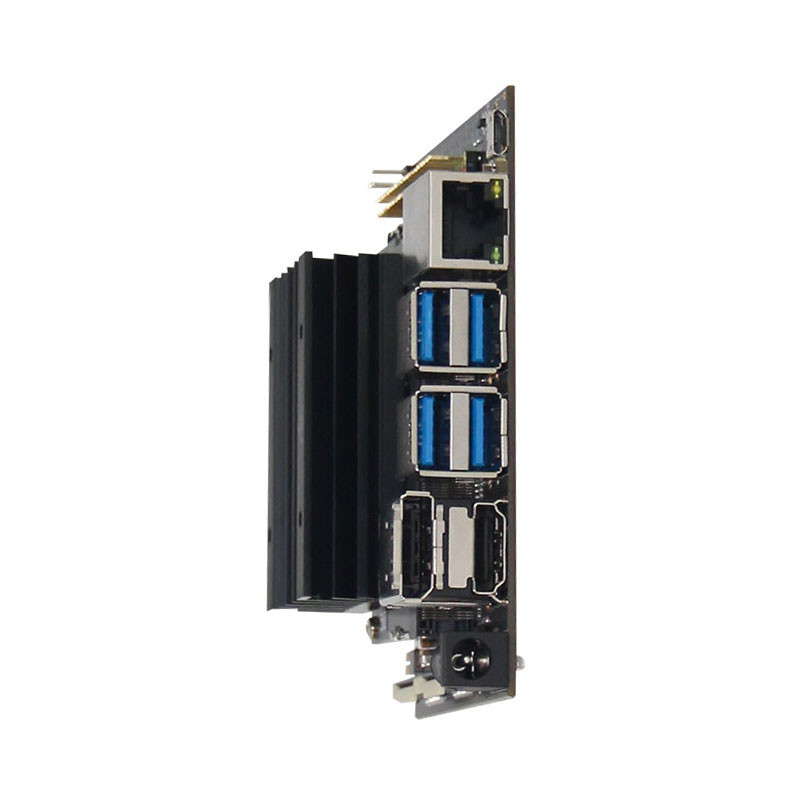

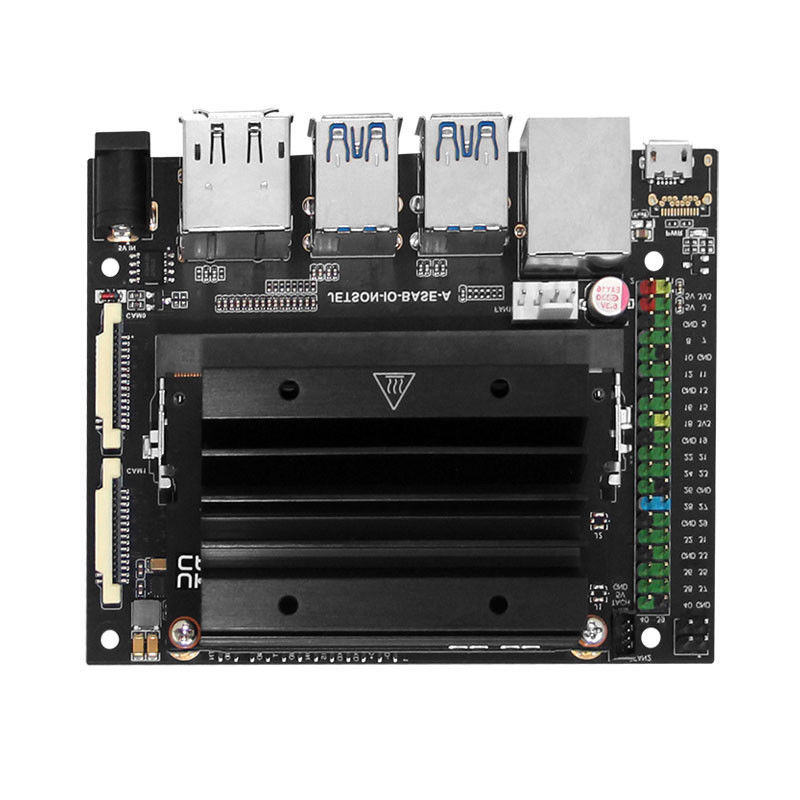

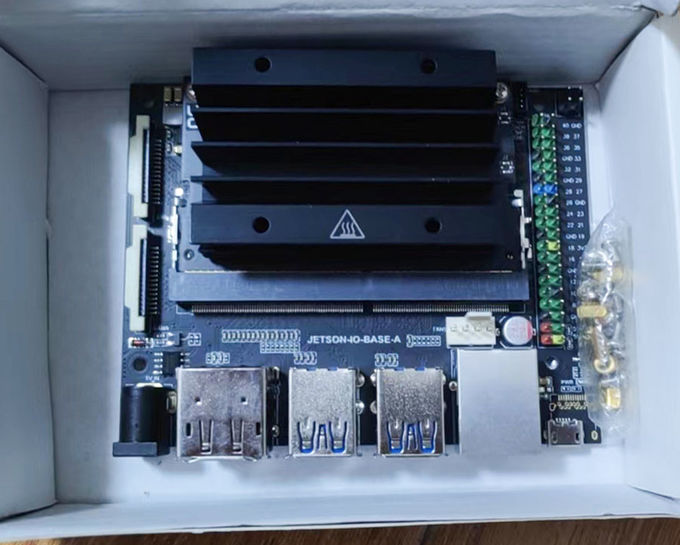

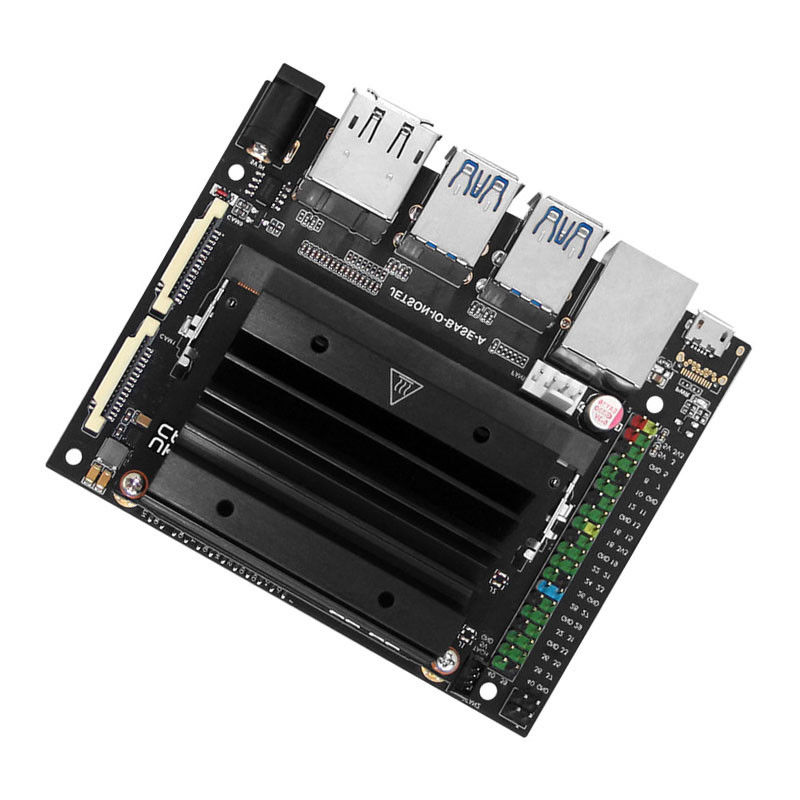

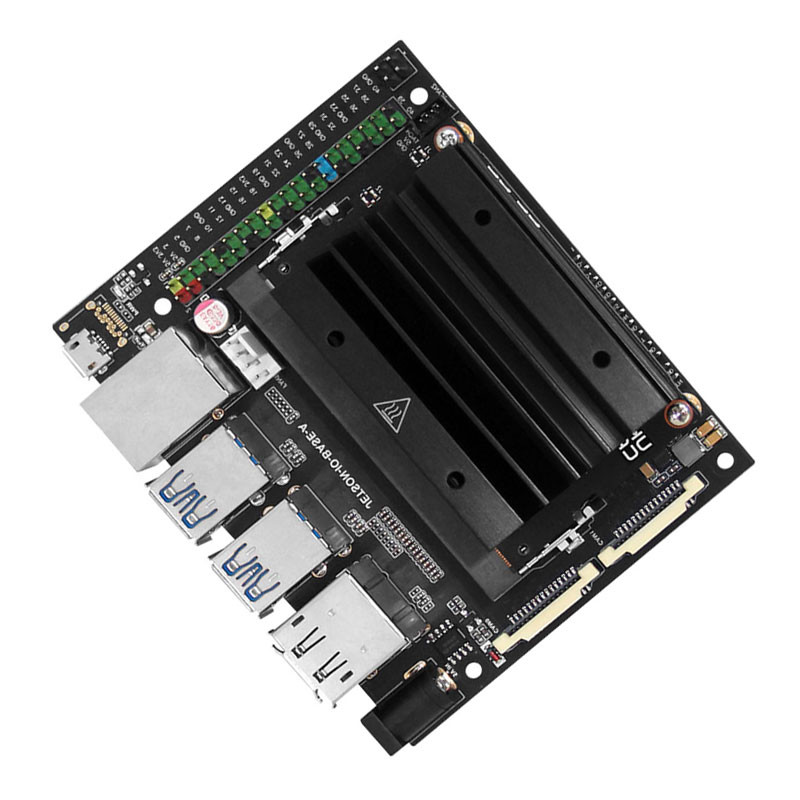

Nvidia Jetson Nano Machine Learning Development Boards For Robotics
NVIDIA Jetson Nano 4GB Developer Kit domestic (Nano-DEV)
Nano-DEV is an edge AI industrial developer kit which is based on NVIDIA Jetson Nano module, it is produced by PLINK- AI, the edge computing board has 4 GB LPDDR4 memory.
Quad-core ARM A57 @ 1.43 GHz
16GB eMMC 5.1 /microSD
4 GB 64-bit LPDDR4 25.6 GB/s
NVIDIA Jetson nano module inside
Support M.2 E key NVME hard disk
2x MIPI CSI-2 DPHY lanes
| Memory |
4 GB 64-bit LPDDR4 25.6 GB/s |
| CPU |
Quad-core ARM A57 @ 1.43 GHz |
| Power Supply |
DC + 9V |
| Storage |
16GB eMMC 5.1 /microSD |
| Display | HDMI/DP |
| GPU | 128-core NVIDIA Maxwell™ |
| Camera |
2x MIPI CSI-2 DPHY lanes |
|
Operating temperature |
-0~ + 50°C |
| Video Encode |
4K @ 30 | 4x 1080p @ 30 | 9x 720p @ 30 (H.264/H.265) |
| Video Decode |
4K @ 60 | 2x 4K @ 30 | 8x 1080p @ 30 | 18x 720p @ 30 (H.264/H.265) |
| USB | 4x USB 3.0 |
| 1x USB 2.0 | |
| Other I/O |
40-PIN GPIO FAN Header (GPIO,I2C,I2S,SPI,UART) |
| Mechanical | 100 mm x 80 mm x 28 mm |
Differences between NVIDIA Jetson Nano-DEV domestic and official kits
|
Nano-DEV |
NVIDIA Jetson Nano DEV | |
| Storage |
16GB eMMC |
No storage medium |
|
micro SD |
micro SD |
